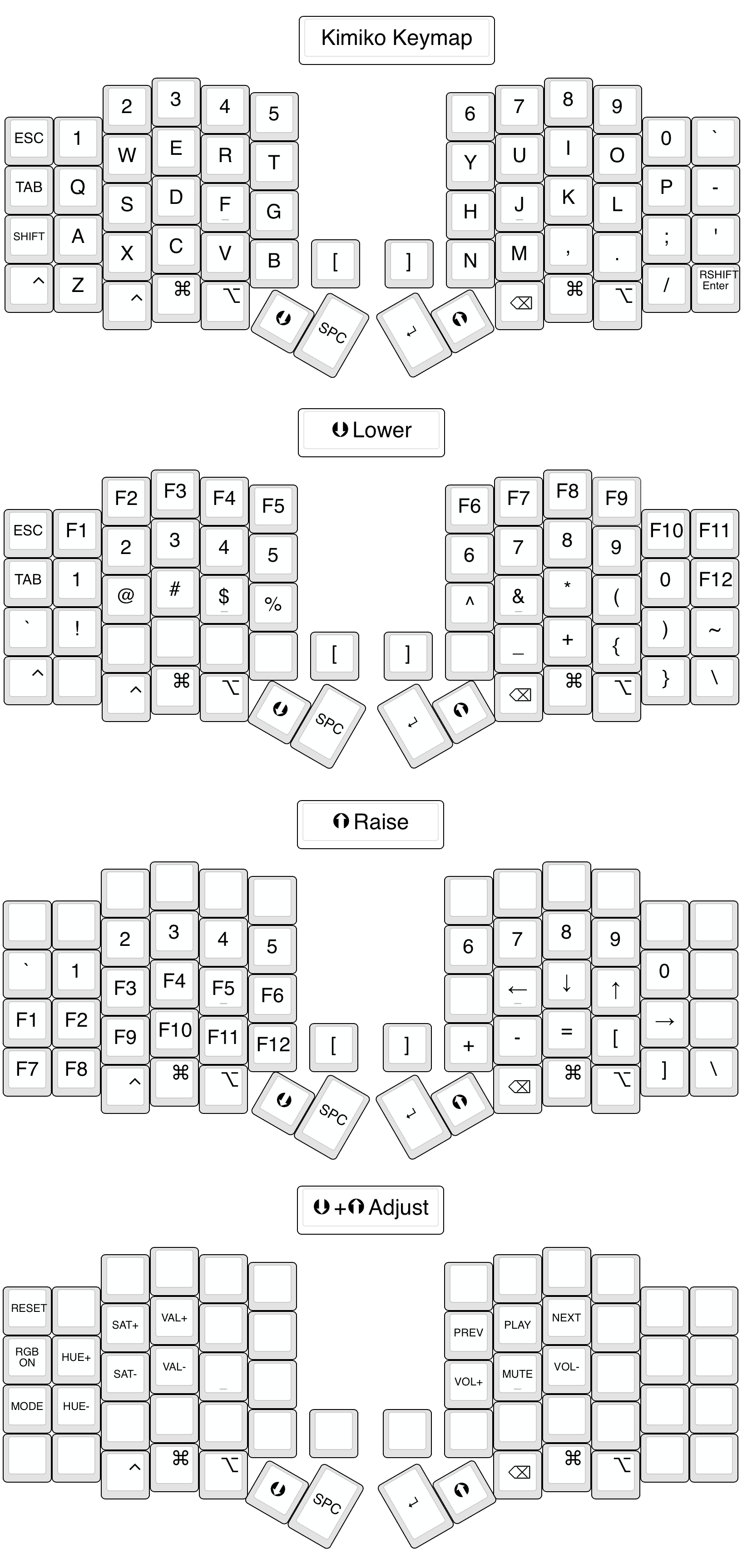

Kimiko Split Keyboard Default QMK Keymap

€18.00 *

Prices incl. VAT plus shipping costs

Ready to ship,
Delivery time 2-5 workdays (Germany),
appr. 5-14 workdays (EU),
appr. 14-50 workdays (International)

Variant:

  • Order number: KC10104_MX_BK
Description Evaluations 0
Description
  Support for one rotary encoder on each half (two possible positions) Per key RGB... more
Close menu
Kimiko Rev1 Split Keyboard PCB



  • Support for one rotary encoder on each half (two possible positions)
  • Per key RGB LED support with SK6812 Mini-E (easier to solder as normal SK6812 Mini)
  • Switches are hotswappable via Kailh MX Hotswap Sockets
  • MX switches and clones are compatible (3Pin/5Pin) (not Choc)
  • LeadFree HASL PCB surface finish



Variant includes:

  • MX Black PCB: 2pcs swapable pcb's (no solder parts)
  • Parts Kit: 60x SMD Diodes / 2x Tactile reset switch / 2x TRRS jack / 2x sockets for the oled display



You also need:

  • 1x Solder parts kit (choose extra in dropdown)
  • 60x MX Kailh Hot Swap sockets
  • 60x MX switches
  • 2x Pro Micro or Drop-In replacment (Helios, Puchi-BLE, ...)
  • Case
  • Keycaps
  • TRRS cable (4-pole)
  • Optional: 1-2 rotary encoders
  • Optional: 1-2 OLED SSD1306 display
  • Optional: 60x SK6812 Mini-E led's for per key light

QMK keymap available here.

Build-Guide

Drawings (SVG, DXF) to create your own case, can be found here.
3D printable case by PahaniJulmu

Test the Layout
Print the linked PDF at 100% scale on a A4 page.

kimiko-layout-test-thumbnail



Photos of the completed keyboard are for demonstration purposes only.
Please note that this pcb must be assembled (soldering) and does not include mcu, switches or keycaps.
