Single Row Socket Headers or Pins (Mill-Max Series 315)

Mill-Max
(1)

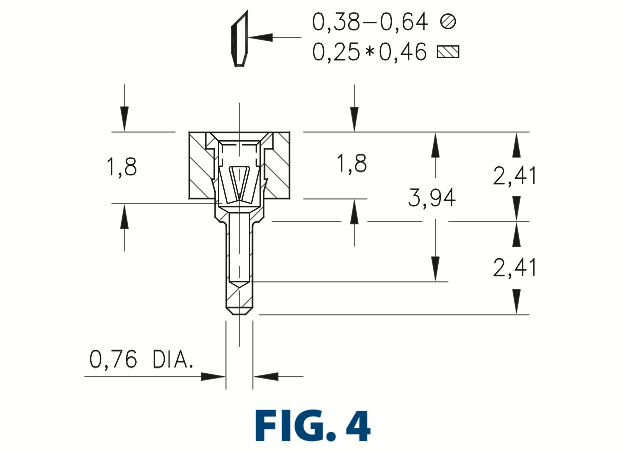

Preview: through hole connector single row socket headers series 315 12 position Preview: through hole connector single row socket headers series 315 12 position Preview: through hole connector single row socket headers series 315
through hole connector single row socket headers series 315 12 position
through hole connector single row socket headers series 315 12 position
through hole connector single row socket headers series 315

€5.90 *

Prices incl. VAT plus shipping costs

Ready to ship,
Delivery time 2-5 workdays (Germany),
appr. 5-14 workdays (EU),
appr. 14-50 workdays (International)

Variant:

  • Order number: KC10067_header
Description Evaluations 1
Description
Sockets does not include the Pins. These can be ordered separately from the Drop-Down... more
Close menu
Single Row Socket Headers or Pins (Mill-Max Series 315)

Sockets does not include the Pins. These can be ordered separately from the Drop-Down Menu.

  • Sockets 1x QTY includes 2pcs socket headers, for a Split-Keyboard you need 2x QTY (4pcs socket headers)
  • Pitch: 0.100" (2.54mm)
  • Contact Finish: Gold
  • Header Datasheet Link
  • Pin Datasheet Link
  • Instead of the pins, you can use legs from diodes or resistors

Pins

  • Length: 0.250" (6.35mm)
  • Diameter: 0.020" (0.51mm)



For a Split-Keyboard you need 2 QTY (4x Sockets)

Example how to use the sockets.

Safety information

EU responsible person: Keycapsss | Benjamin Rösner, Löhrstr. 11, 04105 Leipzig, Germany
Contact: Keycapsss.com

Evaluations 1
Read, write and discuss reviews... more
Close menu
Customer evaluation for "Single Row Socket Headers or Pins (Mill-Max Series 315)"
From: On: 4 May 2021

Make your MCUs swappable!

These sockets are to be installed on the PCB to enable the MCU of your choice to be easily put on and pulled off - great for repairing or replacing it entirely.

Quality is as expected from mill-max. Finally a shop in Germany to source from. They are compatible with the separately available mill-max pins or just diode legs!
