Keyboard Parts

Loongcat40 PCB

The loongcat40 is a 4x10 gasket mounted keyboard featuring a large OLED. Blog Post 3D printable case files Firmware files BOM 40 hotswap sockets 40 diodes 1 2.08" OLED LCD (SH1122) 3mm poron gasket strips (80mm x 3mm x 4mm) 1 Raspberry Pi Pico 1 3D printed parts 4 TPU oled standoffs used to make sure that the oled is aligned when soldering 1 3D printed case 12 5mm M2 screws 4 rubber bumpons PCB design by David BarrPhotos of the completed keyboard are for demonstration purposes only. Please note that this pcb must be assembled (soldering) and does not include mcu, switches or keycaps.

Banime40 PCB

The Banime40 is a 4x10 gasket mounted hotswap ortho keyboard that supports multiple configurations. Hotswap Gasket Mounted Multiple layouts supported Grid, MIT, HHKB, WKL, REVIUNG33, and other layouts supported (3D printable case files) A modular top ("mod top™") system is used, allowing you to print and swap out the top piece of the case, depending on what layout you wish to use VIA Compatible * hex file can be found in the firmware section VIA json available to be sidedloaded with VIAL QMK PR merged Required parts40x MX Hotswap sockets40x SMD Diodes (SOD-123FL or similar)1x Pro Micro compatible MCU (Helios, Puchi-BLE, ...)Sockets for MCU1-2x rotary encoder EC11 (optional)40x MX switches40x MX compatible keycaps PCB design by David BarrPhotos of the completed keyboard are for demonstration purposes only. Please note that this pcb must be assembled (soldering) and does not include mcu, switches or keycaps.

Rubber Feet - Bumpons

Self adhesive Variant 8x2mm 8pcs - clear (8mm diameter, 2mm height) 15x2mm 8pcs - black (15mm diameter, 2mm height)63x10x2mm 4pcs - clear (very soft)

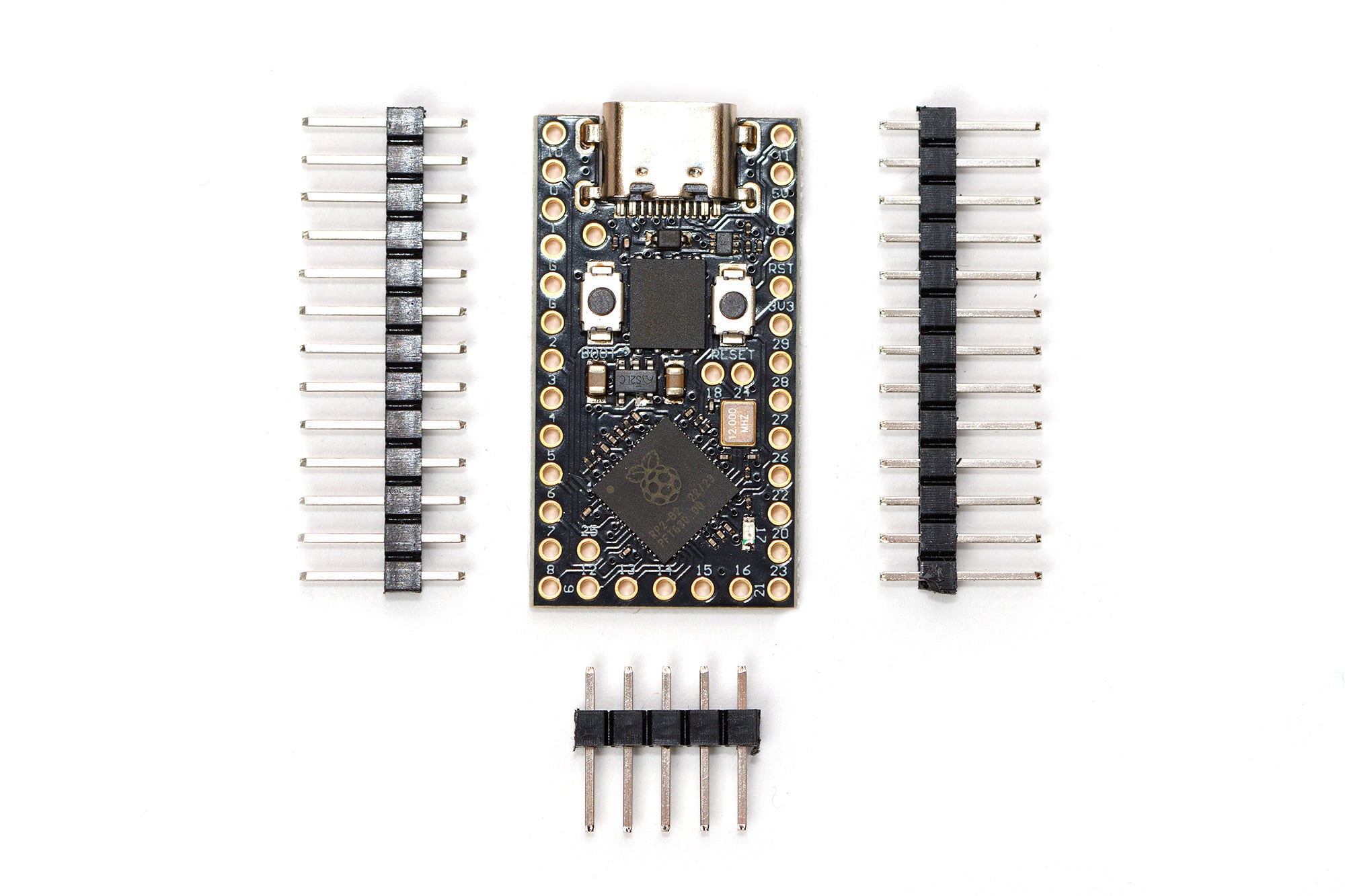

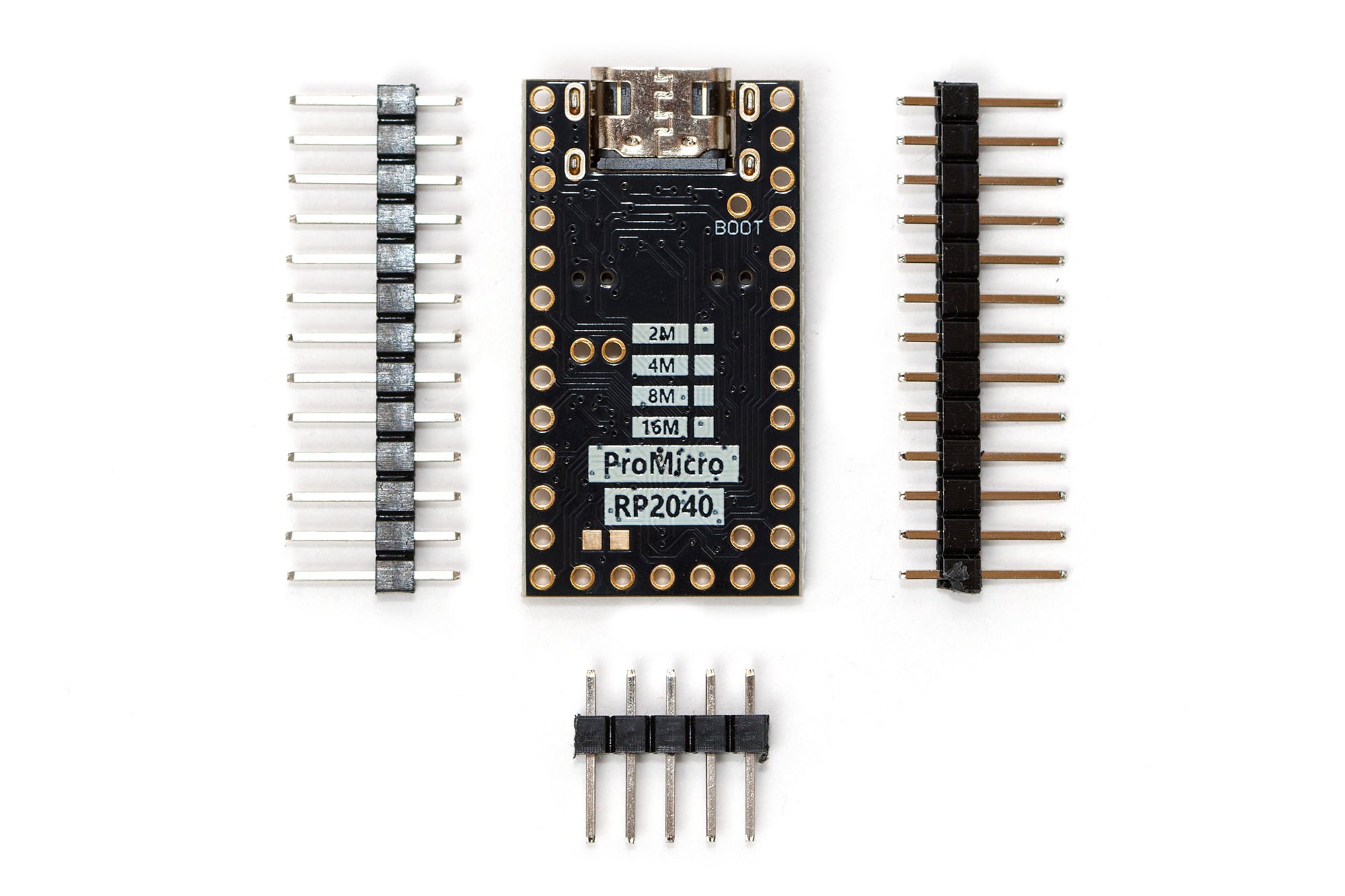

RP2040 Pro Micro 16MB USB-C

Pin compatible with Pro Micro 32u416MB flash memory26 GPIO pins (2 SPI, 2 I2C, 2 UART, 3 12-bit ADC, 16 controllable PWM channelsDimension: 18x33mm (0,71 x 1,3 inch)

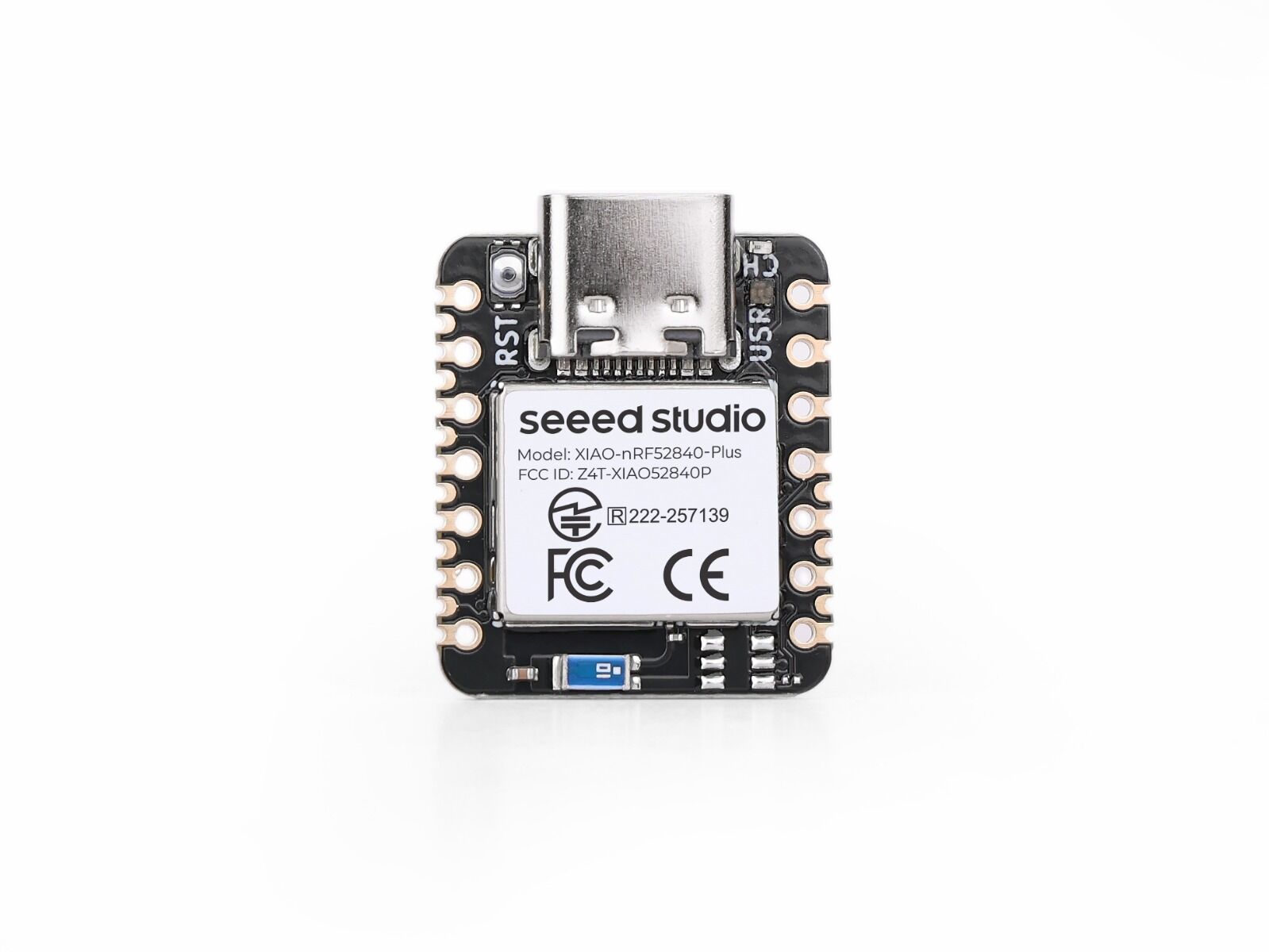

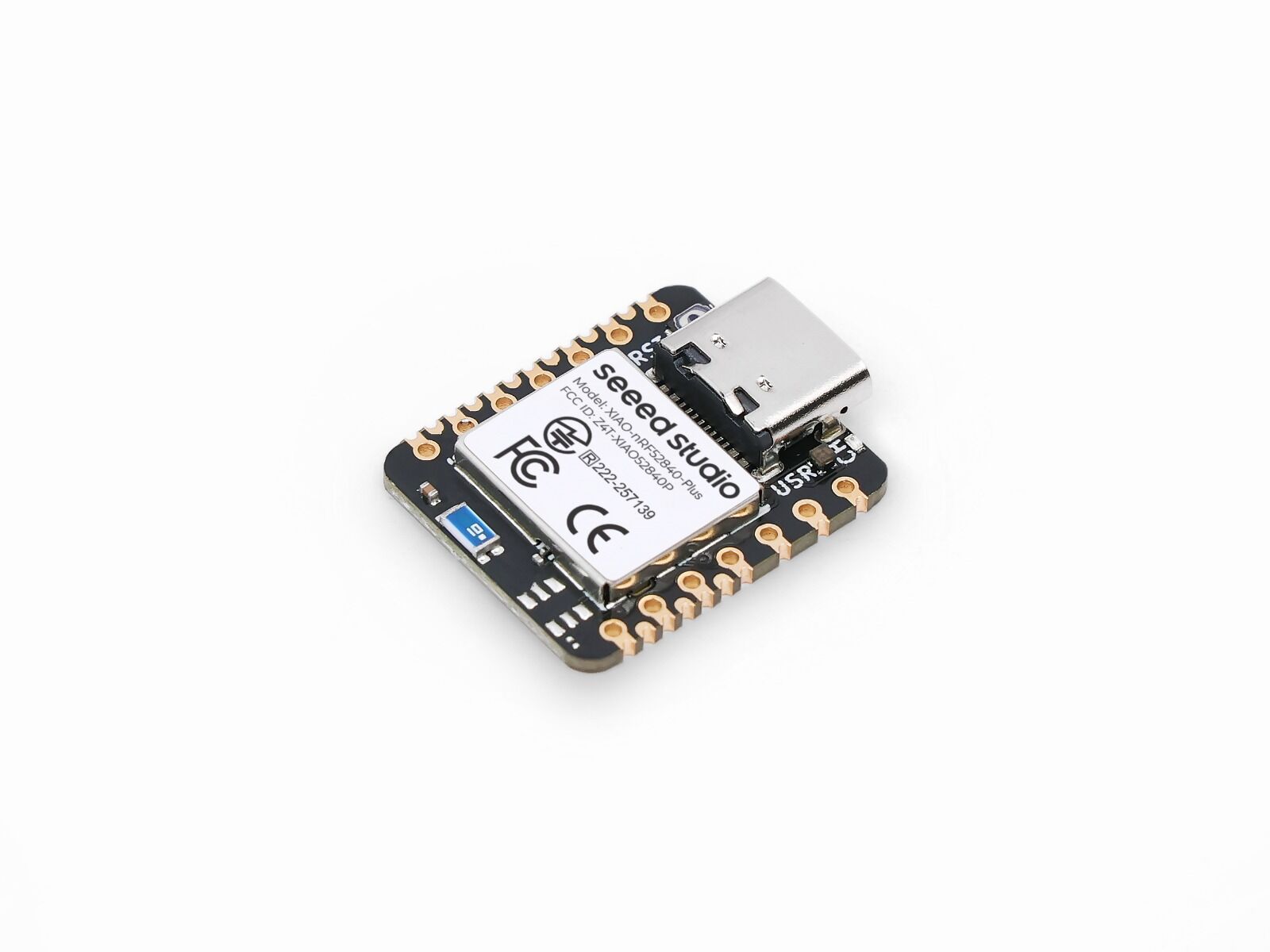

Seeed XIAO nRF52840 Plus

Seeed Studio XIAO nRF52840 Plus, powered by Nordic chipset with FPU, brings more SMD pins to our popular Bluetooth-enabled board. While maintaining all the capabilities of the standard version including Bluetooth 5.0, NFC, and low power consumption, this Plus variant features redesigned castellations and pad layout on the back, offering 9 additional GPIOs specifically for advanced Bluetooth projects requiring expanded I/Os via SMD board-to-board soldering. Please note Seeed Studio XIAO Plus doesn‘t come with 7-pin headers as it's designed for SMD board-to-board soldering.High-Performance MCU: Nordic Semiconductor‘s nRF52840 chip with FPU at 64 MHz, multiple development ports, compatible with Arduino/CircuitPython/MicroPythonAdvanced Wireless Connectivity: Bluetooth 5.0 with built-in antenna and NFC supportEfficient Power Management: 5 μA deep sleep consumption with integrated Li-ion battery chargingExpanded 20 GPIOs: 9 extra 1.27mm pitch SMD castellation pins beyond standard XIAO nRF52840Universal Compatibility: Standard backside layout (with aligned battery pads, and debugger pads) for more to-be-released XIAO expansion boardsClassic XIAO Form Factor: 21 x 17.8mm design with 2.54mm pin headers, single-sided mounting for wearables and space-constrained projectsXIAO Accessory Add-ons Compatibility: Natively compatible with all the XIAO accessory add-ons of expansion, connectivity modules (LoRa, CAN_Bus, RS-485), sensors (2-Mic Array, Vision AI, mmWave Motion, Environmental sensing), and actuators (ePaper display, LED Matrix, relay and more).Getting Started with Seeed Studio XIAO nRF52840 Series | Seeed Studio WikiSchematicNordic nRF52840 Data SheetPCN-XIAO Series Packaging Upgrade.pdf Item Seeed Studio XIAO nRF52840 Seeed Studio XIAO nRF52840 Plus Seeed Studio XIAO nRF52840 Sense Plus Processor Nordic nRF52840, ARM® Cortex®-M4 32-bit processor with FPU, 64 MHz Wireless Connectivity Bluetooth 5.0/BLE/NFC Memory 256KB RAM,1MB Flash 2MB onboard Flash Built-in Sensors N/A 6 DOF IMU (LSM6DS3TR-C), PDM Microphone Interfaces 1xI2C, 1xUART, 1xSPI 1xI2C, 2xUART, 2xSPI, 1xI2S PWM/Analog Pins 11/6 20/6 Onboard Buttons Reset Button Onboard LEDs 3-in-one LED/ Charge LED Battery Charge Chip BQ25101 Programming Languages Arduino/MicroPython/CircuitPython

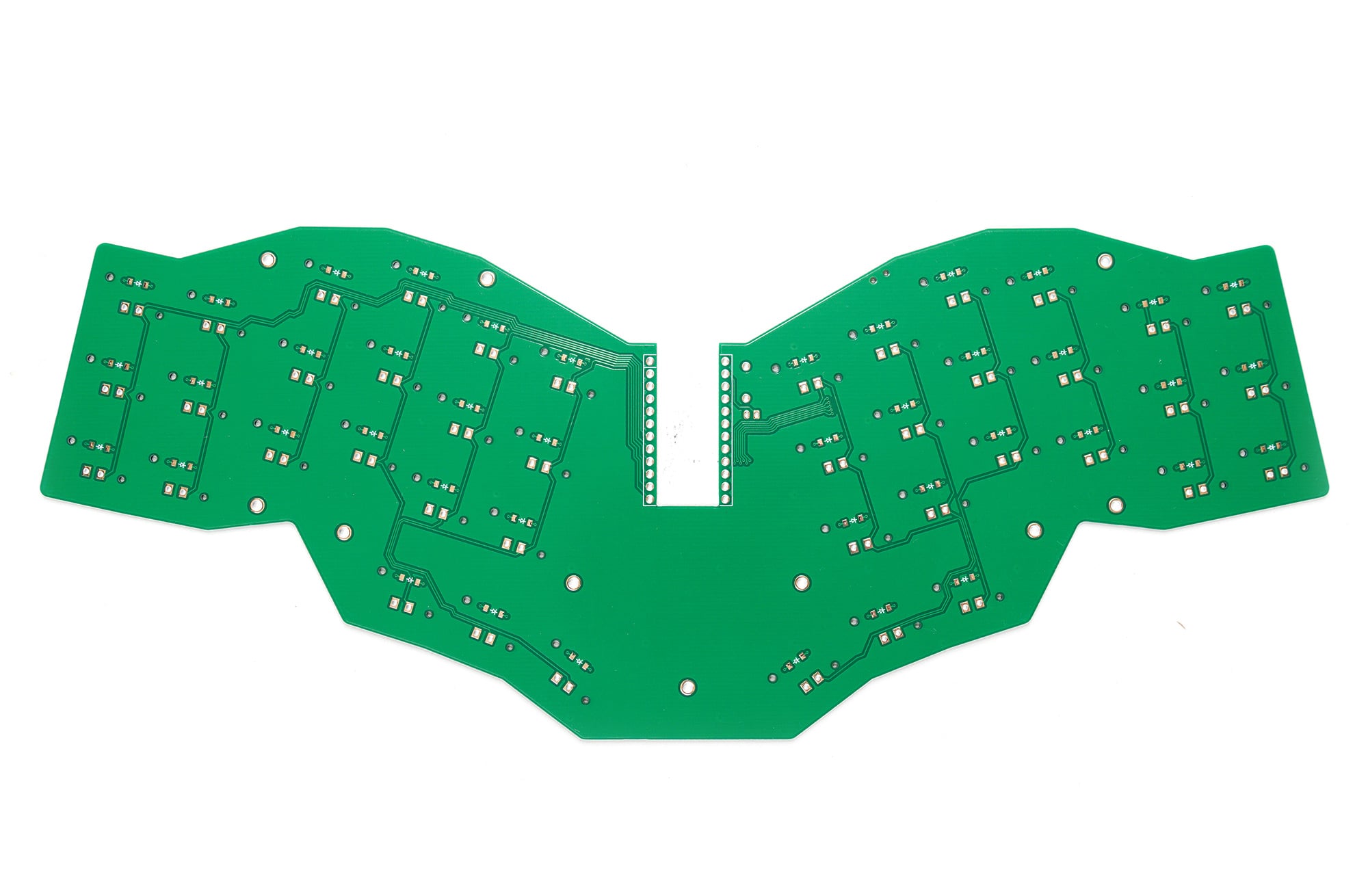

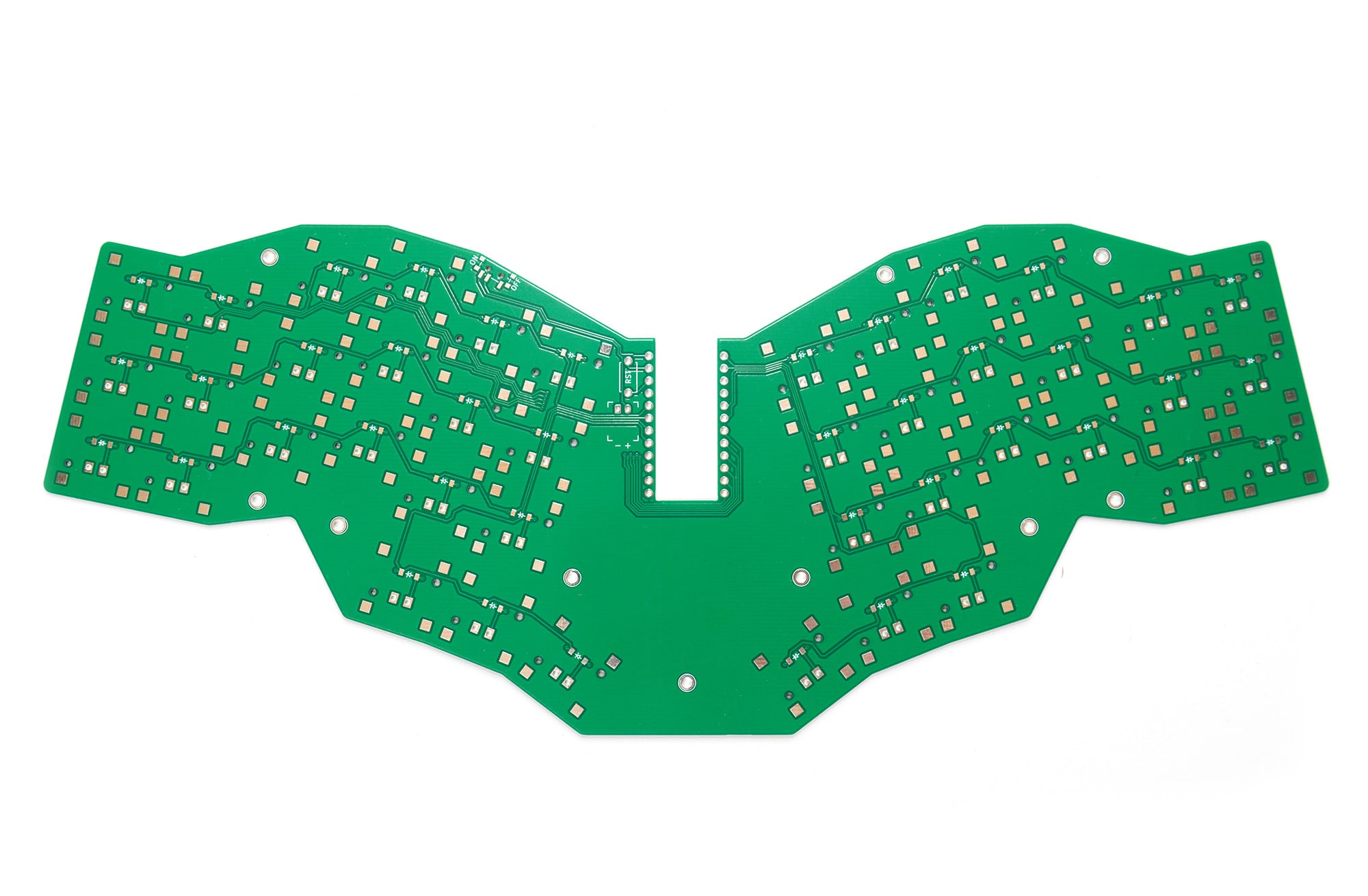

Wingman PCB

The Wingman is a 42 key unibody keyboard with support for the Kailh PG1316S ultra thin notebook switches.PCB features:This board can be 100% hand soldered with a normal soldering iron. No hot plate requiredOnly 6mm thickFull zmk support including zmk studio for easy remappingYou also need:1x Nice Nano v2, or Puchi-BLE42x PG1316S switches42x PG1316S keycaps1x LiPo Battery 1SCaseEven though this can be hand soldered, this is an advanced project, if you have never built a keyboard I would advise against this being your first projectPCB design by vuozPhotos of the completed keyboard are for demonstration purposes only. Please note that this pcb must be assembled (soldering) and does not include mcu, switches or keycaps.

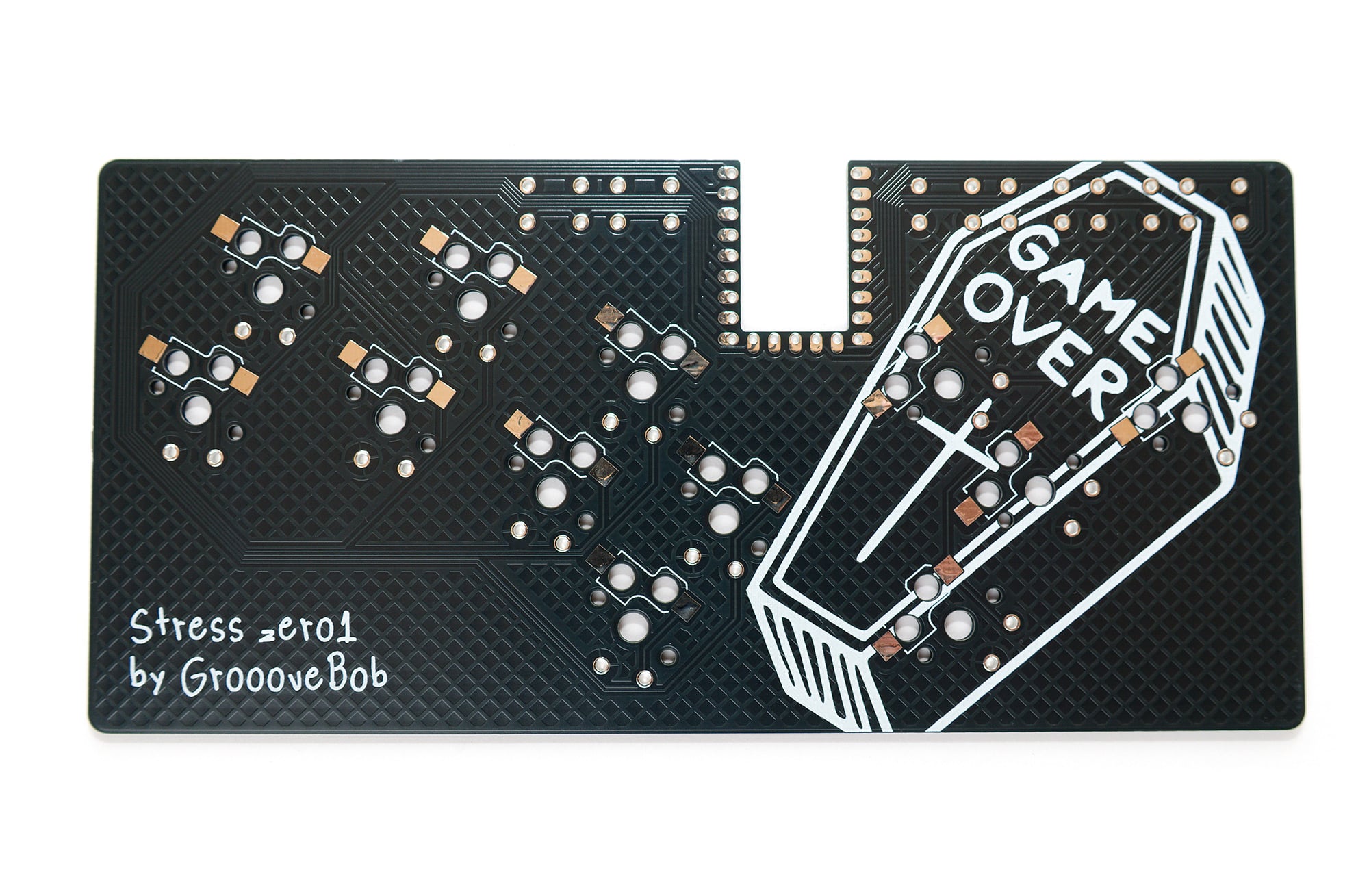

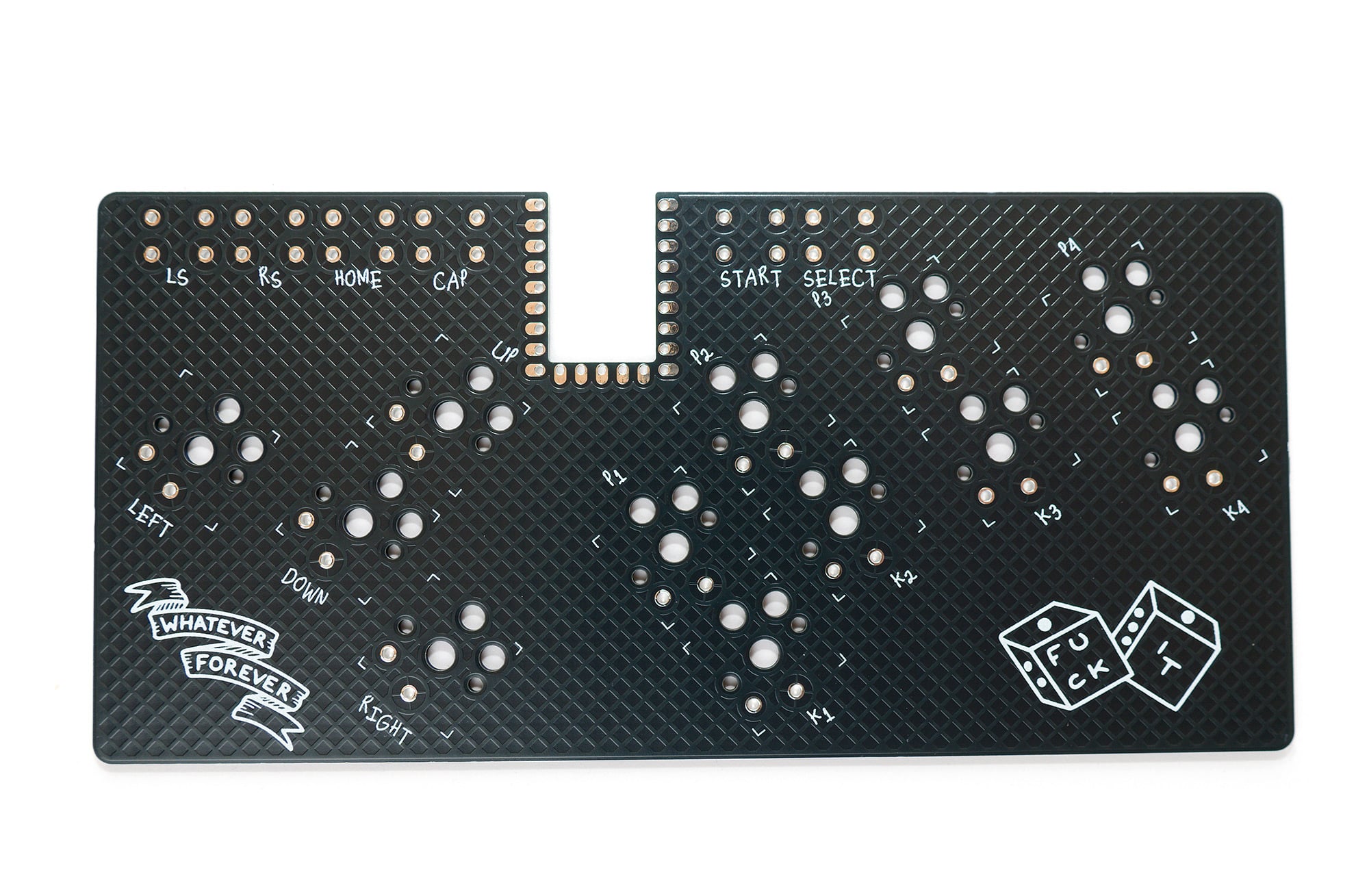

Stress - Pocket Fight Pad PCB

The pocket arcade fight pad is a compact and portable gaming controller that is designed for fighting game enthusiasts. It is powered by the GP2040 software from Open Stick Community, which provides seamless compatibility with various gaming platforms and ensures smooth and responsive gameplay. GP2040 firmware support with a Gemini or Waveshare rp2040-zeroHotswap Socket support for Kailh Choc V1 low profiles switchesCompact form factor with 14.5cm x 7cm (5.7″ x 2.76″)One of the key features of the pocket arcade fight pad is its use of choc switches, which are known for their fast actuation. These switches provide an excellent balance of speed and precision, making them ideal for fighting games that require quick reflexes and precise inputs.Despite its small size, the pocket arcade fight pad packs a lot of functionality, including a D-pad, six face buttons, and two shoulder buttons. This allows players to execute complex combos and special moves with ease, and provides a satisfying and immersive gaming experience.You also need:1x Gemini or Waveshare rp2040-zero12x Kailh Hotswap Sockets for Choc switches6x Tactile buttons (Through Hole-4P,6x6mm)Case (3d printed)PCB design by GroooveBobPhotos of the completed keyboard are for demonstration purposes only. Please note that this pcb must be assembled (soldering) and does not include mcu, switches or keycaps.

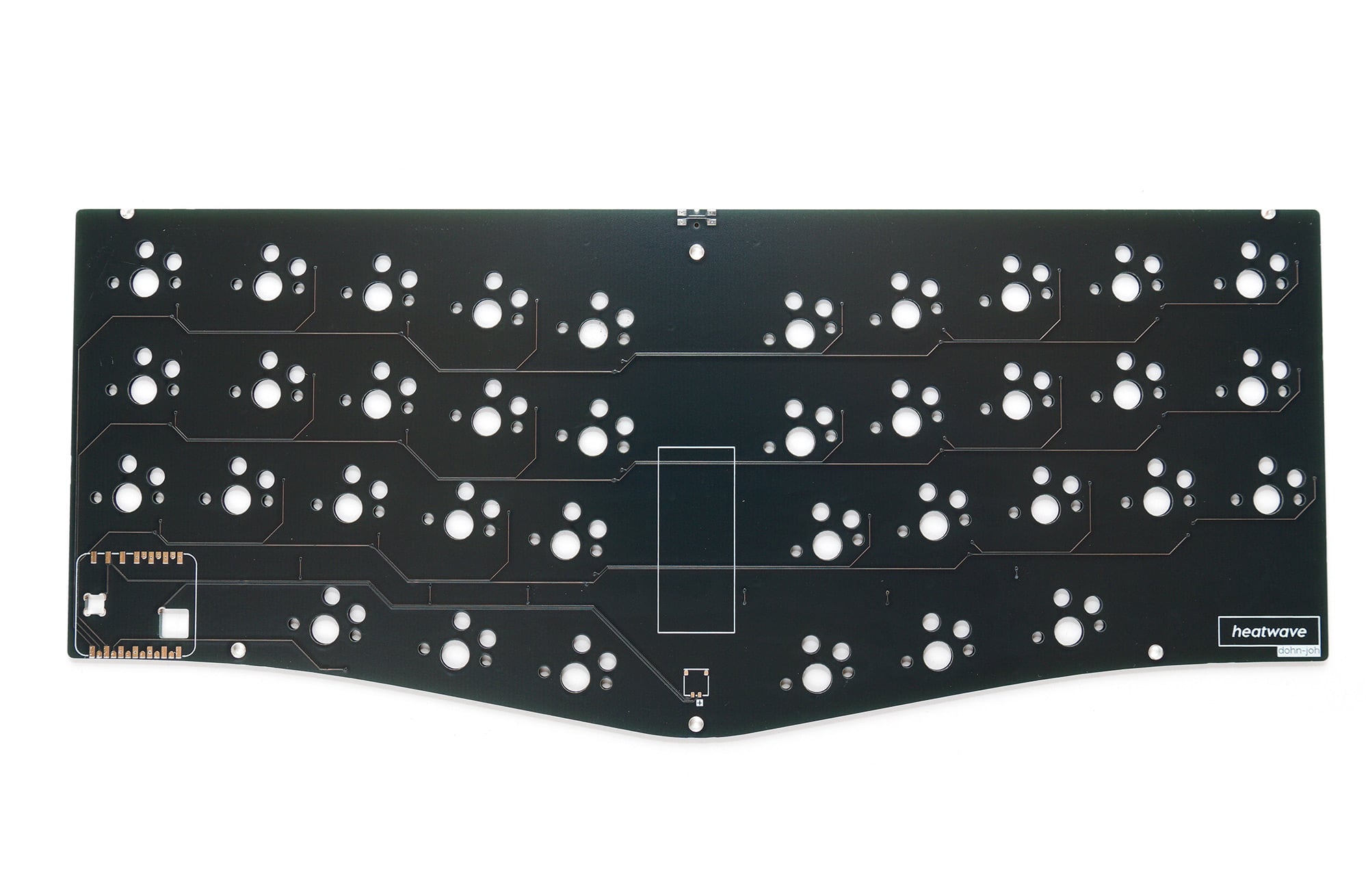

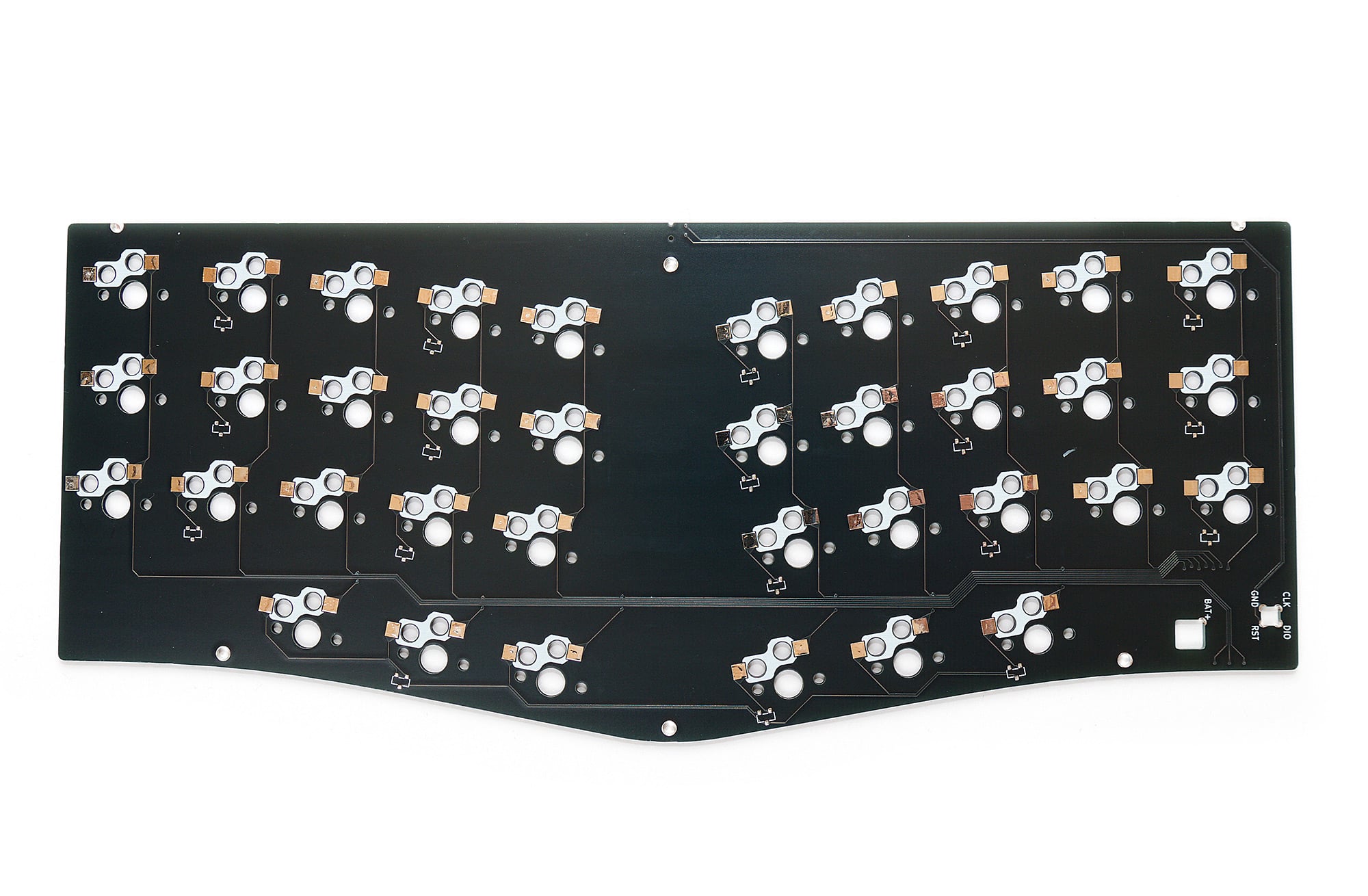

Heatwave PCB

Heatwave is a 36-key wireless, curved alpha stagger keyboard with integrated lever keycaps.ZMK ModuleVideo3D printable case filesBOMPCB design by dohn-johPhotos of the completed keyboard are for demonstration purposes only. Please note that this pcb must be assembled (soldering) and does not include mcu, switches or keycaps.

Planck compatible Top Plate for LO-PRO Case

These top plate's fit's to the Planck Lo-Pro bottom case from OLKB. Supports GRID, MIT (1x 2xU) and 2x 2U layout. Compatible with Cherry MX switches, and MX clones (Durock, Gateron, Kailh, Zealio …) Plate is 1.5 mm thick (FR4: 1.6mm) With top opening holes (lubing switches without desoldering) 5 holes (2.5mm) for screws (M2-M2.5) to attach it to the bottom case GRID SPACING (GS): 19mmFlexibility (left most flexible, right rigid): PLA - FR4 - Carbon - Aluminum - Brass These plates are not compatible with Hi-Pro Planck cases from OLBK. Compatible plates can be found here. FR4FR-4 is a composite material composed of woven fiberglass cloth with an epoxy resin binderInexpensive and durable material27gCarbonSuperior material, but higher priceVery lightweight22g

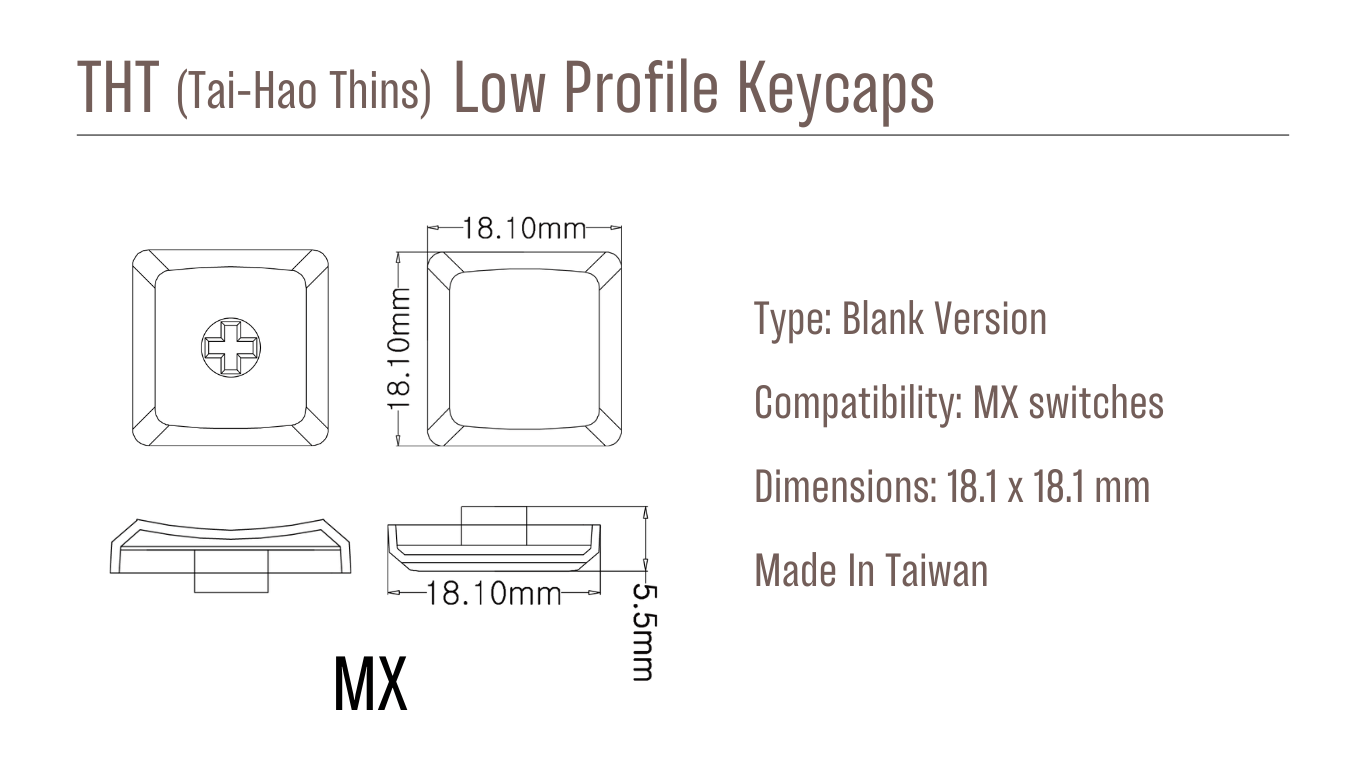

THT Low Profile MX Blank Keycaps 18-Key Set Tai-Hao Thin

Compatible with MX and Choc V2 switches (not Choc V1) Dimensions: 18.10mm x 18.10mm (keycaps will not fit, if the pcb has a choc grid spacing, for example the Piantor) Material: PBT (Black, Brisk Lemon, Deep Mocha, Forest Green, White), ABS (Baby Blue, Purple)Two homing keycaps are included with the 18-key set

THCS Low Profile Keycaps - DOT PBT Double Shot Tai-Hao

Profile:THCS Profile Keycap (Tai-Hao Chocs)Color: Black/Onyx (Dot is shine through)Size: 16.5×17.5 mm (Choc Spacing)Total Quantity: 18 pcsMaterial: PBT (Double Shot - more durable as laser edge)Compatible with: Choc V1 switches (not Choc V2)Photos of the completed keyboard are for demonstration purposes only.

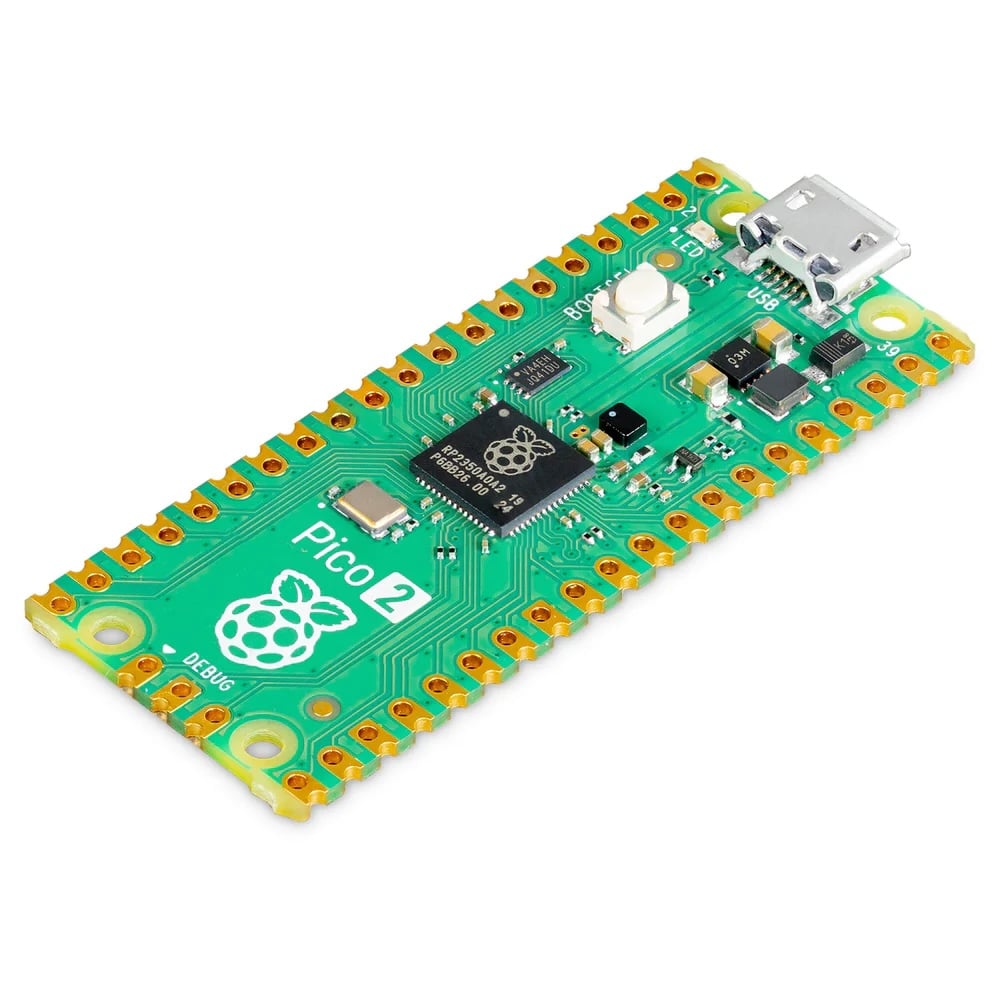

Raspberry Pi Pico 2 - RP2350

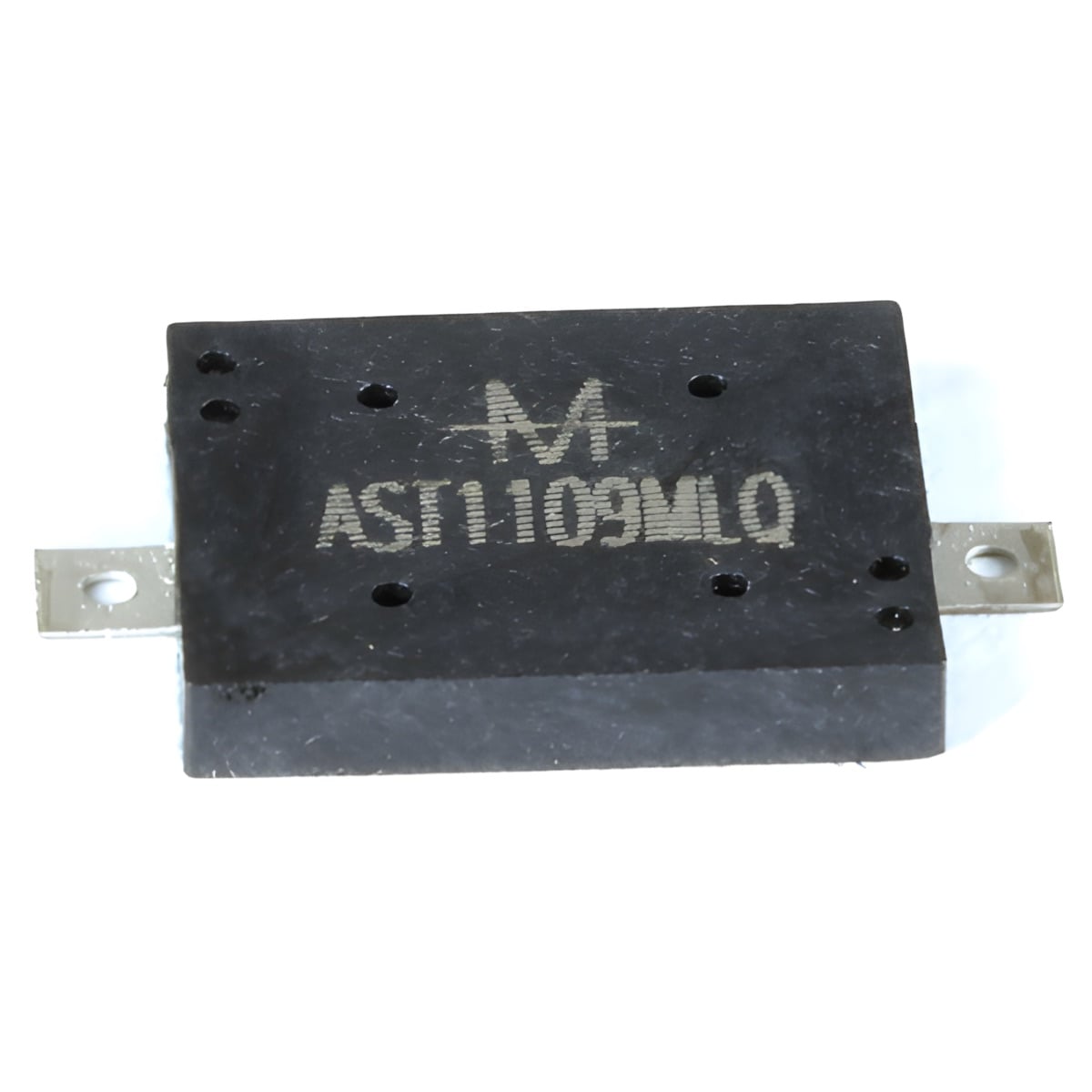

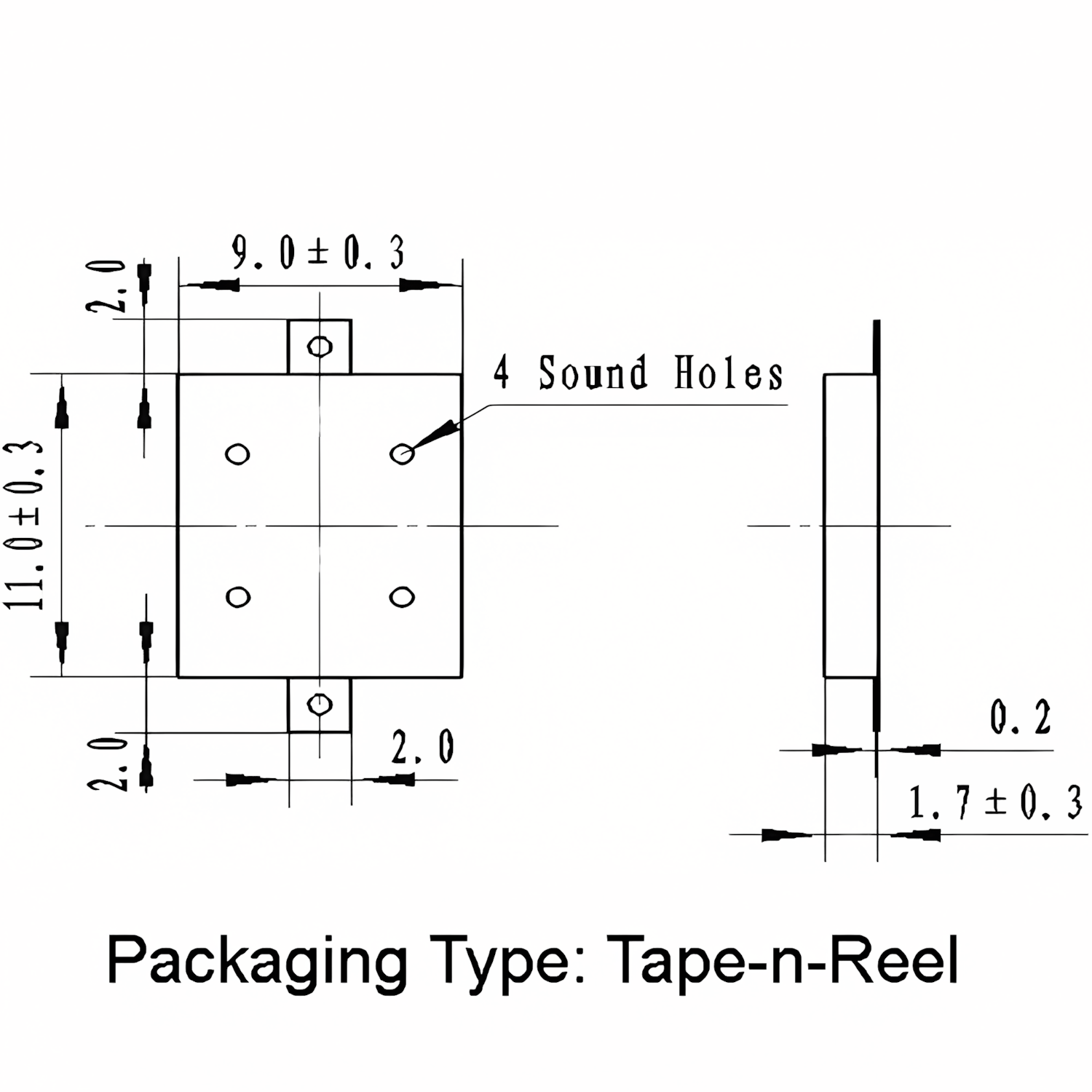

BUZZER PIEZO 5V SMD

Could be used for:Low battery warningLayer change, or certain layer conditionsCompatible Keyboards from the shop:DASBOBErgoDashVoltage - Rated 5 VVoltage Range 1 ~ 20VFrequency 4.1kHzSound Pressure Level (SPL) 73dB @ 5V, 10cmCurrent - Supply 1mASize / Dimension 0.433" L x 0.354" W (11.00mm x 9.00mm)ROHS3 CompliantDatasheet

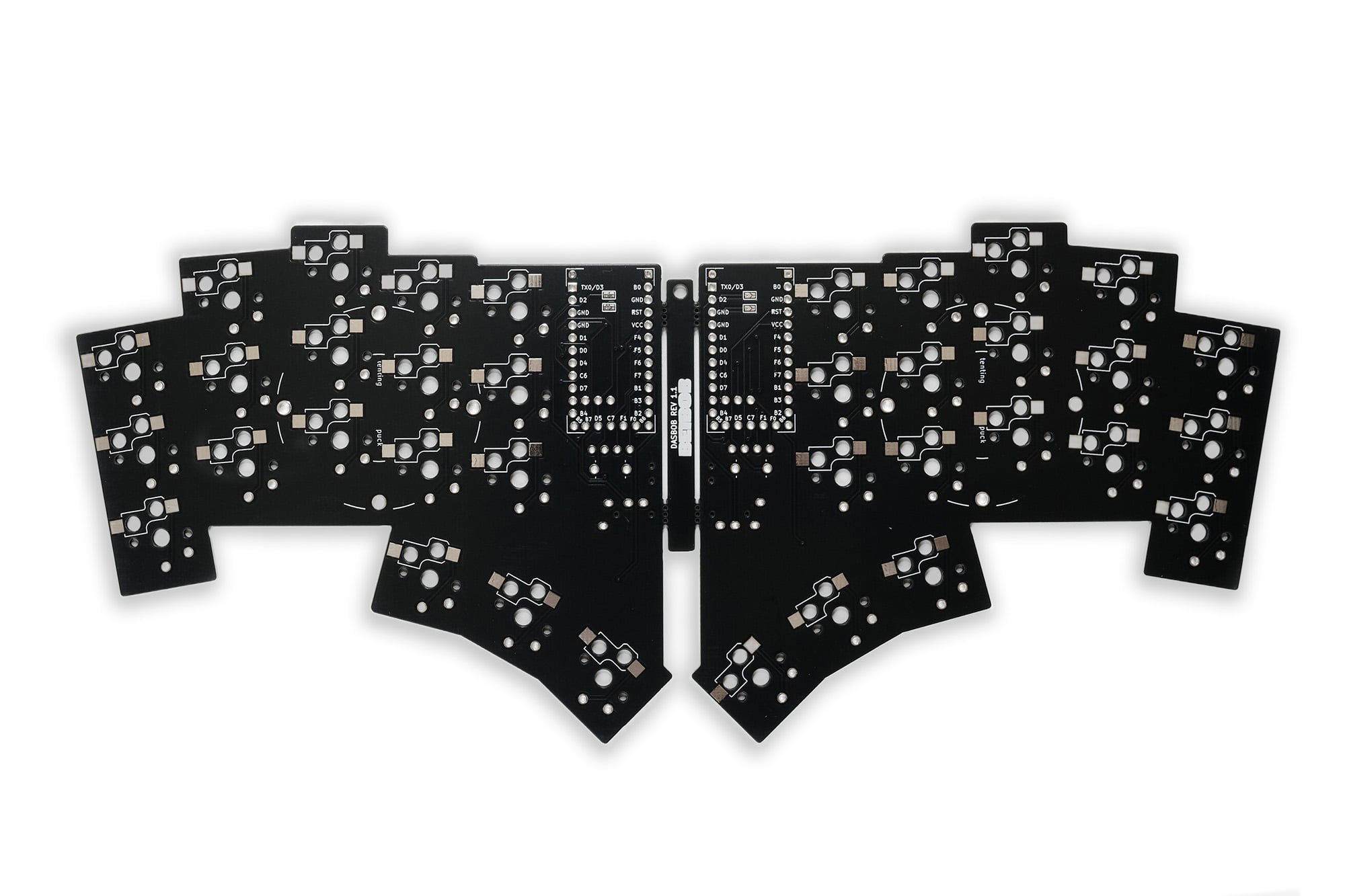

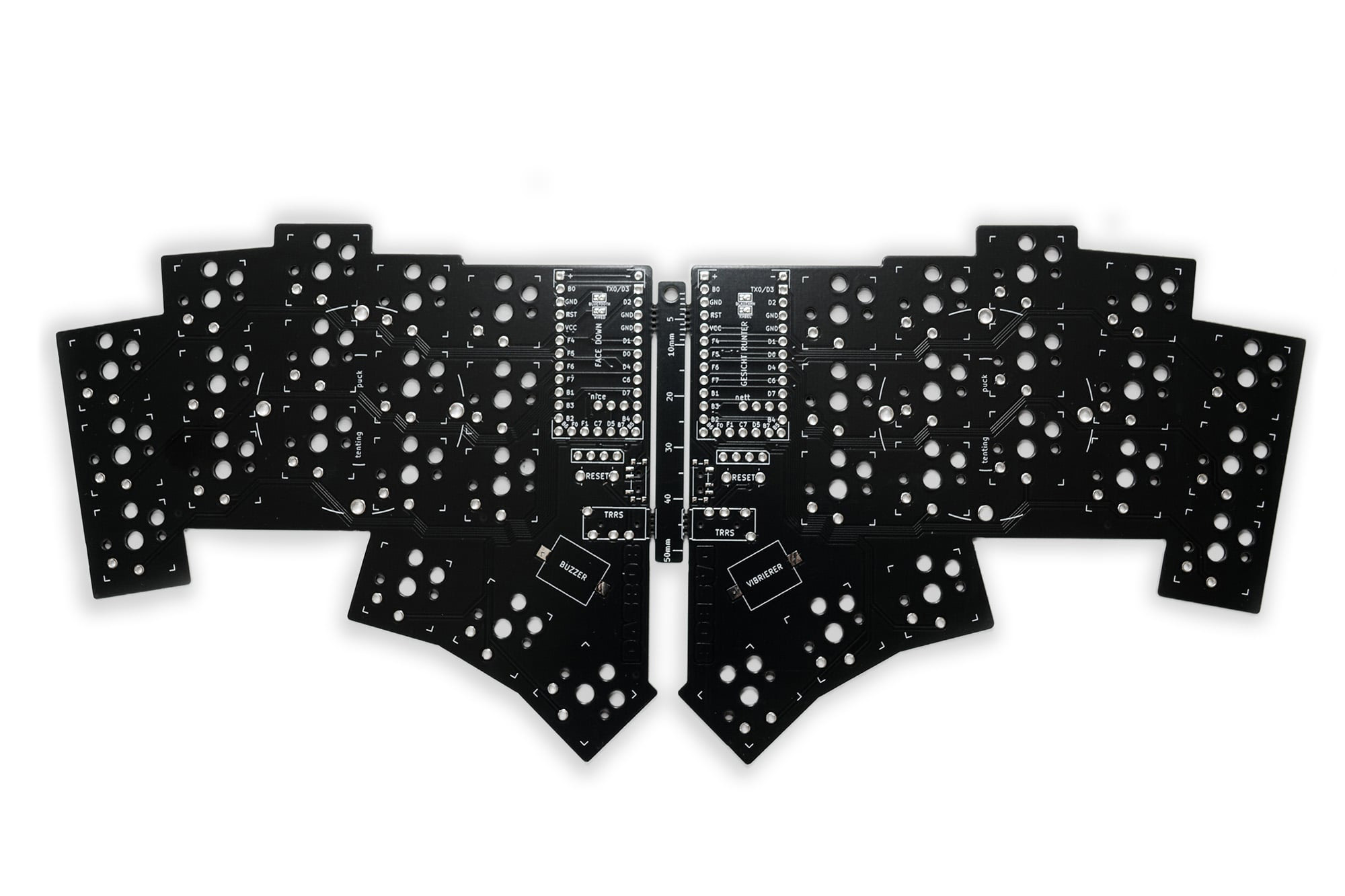

DASBOB Split Keyboard PCB

DASBOB is a 36 Key diodeless split choc keyboard with a buzzer.Includes:PCB for both half's2 TRRS jack2 Reset switches You need: 2 Helios RP2040, Sea-Picro, Elite-C or similar controller (not compatible with normal Pro Micro, due to the extra pins for diodeless)Mounting for controller (Socket Headers and Needle Connector, or Pin Header 36 Kailh Choc V1 Hotswap Sockets36 Choc V1 switchesKeycaps for choc V1 switches 1 TRRS cable (4-pole) Case or 8 rubber feet for the bottomBuzzer (optional) Firmware: QMK ZMK by EmpWorks / KMK PCB design by GroooveBobPhotos of the completed keyboard are for demonstration purposes only.Please note that this pcb must be assembled (soldering) and does not include mcu, switches or keycaps.

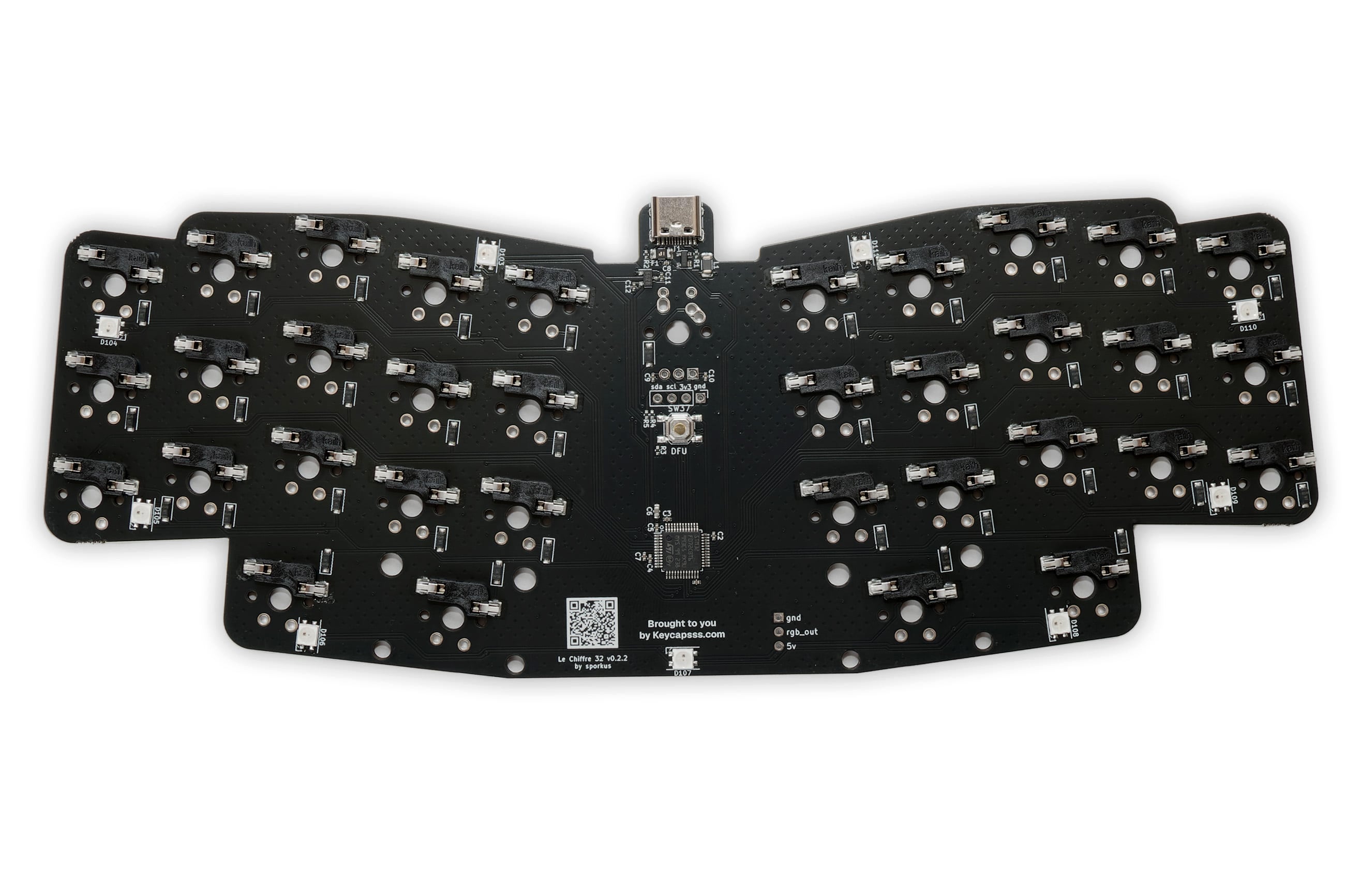

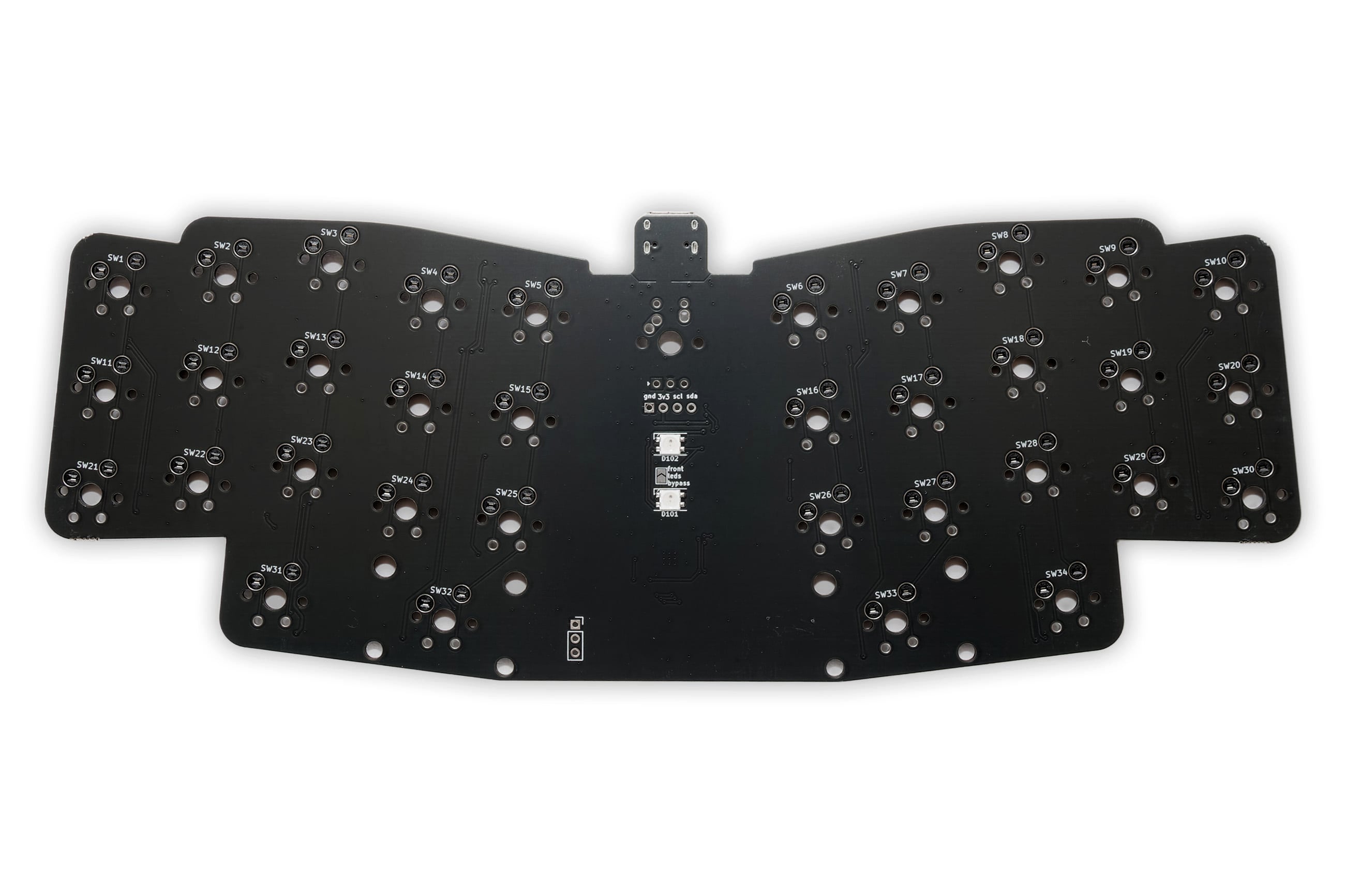

LeChiffre STM32 PCB

VIAL firmware already flashed Drop-in replacement to existing Le Chiffre casesMCU: STM32F072CBT6 (128Kb flash, built-in DFU bootloader) to allow more firmware featuresMX hotswap, Alps support (solder)PCB design by Sporkus Photos of the completed keyboard are for demonstration purposes only.

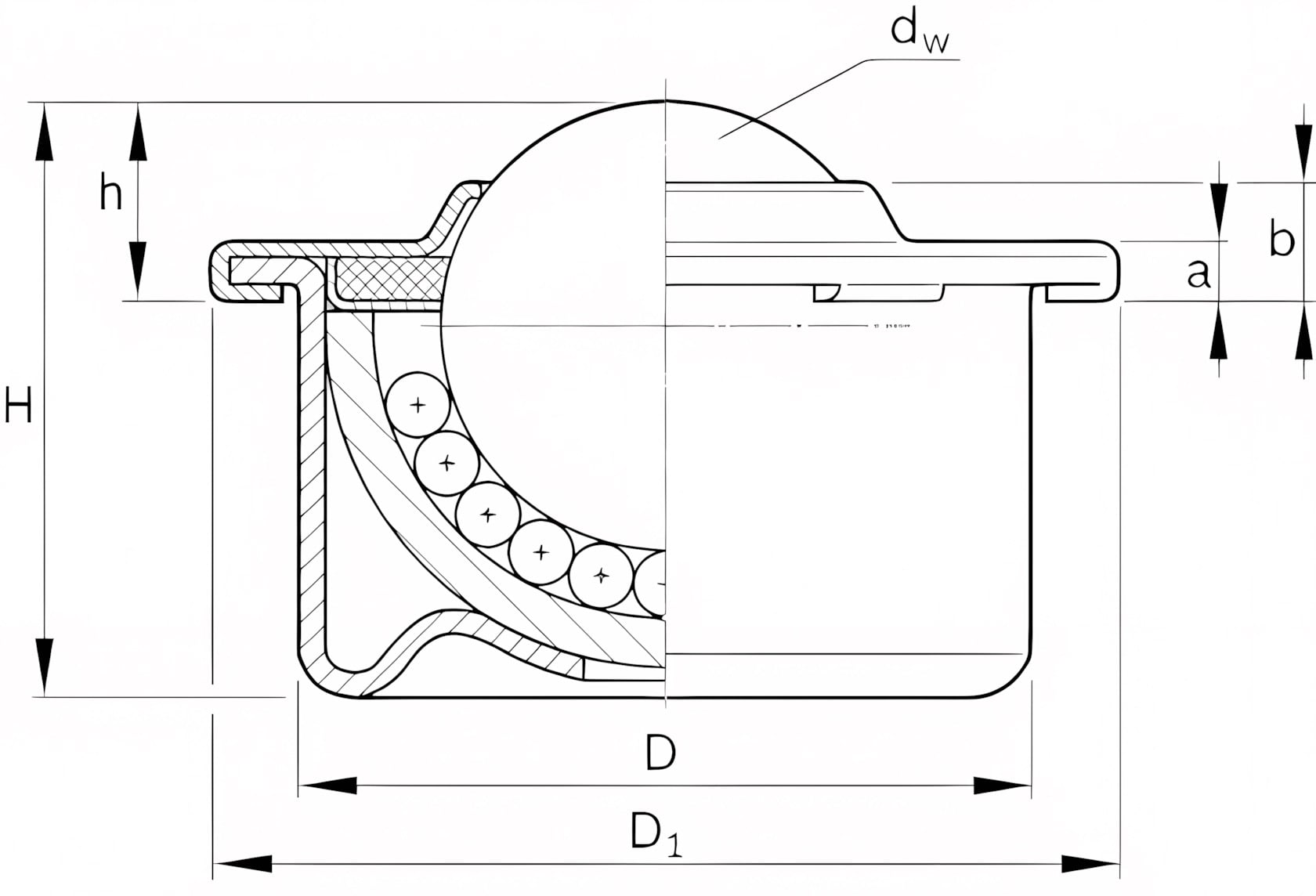

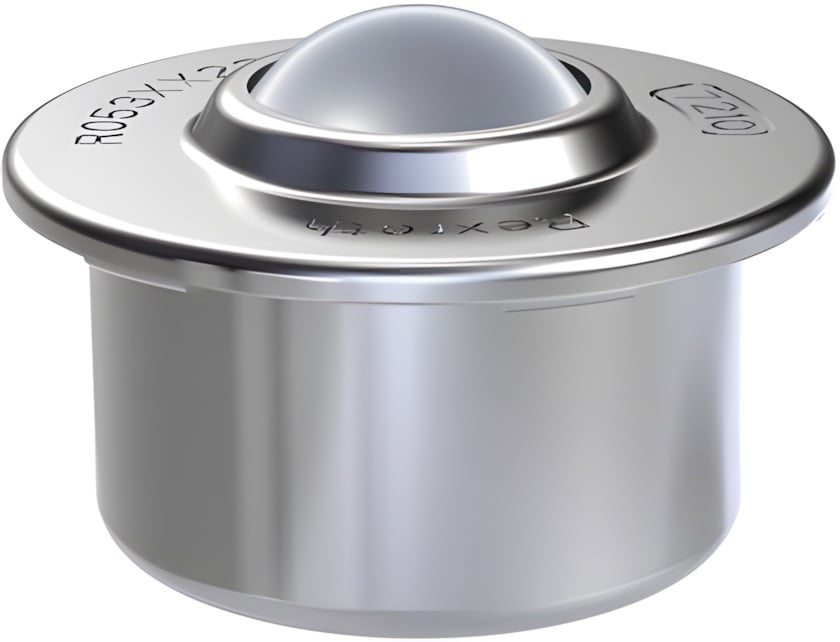

BOSCH Rexroth BTU - Ball transfer units R053010810 KU-B8-OFK

Datasheet CAD files Product attributes Nominal size [mm] 8 Dynamic load capacity C [N] 130 Maximum permissible linear speed vmax [m/s] 2 Note: maximum permissible speed vmax In case of prolonged periods of use at speeds above 1 m/s, an increase in temperature and reduction in service life is to be expected depending on the load. Outer diameter D [mm] 12.6 Operating temperature (min. … max.) - 30 °C ... + 100 °C Note: permissible operating temperature (min. ... max.) At temperatures above 100 °C, only bright metal ball transfer units without a felt seal should be used. Make allowance for reduction in load capacity. Use high-temperature lubricant! Follow the manufacturer’s instructions! The existing lubricant oil * Weight [kg] 0.01 Static load capacity C0 [N] 250 Maximum operating temperature [°C] +100 Minimum operating temperature [°C] -30 Product information Without felt seal Dimension a [mm] 1.9 Dimension b [mm] 3.2 Tolerance c +0.2 Dimension D [mm] 12.6 Tolerance D [mm] ±0.055 Dimension D1 [mm] 17 Dimension dW [mm] 7.938 Dimension h [mm] 4.8 Dimension H [mm] 11.2 Tolerance h ±0.15

KEA Low Profile Keycaps for Choc V1 (3D Printed) - Choc Spaced

These 3D printed keycaps feature a dish for a comfortable finger feel, and chamfered edges for a stylish look. They are Choc spaced (18mm x 17mm). The MX Spaced variant is available here. Standard color is black.Other colours are available. Here you can find a list of available colors and add a comment in the checkout which colour you would like.NOTE: These are 3D printed to order. The dispatch of the order will be delayed by 1-4 working days depending on the order quantity.Photos of the completed keyboard are for demonstration purposes only. Design by Kea Workshop

KEA Low Profile Keycaps for Choc V1 (3D Printed) - MX Spaced

These 3D printed keycaps feature a dish for a comfortable finger feel, and chamfered edges for a stylish look. They are MX spaced (19.05mm x 19.05mm), not the typical Choc spacing you find on choc switch boards.The Choc Spaced variant is available here. Standard color is black.Other colours are available. Here you can find a list of available colors and add a comment in the checkout which colour you would like.NOTE: These are 3D printed to order. The dispatch of the order will be delayed by 1-4 days depending on the order quantity.Photos of the completed keyboard are for demonstration purposes only. Design by Kea Workshop

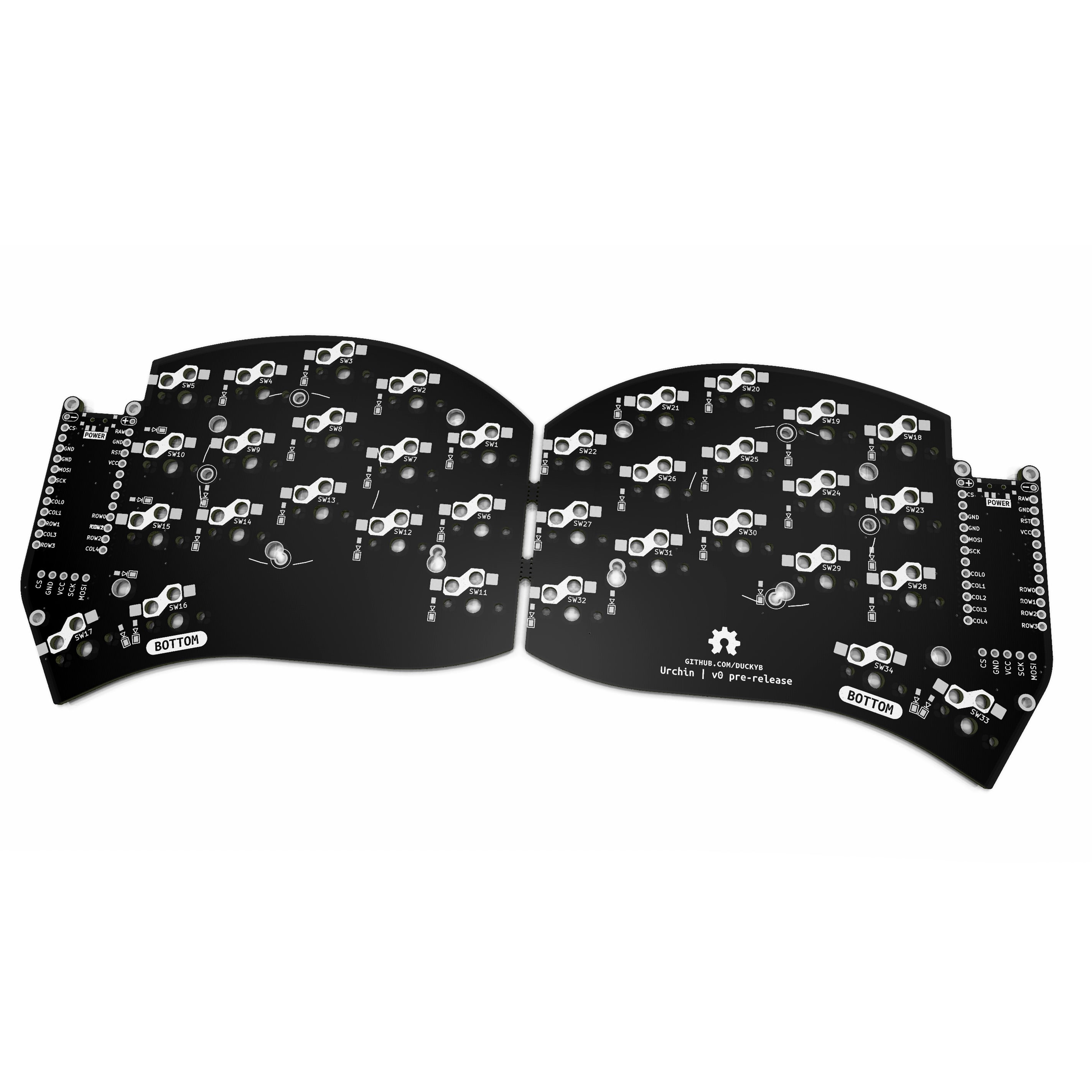

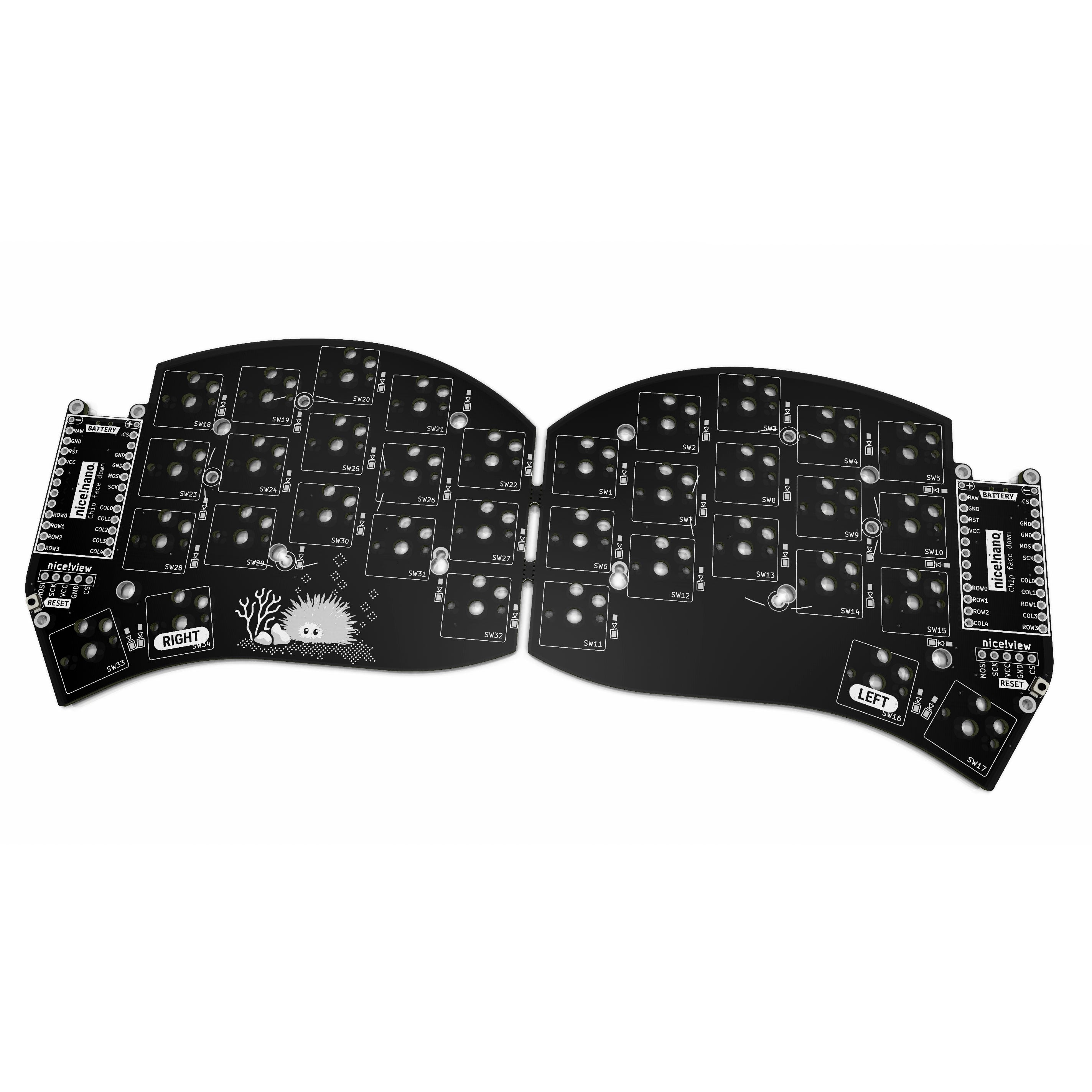

Urchin (Sweep Fork) Split Keyboard PCB

The Urchin is a fork of the Sweep split keyboard. It is designed for wireless builds and uses a daughter board like a Puchi-BLE or nice!nano.New features: Native nice!view display support Edge design from the Swoop Kailh Hotswap sockets support Additional features: Choc V1 switch compatible (not V2) Choc spacing On/Off switch for wireless builds LeadFree HASL PCB surface finish   The separate solder parts kit includes: 2x Tactile reset switch 2x On/off switch for wireless build34x SMD Dioden   You need: 1x Solder parts kit (choose extra in dropdown) 34x Choc V1 switches34x Choc Hotswap sockets 2x Puchi-BLE or nice!nano2× Lipo battery (301230) A Urchin case KeycapsOptional: 2× nice!viewUSB cable (depends on your micro-controller choice) for charging ZMK Firmware Build video Coral 3d printable case PCB design by KyekPhotos of the completed keyboard are for demonstration purposes only.Please note that this pcb must be assembled (soldering) and does not include mcu, switches or keycaps.

KRYTOX GPL 105 - Mechanical Keyboard Switch Lubricant

Krytox GPL  105 (general-purpose lube) is a high performance grease widely used to lubricate mechanical keyboard switches, controller components and joysticks. 1 QTY = 1x 5ml tube 9g (enough for 200-400 switches) Viscosity: low Recommended for: switches with lighter spring Effect: smooth press, the thinner oil will feel snappier as GPL205Elimination of “scratching” sound and other undesirable acoustic properties

Kailh PG1316S Keycaps

Currently there are no stabilisers available for 1.5u and 2u keycaps. Dimension SizeWidthHeight 1.25U 20.7mm 16mm 1.5U 25.5mm 16mm 2U 35mm 16mm 0.7U 16mm 11.3mm 1U / 1UH 16mm 16mm

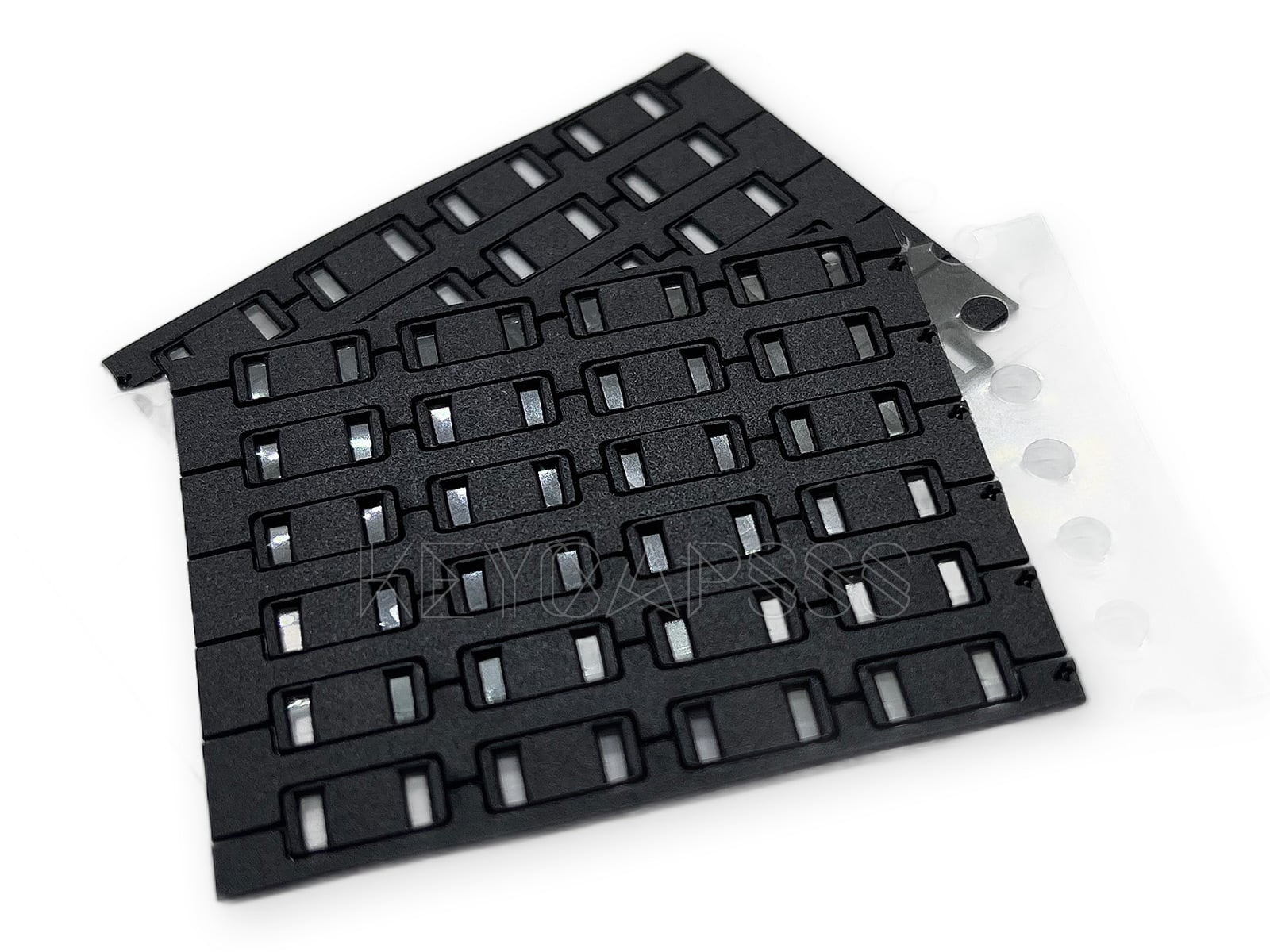

Choc Keycap Spacer Sticker

These spacer stickers will help to raise the keycap and prevent it from hitting the switch when you pressed down. 48 Sticker Thickness: 0.5mm Material: PET Self-adhesive

Tai-Hao THT Low Profile MX Blank Keycaps

Compatible with MX and Choc V2 switches (not Choc V1) Dimensions: 18.10mm x 18.10mm (keycaps will not fit, if the pcb has a choc grid spacing, for example the Piantor) Material: PBT (Black, White, Deep Mocha, Forest Green), ABS (Baby Blue, Purple)Two homing keycaps are included with the 18-key set

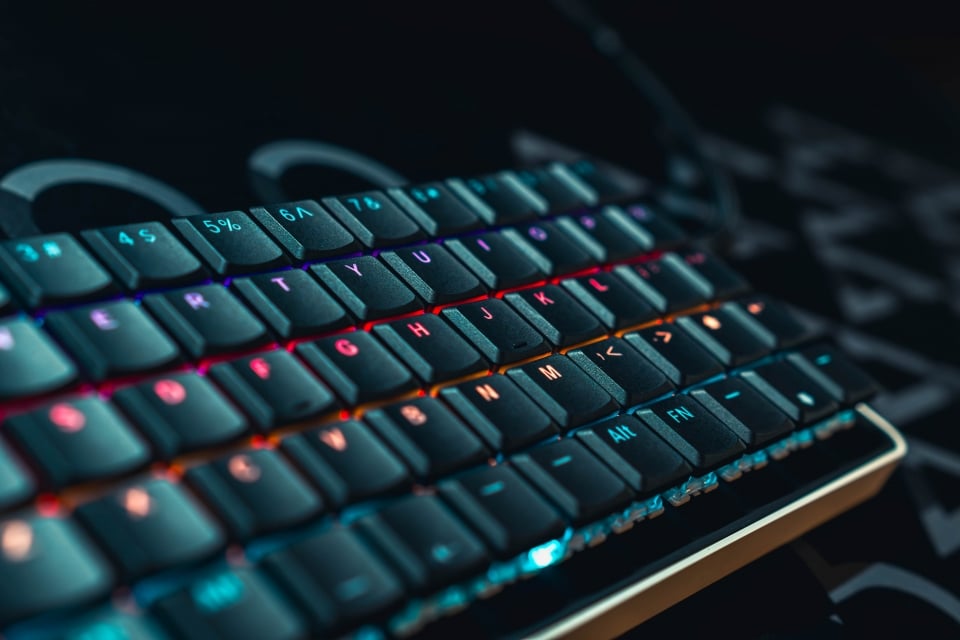

THT Low Profile MX/Choc Keycap Set Black PBT Tai-Hao Thin

65pcs keycaps PBT material and doubleshot legends Compatibility: MX / Choc V1 switches Dimensions: 18.1 x 18.1 mm (keycaps will not fit, if the pcb has a choc grid spacing, for example the Piantor) Shine through for RGB light Homing bars on F and J keys
