DASBOB Split Keyboard PCB

Description

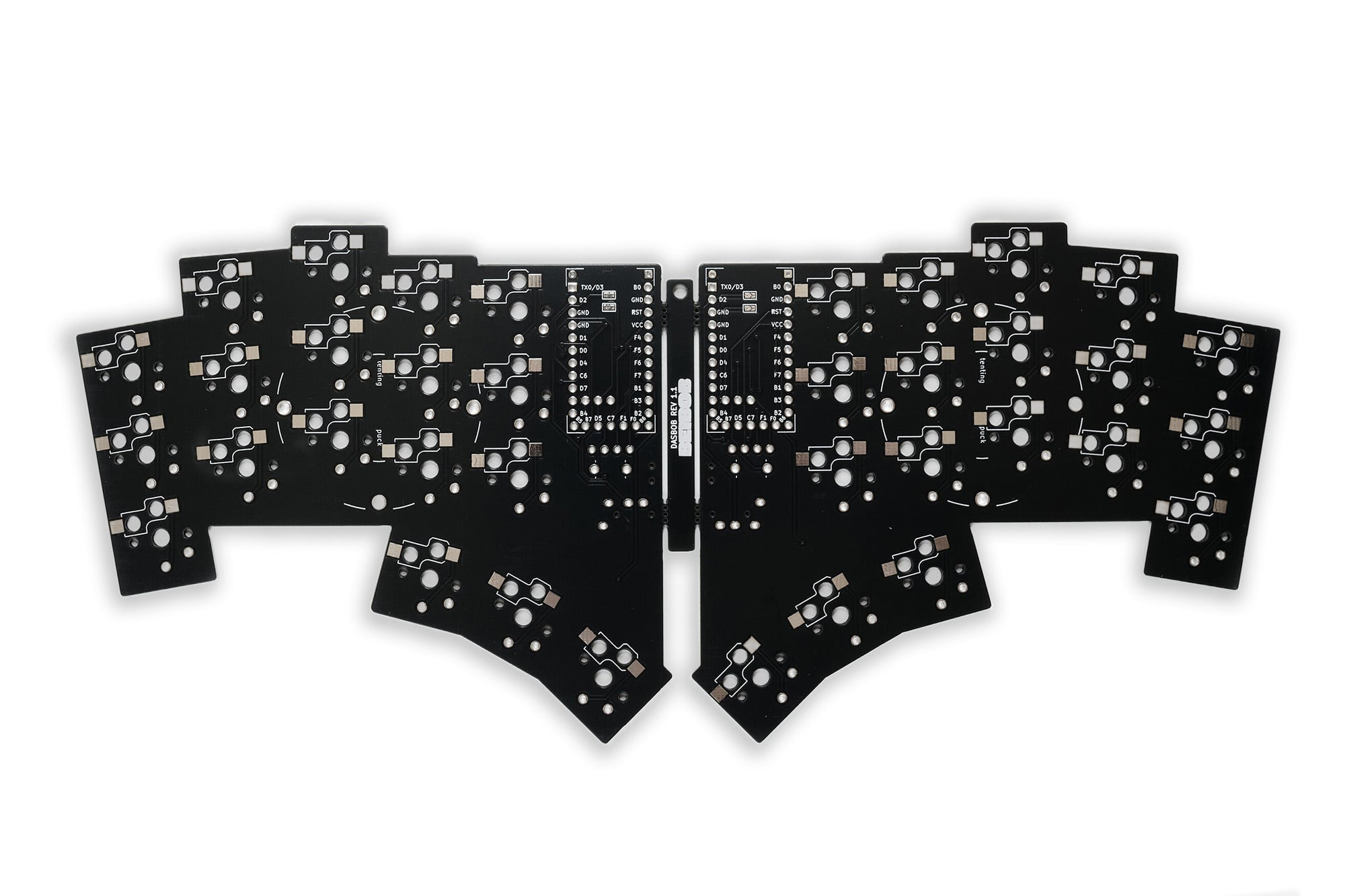

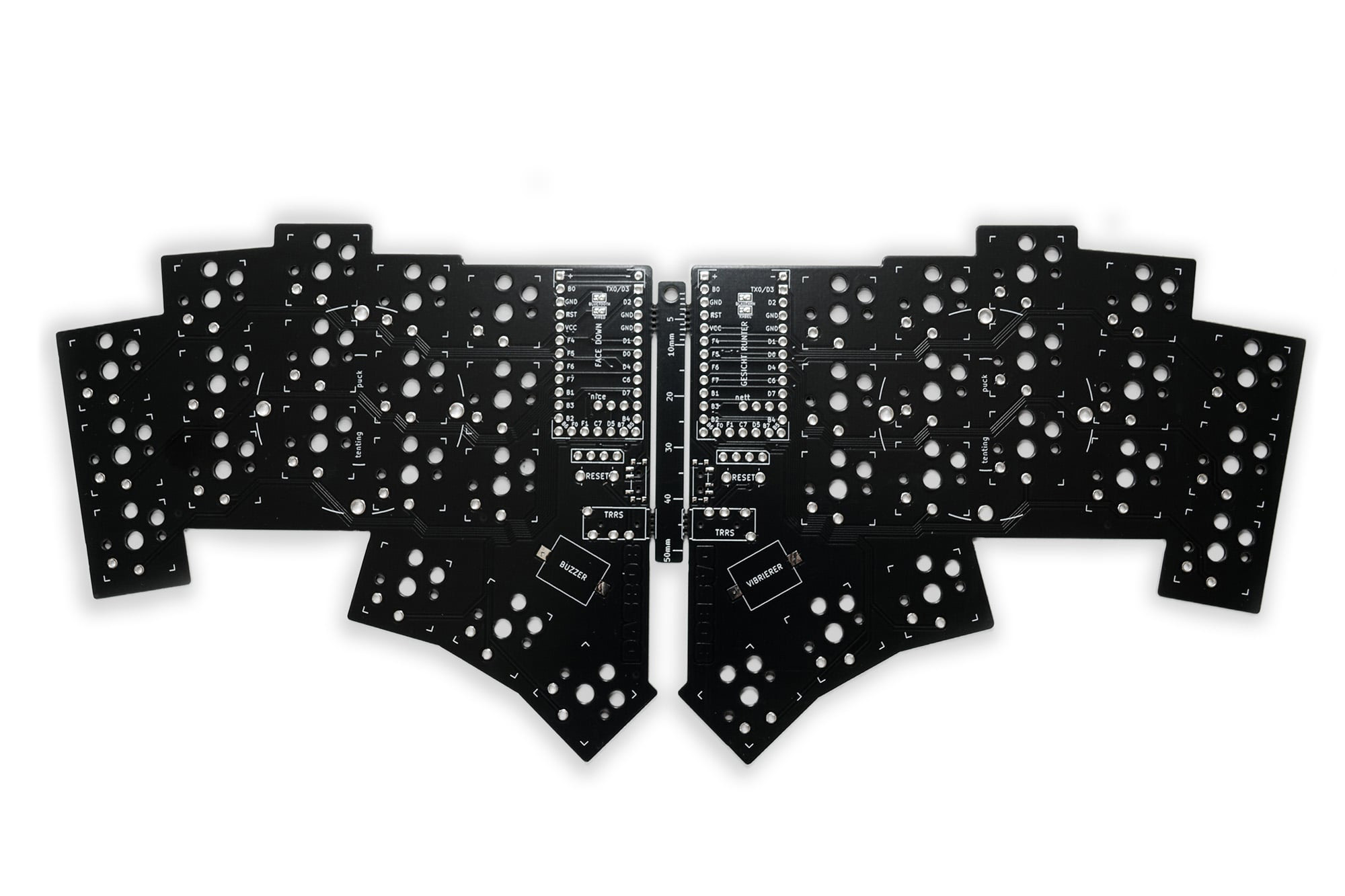

DASBOB is a 36 Key diodeless split choc keyboard with a buzzer.

Includes:

  • PCB for both half's
  • 2 TRRS jack
  • 2 Reset switches

You need:

  • 2 Helios RP2040, Sea-Picro, Elite-C or similar controller (not compatible with normal Pro Micro, due to the extra pins for diodeless)
  • Mounting for controller (Socket Headers and Needle Connector, or Pin Header
  • 36 Kailh Choc V1 Hotswap Sockets
  • 36 Choc V1 switches
  • Keycaps for choc V1 switches
  • 1 TRRS cable (4-pole)
  • Case or 8 rubber feet for the bottom
  • Buzzer (optional)


Firmware:

PCB design by GroooveBob
Photos of the completed keyboard are for demonstration purposes only.
Please note that this pcb must be assembled (soldering) and does not include mcu, switches or keycaps.

Reviews 0

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.


Safety information

EU responsible person: Keycapsss | Benjamin Rösner, Löhrstr. 11, 04105 Leipzig, Germany
Contact: Keycapsss.com

Skip product gallery

Accessory Items

0xCB Helios - Pro Micro/Elite-C compatible MicroController with RP2040 Helios RP2040 Controller - Pinout
0xCB Helios - Pro Micro/Elite-C compatible MicroController with RP2040
Color: Black

Meet Helios, the RP2040 Controller with Pro Micro/Puchi-C/Elite-C compatible pinout, 16MB (128Mbit) of flash, Dual ARM Cortex-M0 @133MHz, and 264kB SRAM. ESD protection chip onboard Supports VBUS detection for split keyboards You can select VBUS instead of raw for the 5V pin to hook up an external USB port with the included D+ and D- pads while maintaining ESD protection. A default off red power LED that can be turn on via a jumper Blue user LED Level-shifter to drive 5V components Single button reset circuit which enables you to reset the board with a short click Enter the bootloader with a long (>500ms) click Open-source by 0xCB The Helios comes without header pins, to keep the price low as possible.I highly reccommend to use the "Single Row Sockets" from Mill-Max, the cheaper alternative, or the "Spring-loaded pin headers".You can find the standard pin header here. Example to compile the QMK firmware for the Helios (uf2 file, not hex).qmk compile -kb crkbd/rev1 -km via -e CONVERT_TO=helios

Regular price:

Currently not available

€16.00
Kailh Hotswap PCB Sockets 10 pcs Kailh Hotswap PCB Sockets 10 pcs
Kailh Hotswap PCB Sockets 10 pcs
Variant: CHOC Sockets

  MX Sockets (PG1511) compatible with Cherry MX switches and clones Choc Sockets (PG1350) compatible with Kailh Low Profile switches Sold in packs of 10 (Quantity 1 = 10 sockets). Require a compatible PCB

Content: 10 Unit (€0.19 / 1 Unit)

Regular price:
€1.90

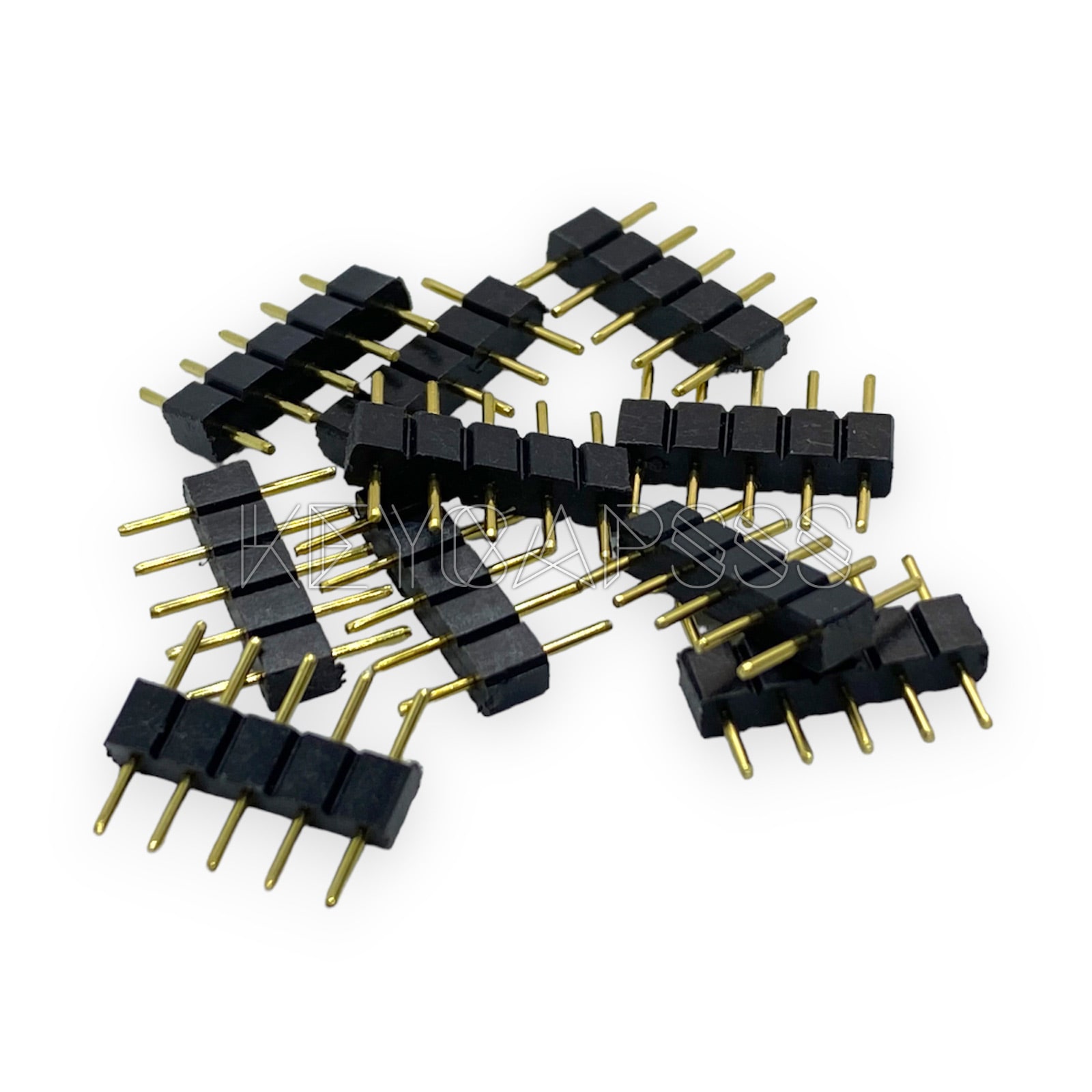

Needle Connector / Pins 10mm x 0.6mm Pitch 2.54mm
Needle Connector / Pins 10mm x 0.6mm Pitch 2.54mm

Incl. 10x 5pin connectors Height: 10mm Diameter: 0.6mm Pitch: 2.54mm Copper plated Plastic is 3mm heigh Sturdy and fit perfect with the 3mm header and 7mm header

Regular price:
€2.40

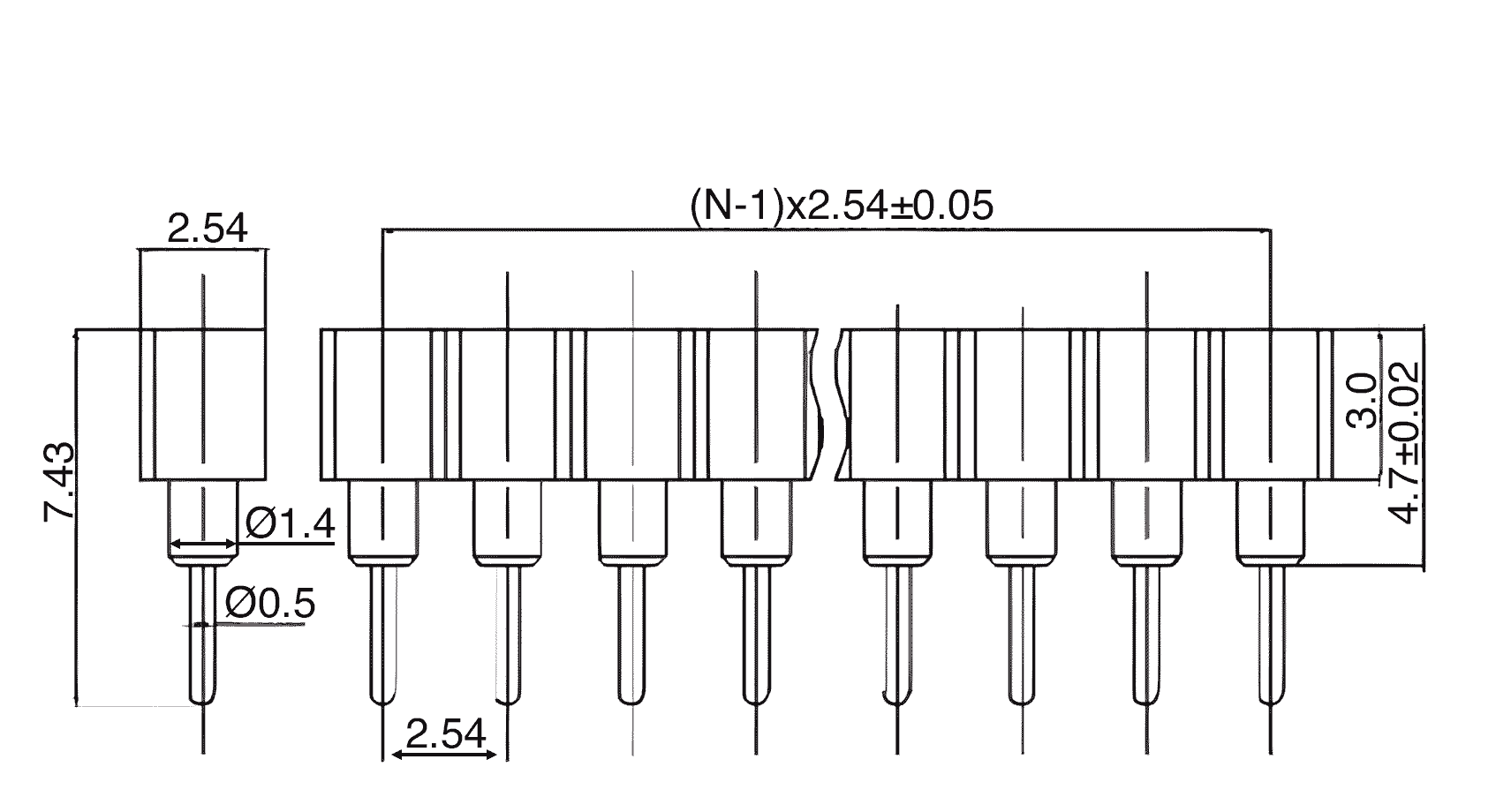

Single Row Socket Headers 2.54 Pitch 3mm height Single Row Socket Headers 2.54 Pitch 3mm height
Single Row Socket Headers 2.54 Pitch
Variant: Height: 3mm

Cheaper alternative to the Mill-Max Series 315 sockets 1 Qty = 1 socket row with 40x pin holes Easy split to needed length with a flush cutter Pitch: 0.100" (2.54mm) Both variants work with the Mill-Max 315 pins, but looser than with the Mill-Max sockets (with 7mm even more loose)  Variants: Height 3mm Accepted diameter for pins: Variant 0.4mm < 0.7mm Not compatible with standard squared pins Compatible with this needle pins Height 7mm Accepted diameter for pins: Variant 0.6mm < 1.0mm Compatible with standard squared pins Compatible with this needle pins

Regular price:
€2.90
Pin Header 2x12 pins, 1x 5 pins
Pin Header 2x12 pins, 1x 5 pins

This header pins can be soldered direct on the PCB, or you can use the "Single Row Socket Headers 2.54 Pitch (7mm)" to make it hotswap able.

Regular price:
€1.90

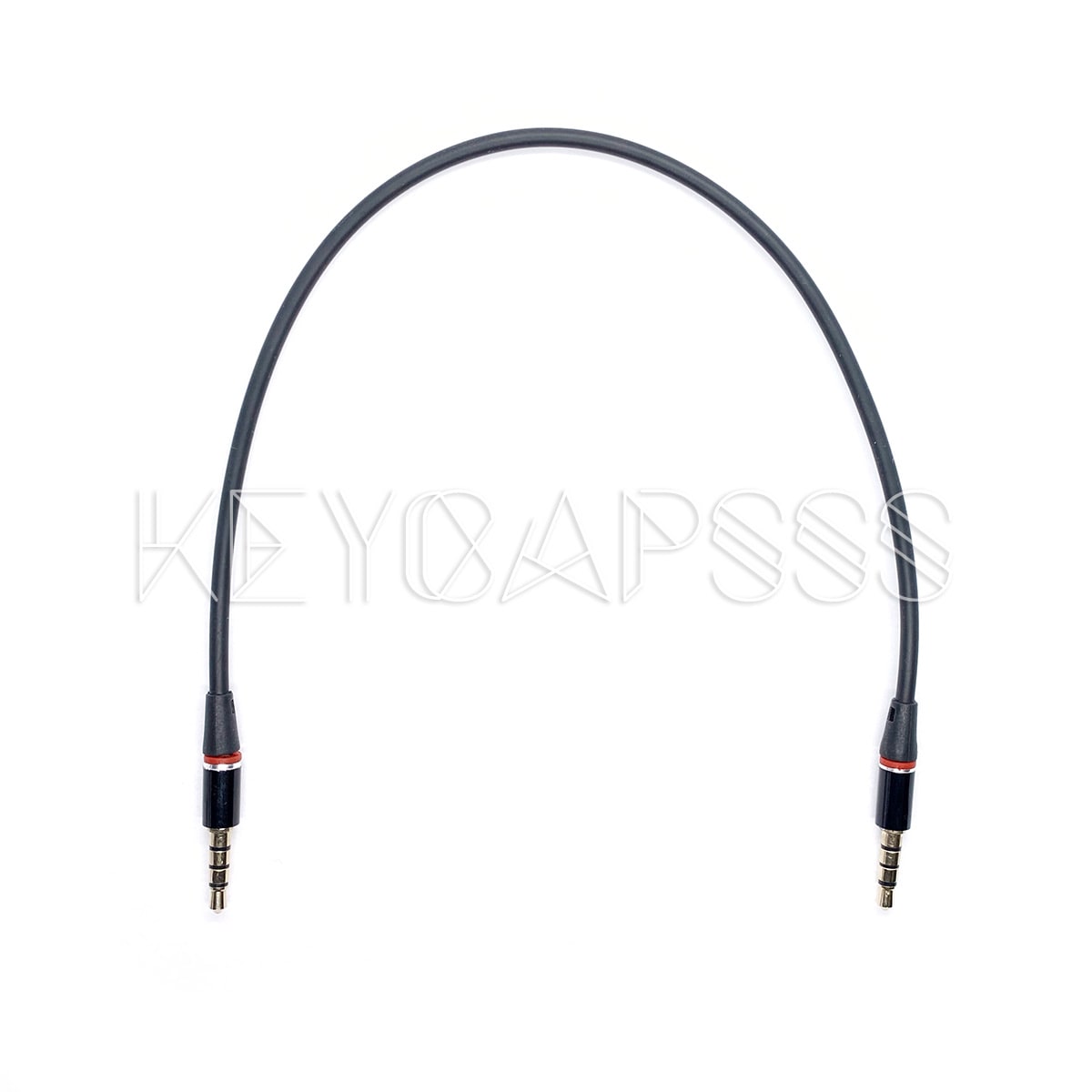

TRRS Cable 4-pole 3.5mm jack 30cm black TRRS Cable 4-pole 3.5mm jack 30cm
TRRS Cable 4-pole 3.5mm jack 30cm 12inch
Color: Black

Length: 30cm 4 pole

Regular price:
€5.90

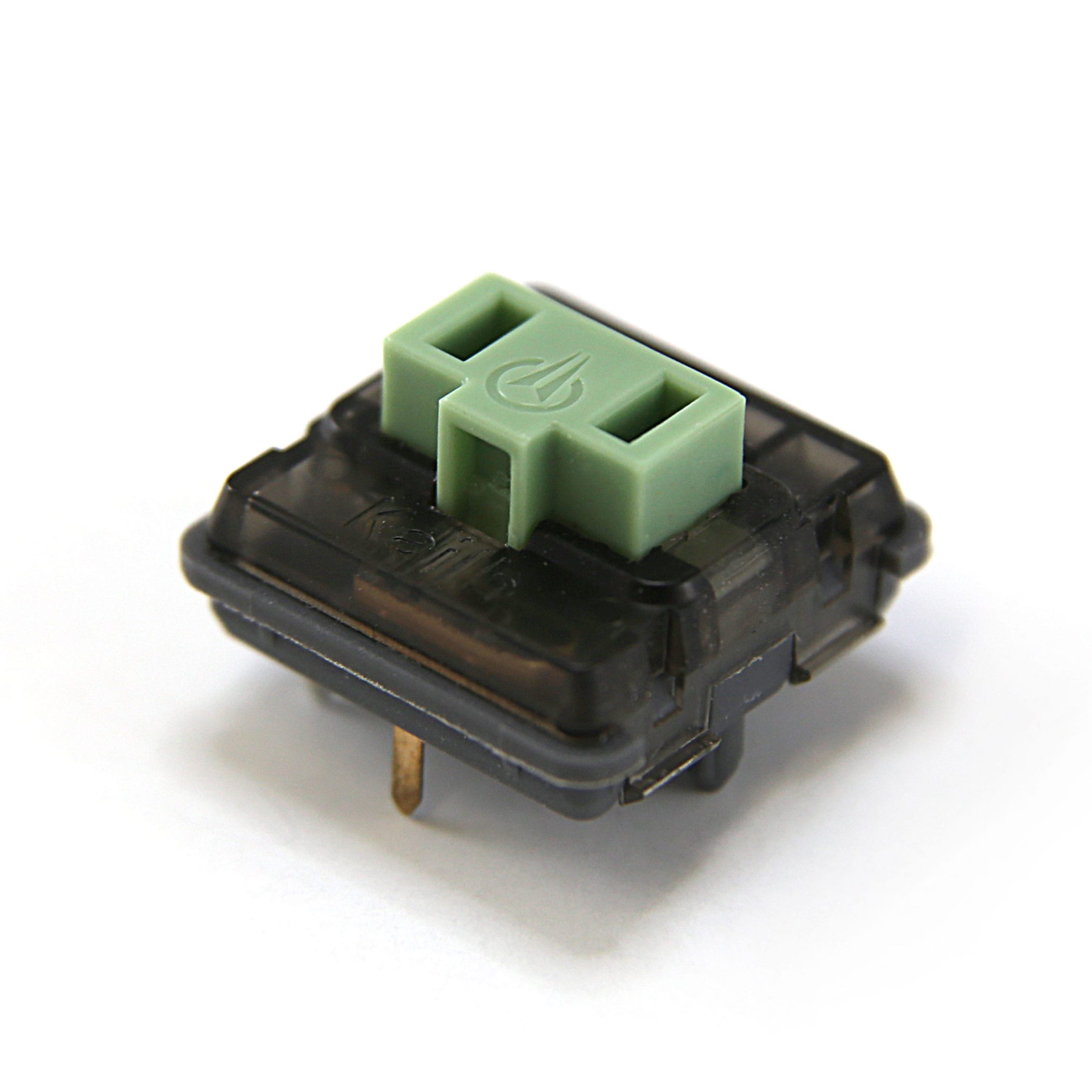

Twilight: Linear / 35g - Ambients Silent Choc Switches LowproKB Ambients Silent Choc Switches LowproKB (Kailh Choc V1)

Average rating of 5 out of 5 stars

Ambients Silent Choc Switches LowproKB (Kailh Choc V1)
Variant: Twilight (Linear 35g)

The low profile keyboard market asked for it, and now they are here!The first, purpose-built from the ground up, silent low profile keyboard switches are finally available! The new Ambients line of silent choc switches from LowproKB, which will transform your rig into an office-friendly tool, or a late-night warrior's weapon. Designed in partnership with Kailh engineers, the Ambients line of switches will work on any keyboard that is Choc V1 compatible. Yes you read that right, both the keycap interface and the PCB footprint remain unchanged from earlier Choc V1 switches, so your existing keyboard can use these new switches. WE ARE EXPECTING STOCK TO ARRIVE LATE FEBRUARY 2024 (Sunrise later this year)!Right now there is no ETA for the Sunrise switches.The Ambients are based on the original Kailh Choc V1 switch, but are a completely new design, having all their parts redesigned to accommodate the new components required to quieten the typical switch noise. Silicone bumpers have been strategically placed within the new design to buffer both the down and the up stroke of a keypress, all while not creating a mushy feeling while typing. Sold in packs of 10 (Quantity 1 = 10 switches). Twilight: Linear / 35g Nocturnal: Linear / 20g Sunrise: Tactile / 40g

Regular price:
€9.50

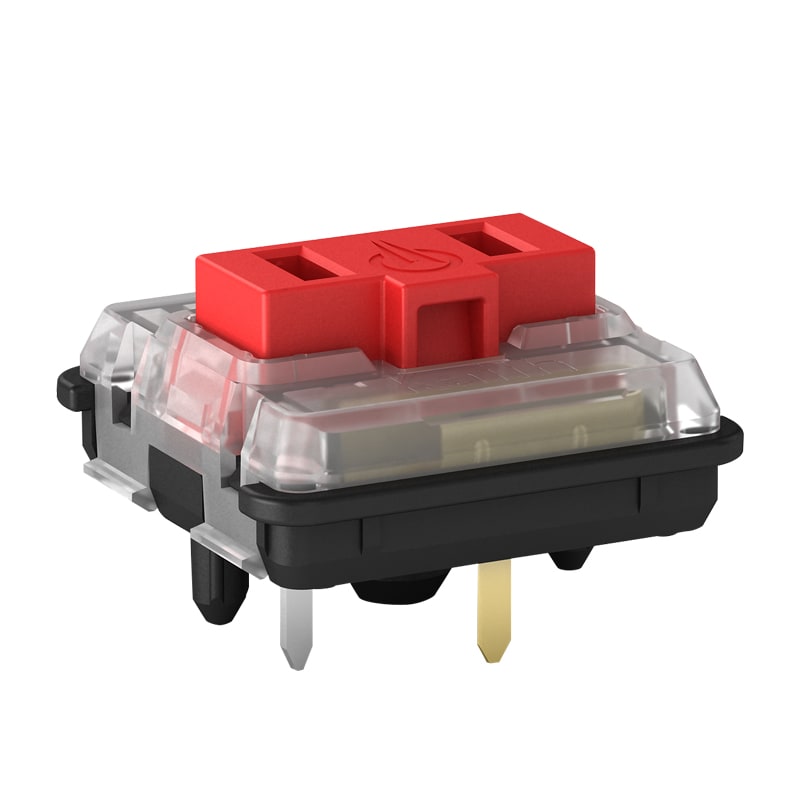

Kailh Low Profile Choc Switches V1 Kailh Low Profile Choc Switches
