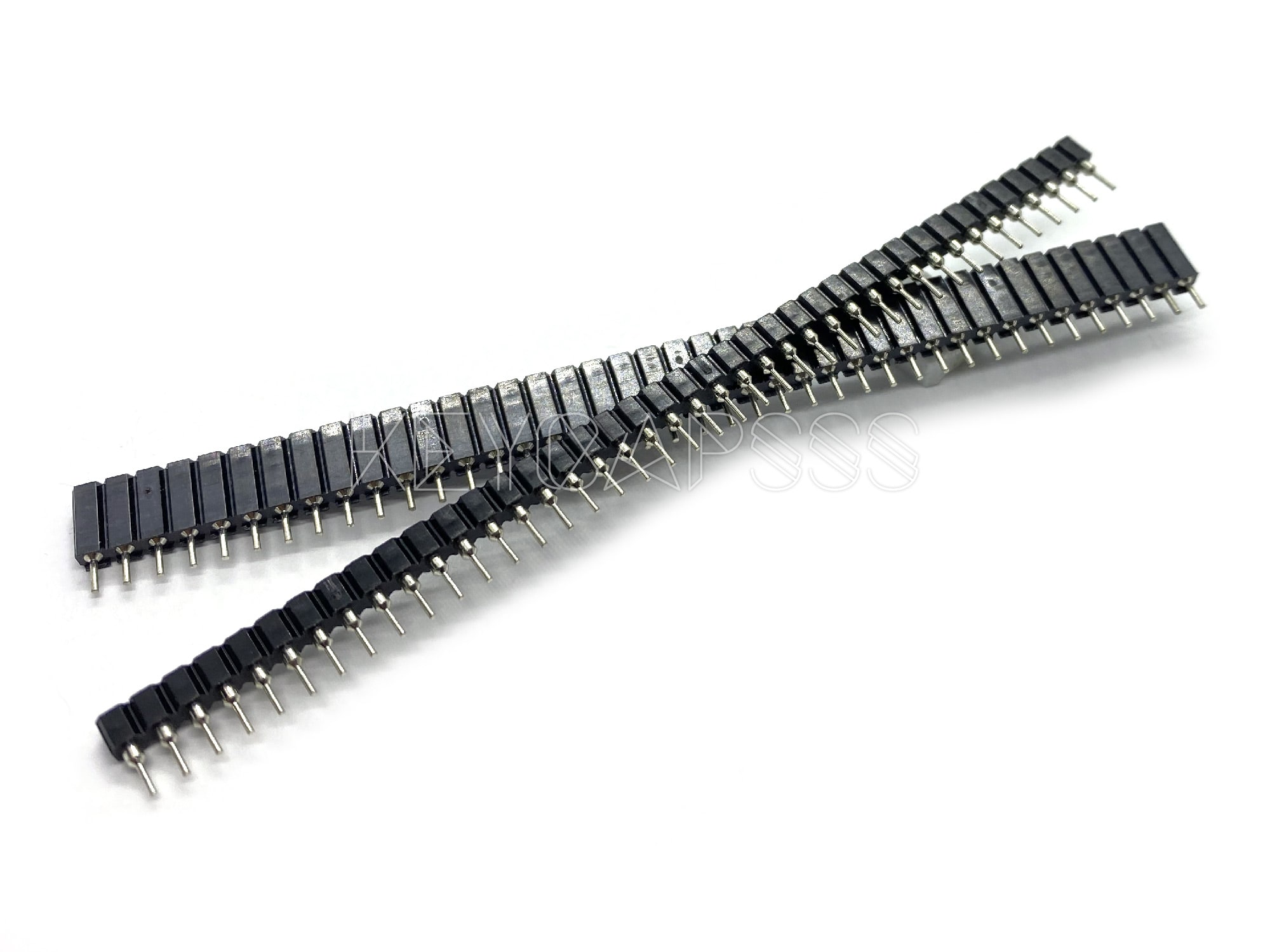

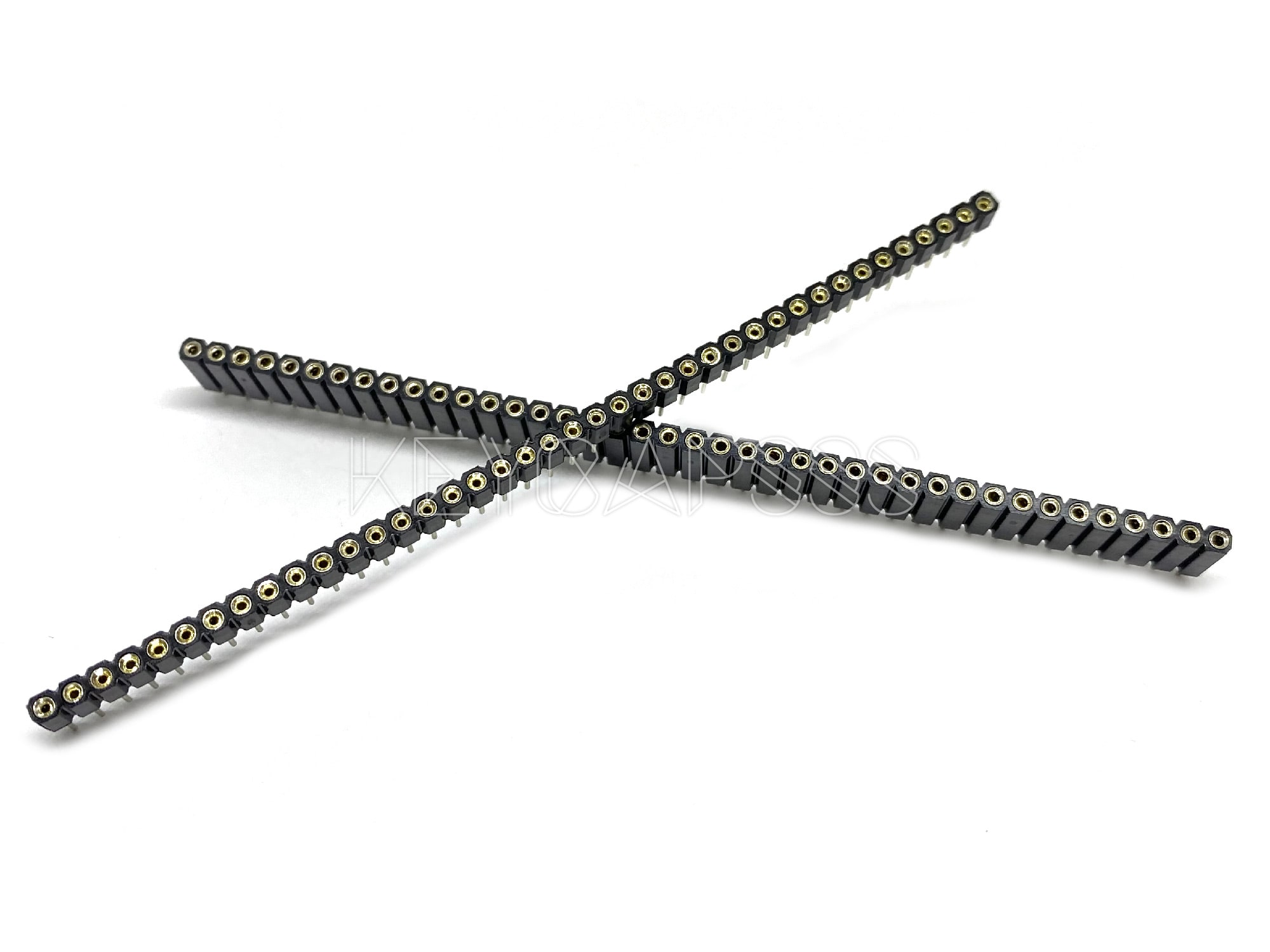

Single Row Socket Headers 2.54 Pitch
€2.90
Ready to ship: Delivery time 2-5 workdays (Germany), 5-14 workdays (EU), 10-20 workdays (Int.)
Description
- Cheaper alternative to the Mill-Max Series 315 sockets
- 1 Qty = 1 socket row with 40x pin holes
- Easy split to needed length with a flush cutter
- Pitch: 0.100" (2.54mm)
- Both variants work with the Mill-Max 315 pins, but looser than with the Mill-Max sockets (with 7mm even more loose)
Variants:
Height 3mm
- Accepted diameter for pins: Variant 0.4mm < 0.7mm
- Not compatible with standard squared pins
- Compatible with this needle pins
Height 7mm
- Accepted diameter for pins: Variant 0.6mm < 1.0mm
- Compatible with standard squared pins
- Compatible with this needle pins
