BOSCH Rexroth BTU - Ball transfer units R053010810 KU-B8-OFK
€11.80*
€9.92 excl. sales tax
Currently out of stock
Product information "BOSCH Rexroth BTU - Ball transfer units R053010810 KU-B8-OFK"
| Product attributes | |
|---|---|
Nominal size [mm] |
8 |
Dynamic load capacity C [N] |
130 |
Maximum permissible linear speed vmax [m/s] |
2 |
Note: maximum permissible speed vmax |
In case of prolonged periods of use at speeds above 1 m/s, an increase in temperature and reduction in service life is to be expected depending on the load. |
Outer diameter D [mm] |
12.6 |
Operating temperature (min. … max.) |
- 30 °C ... + 100 °C |
Note: permissible operating temperature (min. ... max.) |
At temperatures above 100 °C, only bright metal ball transfer units without a felt seal should be used. Make allowance for reduction in load capacity. Use high-temperature lubricant! Follow the manufacturer’s instructions! The existing lubricant oil * |
Weight [kg] |
0.01 |
Static load capacity C0 [N] |
250 |
Maximum operating temperature [°C] |
+100 |
Minimum operating temperature [°C] |
-30 |
Product information |
Without felt seal |

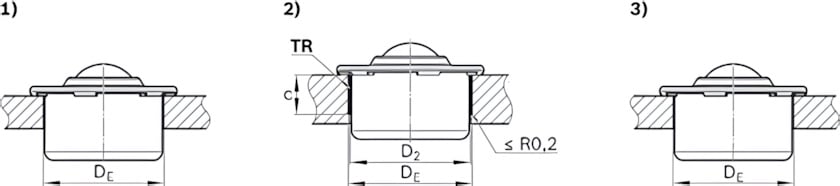

Dimension a [mm] |
1.9 |
Dimension b [mm] |
3.2 |
Tolerance c |
+0.2 |
Dimension D [mm] |
12.6 |
Tolerance D [mm] |
±0.055 |
Dimension D1 [mm] |
17 |
Dimension dW [mm] |
7.938 |
Dimension h [mm] |
4.8 |
Dimension H [mm] |
11.2 |
Tolerance h |
±0.15 |
