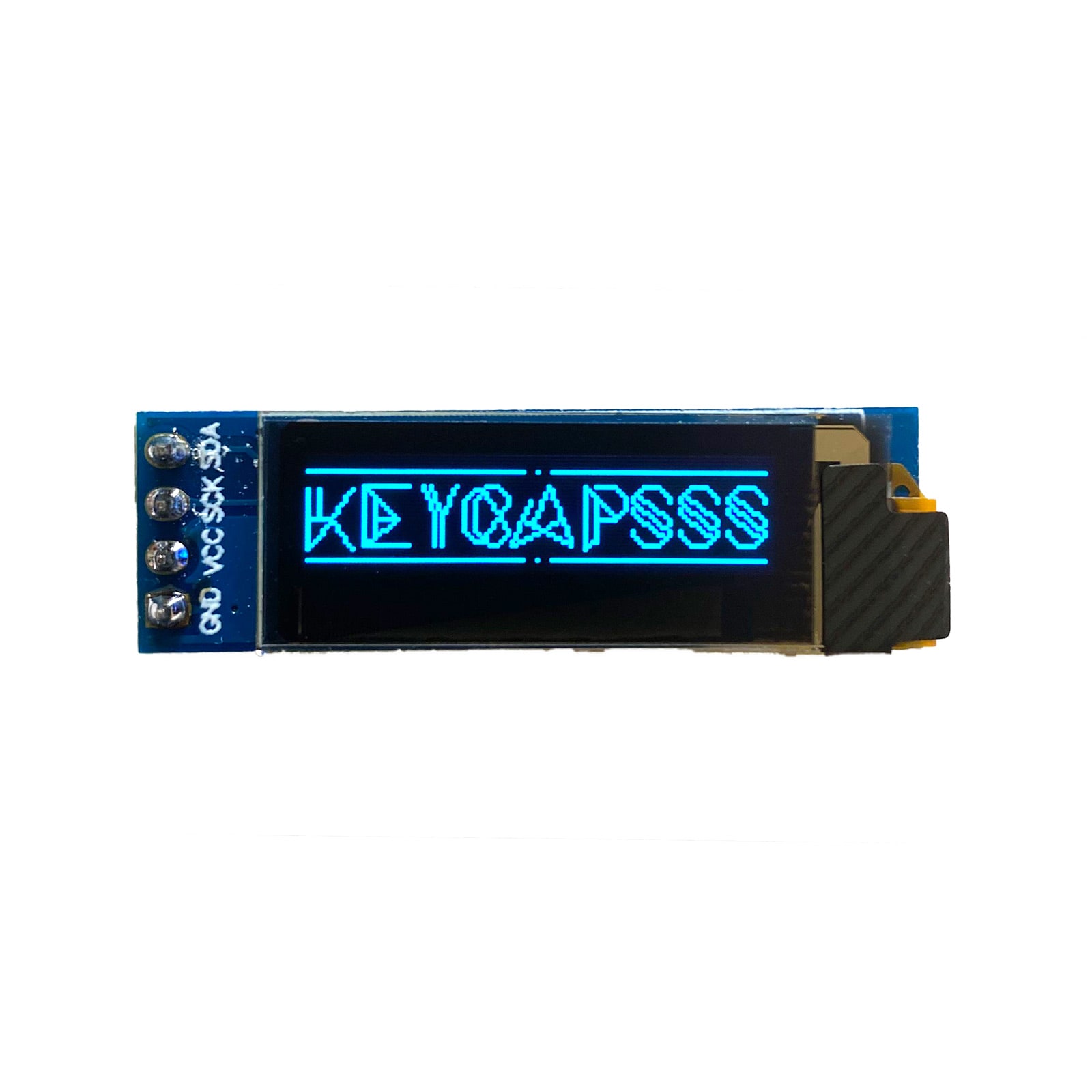

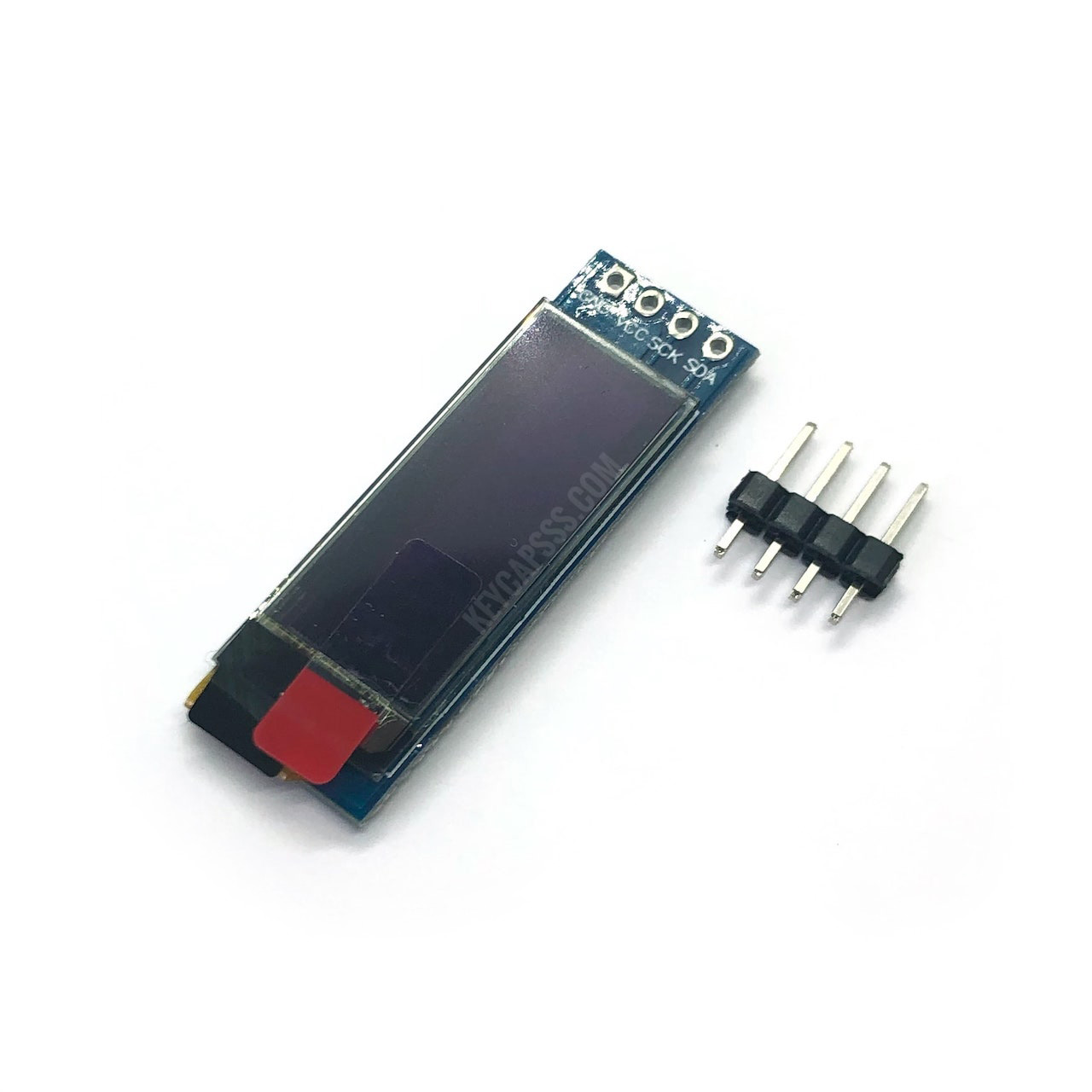

0.91 OLED LCD Display 128x32 SSD1306 I2C
slide 2
Product number:
KC10048_WH
Product information "0.91 OLED LCD Display 128x32 SSD1306 I2C"
- Supported keyboards from the shop: CRKBD, Lily58L, Kimiko and Plaid-Pad
- Driver IC: SSD1306
- Size: 0.91 inch OLED
- Resolution: 128 x 32
- Display Color: White
Pin Description:
- GND: Power Ground
- VCC: Power + (3.3V - 5V)
- SCL: Clock Line
- SDA: Data Line
Login
Safety information
EU responsible person: Keycapsss | Benjamin Rösner, Löhrstr. 11, 04105 Leipzig, Germany
Contact: Keycapsss.com
Similar Items
slide 1 to 2
No Brand

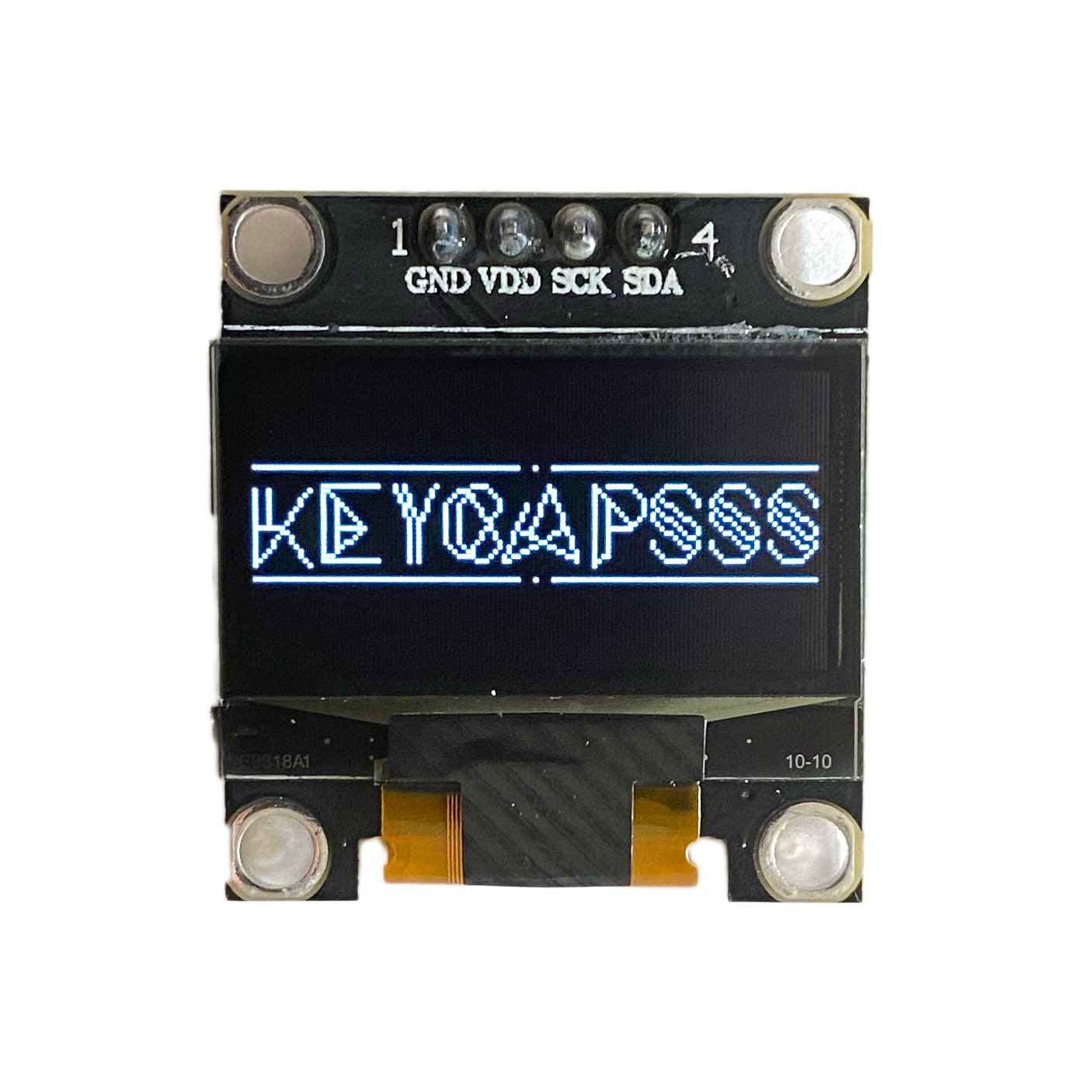

0.96 OLED LCD Display 128x64 SSD1306 I2C
Supported keyboards from the shop: Draculad
Driver IC: SSD1306
Size: 0.96 inch OLED
Resolution: 128 x 64
Display Color: White
Pin Description:
GND: Power Ground
VCC: Power + (3.3V - 5V)
SCL: Clock Line
SDA: Data Line
nice!

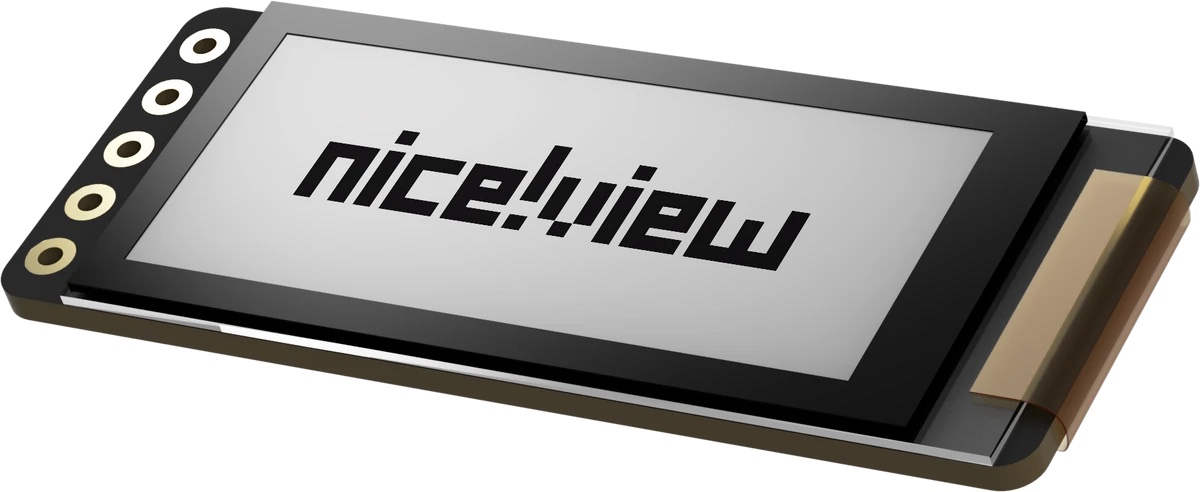

nice!view 1.08 e-paper like display
