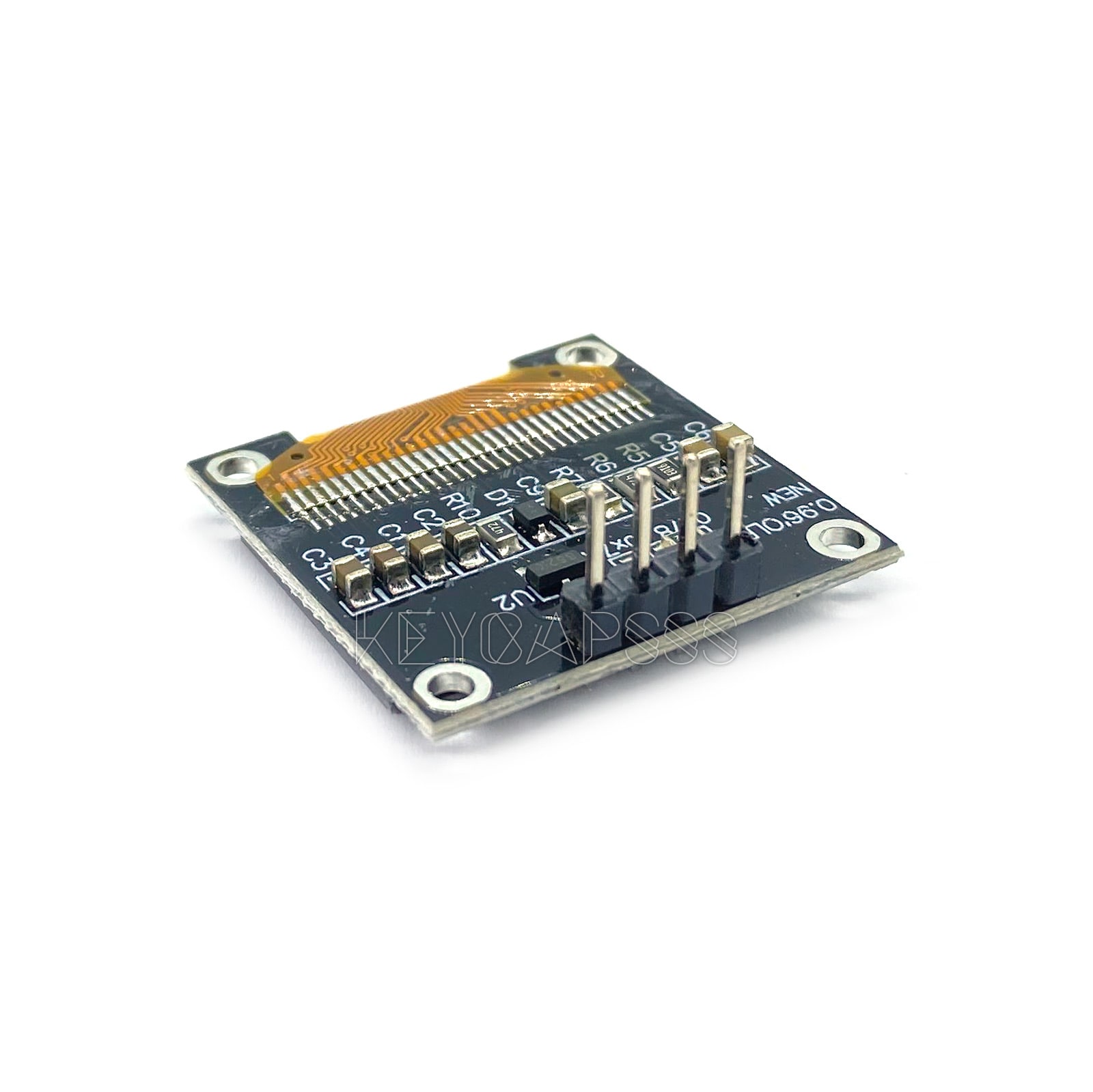

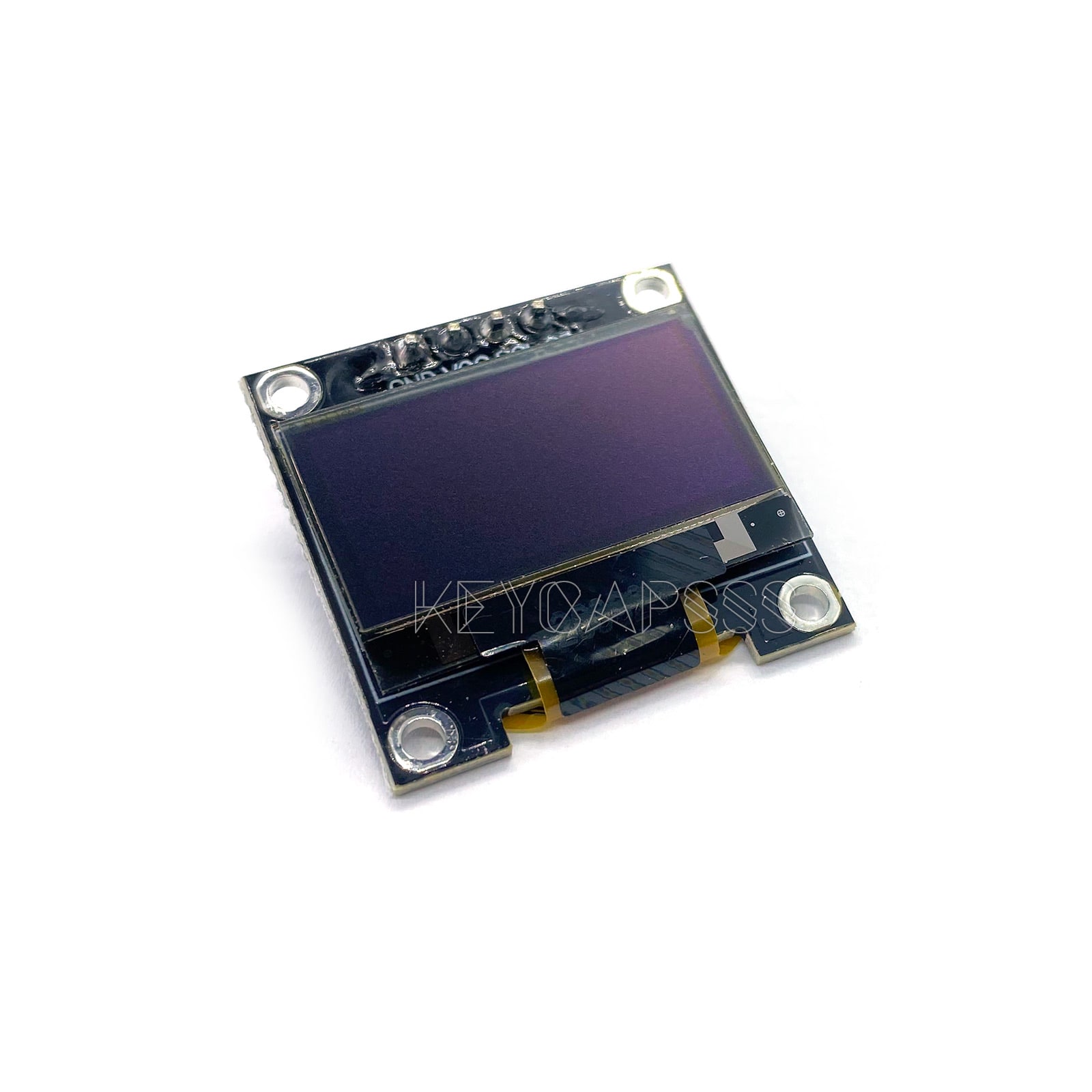

0.96 OLED LCD Display 128x64 SSD1306 I2C
€5.90
Ready to ship: Delivery time 2-5 workdays (Germany), 5-14 workdays (EU), 10-20 workdays (Int.)
Description
- Supported keyboards from the shop: Draculad
- Driver IC: SSD1306
- Size: 0.96 inch OLED
- Resolution: 128 x 64
- Display Color: White
Pin Description:
- GND: Power Ground
- VCC: Power + (3.3V - 5V)
- SCL: Clock Line
- SDA: Data Line
