0xCB Helios - Pro Micro/Elite-C compatible MicroController with RP2040

€16.00*

€13.45 excl. sales tax

* Prices incl. VAT (if any) plus shipping (and customs duties, if any)

Color

Black

Purple

White

Product number: KC10205_BK

Product information "0xCB Helios - Pro Micro/Elite-C compatible MicroController with RP2040"

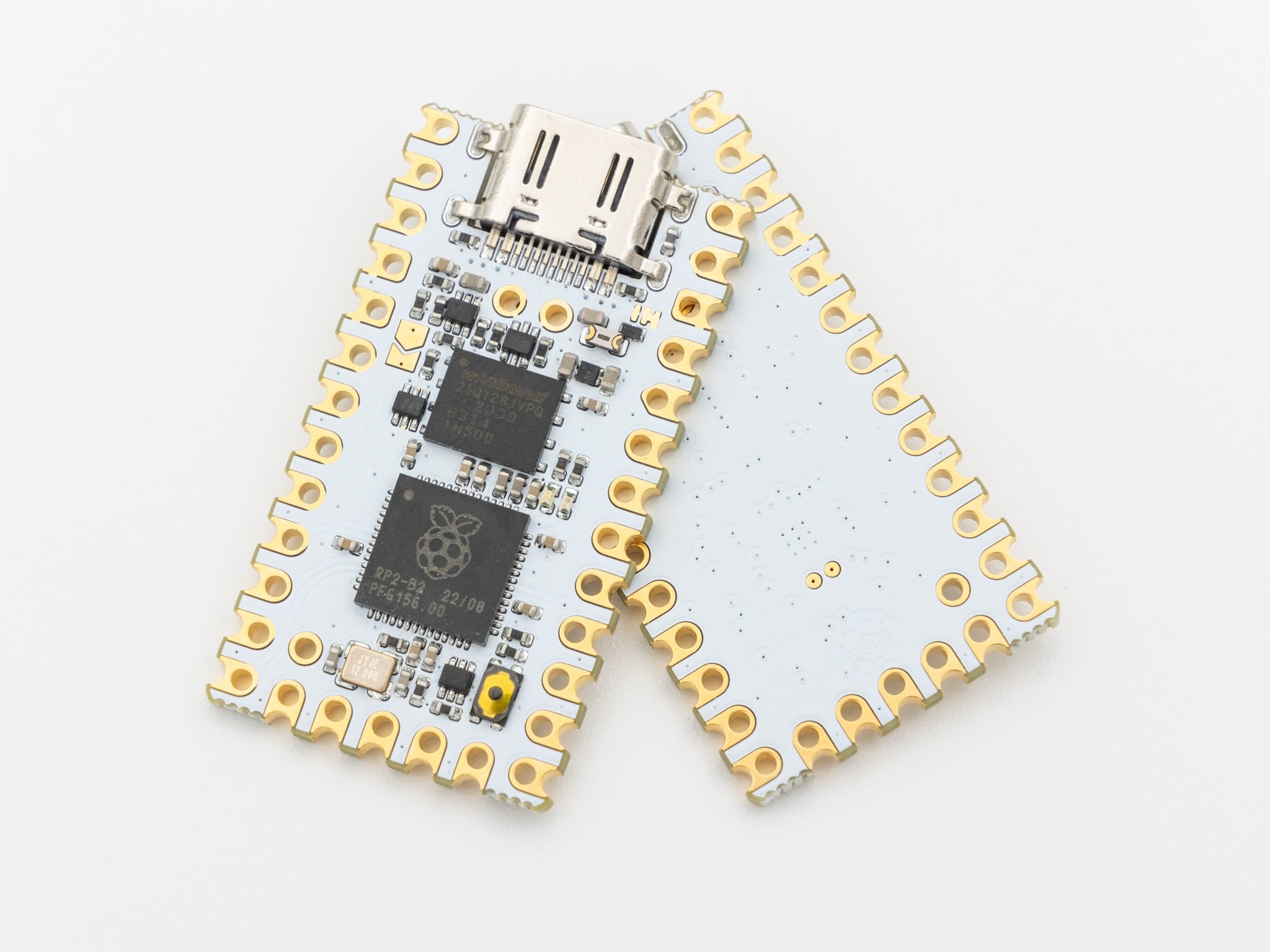

Meet Helios, the RP2040 Controller with Pro Micro/Puchi-C/Elite-C compatible pinout, 16MB (128Mbit) of flash, Dual ARM Cortex-M0 @133MHz, and 264kB SRAM.

ESD protection chip onboard
Supports VBUS detection for split keyboards
You can select VBUS instead of raw for the 5V pin to hook up an external USB port with the included D+ and D- pads while maintaining ESD protection.
A default off red power LED that can be turn on via a jumper
Blue user LED
Level-shifter to drive 5V components
Single button reset circuit which enables you to reset the board with a short click
Enter the bootloader with a long (>500ms) click
Open-source by 0xCB

The Helios comes without header pins, to keep the price low as possible.
I highly reccommend to use the "Single Row Sockets" from Mill-Max, the cheaper alternative, or the "Spring-loaded pin headers".
You can find the standard pin header here.

Example to compile the QMK firmware for the Helios (uf2 file, not hex).

qmk compile -kb crkbd/rev1 -km via -e CONVERT_TO=helio

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

Display reviews in current language only.

No reviews found. Share your insights with others.

Safety information

EU responsible person: Keycapsss | Benjamin Rösner, Löhrstr. 11, 04105 Leipzig, Germany
Contact: Keycapsss.com

Accessory Items

Keycapsss

USB-C Magnetic Adapter 24Pin - Thunderbolt

24 Pin contact USB4.0 (Backward compatible with Thunderbolt 3, USB3.2, 3.1, 3.0, 2.0...) 40Gbps data sync (2500MB/S Max.), with USB2.0 data cable 480Mbps 8K@60Hz ultra HD video output (need a USB cable with support for 8K@60Hz) PD (Power Delivery) up to 5A 100W Strong magnet Material: PVC, Aluminum Alloy

From €5.90*

[ Currently out of stock ]

through hole connector single row socket headers series 315 12 position

Mill-Max

Single Row Socket Headers or Pins (Mill-Max Series 315)

Sockets does not include the Pins. These can be ordered separately from the Drop-Down Menu. Sockets 1x QTY includes 2pcs socket headers, for a Split-Keyboard you need 2x QTY (4pcs socket headers) Pitch: 0.100" (2.54mm) Contact Finish: Gold Header Datasheet Link Pin Datasheet Link Instead of the pins, you can use legs from diodes or resistors Pins Length: 0.250" (6.35mm) Diameter: 0.020" (0.51mm) For a Split-Keyboard you need 2 QTY (4x Sockets) Example how to use the sockets.

From €4.90*

No Brand

Single Row Socket Headers 2.54 Pitch

Cheaper alternative to the Mill-Max Series 315 sockets 1 Qty = 1 socket row with 40x pin holes Easy split to needed length with a flush cutter Pitch: 0.100" (2.54mm) Both variants work with the Mill-Max 315 pins, but looser than with the Mill-Max sockets (with 7mm even more loose) Variants: Height 3mm Accepted diameter for pins: Variant 0.4mm < 0.7mm Not compatible with standard squared pins Compatible with this needle pins Height 7mm Accepted diameter for pins: Variant 0.6mm < 1.0mm Compatible with standard squared pins Compatible with this needle pins

From €2.90*

Spring-loaded pin headers 12-pin 2PCS (Conthrough)

No Brand

MAC8 XB-3-2.5-12P Spring-loaded pin headers 12-pin 2PCS

12 pin per header H: 2.5mm (The dimension H is the distance between the PC boards) Rated current: 1A Rated voltage: 125V AC, DC Pitch: 2.54 mm includes 2x 12 pin header Insertion / removal forces (per pin): Through holeInsertion forcesRemoval forces 0.8 200g or less 50g or ove 0.85 150g or less 30g or ove 0.9 100g or less 20g or ove

€6.90*

No Brand

Pin Header 2x12 pins, 1x 5 pins

This header pins can be soldered direct on the PCB, or you can use the "Single Row Socket Headers 2.54 Pitch (7mm)" to make it hotswap able.

€1.90*
