Parts

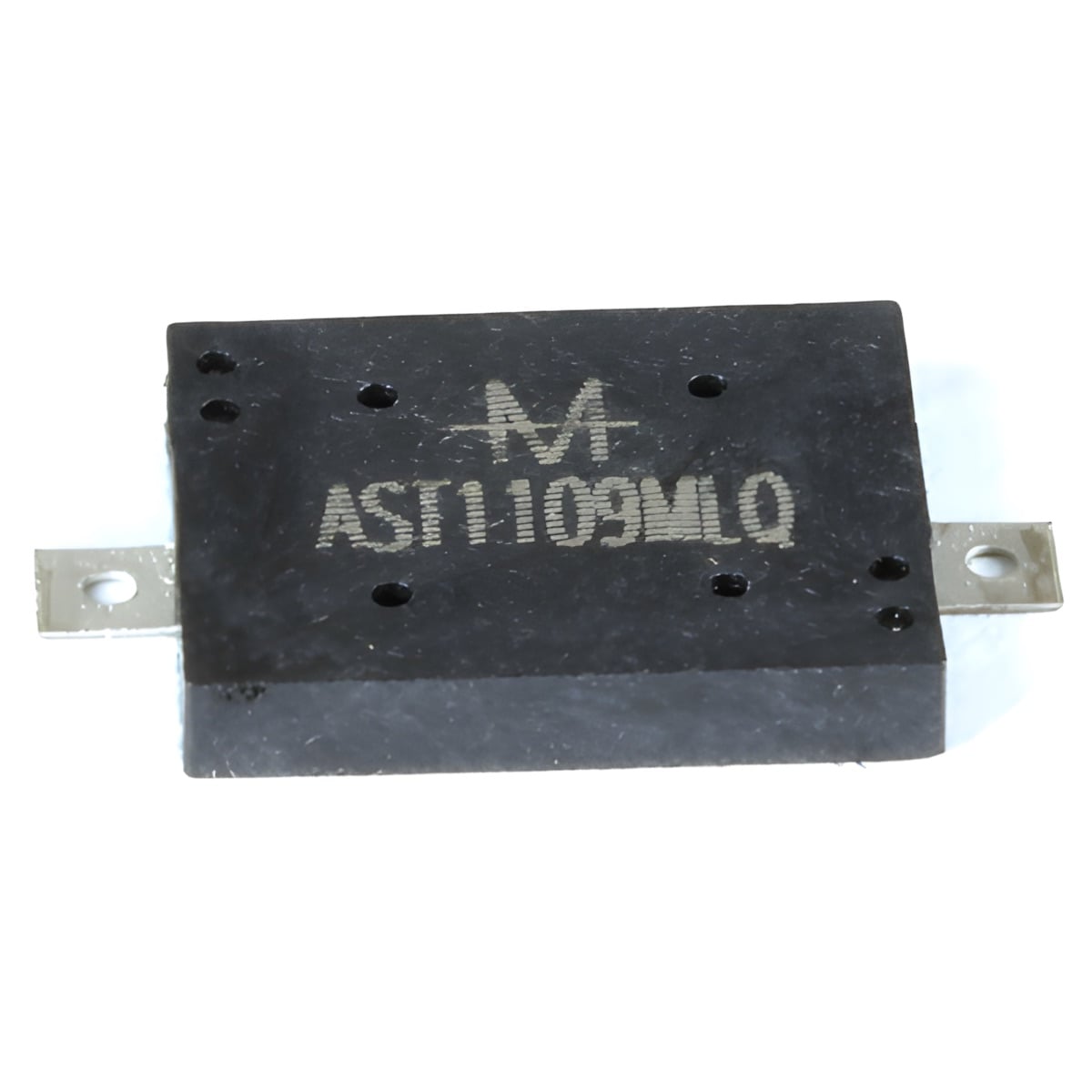

Could be used for:Low battery warningLayer change, or certain layer conditionsCompatible Keyboards from the shop:DASBOBErgoDashVoltage - Rated 5 VVoltage Range 1 ~ 20VFrequency 4.1kHzSound Pressure Level (SPL) 73dB @ 5V, 10cmCurrent - Supply 1mASize / Dimension 0.433" L x 0.354" W (11.00mm x 9.00mm)ROHS3 CompliantDatasheet

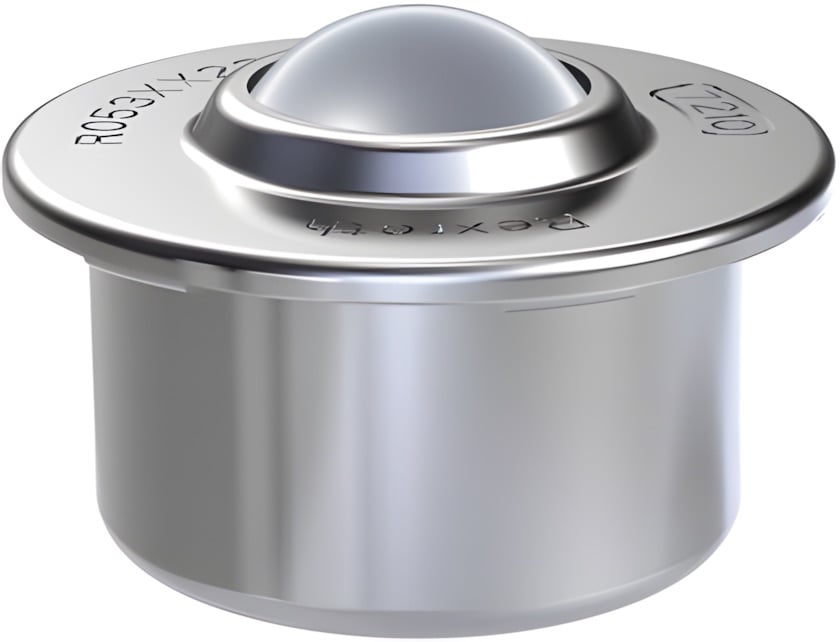

Datasheet CAD files Product attributes Nominal size [mm] 8 Dynamic load capacity C [N] 130 Maximum permissible linear speed vmax [m/s] 2 Note: maximum permissible speed vmax In case of prolonged periods of use at speeds above 1 m/s, an increase in temperature and reduction in service life is to be expected depending on the load. Outer diameter D [mm] 12.6 Operating temperature (min. … max.) - 30 °C ... + 100 °C Note: permissible operating temperature (min. ... max.) At temperatures above 100 °C, only bright metal ball transfer units without a felt seal should be used. Make allowance for reduction in load capacity. Use high-temperature lubricant! Follow the manufacturer’s instructions! The existing lubricant oil * Weight [kg] 0.01 Static load capacity C0 [N] 250 Maximum operating temperature [°C] +100 Minimum operating temperature [°C] -30 Product information Without felt seal Dimension a [mm] 1.9 Dimension b [mm] 3.2 Tolerance c +0.2 Dimension D [mm] 12.6 Tolerance D [mm] ±0.055 Dimension D1 [mm] 17 Dimension dW [mm] 7.938 Dimension h [mm] 4.8 Dimension H [mm] 11.2 Tolerance h ±0.15

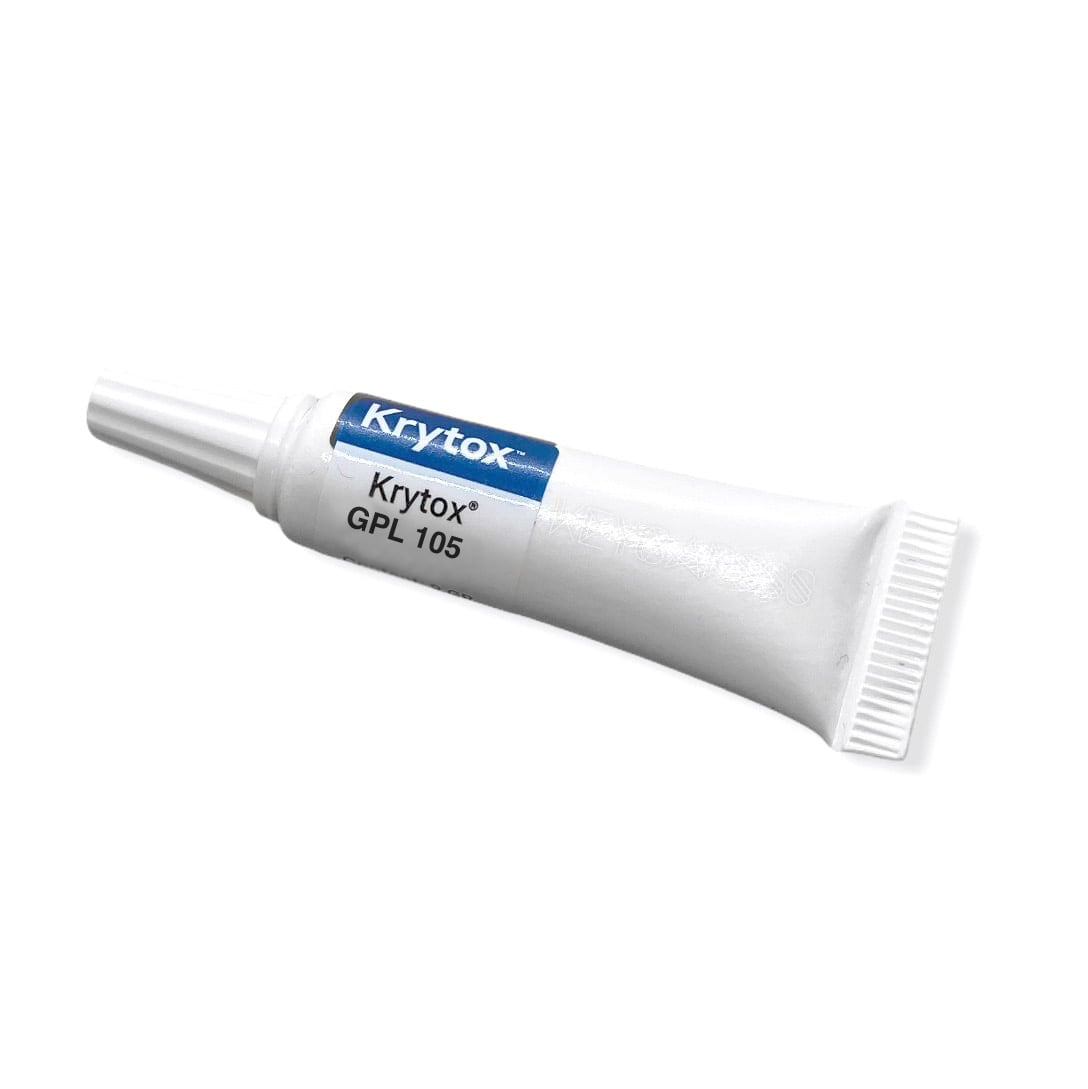

Krytox GPL  105 (general-purpose lube) is a high performance grease widely used to lubricate mechanical keyboard switches, controller components and joysticks. 1 QTY = 1x 5ml tube 9g (enough for 200-400 switches) Viscosity: low Recommended for: switches with lighter spring Effect: smooth press, the thinner oil will feel snappier as GPL205Elimination of “scratching” sound and other undesirable acoustic properties

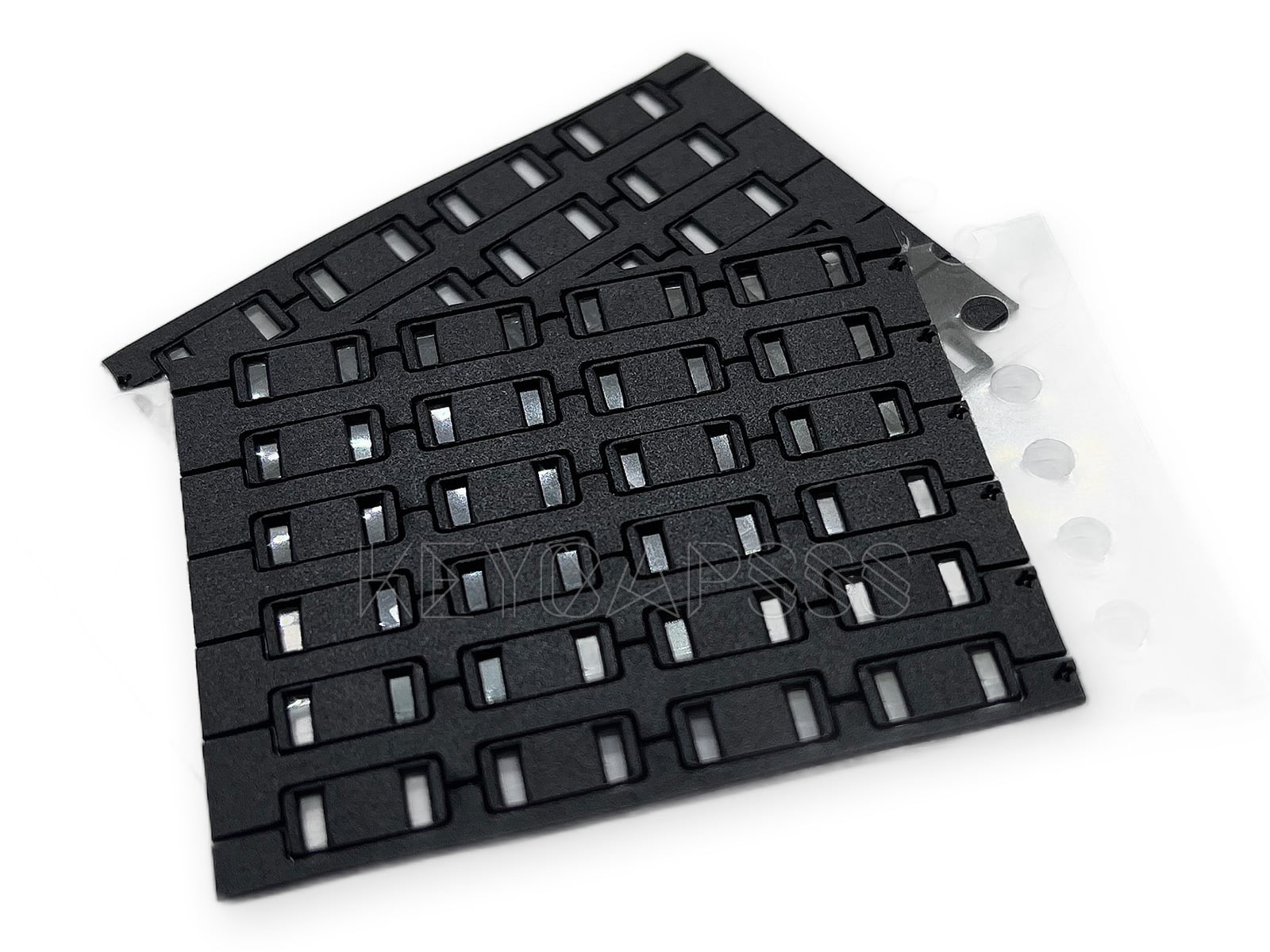

These spacer stickers will help to raise the keycap and prevent it from hitting the switch when you pressed down. 48 Sticker Thickness: 0.5mm Material: PET Self-adhesive

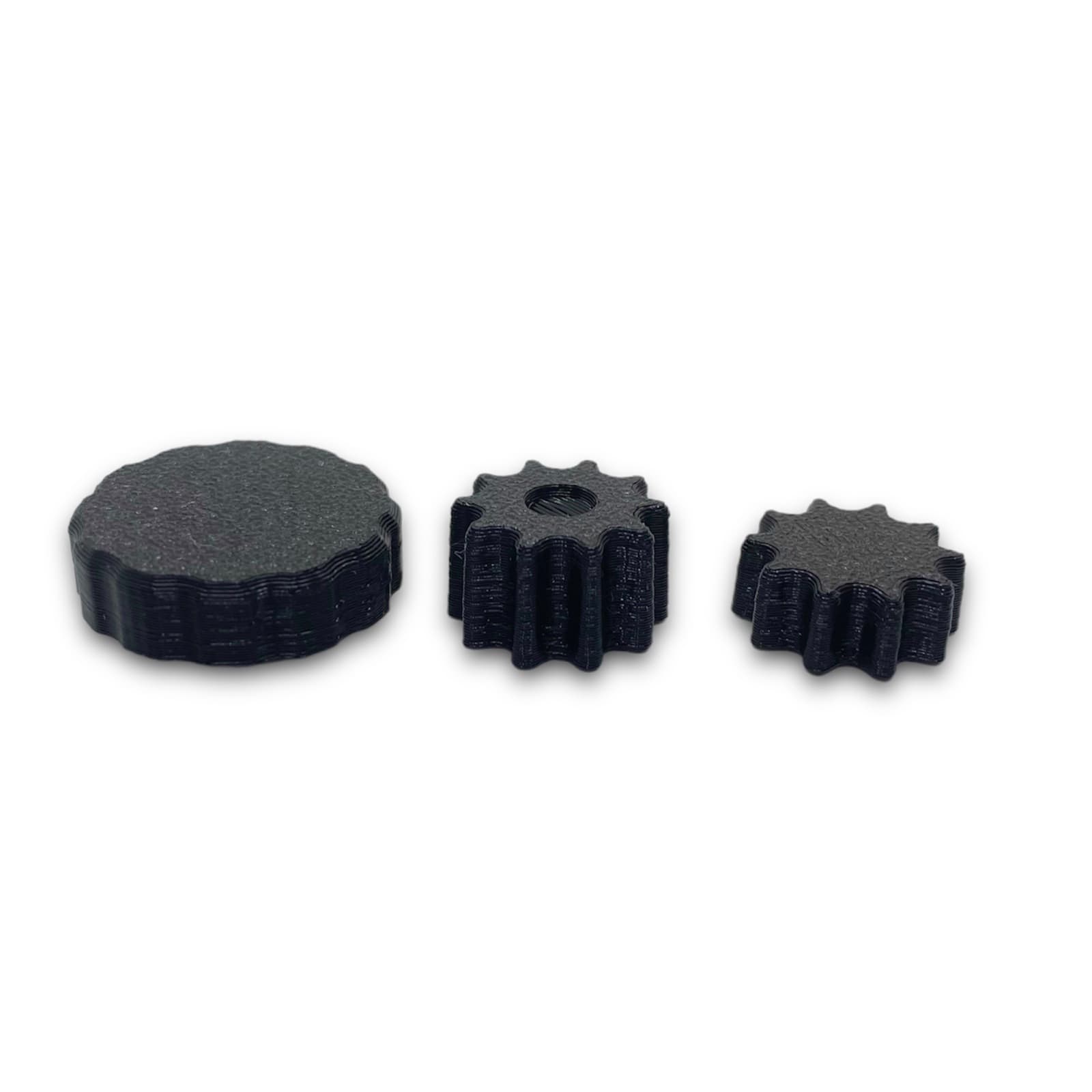

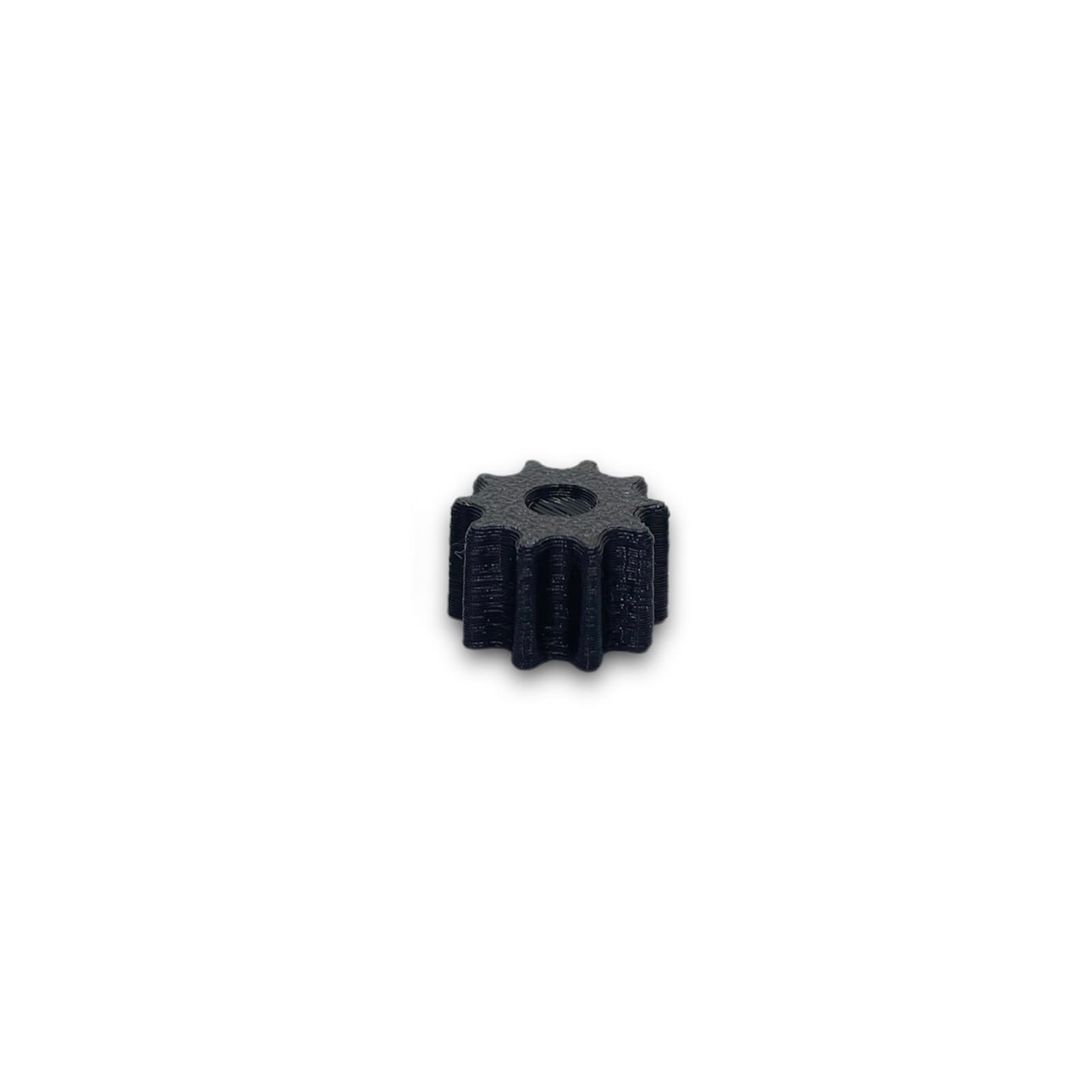

These knobs are compatible with "Alps Alpine EC12E1220301" encoder. Material: PLA Variant 1 Size: Dia: 15.8mm H: 6.1mm Variant 2 Size: Dia: 15.6mm H: 9mm Variant 3 Size: Dia: 22mm H: 9mm Variant 1 & 2 design by rmwphd | Variant 3 design by DeltaWhy

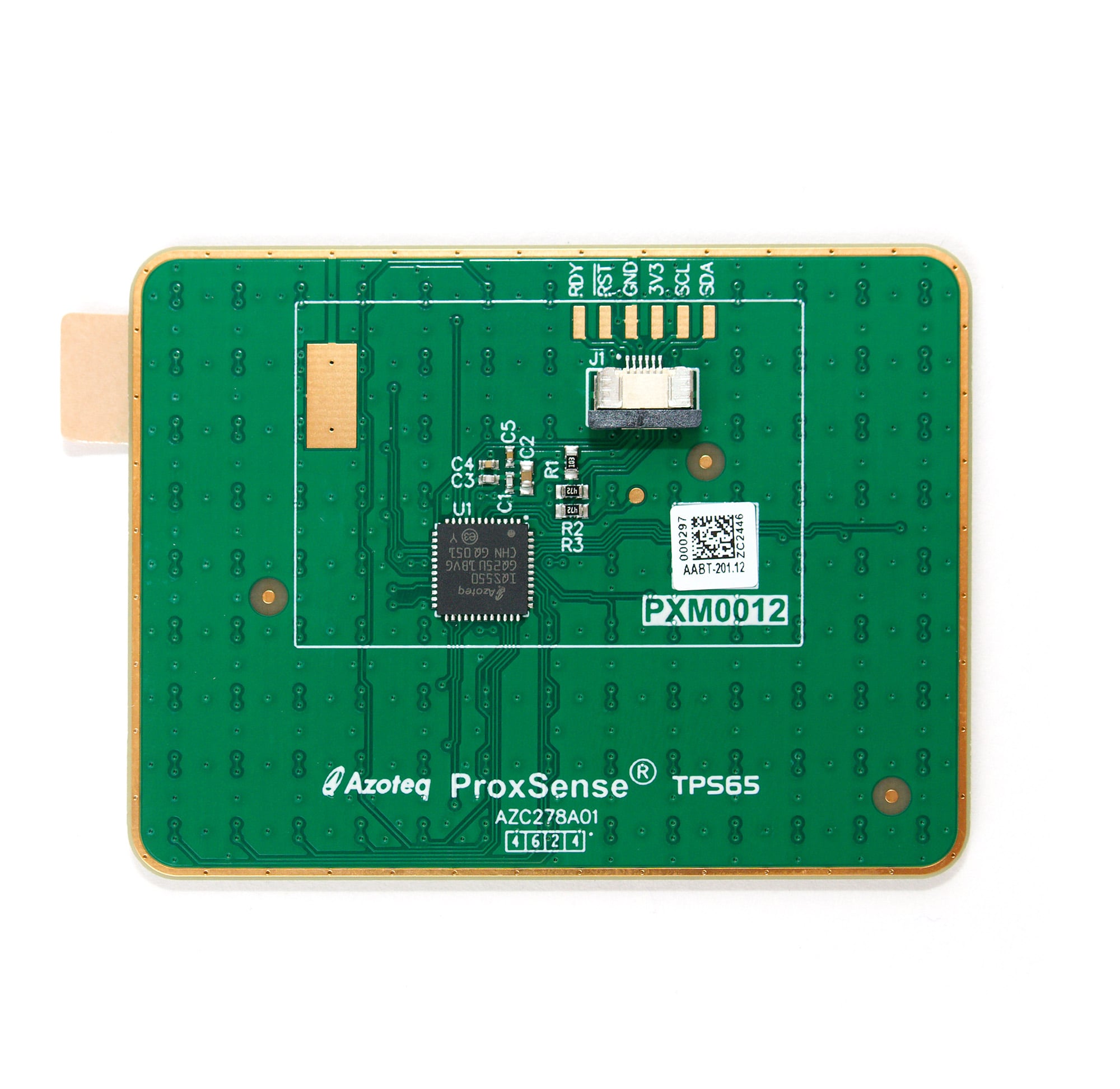

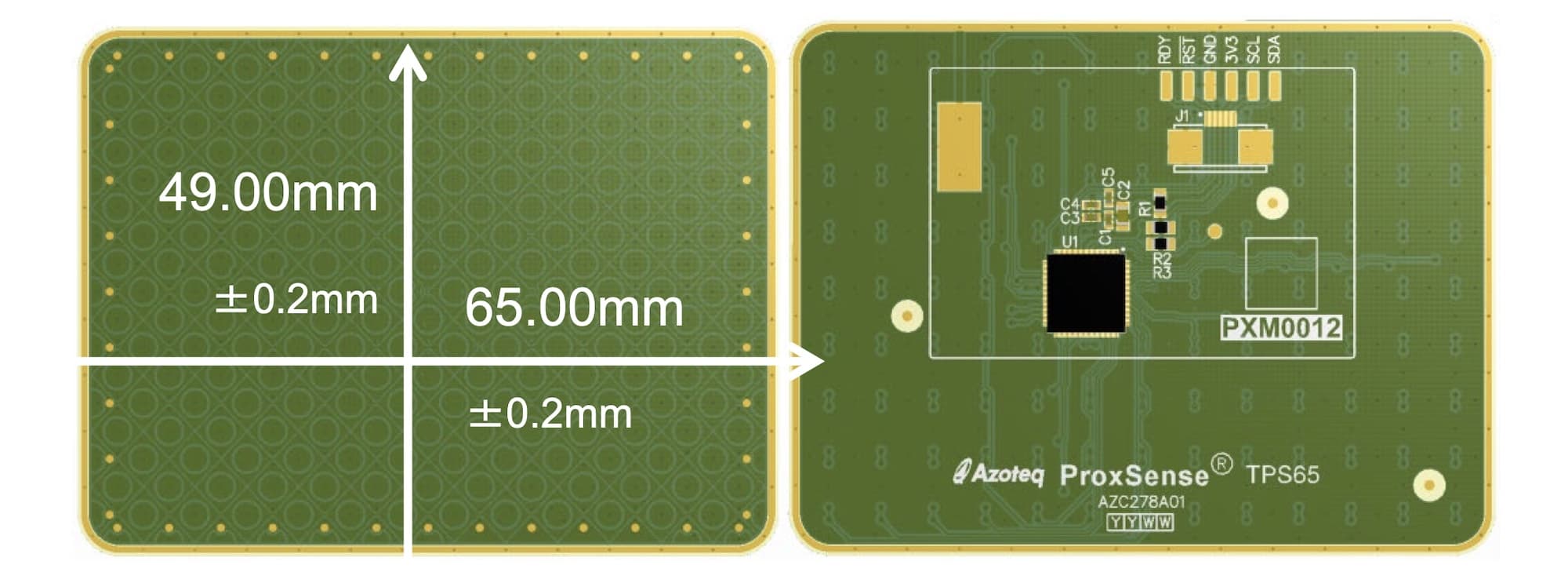

I2C Interface Supply voltage: 1.65V to 3.6V 1 and 2 Finger Gesture Detection (Swipe, Tap, Pinch/Zoom, Gesture with Hold) Overlay: 3M Adhesive Supplied with Liner and Pull tab TPS45 Dimension: 43mm x 40mm Touch IC: IQS572 Resolution: 2048 x 1792 TPS65 Dimension: 65mm x 49mm Touch IC: IQS550 Resolution: 3072 x 2048 Datasheet Glass overlay for TPS65 Dimension: 65mm x 49mm x 1.1mm Black (non-translucent) Rounded edges no adhesive   Examples: Eskarp - handwired split keyboard with TPS65 touchpad Rust Driver for TPS65 (iqs5xx chip) QMK example code from the tp1s6 project QMK example code from the disconnect72 project Arduiono example

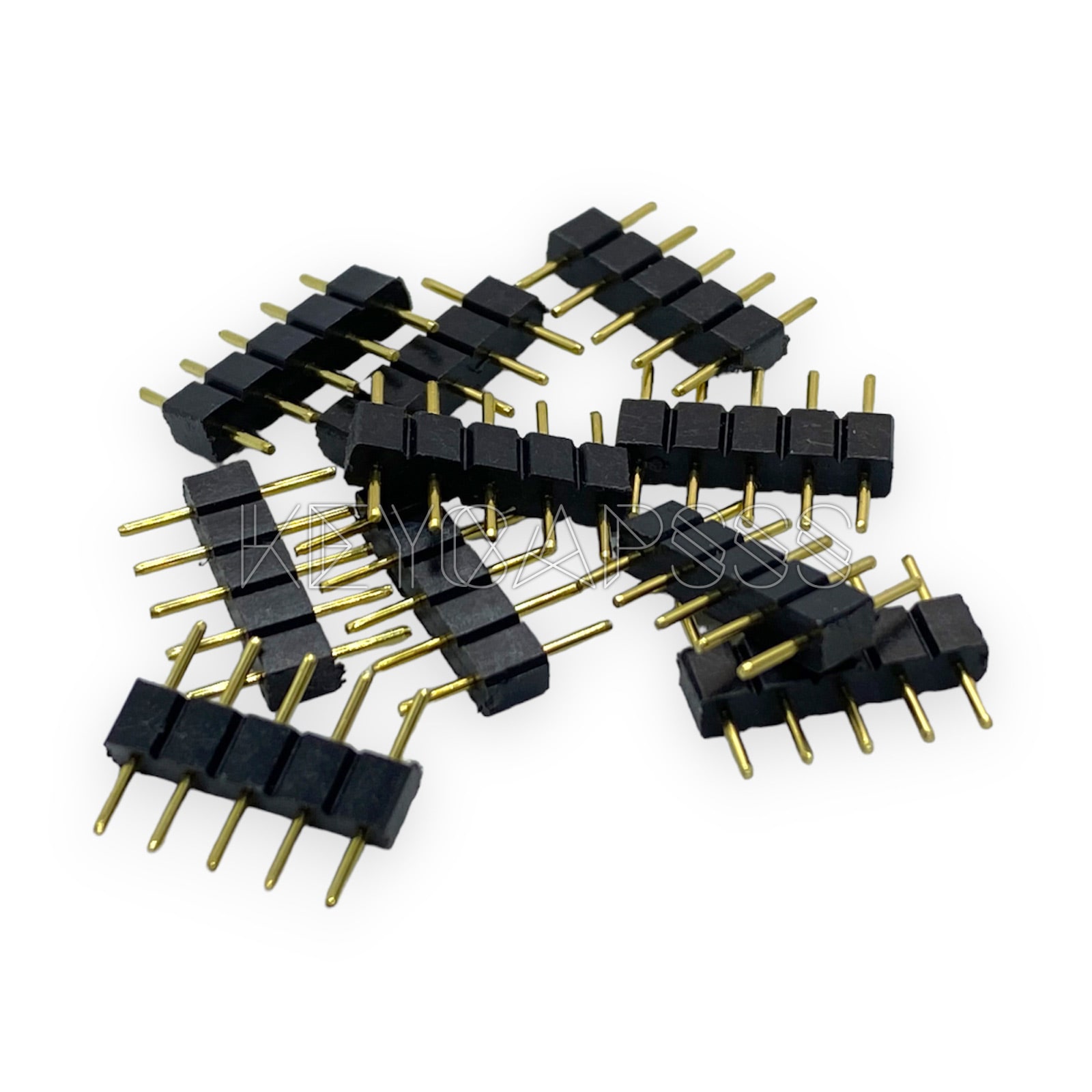

Incl. 10x 5pin connectors Height: 10mm Diameter: 0.6mm Pitch: 2.54mm Copper plated Plastic is 3mm heigh Sturdy and fit perfect with the 3mm header and 7mm header

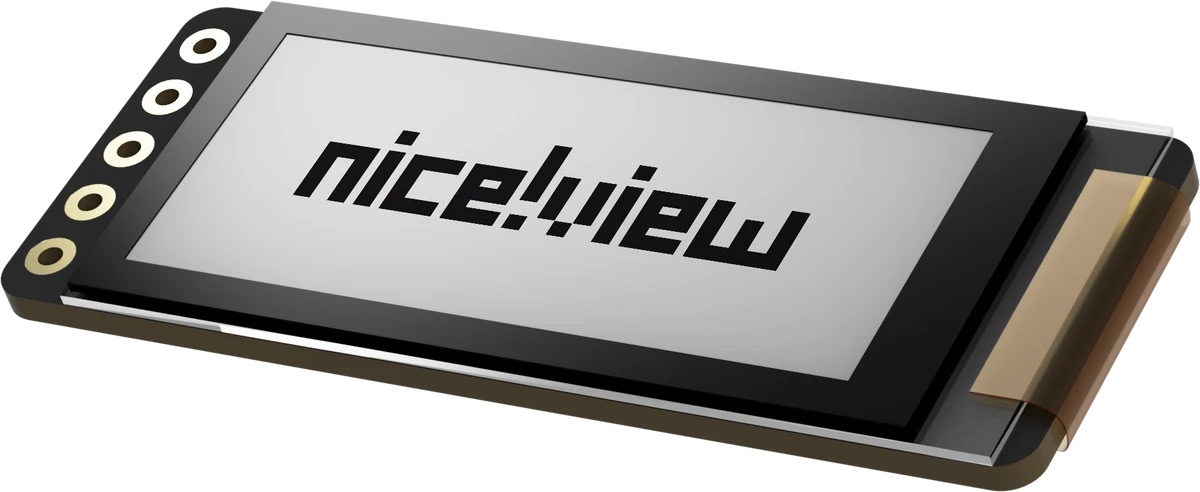

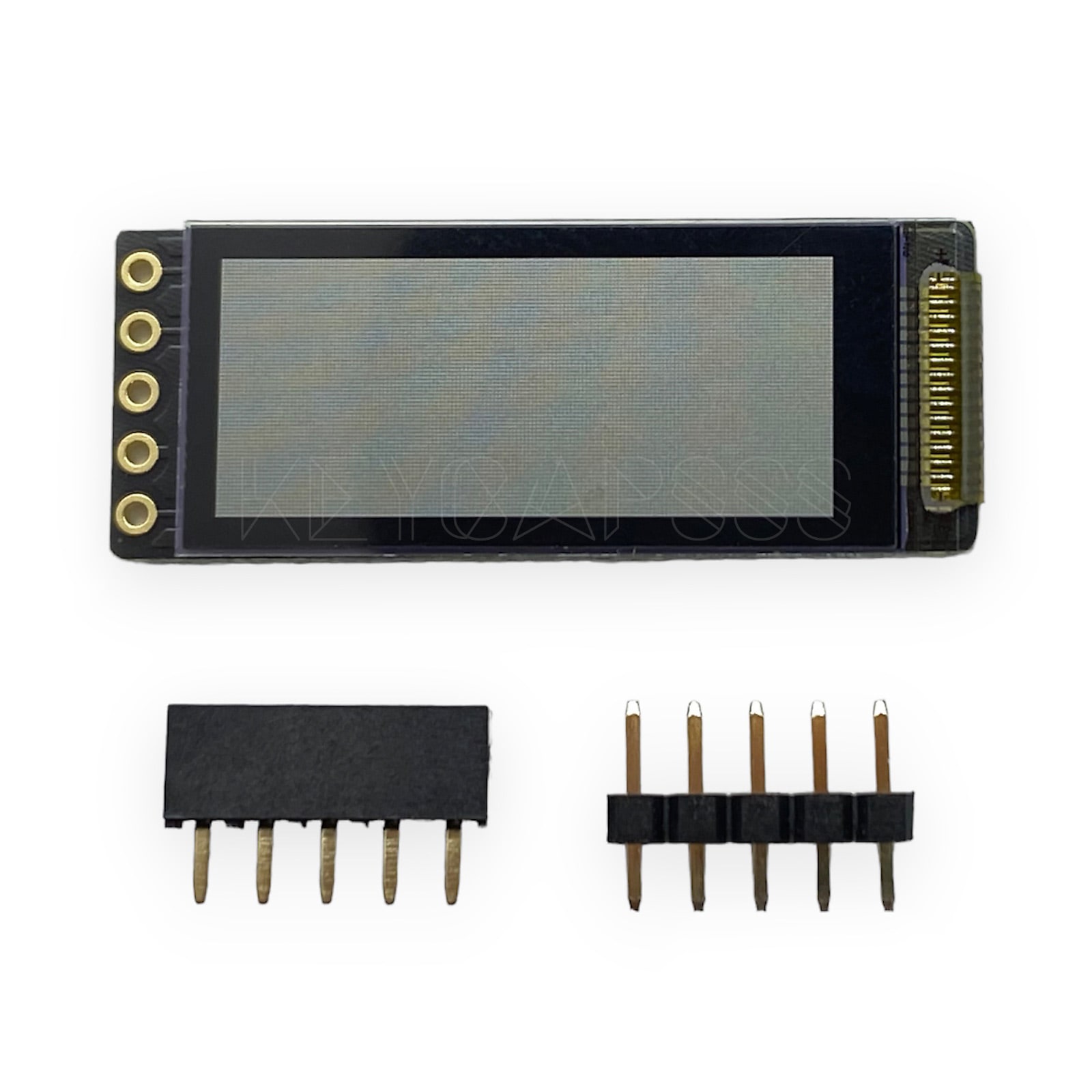

The nice!view is a SSD1306 OLED replacement boasting >1,000x power savings while keeping a 30Hz refresh rate. It has a similar pinout to SSD1306 OLEDs with one extra pin making it easy to add on to existing boards. Resolution: 160 x 68 (1.08") Dimensions: 36 x 14 x 2.9mm Refresh Rate: 30Hz Typical Power Draw: ~10μA Memory-in-Pixel technology Protocol: 3-wire SPI Voltage: 3.3V Display: Sharp LS011B7DH03 PCB Conformal Coat, ENIG, FR-4 Socket and pins included Getting Started Guide

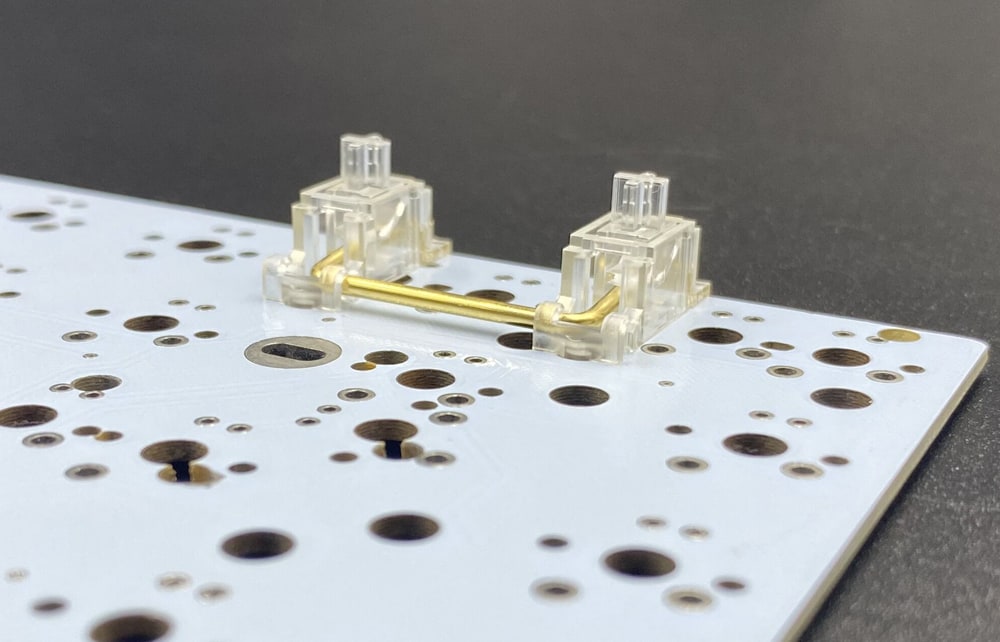

Transparent housing, gold plated steel For 60% and 87% keyboards Compatible with MX PCBs New V2 version have an improved housing to help prevent wire popping. Material: Nylon PA Plastic Includes: 1x 2U stabilizer (V3), washers and golden screws (Soulmate stabilizer sticker set not included)or 4x 2U and 1x 6.25U stabilizers (V2), washers and golden screws + Soulmate stabilizer sticker set   V3 Features DUROCK V3 Screw-in Stabilizer is with innovative design on stems base on V2.The upgrade stem/slider is with Smaller wire gap and Elastic support base to Minimize the wire wobble and noise.The V3 PCB Mount Stabilizer is able to be used directly with less tuning.   Innovative Elastic Support Base  Smaller Wire Gap

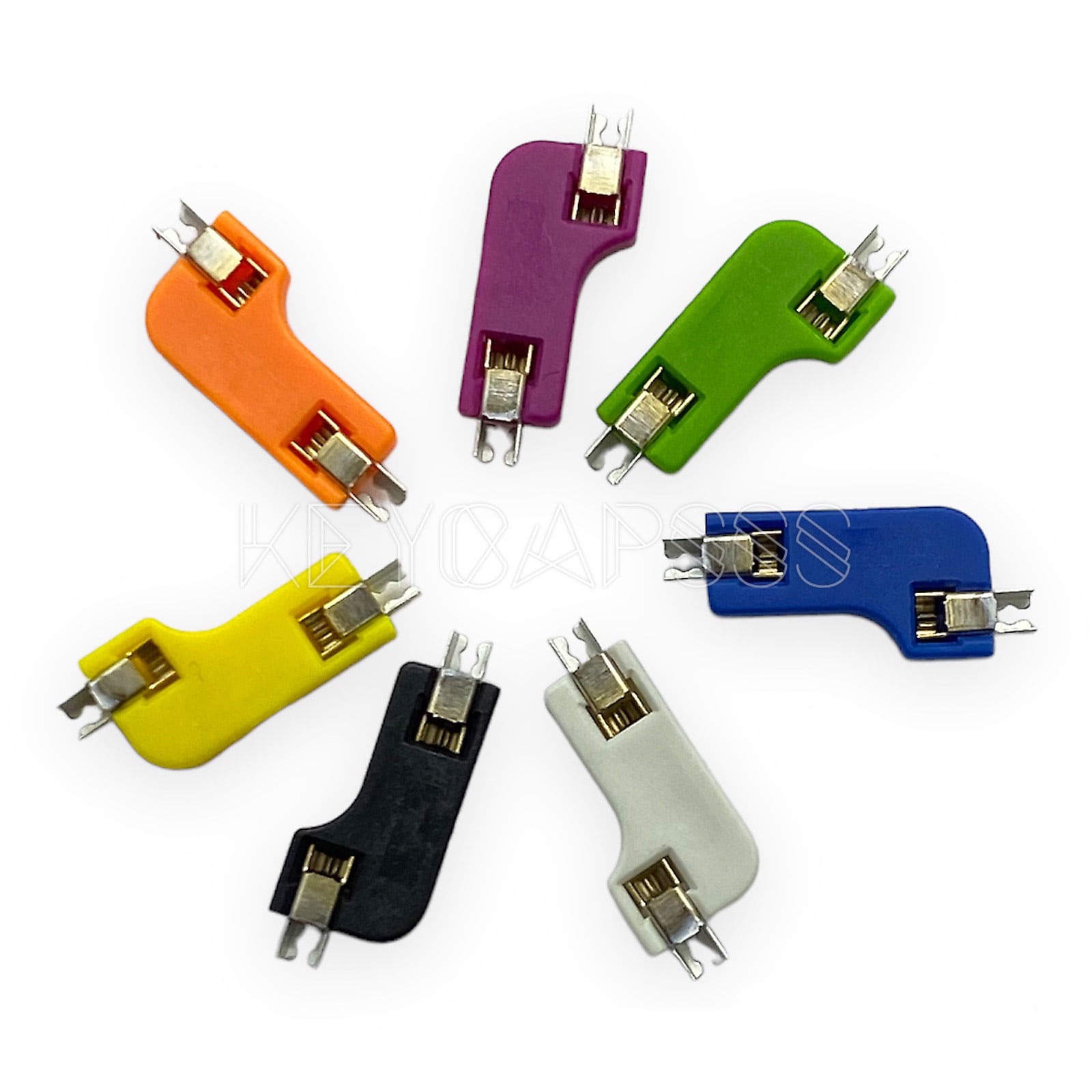

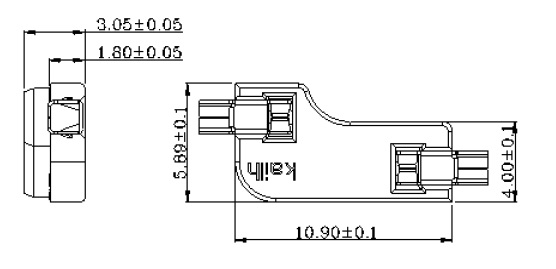

Compatible with Cherry MX switches and clones Compatible with Kailh Hotswap socket footprint Gold plated contacts Sold in packs of 10 (Quantity 1 = 10 sockets) Require a compatible PCB Technical specification: Rating voltage range: 2A AC to 12V AC/DC Rating current: 10μA DC to 10mA AC/DC Contact resistance: 200mΩ (maximum) Insulation resistance: 100mΩ (minimum) (100V DC) Withstand Voltage: AC100V(50-60Hz) Motion Force: 3.0kgf max Operating Life: 100 Cycles (can replace switches 100 times)

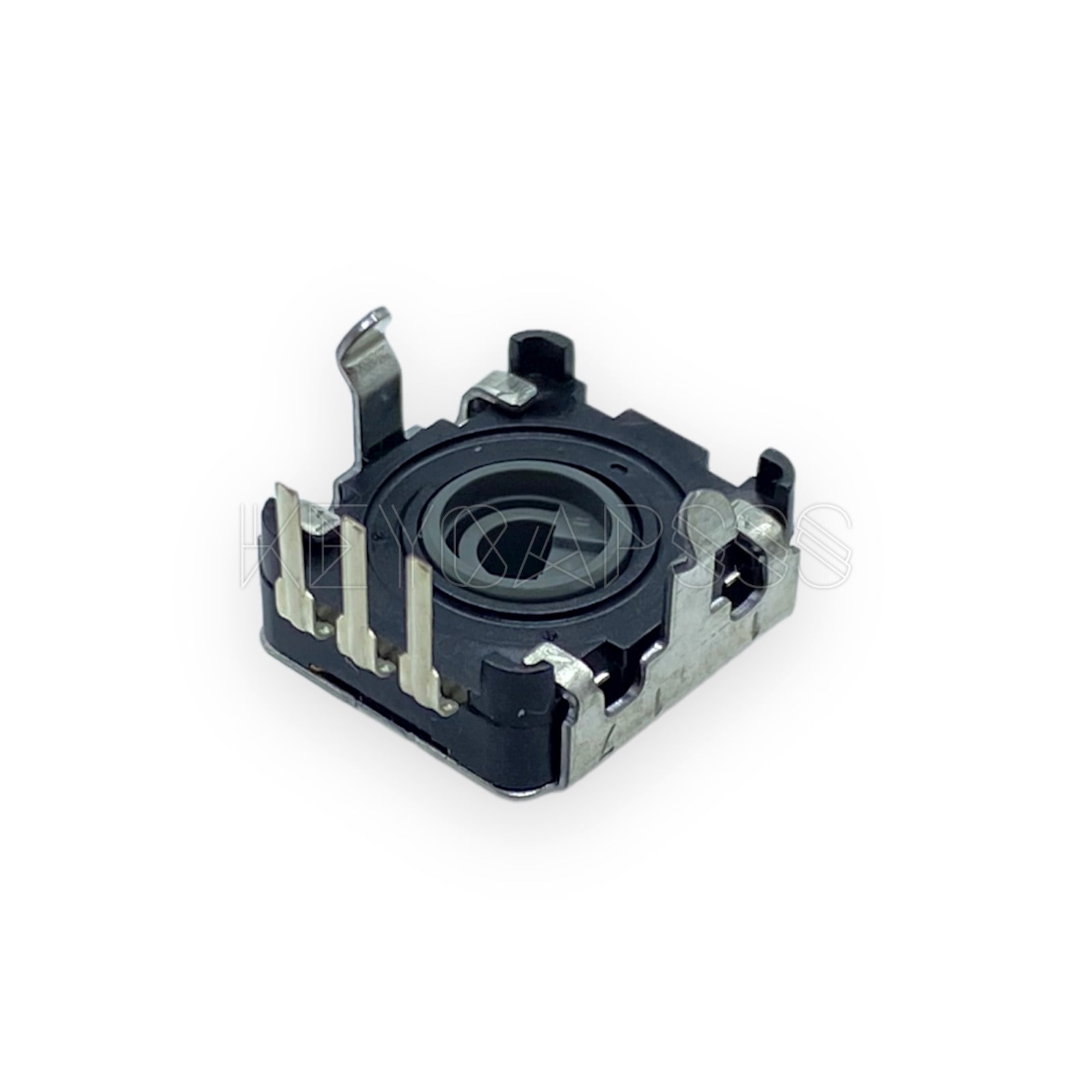

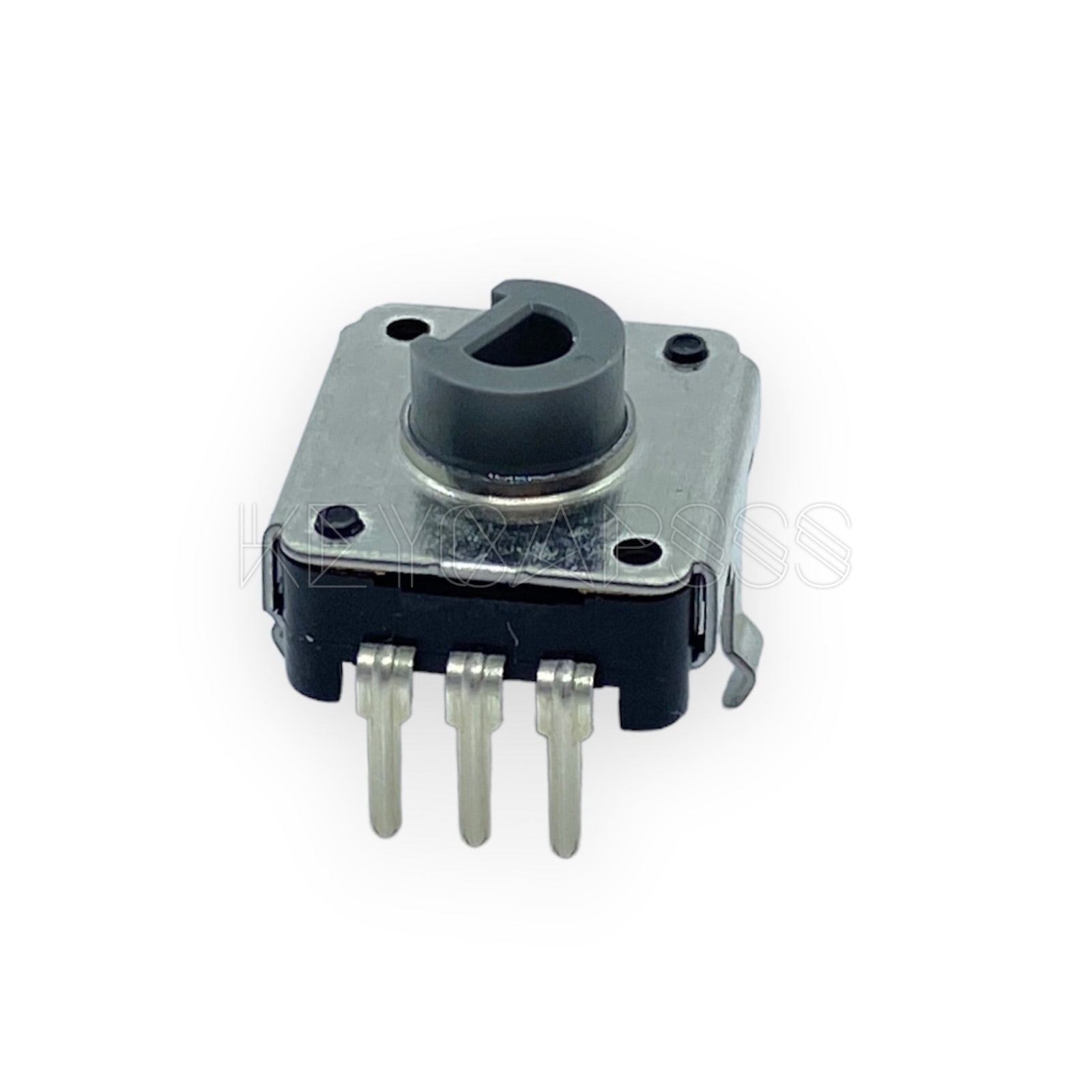

Datasheet Manufacturer: Alps Alpine Series: EC12 (EC12E1220301) Mounting Style: PCB Mount Resolution: 12 PPR Number of Detents: 12 Detent Output Type: Quadrature Shaft Diameter: 6 mm Shaft Type: Flatted With Switch: Without Switch Operating Supply Voltage: 5 VDC Life:30000 Cycles Brand: Alps Alpine Maximum Operating Temperature:+ 70 C Minimum Operating Temperature:- 10 C Shaft Length: 8.5mm Unit Weight: 1,780g  3D printable knobs https://github.com/rmwphd/ec12-knob https://github.com/GEIGEIGEIST/KLOTZ/tree/main/knob

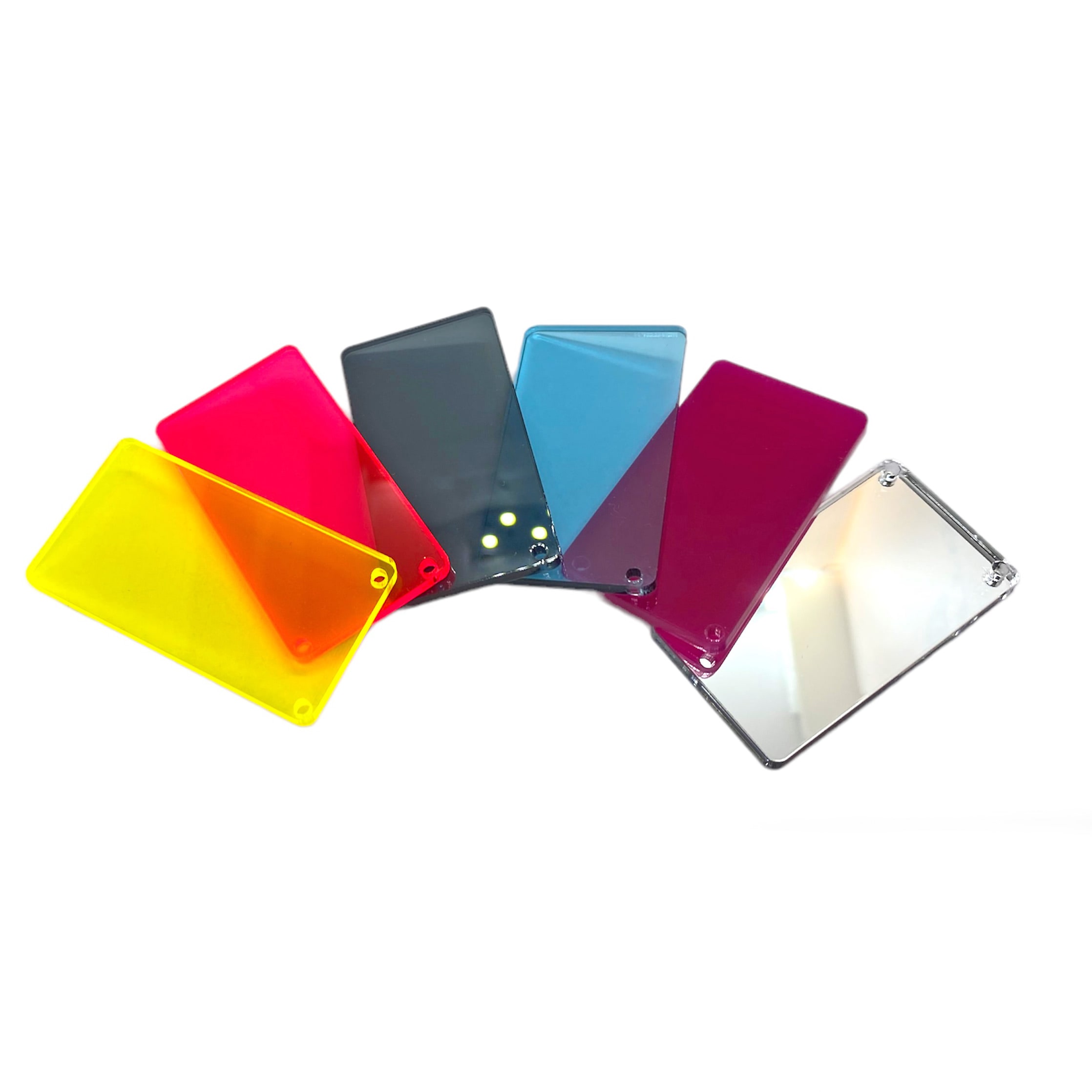

All covers are 3mm thick For the Lily58 plate case. Includes 2x acrylic oled covers of the choosen color 4x M2x5mm screws (torx t6 stainless)

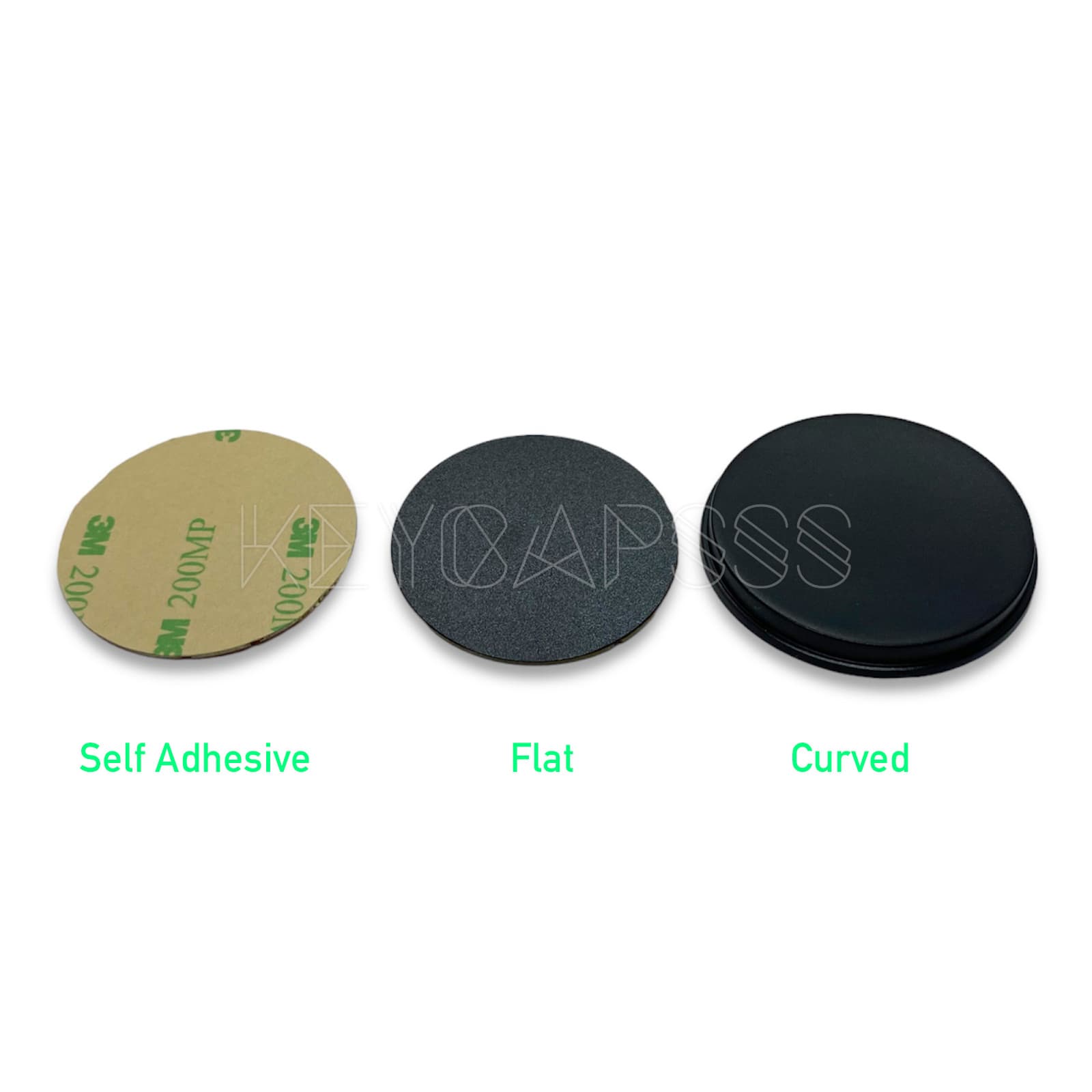

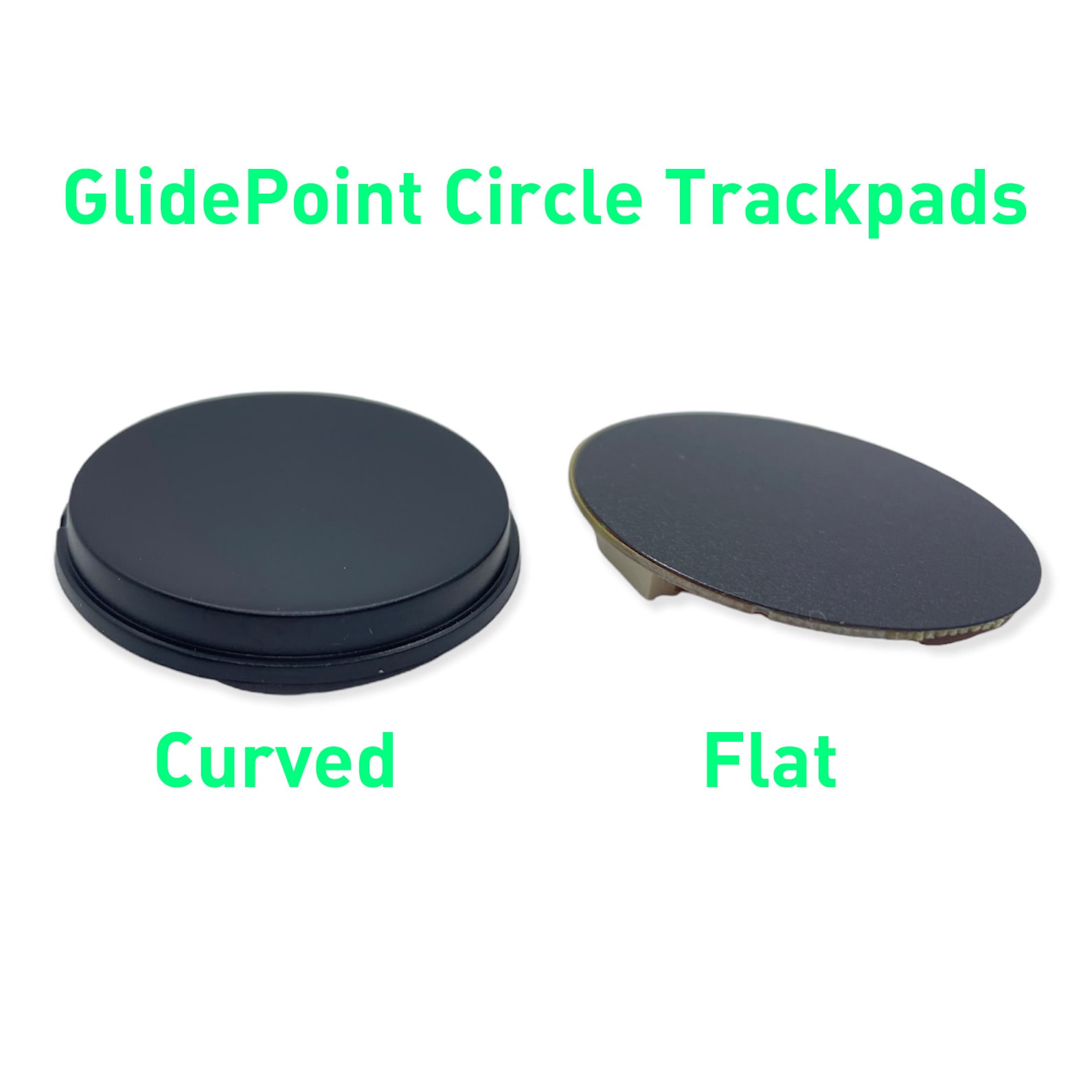

To use this trackpad with I2C instead of SPI communication, you have to desolder 2 resistors.Please reade the Guide for more information about it. Detailed Guide Includes Trackpad FFC / FPC cable 50mm long I2C adapter PCB 4-pin header General Specifications Touch Controller IC Touch Controller IC Cirque Custom SoC Gen2 "Pinnacle" 1CA027(p/n: 10-020040-000) Interface SPI or I2C with 12-pin FFC connector (0.5 pitch) Power Supply 2.5 - 3.6V Power Consumption Active: 2.9 mA Idle: 1.7 mA Sleep: 40 µA Shutdown: 0.23 µA X/Y Position Sensing Resolution X Axis: Max 0-2048 Active: 128-1920 Y Axis: Max: 0-1536 Active: 64-1472 ("Active" based on sensor active area) Physical Parameters Diameter: 40.00 mm / 35.00 mm Circumference: 125.6 mm Thickness: 5.61 mm with all components Operating Temperature -40 to 85° C Operating Humidity 5% to 95% relative humidity (non-condensing) Storage Temperature -40 to 125° C ESD 15 kV when properly mounted in bezel Environmental EMI tolerant and manufactured RoHS compliant Code examples QMK documentation for the GlidePoint Datasheet: TM035035 (35mm version), TM040040 (40mm version) 3d printable holder for kimiko, corne, kyria and sofle 3d printable holder (TM40040 Flat) for corne TM040040 Curved Overlay Mechanical Drawing (PDF) TM040040 Curved Overlay 3D Design (STEP) TM035035 Curved Overlay Mechanical Drawing (PDF) TM035035 Curved Overlay 3D Design (IGS)   The FPC-I2C adapter PCB is open source (made by keyboard-magpie). GlidePoint is a trademark of Cirque Corporation.

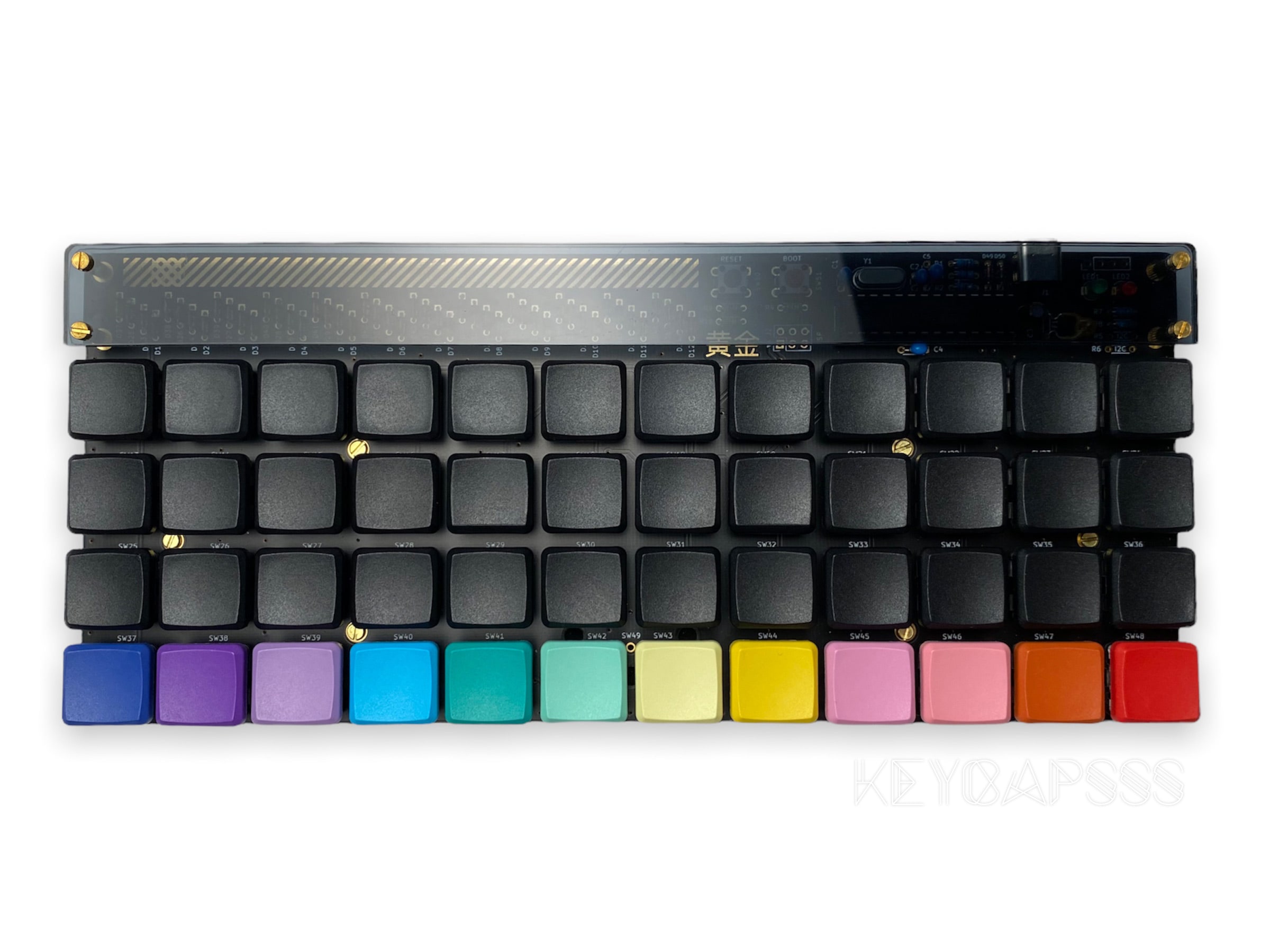

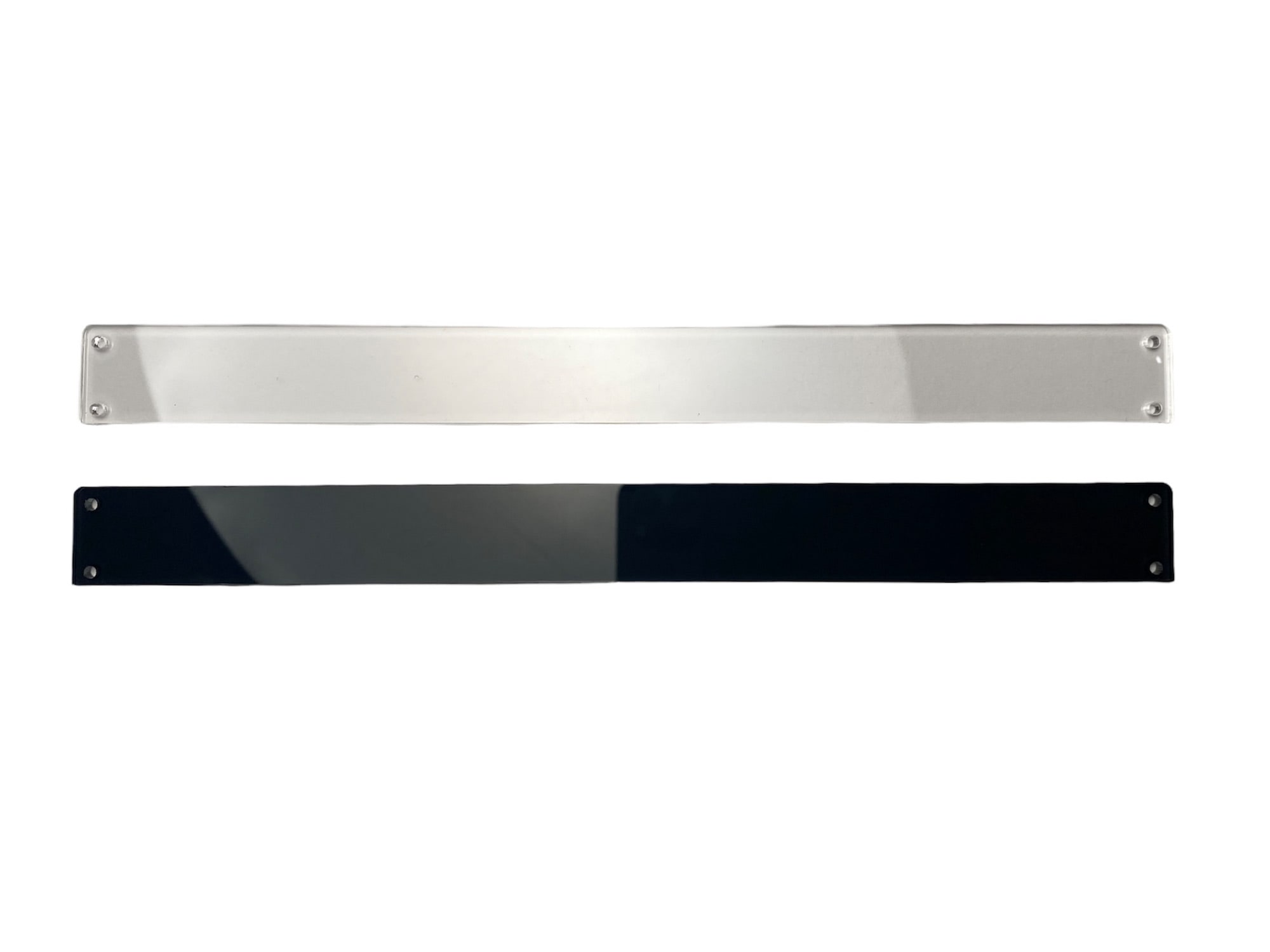

3mm thick Includes the guard plate and 4x 5mm stainless M3 screws with torx The clear plate looks darker on the image, but in real it's 100% clear (no color tint)   Photos of the guard plate with a keyboard are for demonstration purposes. This product includes only the guard plate.

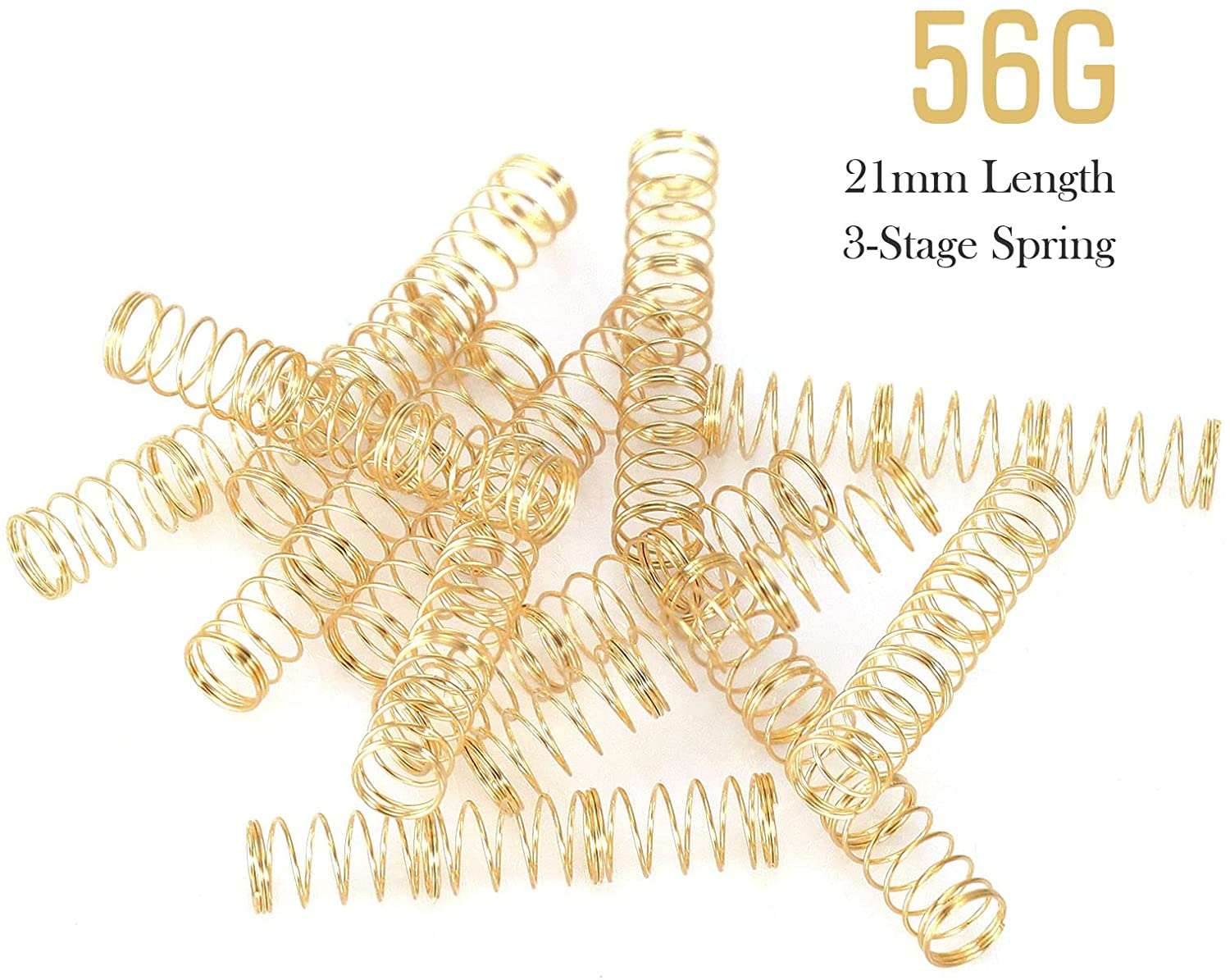

1QTY = 100 springs Variants = Actuation/ Bottom Out Force Compatible with MX switches and clones like Box switches Gold Plate (corrosion protection) Inner diameter: 3.1mm Height: 21mm The durock long springs feel quicker, as the actuation and bottom-out weights are very similar. Regular springs have a more noticeable gap between actuation and bottoming out.

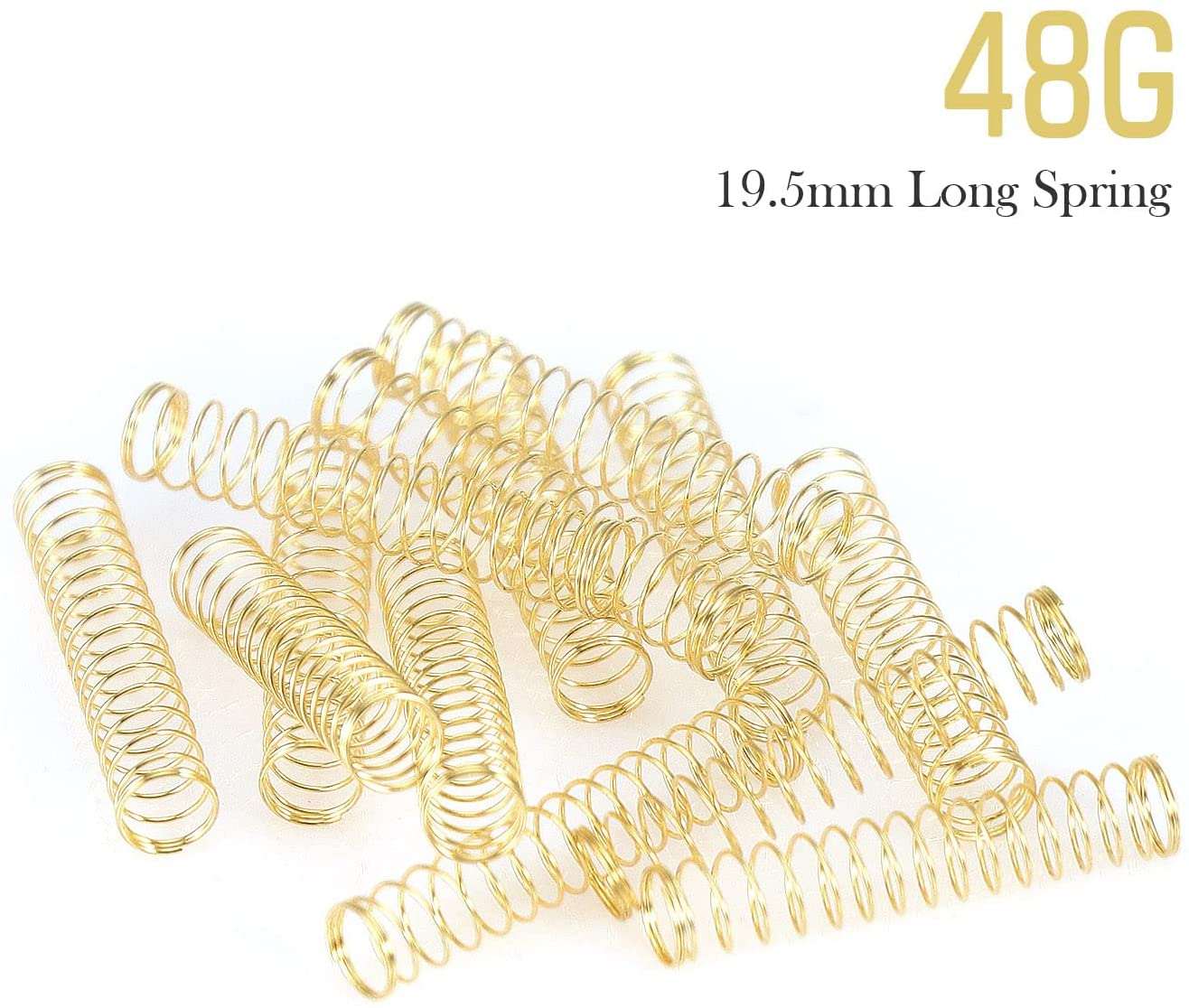

1QTY = 100 springs Variants = Actuation/ Bottom Out Force Compatible with MX switches and clones like Box switches Gold Plate (corrosion protection) Inner diameter: 3.1mm Height: 19.5mm The durock long springs feel quicker, as the actuation and bottom-out weights are very similar. Regular springs have a more noticeable gap between actuation and bottoming out.

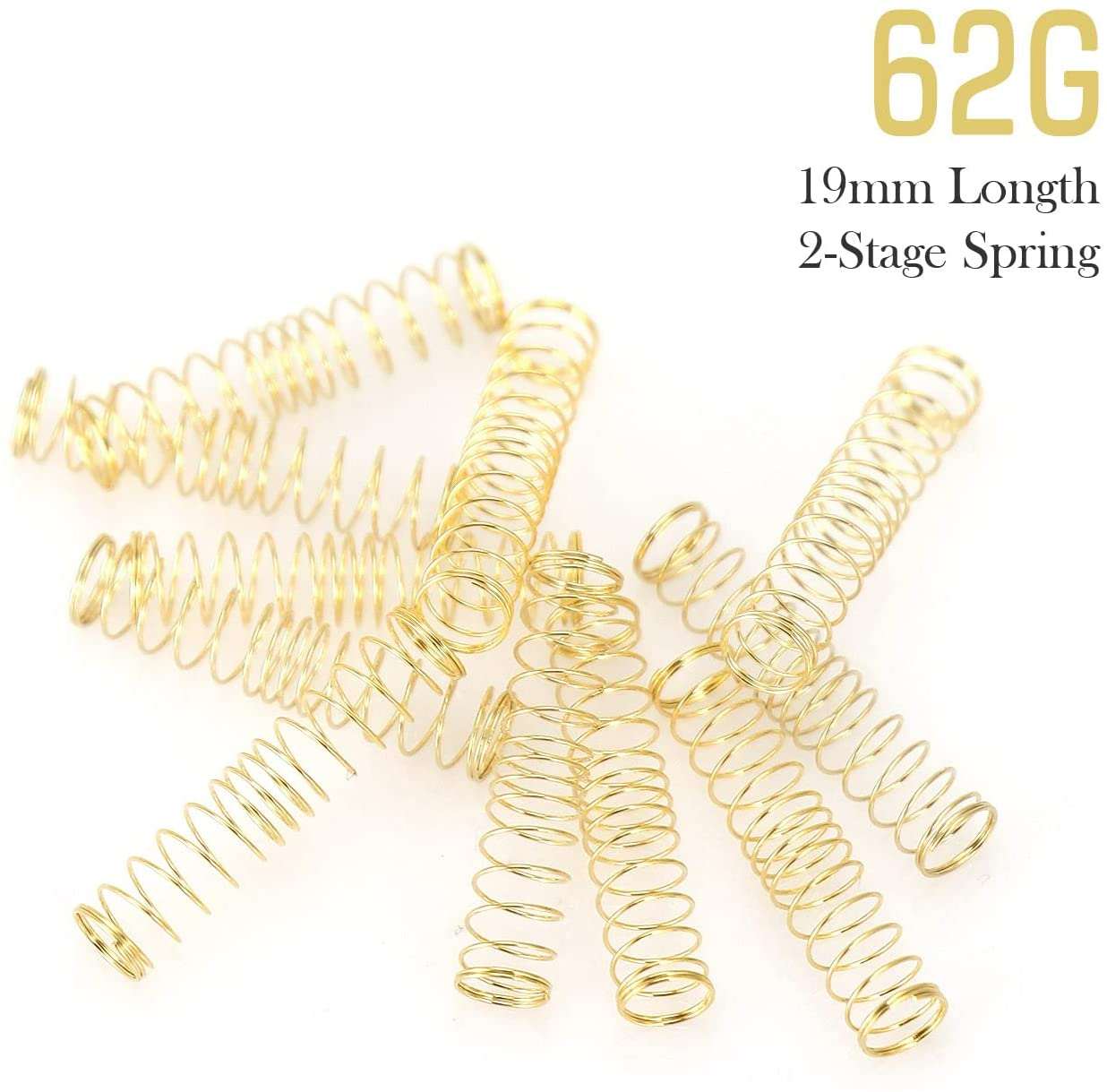

1QTY = 100 springs Variants = Actuation/ Bottom Out Force Compatible with MX switches and clones like Box switches Gold Plate (corrosion protection) Inner diameter: 3.1mm Height: 19mm The durock long springs feel quicker, as the actuation and bottom-out weights are very similar. Regular springs have a more noticeable gap between actuation and bottoming out.

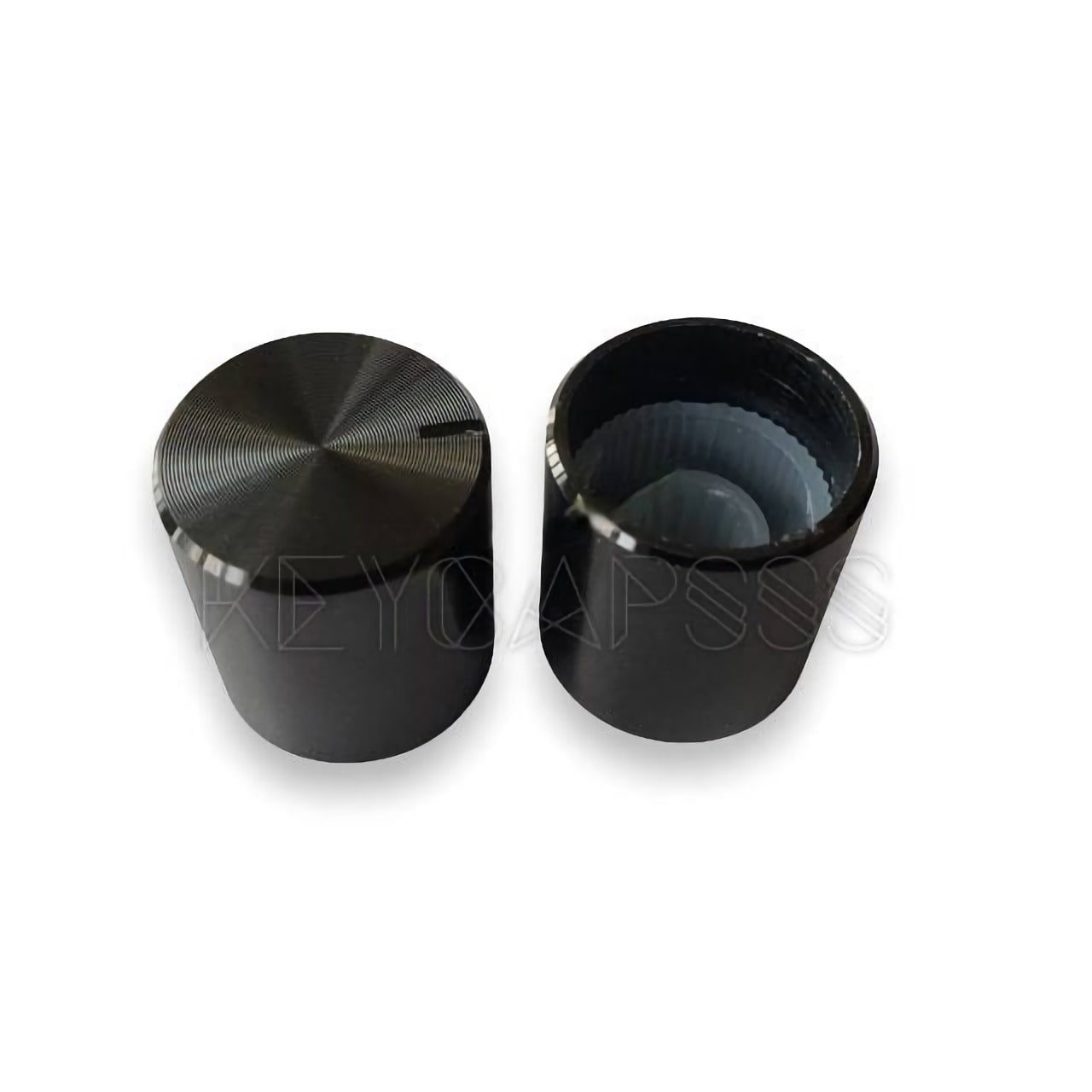

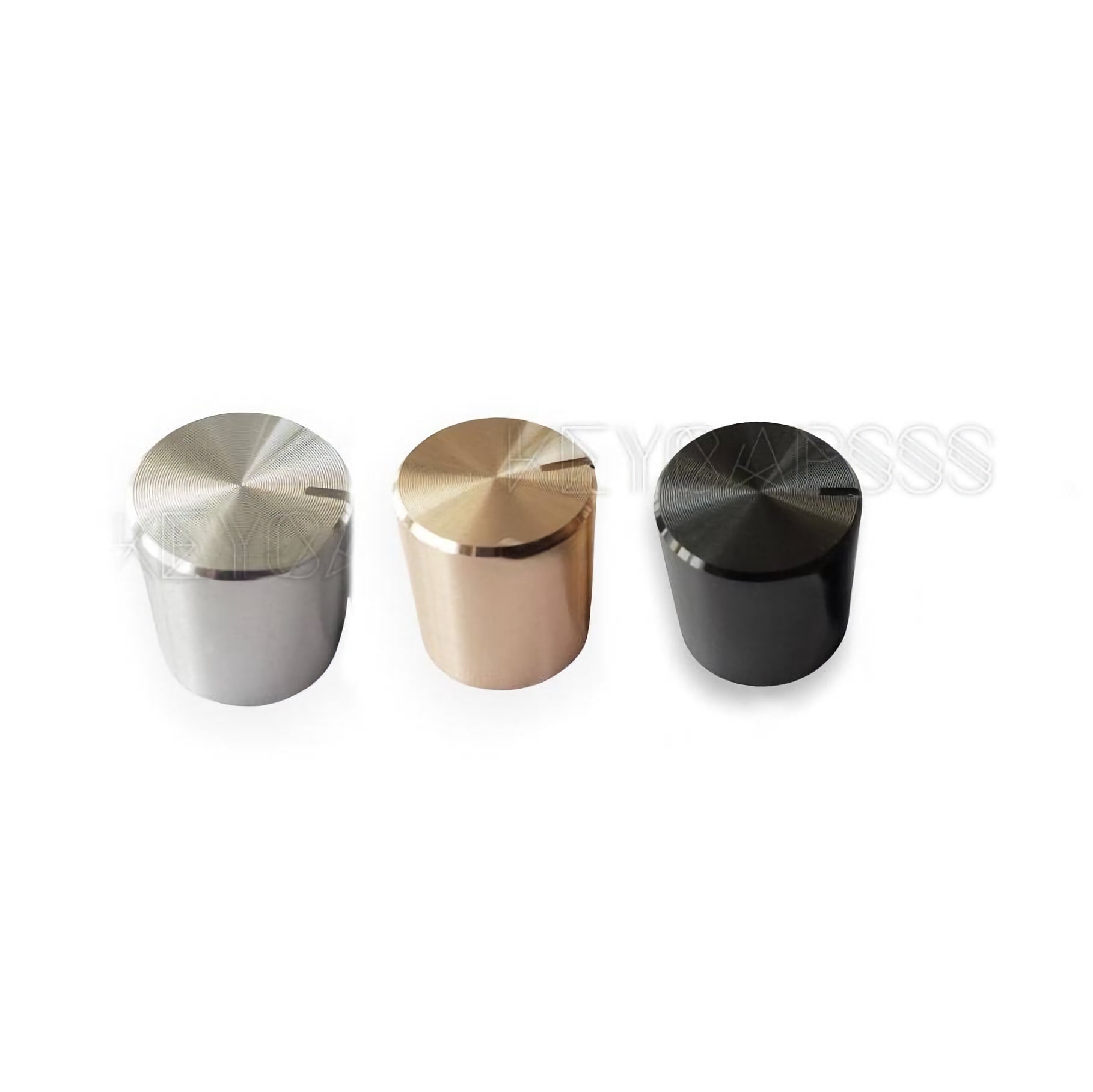

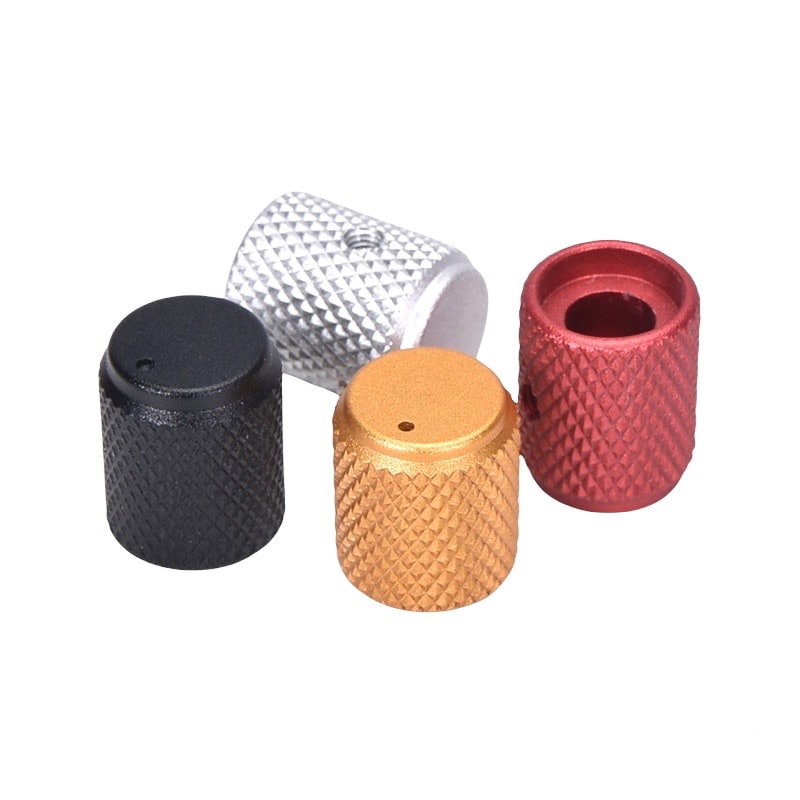

Outer Material: Aluminum Inner Hole Diameter: 6mm (0.24in) Outer Diameter: 15mm / Height: 16mm

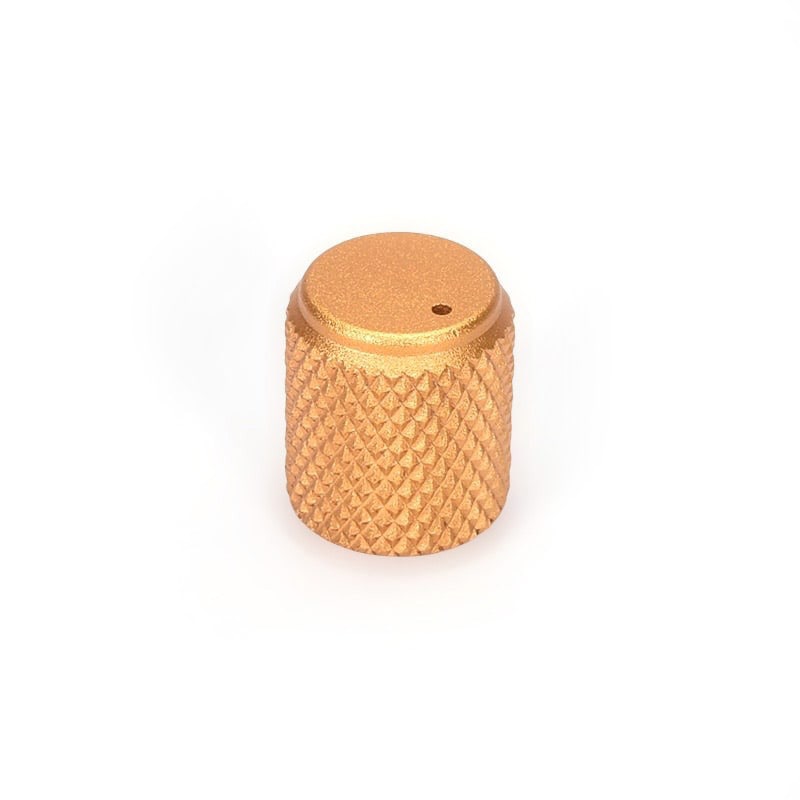

Material: Aluminum Inner Hole Diameter: 6mm (0.24in) Size: Dia:12.5mm H:15mm (0.492in x 0,59in)

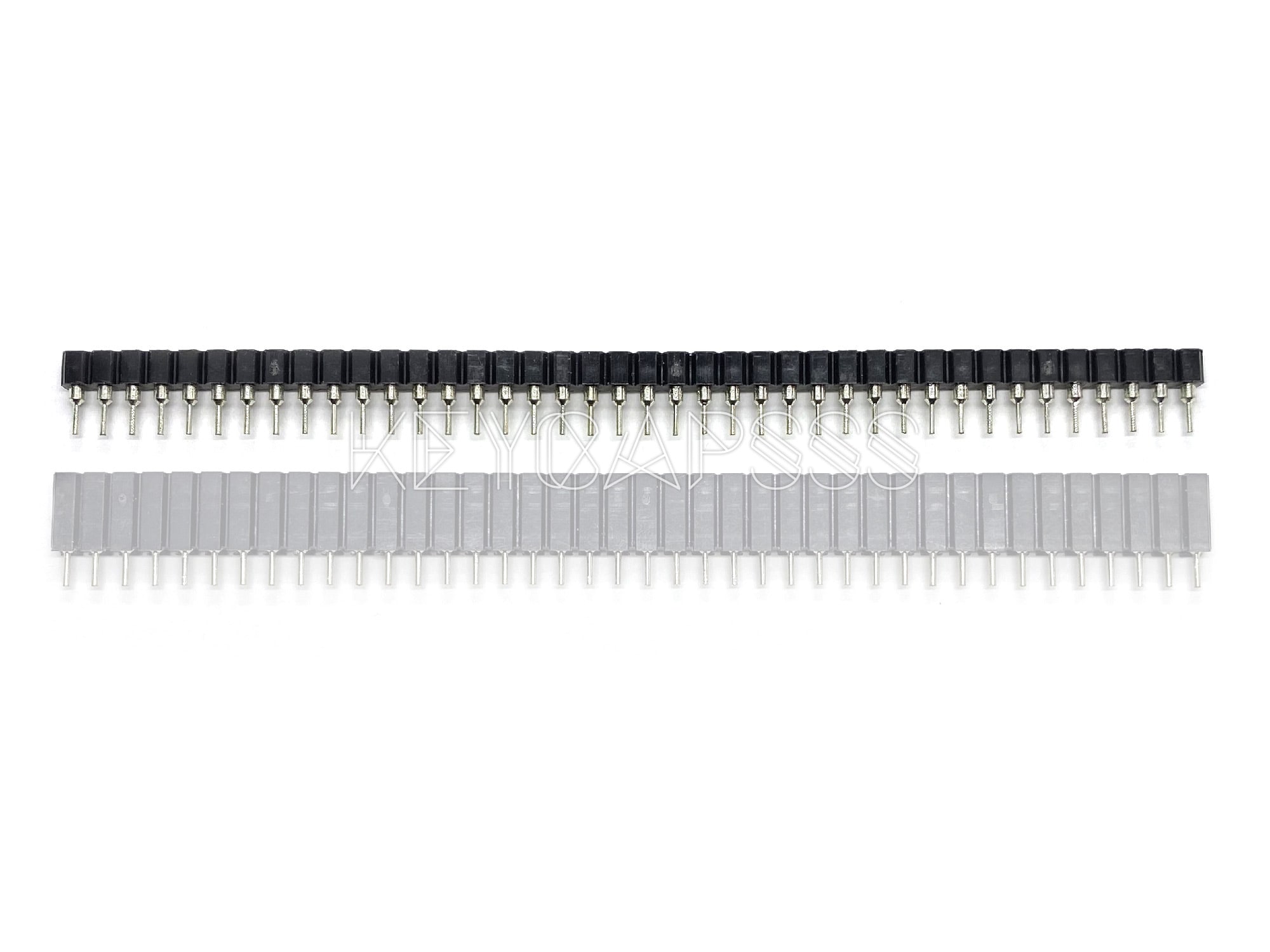

Cheaper alternative to the Mill-Max Series 315 sockets 1 Qty = 1 socket row with 40x pin holes Easy split to needed length with a flush cutter Pitch: 0.100" (2.54mm) Both variants work with the Mill-Max 315 pins, but looser than with the Mill-Max sockets (with 7mm even more loose)  Variants: Height 3mm Accepted diameter for pins: Variant 0.4mm < 0.7mm Not compatible with standard squared pins Compatible with this needle pins Height 7mm Accepted diameter for pins: Variant 0.6mm < 1.0mm Compatible with standard squared pins Compatible with this needle pins

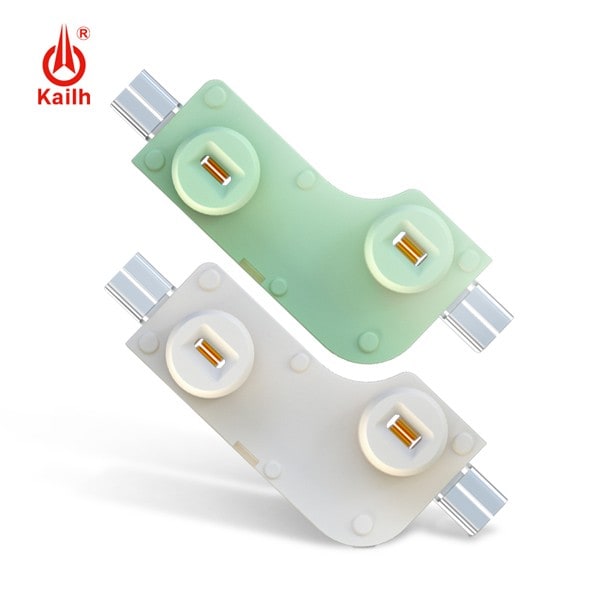

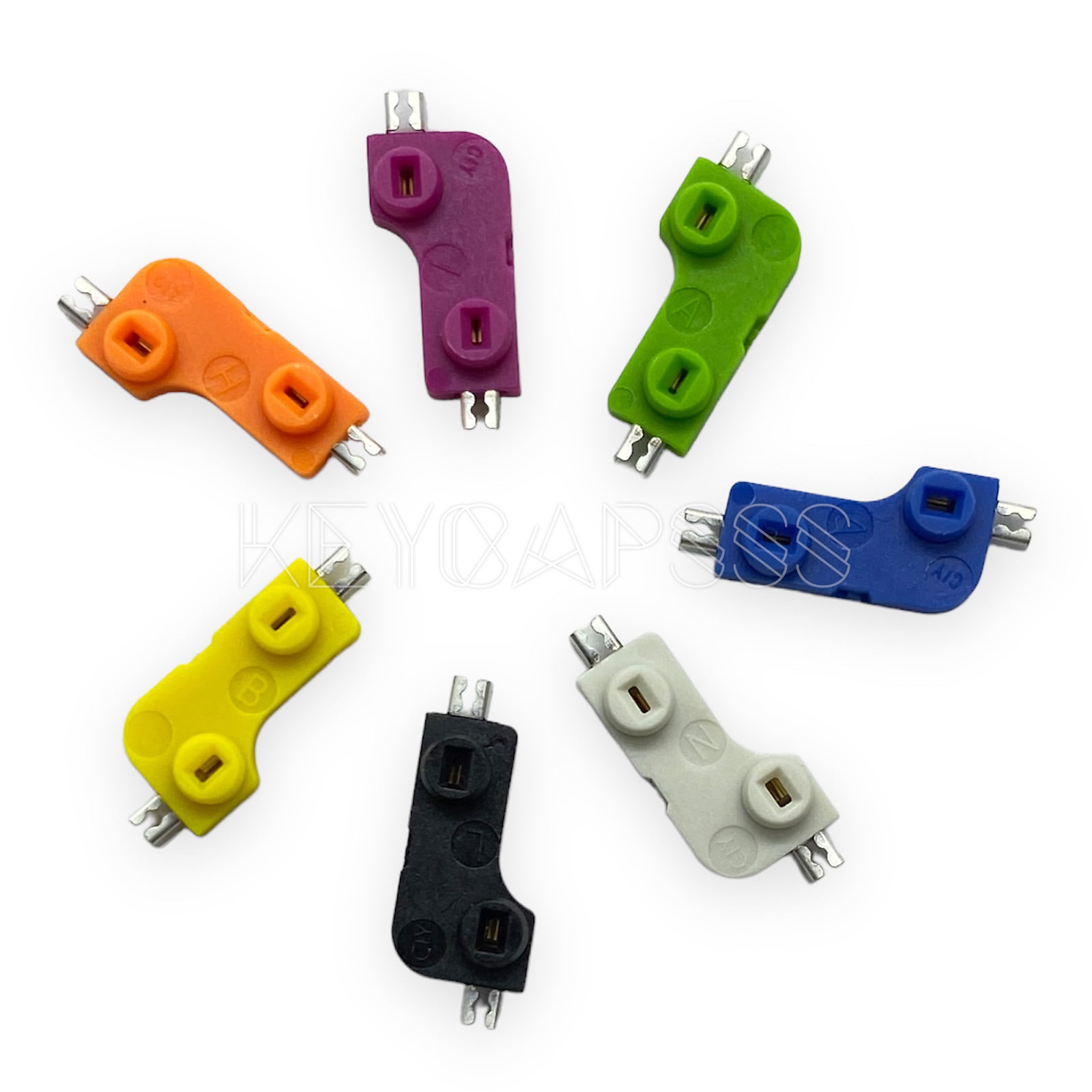

Use of aviation grade elastic material, parts of the gold-plating process, comprehensive upgraded  durability , the mechnical life up to 6000 cycles.It's easy to solder it on the PCB board and put the key switch in the PCB. Then if you wanna change the keyswitch, you can do it anytime just use the key puller. MX Sockets (CPG151101S11-1/2/4) compatible with Cherry MX switches and clones Sold in packs of 10 (Quantity 1 = 10 sockets) Require a compatible PCB Compatible with the standard black Kailh Sockets

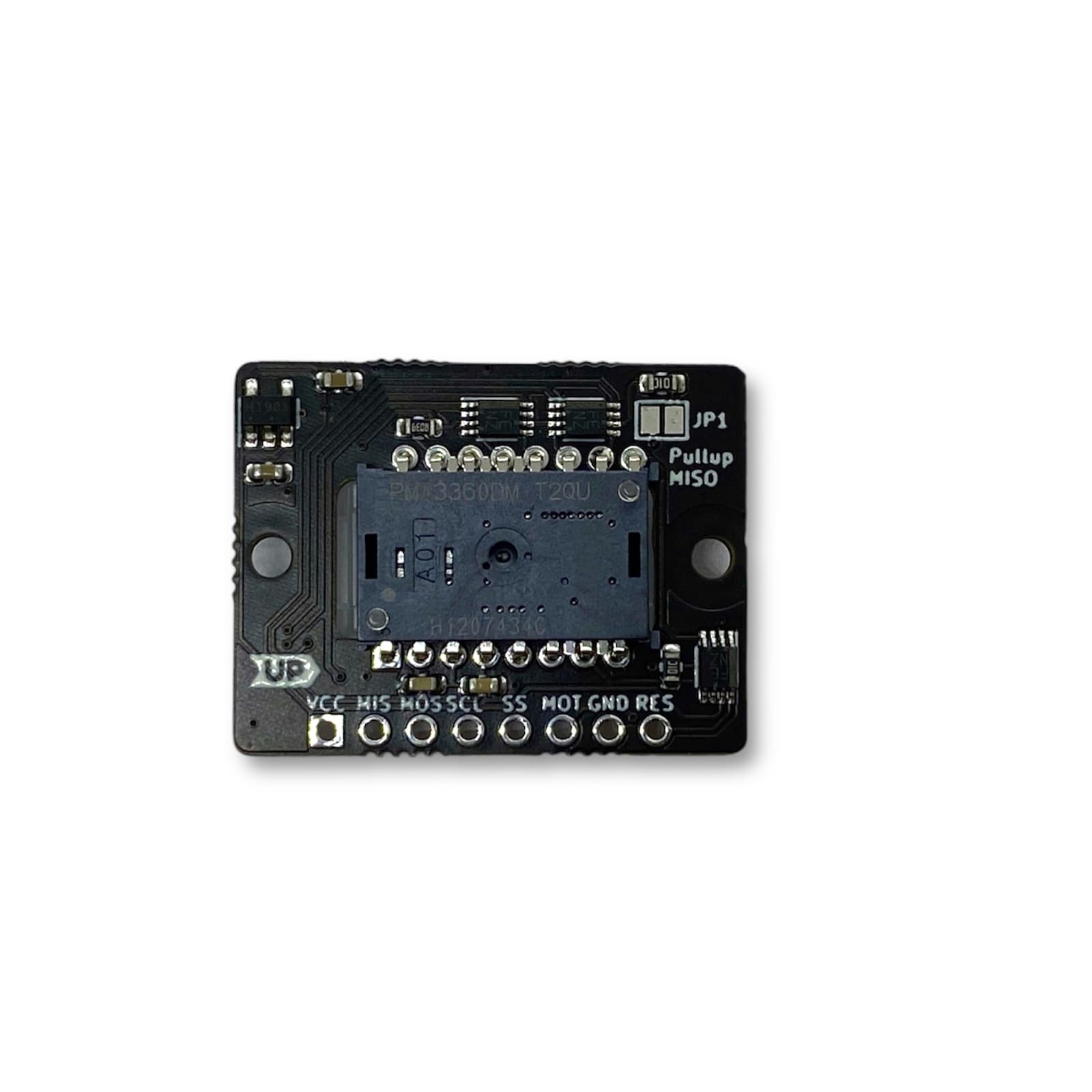

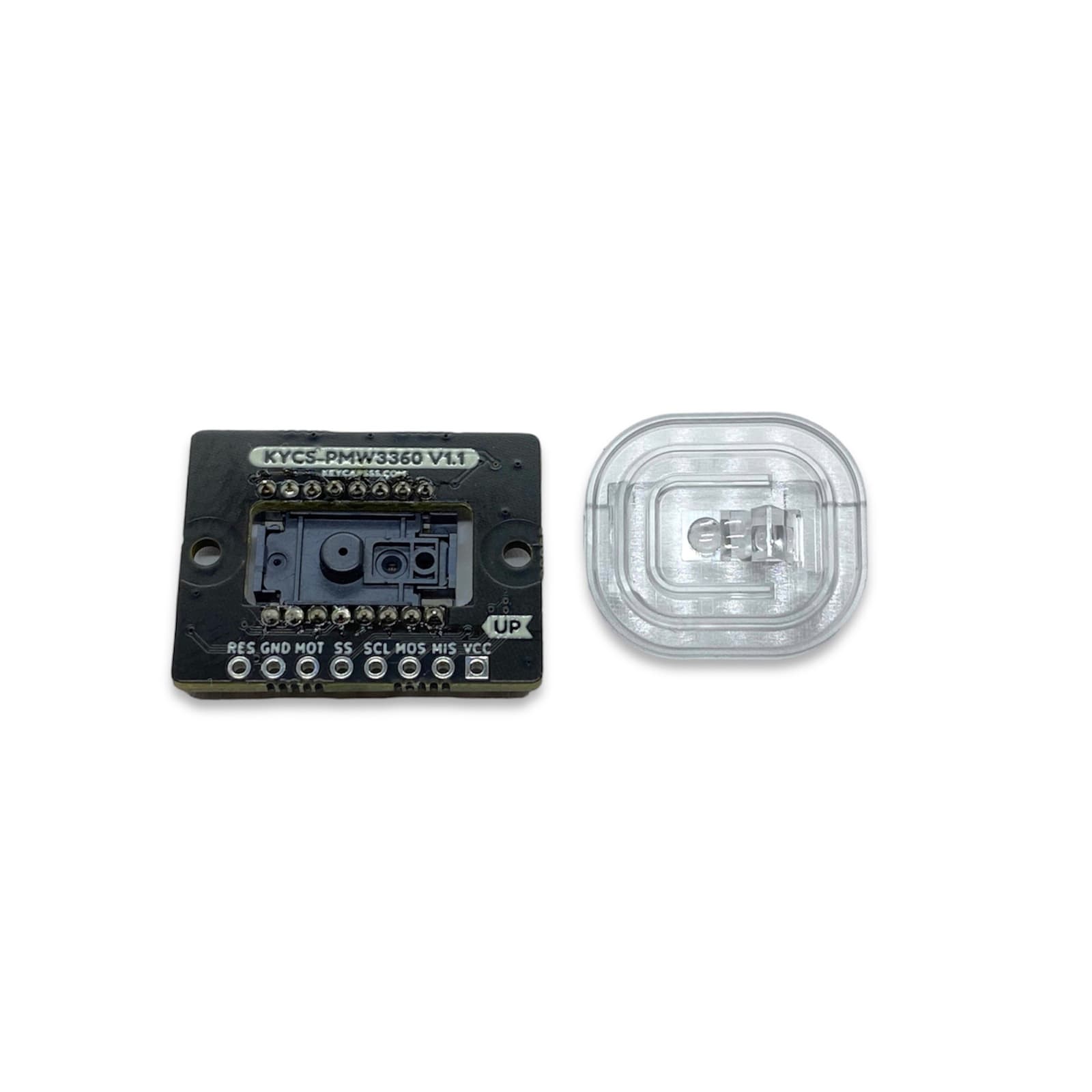

Assembled and tested 2 - 5.5V input power supply (On-Board power regulator)  Focusing lens included Works with Arduino SPI library Efficient Interrupt based operation Datasheet: Modul, PMW3360DM sensor 3D file for the module on request Board dimensions: 21.5mm x 28mm Arduino Library, Mouse example (C++) Examples with a PMW3360: Oddball Keyboard (Build-Guide / Firmware), Drashna's Dactyl Manuform (Firmware / Hardware), Trackball    Areas of Applications Wired gaming mouse Optical trackball Robotic Pixart PMW3360DM-T2QU Technical Specs: Package Type: 16-PDIP Run Current: 23.4 mA Tracking Speed (ips): >250 Acceleration: 50g Resolution: 12,000 cpi Frame Rate: 12,000 fps Lift Cutoff: <2mm, 2/3mm (Programmable) Interface: 4-wire SPI Illumination: Integrated IR LED Pinout: RES = Chip reset(active low) GND = Ground MOT = Motion detect (active low interrupt line) SS = Slave Select / Chip select (active low) SCL = SPI/Serial data clock MOS = MOSI MIS = MISO VCC = Input power supply (2-5.5V) J1: Bridge to Pull MISO high Based on the design from Zorahmella

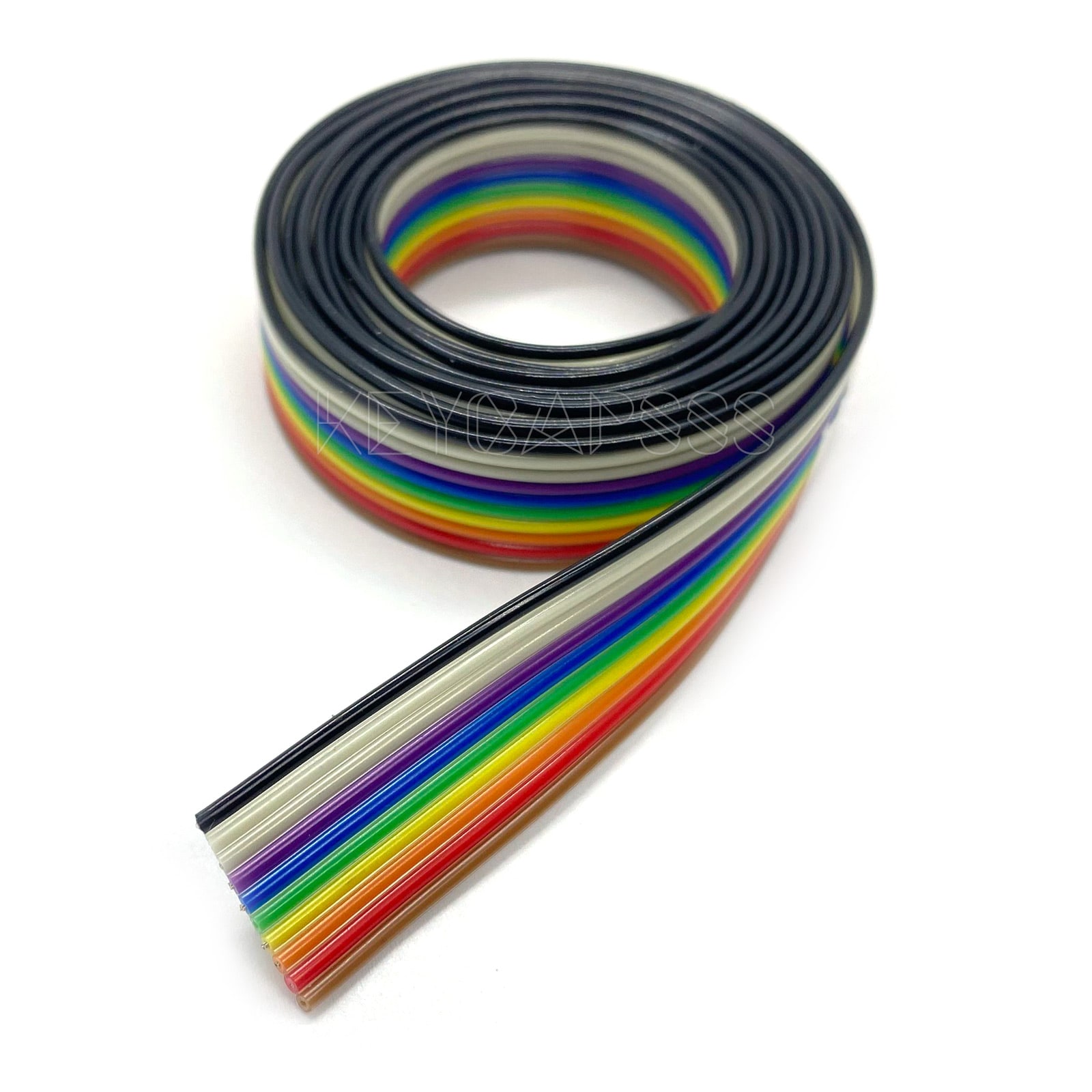

Length: 1 meter 10 pin Pitch: 1.27mm Each core has 7 strands of 0.12mm tinned copper wire Single wire outer diameter is 0.95mm Material: Tinned copper and plastic

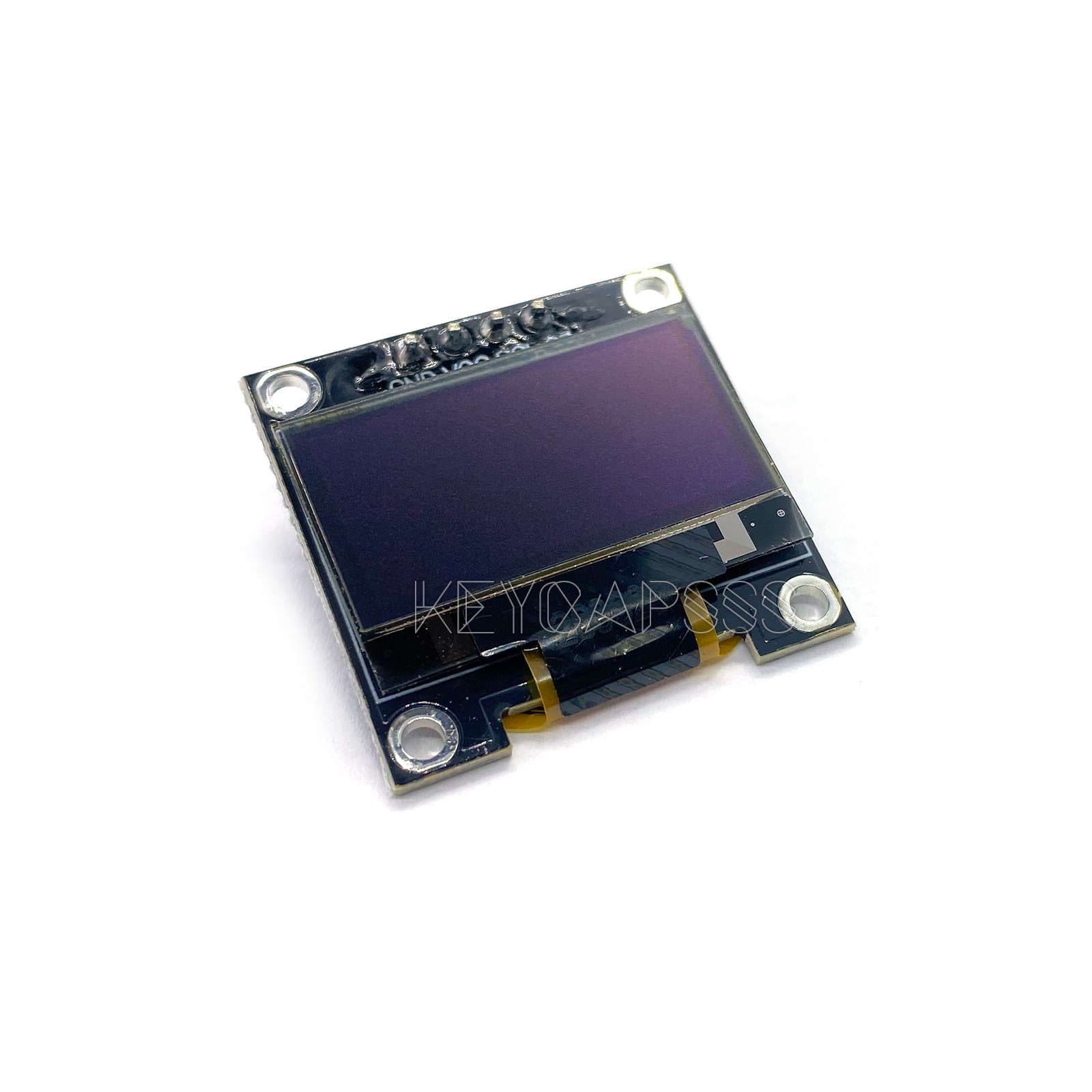

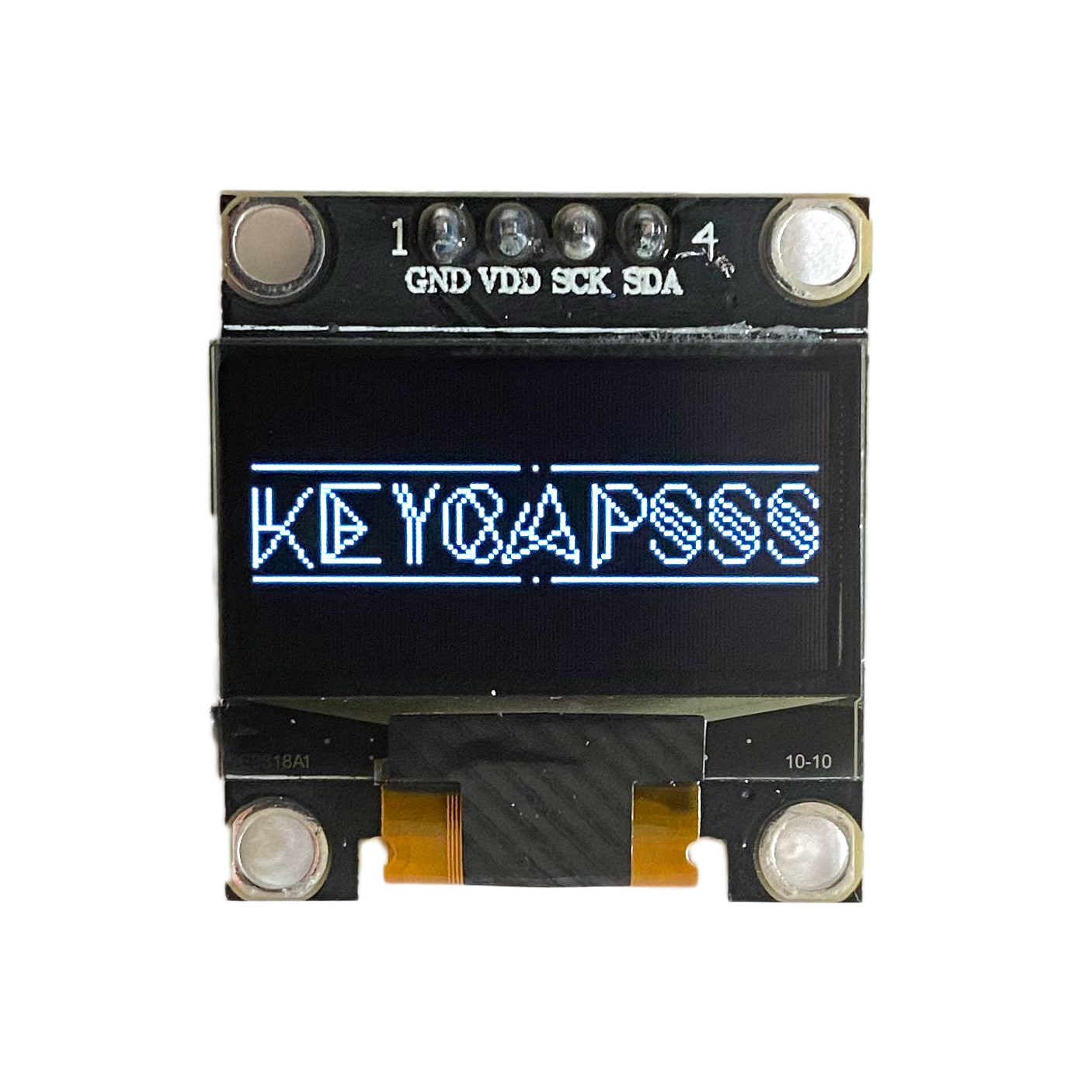

  Supported keyboards from the shop: Draculad Driver IC: SSD1306 Size: 0.96 inch OLED Resolution: 128 x 64 Display Color: White   Pin Description:  GND: Power Ground VCC: Power + (3.3V - 5V) SCL: Clock Line SDA: Data Line
