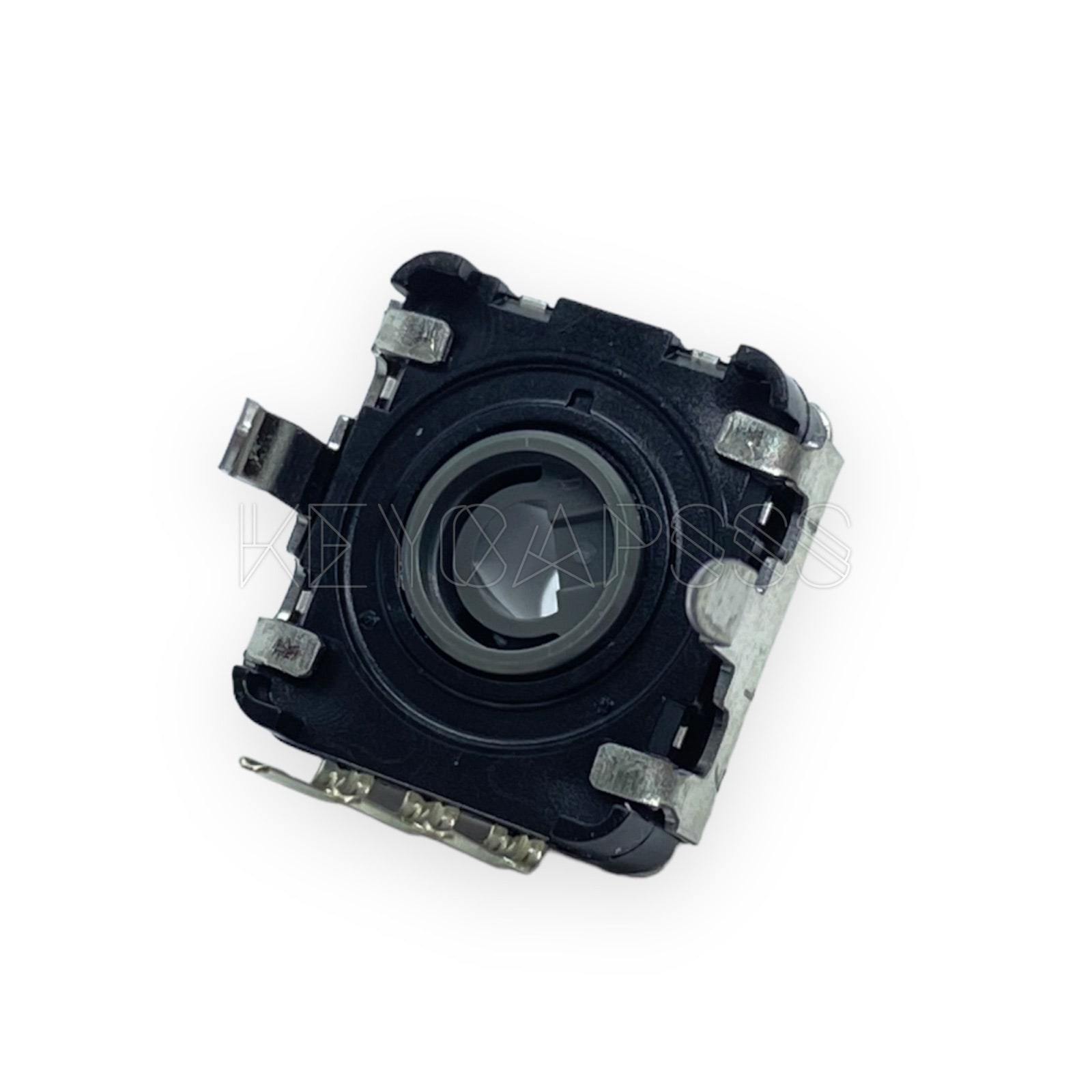

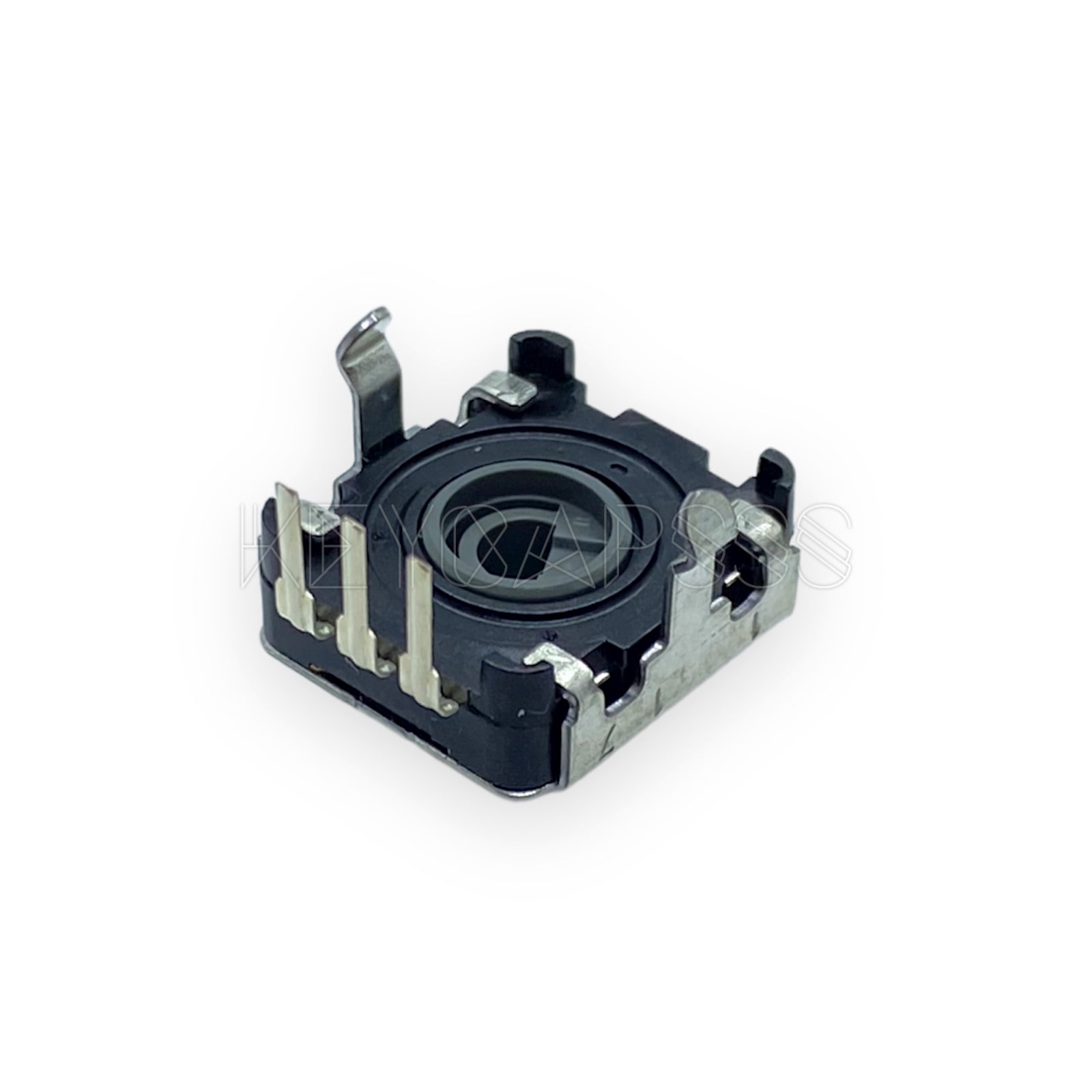

Alps Alpine Encoder Low Profile EC12

Description

  • Datasheet
  • Manufacturer: Alps Alpine
  • Series: EC12 (EC12E1220301)
  • Mounting Style: PCB Mount
  • Resolution: 12 PPR
  • Number of Detents: 12 Detent
  • Output Type: Quadrature
  • Shaft Diameter: 6 mm
  • Shaft Type: Flatted
  • With Switch: Without Switch
  • Operating Supply Voltage: 5 VDC
  • Life:30000 Cycles
  • Brand: Alps Alpine
  • Maximum Operating Temperature:+ 70 C
  • Minimum Operating Temperature:- 10 C
  • Shaft Length: 8.5mm
  • Unit Weight: 1,780g

 3D printable knobs

Reviews 0

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.


Safety information

EU responsible person: Keycapsss | Benjamin Rösner, Löhrstr. 11, 04105 Leipzig, Germany
Contact: Keycapsss.com

Skip product gallery

Similar Items

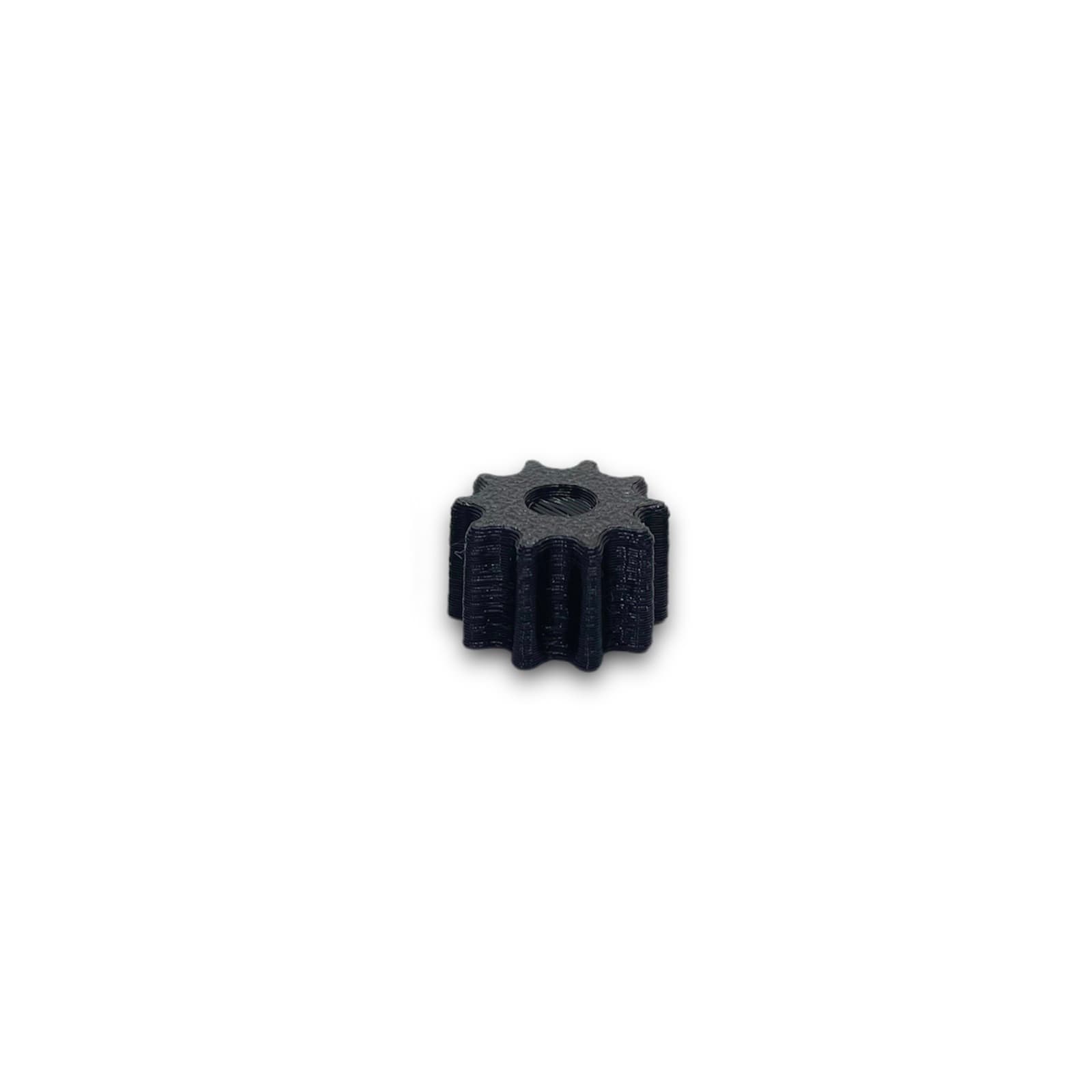

EC12 encoder knob - Variant 2 Black Knob for EC12 Rotary Encoder (3D Printed) Low Profile
Knob for EC12 Rotary Encoder (3D Printed)

These knobs are compatible with "Alps Alpine EC12E1220301" encoder. Material: PLA Variant 1 Size: Dia: 15.8mm H: 6.1mm Variant 2 Size: Dia: 15.6mm H: 9mm Variant 3 Size: Dia: 22mm H: 9mm Variant 1 & 2 design by rmwphd | Variant 3 design by DeltaWhy
