KYCS-PMW3360 Breakout Board for Pixart PMW3360 Optical Mouse Sensor

This product is currently not available.
Please check the news board.
Please inform me as soon as the product is available again.

€29.90 *

Prices incl. VAT plus shipping costs

This product is currently not available.

  • KC10125
  Assembled and tested 2 - 5.5V input power supply  (On-Board power... more

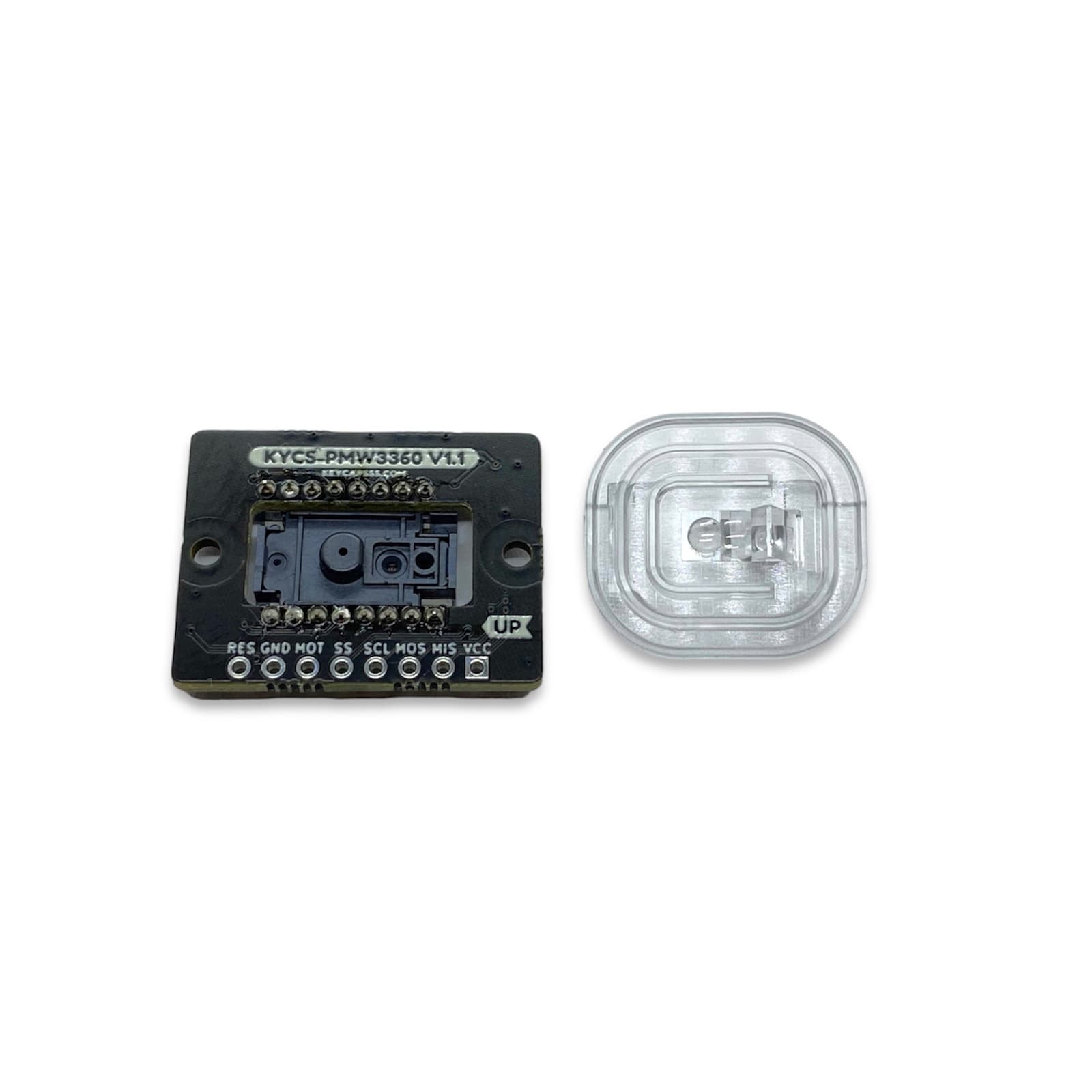

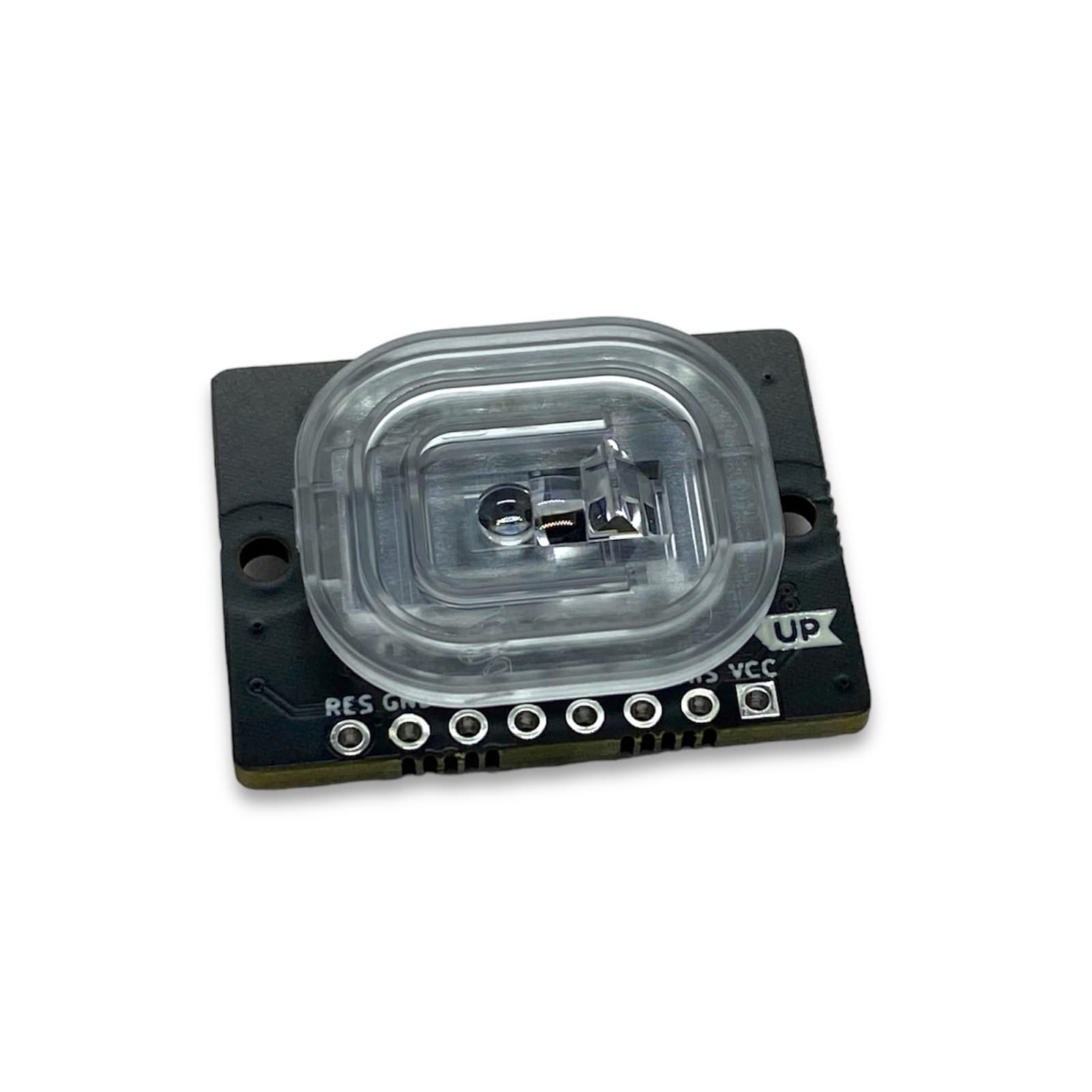

KYCS-PMW3360 Breakout Board for Pixart PMW3360 Optical Mouse Sensor





Areas of Applications

  • Wired gaming mouse
  • Optical trackball
  • Robotic



Pixart PMW3360DM-T2QU Technical Specs:

  • Package Type: 16-PDIP
  • Run Current: 23.4 mA
  • Tracking Speed (ips): >250
  • Acceleration: 50g
  • Resolution: 12,000 cpi
  • Frame Rate: 12,000 fps
  • Lift Cutoff: <2mm, 2/3mm (Programmable)
  • Interface: 4-wire SPI
  • Illumination: Integrated IR LED

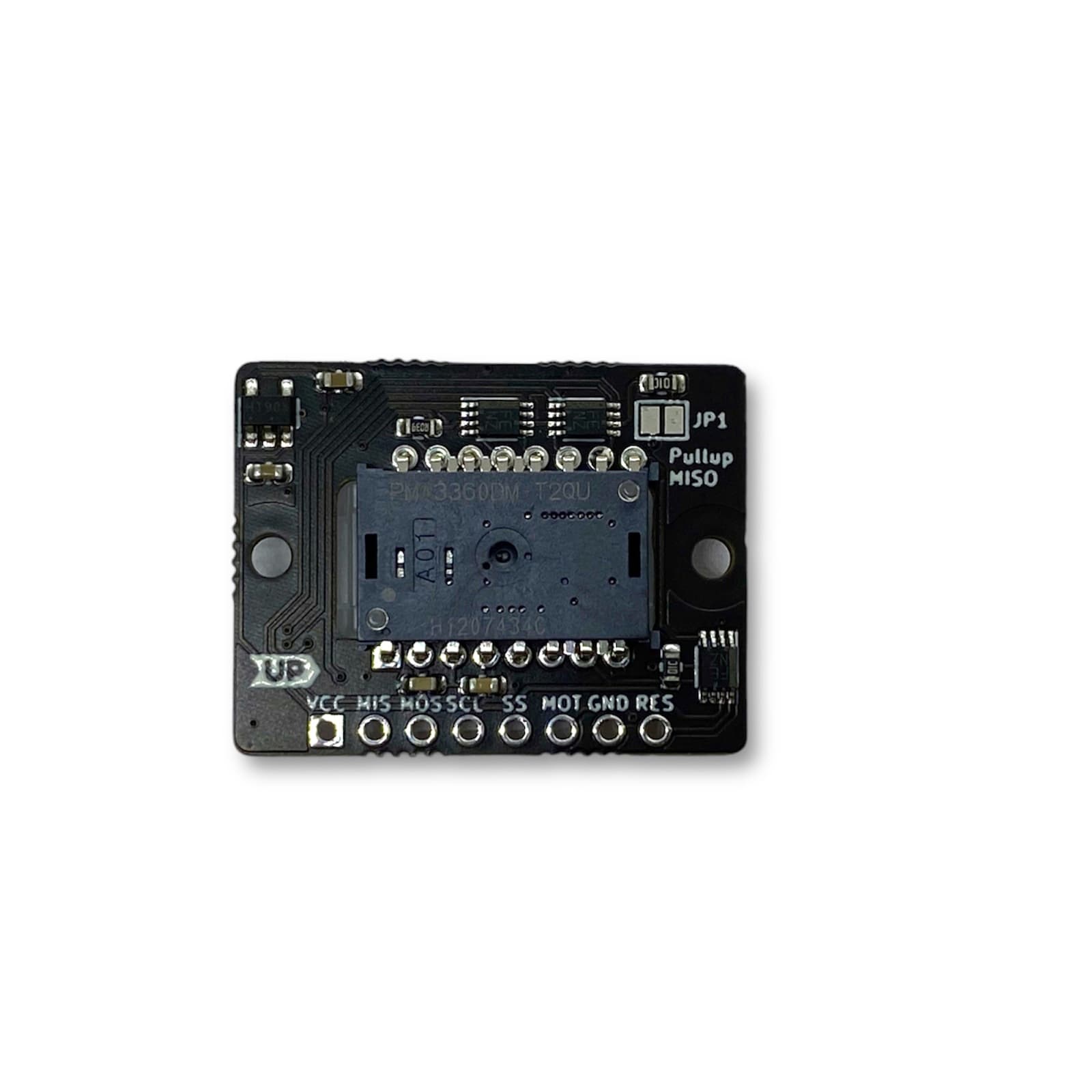

Pinout:

  • RES = Chip reset(active low)
  • GND = Ground
  • MOT = Motion detect (active low interrupt line) SS = Slave Select / Chip select (active low) SCL = SPI/Serial data clock
  • MOS = MOSI
  • MIS = MISO
  • VCC = Input power supply (2-5.5V)
  • J1: Bridge to Pull MISO high



kycs-pmw3360-help-sheet

Based on the design from Ariamelon

Read, write and discuss reviews... more
Customer evaluation for "KYCS-PMW3360 Breakout Board for Pixart PMW3360 Optical Mouse Sensor"
Write an evaluation
Evaluations will be activated after verification.

The fields marked with * are required.

Kailh Low Profile Choc Switches Kailh Low Profile Choc Switches V1
Content 10 Unit
From €6.90 *
Sold Out
SK6812 MINI-E RGB SMD Led with legs SK6812 Mini-E RGB SMD Led
Content 10 Unit
From €3.40 *
Low Stock
kailh hot swap socket keyboard switch pcb Kailh Hotswap PCB Sockets 10 pcs
Content 10 Unit (€0.15 * / 1 Unit)
From €1.50 *
Sold Out

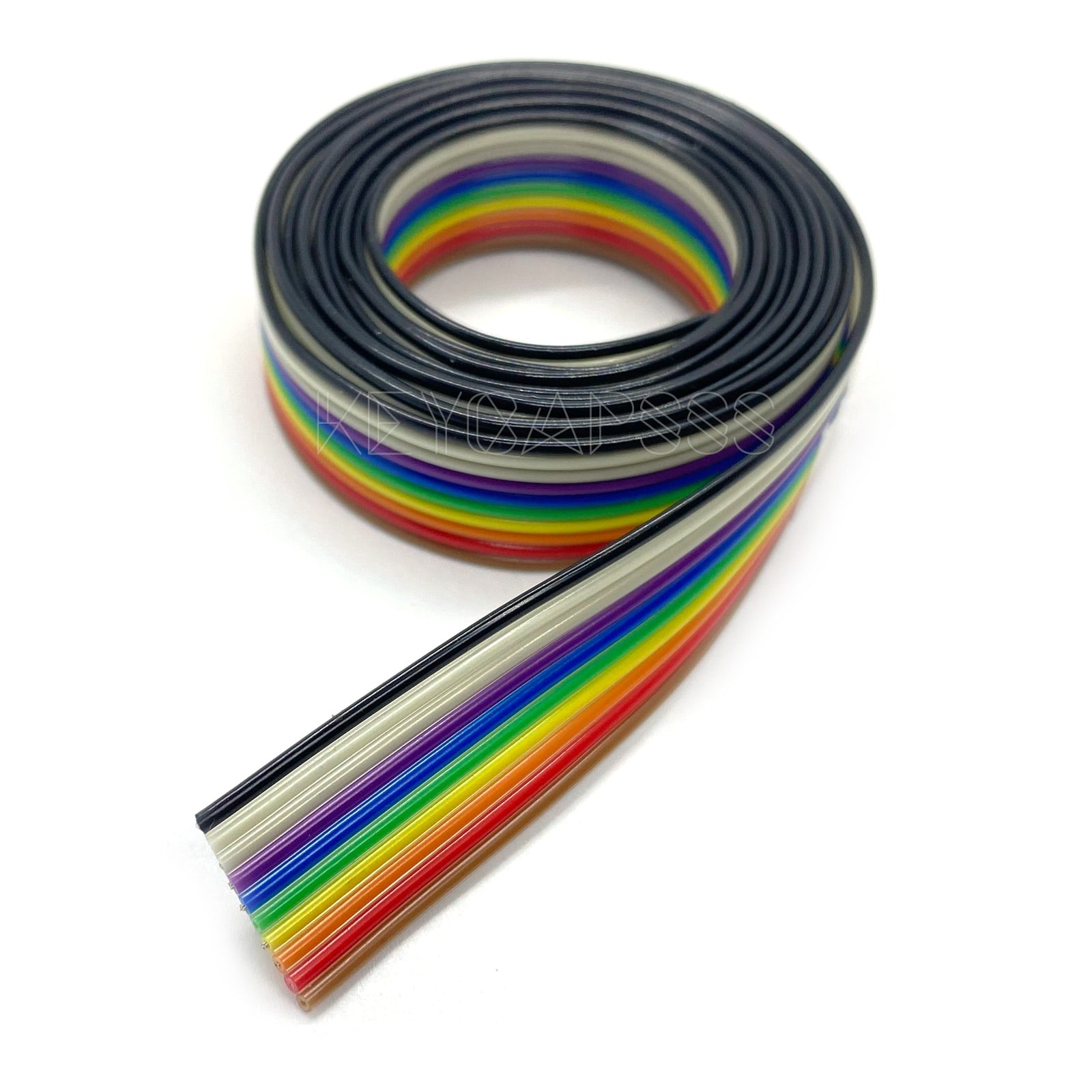

Flat Ribbon Cable Wire 1.27mm Pitch Rainbow Color Flat Ribbon Cable 10P 1.27mm Pitch Rainbow Color
