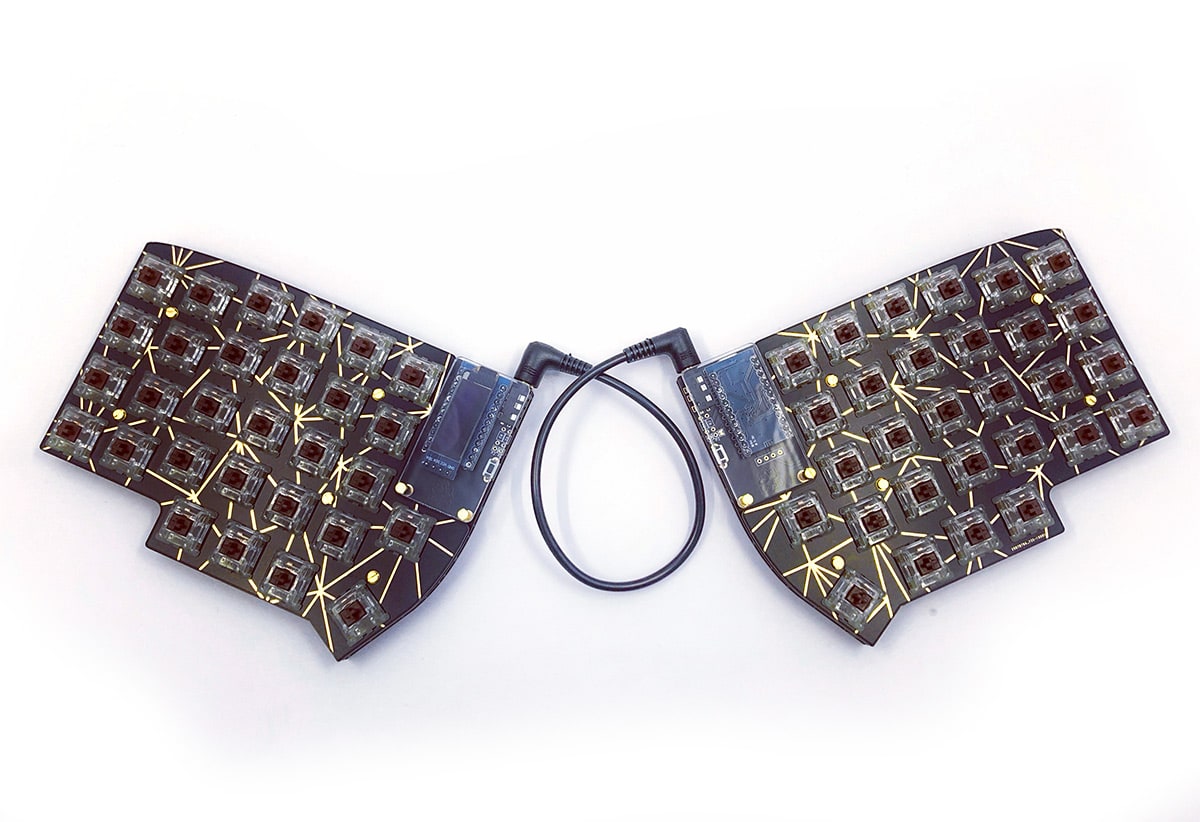

Includes:
2x Top plates gold/black (FR4 material)
2x Bottom plates gold/black (FR4 material)
2x 3mm clear acrylic oled cover
Screws and spacer for MX (brass slotted screw)
Self adhesive rubber feet (clear)
Photos of the completed keyboard are for demonstration purposes only (only case included).

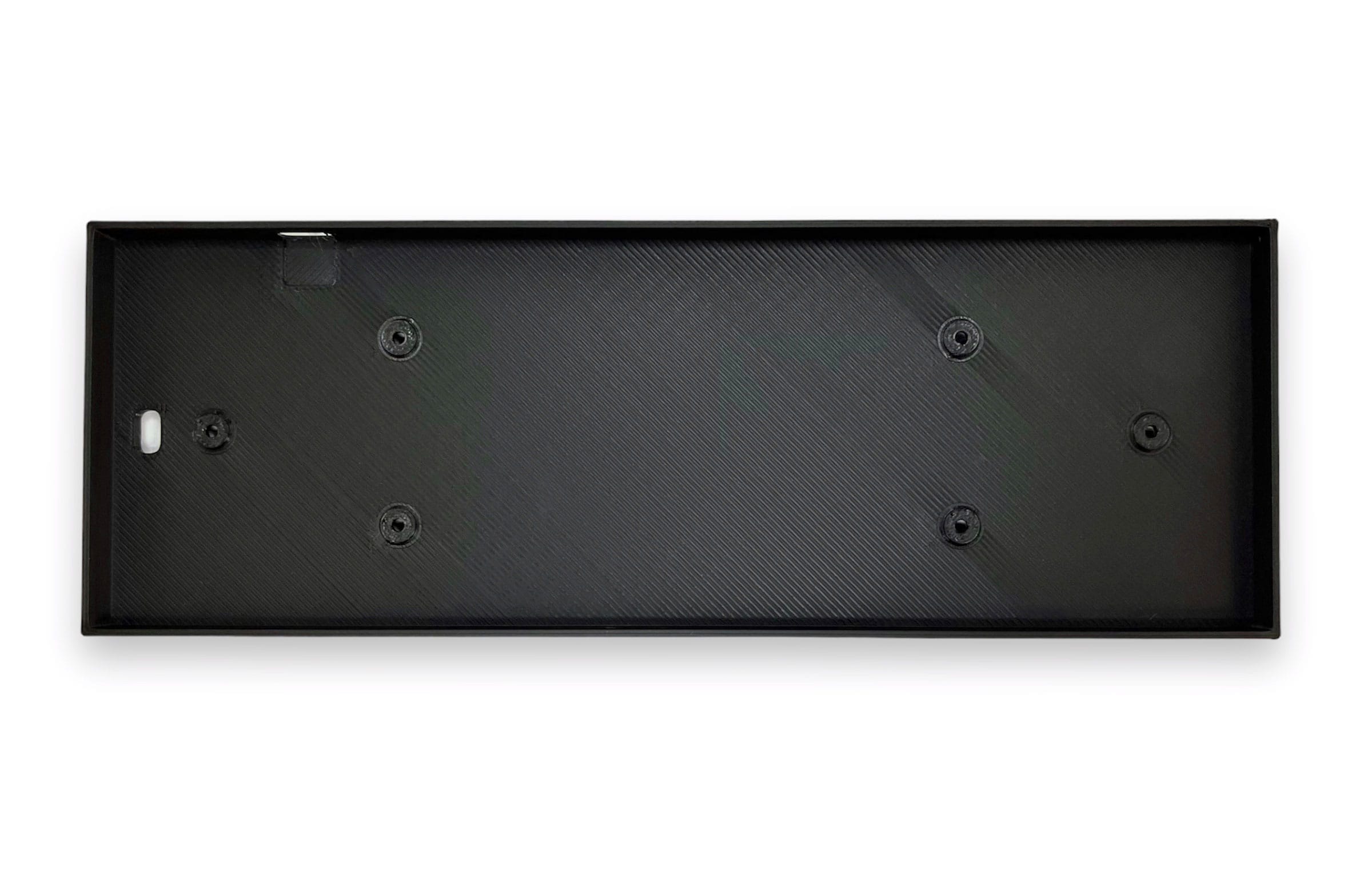

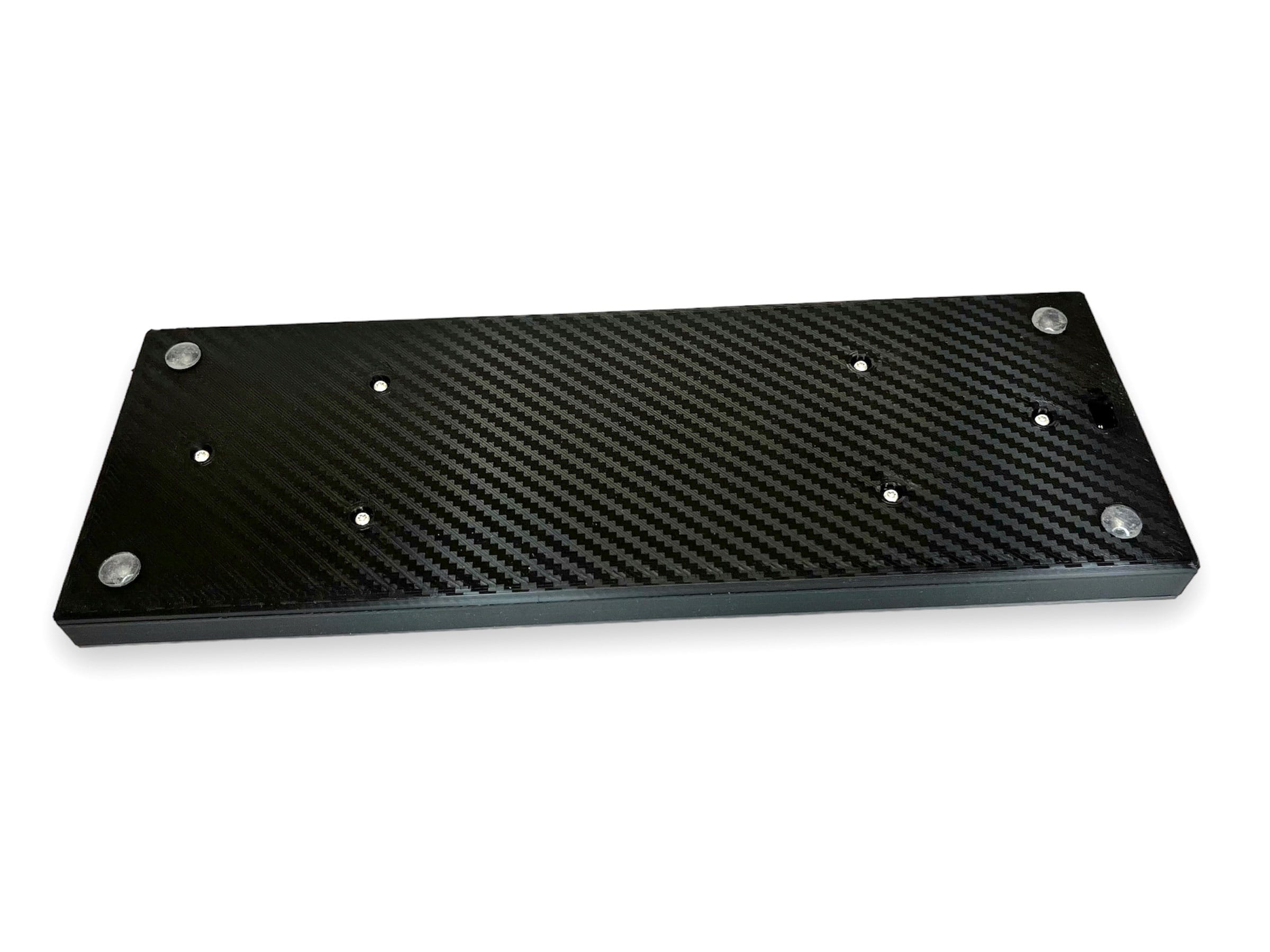

Case is compatible to the Blank and OLKB Planck PCB (Rev4 and up).It has a cutout for the reset switch and the Blank's On/Off switch.
Includes:
3D printed case (black)
4x Rubber Feet Transparent
This carbon top plate is compatible with this case.
Material: PLA (biodegradable)
Lightweight and sturdy
Assembly steps:
Put all switches into the top plate
Assemble the top plate with the switches to the PCB
Put the PCB into the case and screw it from the bottom
Done
Top and bottom plate are CNC machined from 1.5mm Carbon Fiber Sheets
Compatible with Cherry MX switches, and MX clones (Gateron, Kailh, Zealio …)
Supports MIT and GRID layout (MX Matt supports also 2x2U)
With top opening holes (open switches without desoldering) only MX Version
Kit Contents
1x Carbon top plate (choose MX compatibility)
1x Carbon bottom plate
4x Self-adhesive rubber feeds 4x8mm
Requires
12x Standoff's 10mm ≈0.4inch (order on more as a replacement, sometimes the thread does not fit perfect with the screws)
12x M3x6mm screws (black) for the bottom
12x M3x6mm anodized screws for the top
12x M3 anodized washer for top screws
48x MX keyboard switches
OLKB Preonic PCB, or Teensy/Arduino Pro Micro (Hand Wiring)
Photos of the completed keyboard are for demonstration purposes. This product includes only carbon plates.
Color: Black/Silver
Compatible with MX and Choc switches (incl 7mm spacer)
Thickness: 1.6mm
Material: pcb material (FR4 lead free)
The rotary encoder from this shop, does not fit in the cutout on the top plate. Required encoder dimensions 12x12mm.
Set includes:
2x Top plates
2x Bottom plates
2x Oled clear guard plates (2mm thick)
M2 stainless steel screws (T6 Torx)
M2 spacer (7mm for MX, for Choc switches 5mm spacer are possible, order separate)
Self adhesive rubber feet (clear)
Design by MangoIVPhotos of the completed keyboard are for demonstration purposes only (only case included).

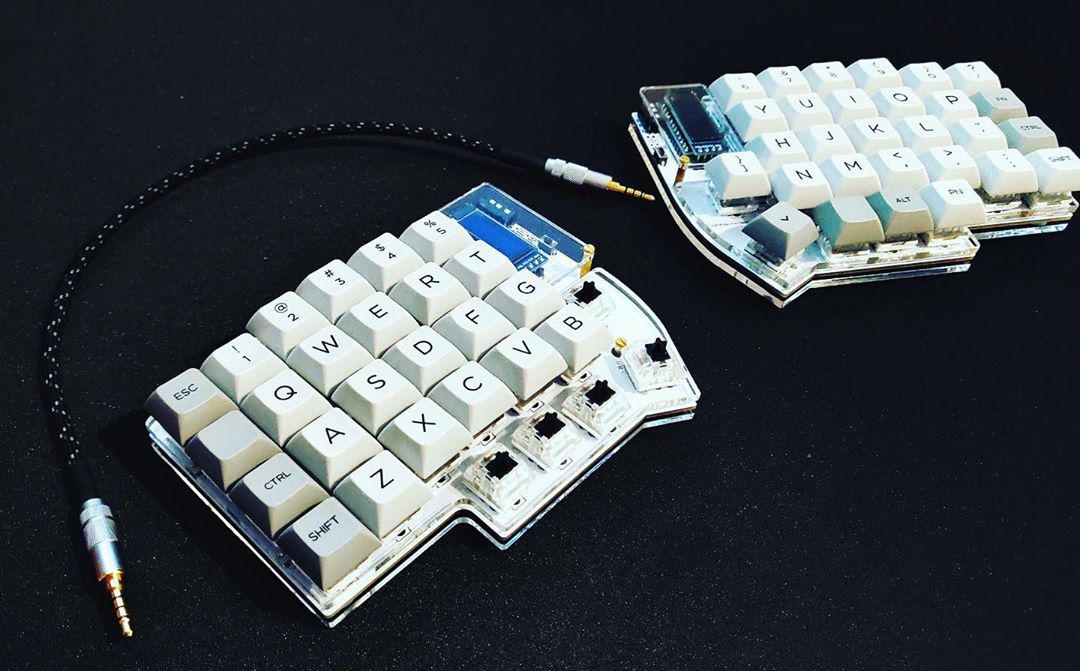

Case includes:
2x 3mm acrylic top plate
2x 3mm acrylic bottom plate
2x Oled cover (3mm)
Spacer and screws for MX switches (stainless steel screws with T6 Torx)
Self adhesive rubber feet (clear)
This case is only compatible with MX switches and clones. The Kailh Choc switches are not high enough to go through the 3mm plate.The acrylic plates have a bluish/green protection film.
Photos of the completed keyboard are for demonstration purposes only (only case included).

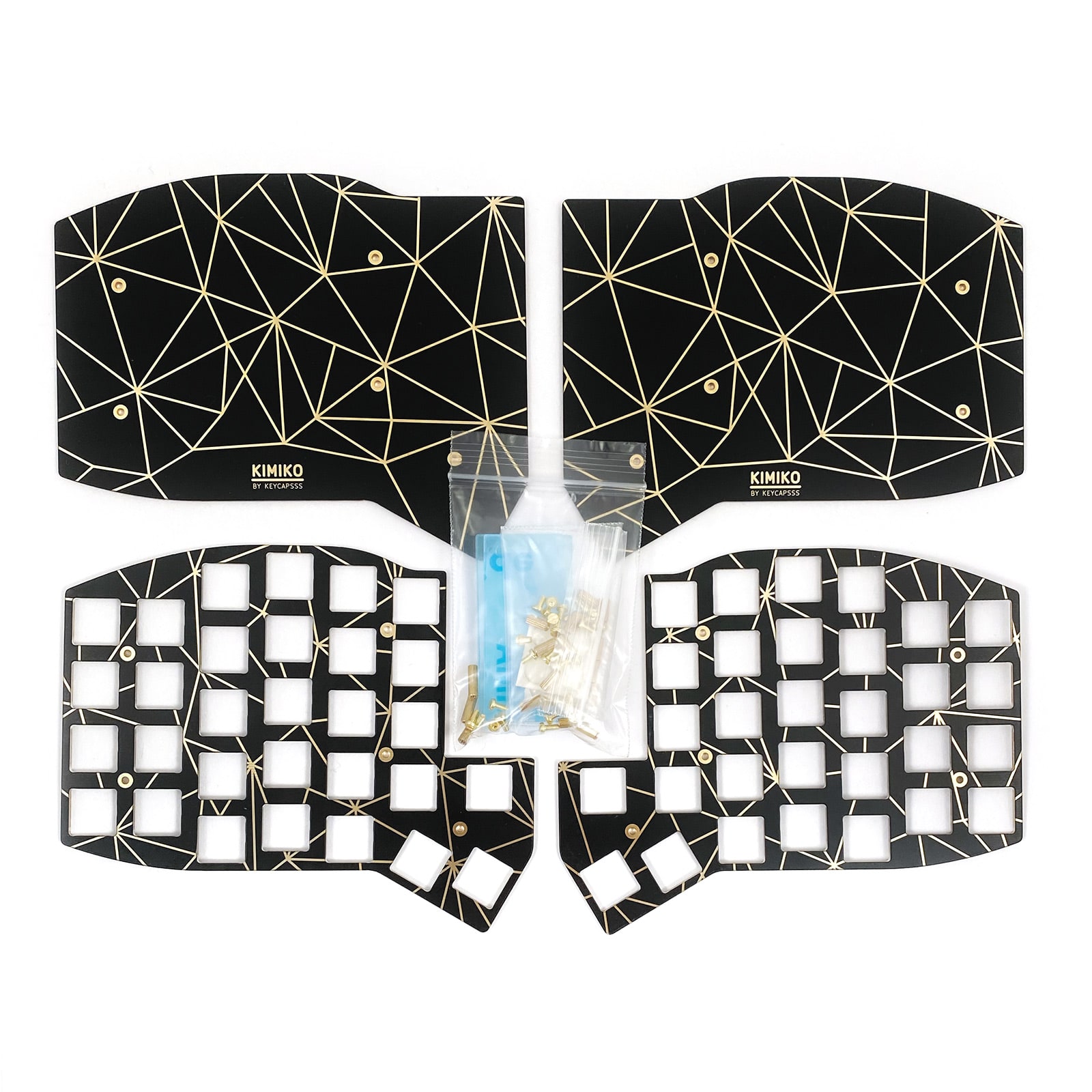

Includes:
2x Top plates gold/black (FR4 material)
2x Bottom plates gold/black (FR4 material)
2x 3mm clear acrylic oled cover
Screws and spacer for MX (brass slotted screw)
Self adhesive rubber feet (clear)

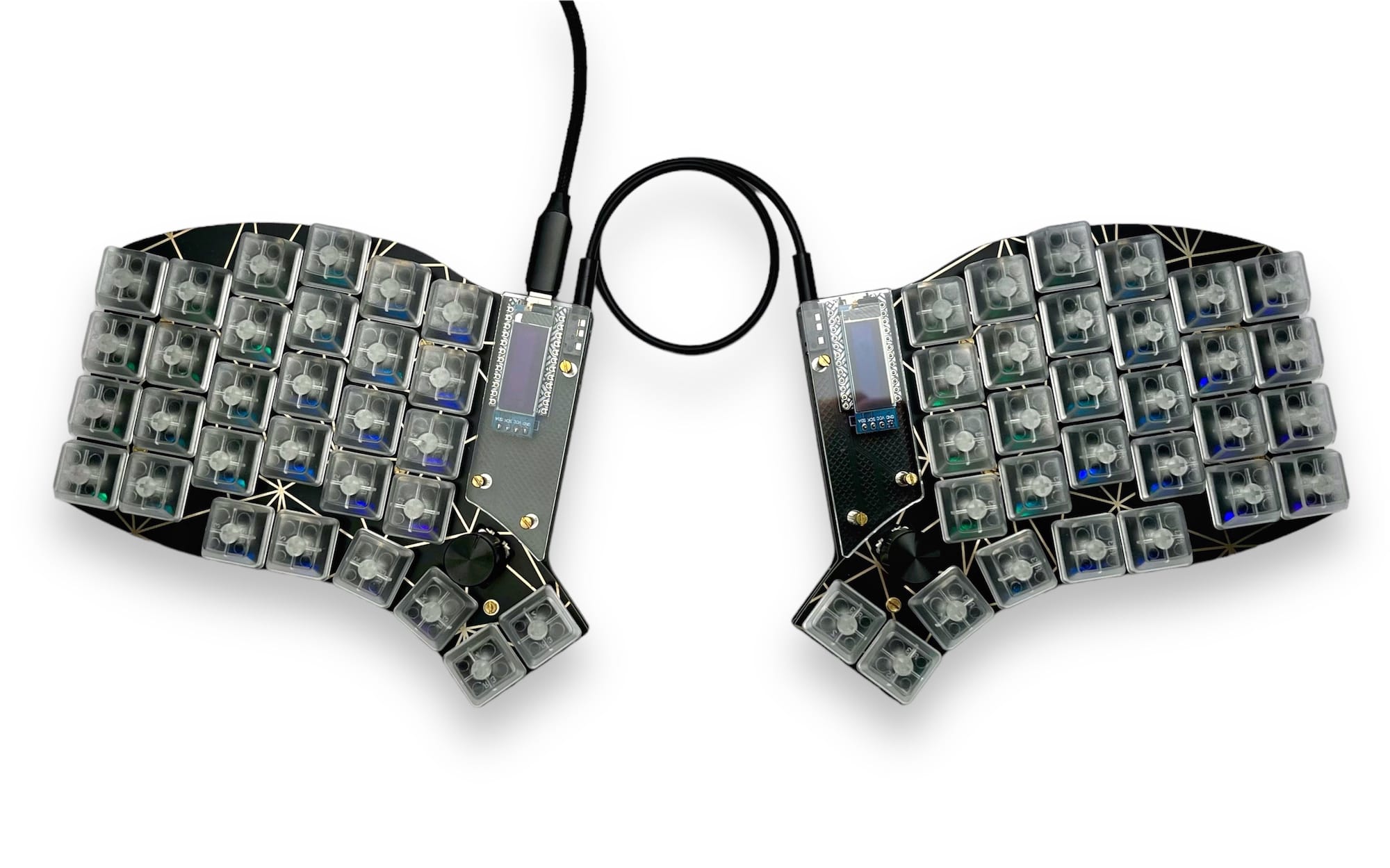

Photos of the completed keyboard are for demonstration purposes only (only case included).

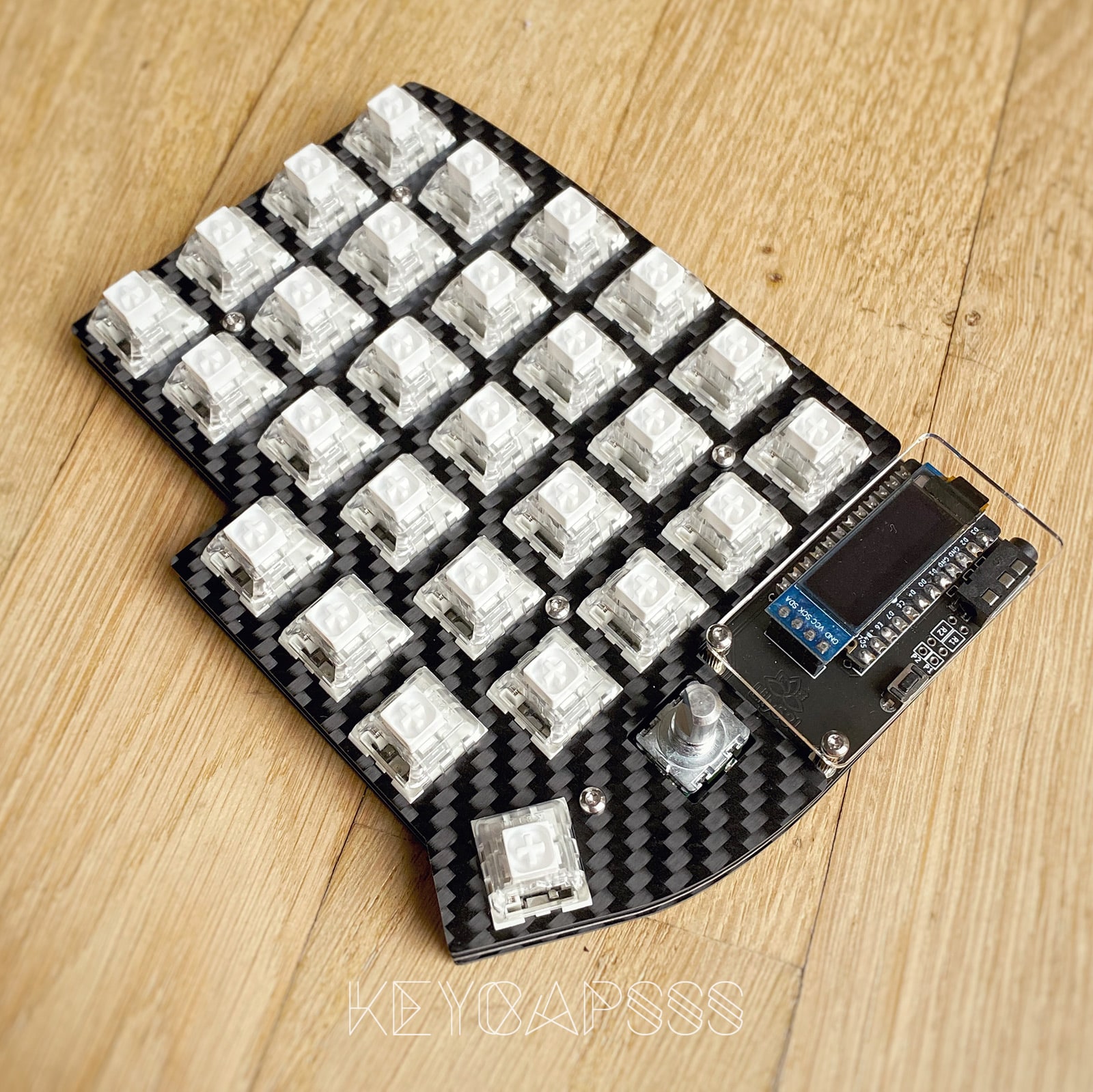

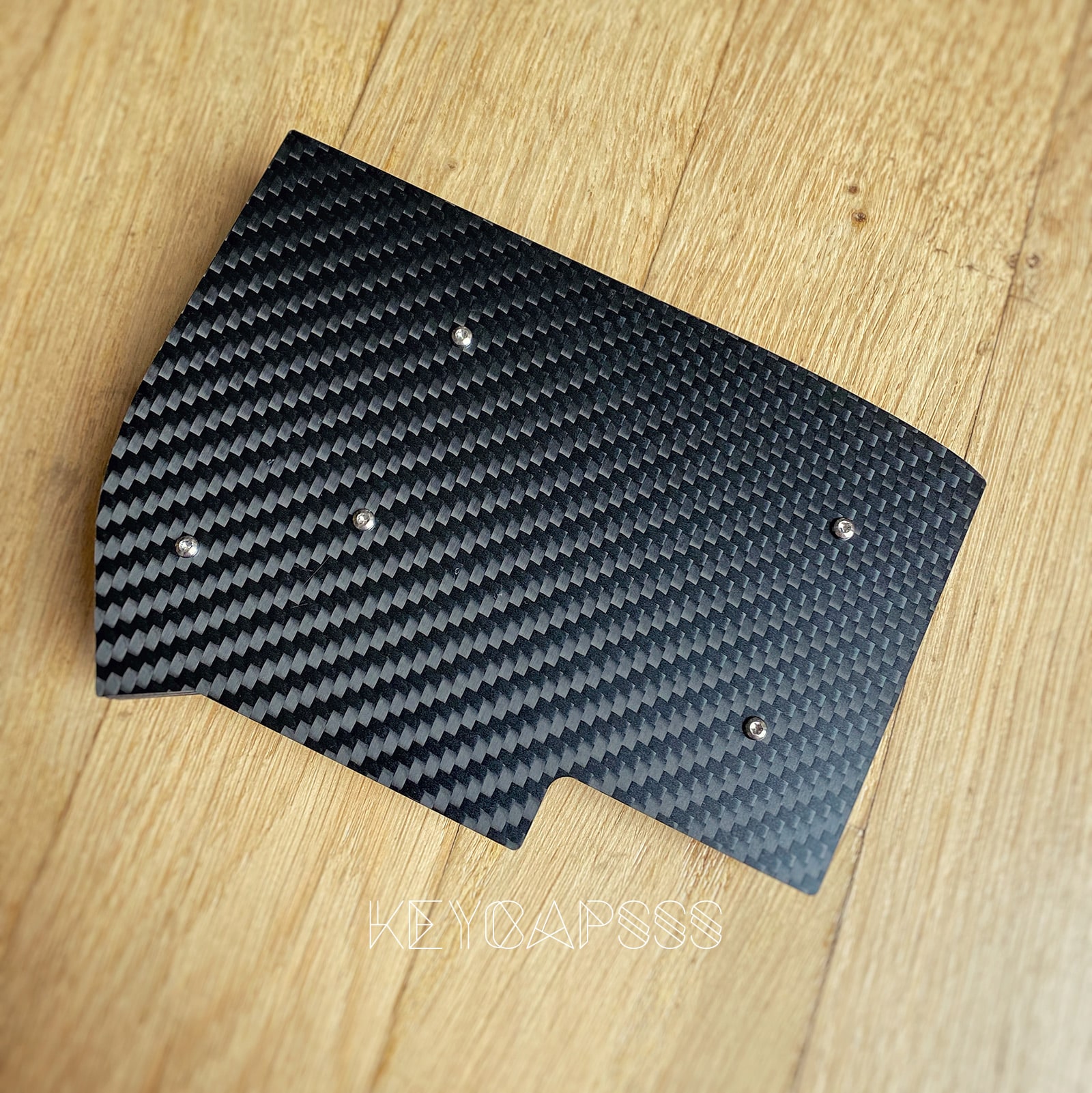

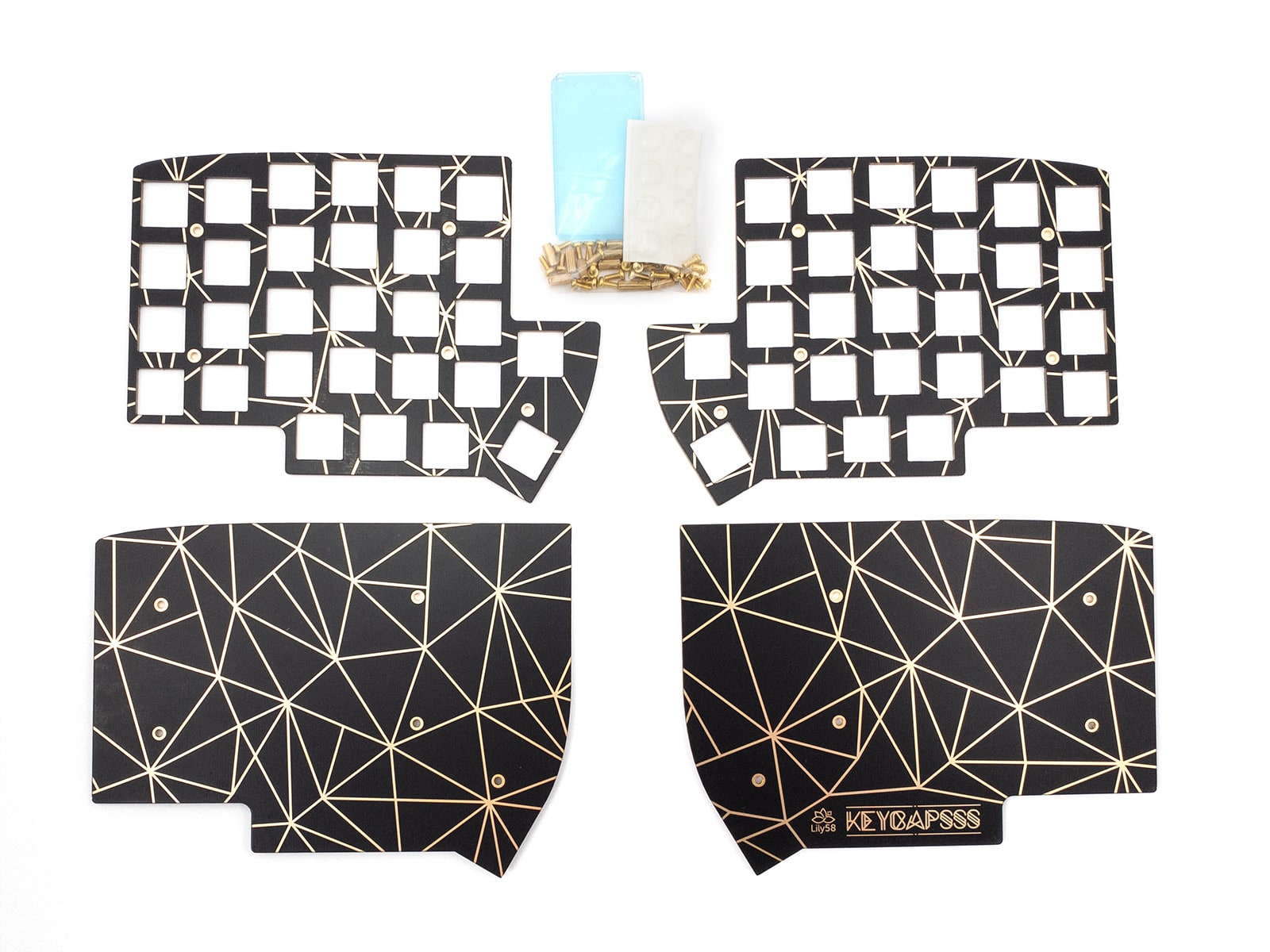

This is a plate case for the Lily58 and Lily58L split keyboard.It's compatible with MX switches and clones, also Kailh Choc switches.
Holes for the standoff are M2 size.
Includes:
2x Top plates 100% Carbon (1.5mm thick)
2x Bottom plates 100% Carbon (1.5mm thick)
2x Acrylic Oled cover (2mm thick), after removing the blue protection tape, the cover is colorless
Self adhesive rubber feet (clear)
Screws and spacer for MX switches (stainless T6 Torx)
Build Guide
Photos of the completed keyboard are for demonstration purposes only (only case included).
Unique design by Keycapsss
Color: Black/Silver, or White/Silver
Thickness: 1.6mm
Compatible with MX and Choc switches (spacer incl: 7mm)
Material: pcb material (FR4 lead free)

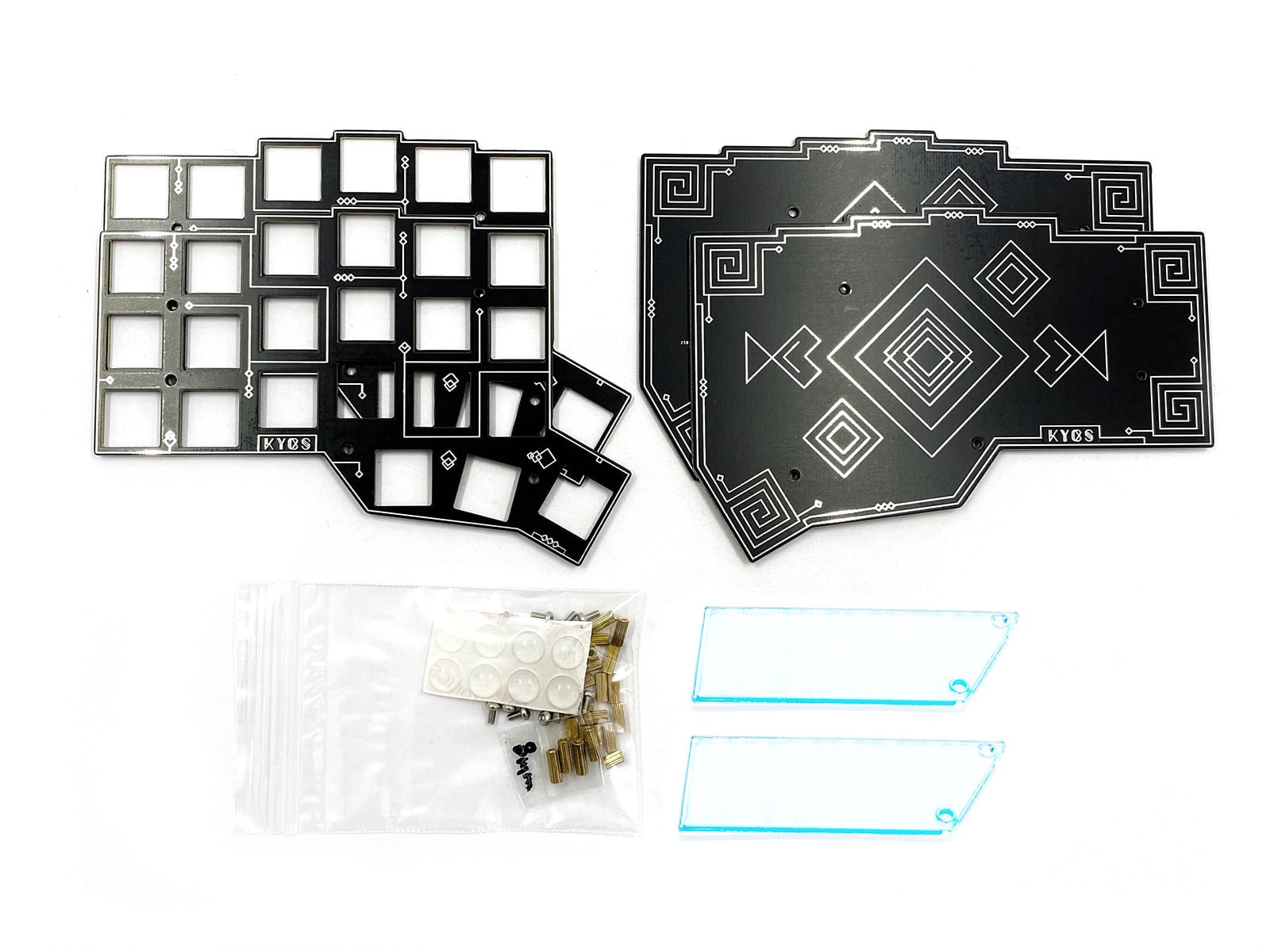

Set includes:
2x Top plates
2x Bottom plates
2x Oled clear guard plates (3mm thick)
M2 stainless steel screws (T6 Torx)
M2 spacer (7mm for MX, for Choc switches 5mm spacer are possible, order separate)
Self adhesive rubber feet (clear)
Photos of the completed keyboard are for demonstration purposes only (only case included).

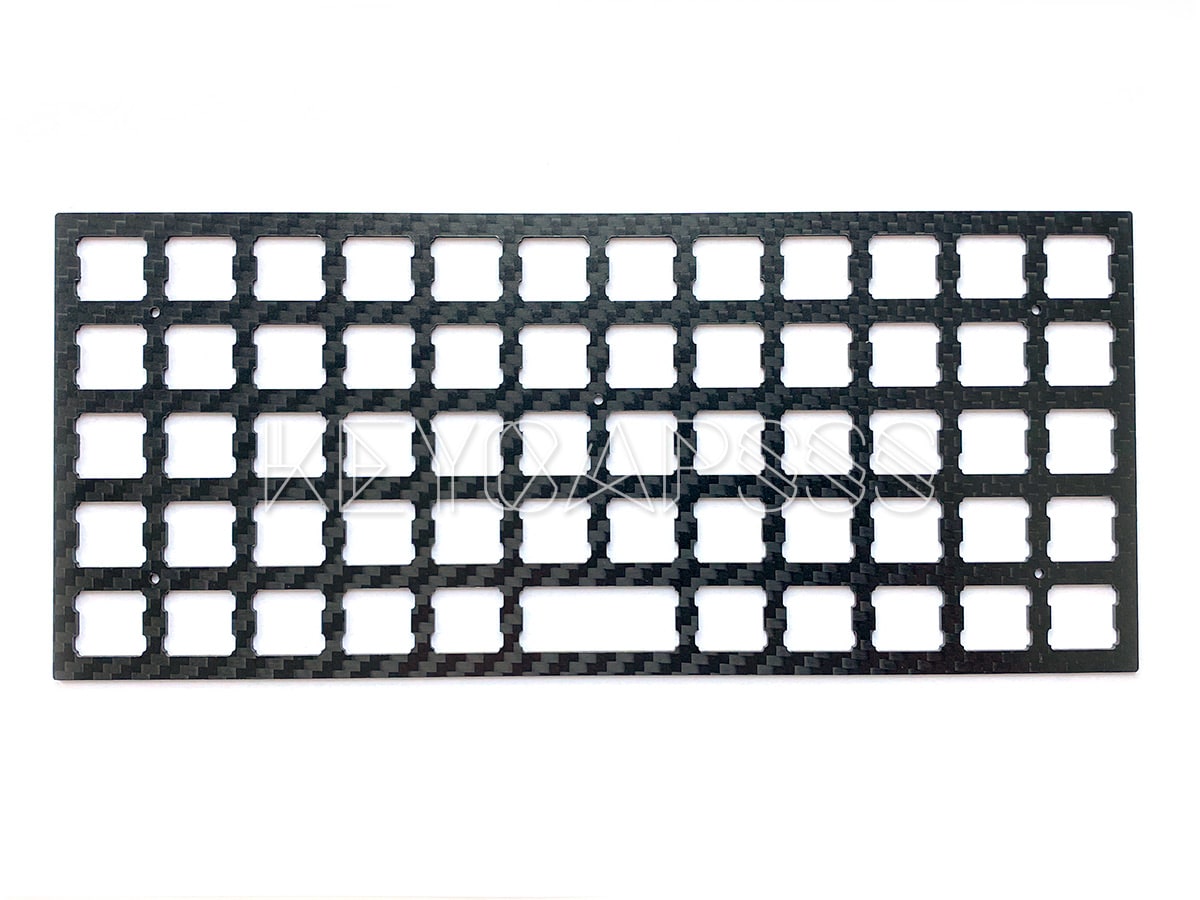

This carbon top plate fit's to the Preonic LO-PRO bottom case from OLKB.
Supports MIT, GRID layout and 2x 2U
Compatible with Cherry MX keyswitches, and MX clones (Gateron, Kailh, Zealio …)
Plate is 1.5 mm thick
Material Carbon
With top opening holes (open switches without desoldering)
GRID SPACING (GS): 19mm
This is an optional top plate for the Plaid Kit.
With this top plate, you can use plate mounted switches like Kailh Box on your Plaid keyboard.
Includes:
1x Acrylic top plate for Plaid keyboard
6x M2x8mm brass screws
6x 2mm acrylic spacer disk

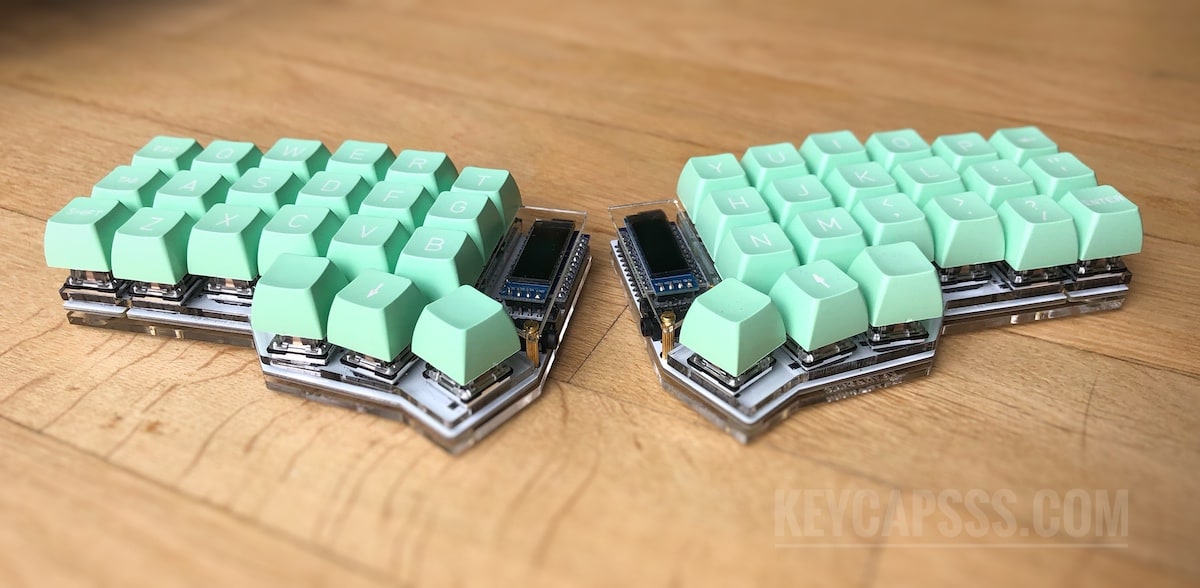

Case includes:
2x 3mm acrylic top plate
2x 3mm acrylic bottom plate
2x Oled cover (2mm)
Spacer and screws for MX switches (stainless steel screws with T6 Torx)
Self adhesive rubber feet (clear)
This case is only compatible with MX switches and clones. The Kailh Choc switches are not high enough to go through the 3mm plate.
The acrylic plates have a bluish/green protection film.
Photos of the completed keyboard are for demonstration purposes only (only case included).
This case is compatible with the ErgoDash Rev1.2 pcb.Compatible with MX switches and clones like Gateron.
Includes:
2x Acrylic 3mm top plates
2x Acrylic 3mm bottom plates
2x Acrylic 3mm bottom guard plate
M2 spacer and screws (stainless steel with T6 Torx)
Self adhesive rubber feet (clear)
Build Guide
Photos of the completed keyboard are for demonstration purposes only (only case included).

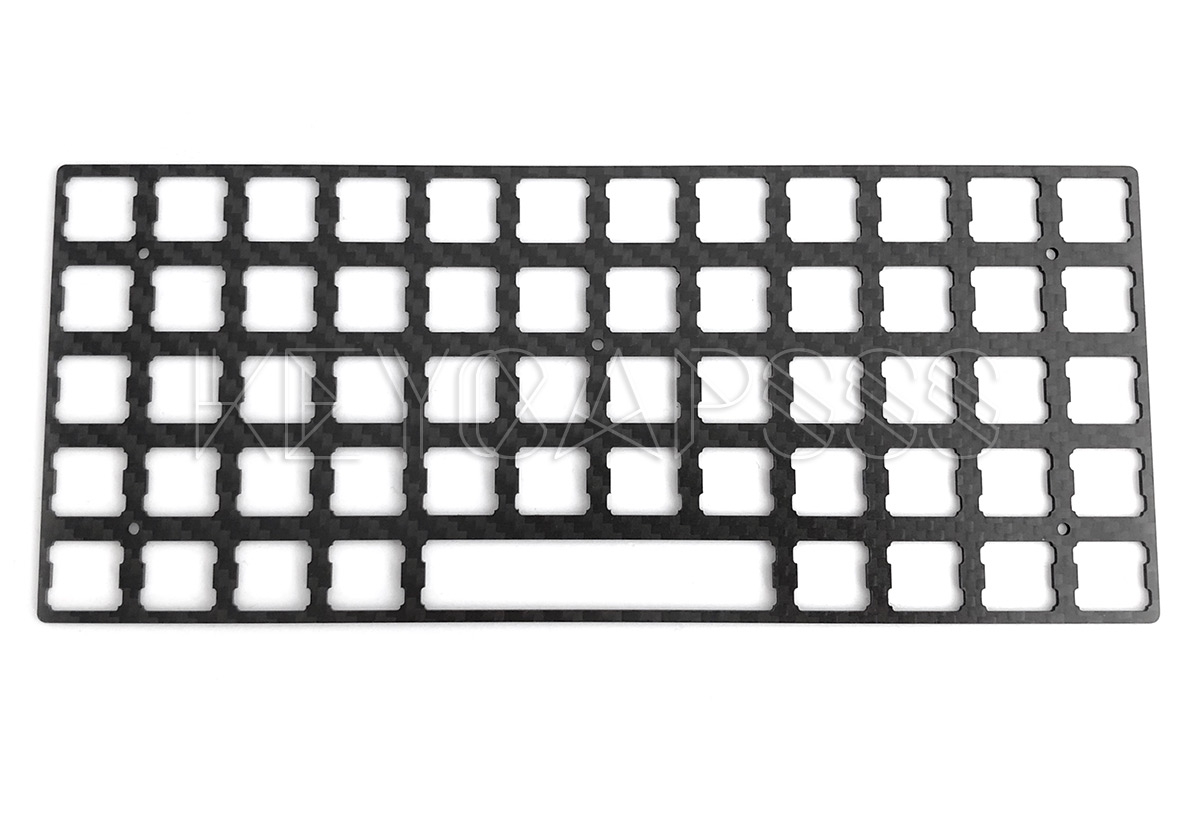

This carbon top plate fit's to the Preonic HI-PRO bottom case from OLKB.
Supports MIT, GRID layout and 2x 2U
Compatible with Cherry MX keyswitches, and MX clones (Gateron, Kailh, Zealio …)
Plate is 1.5 mm thick
Material Carbon
With top opening holes (open switches without desoldering)
GRID SPACING (GS): 19mm

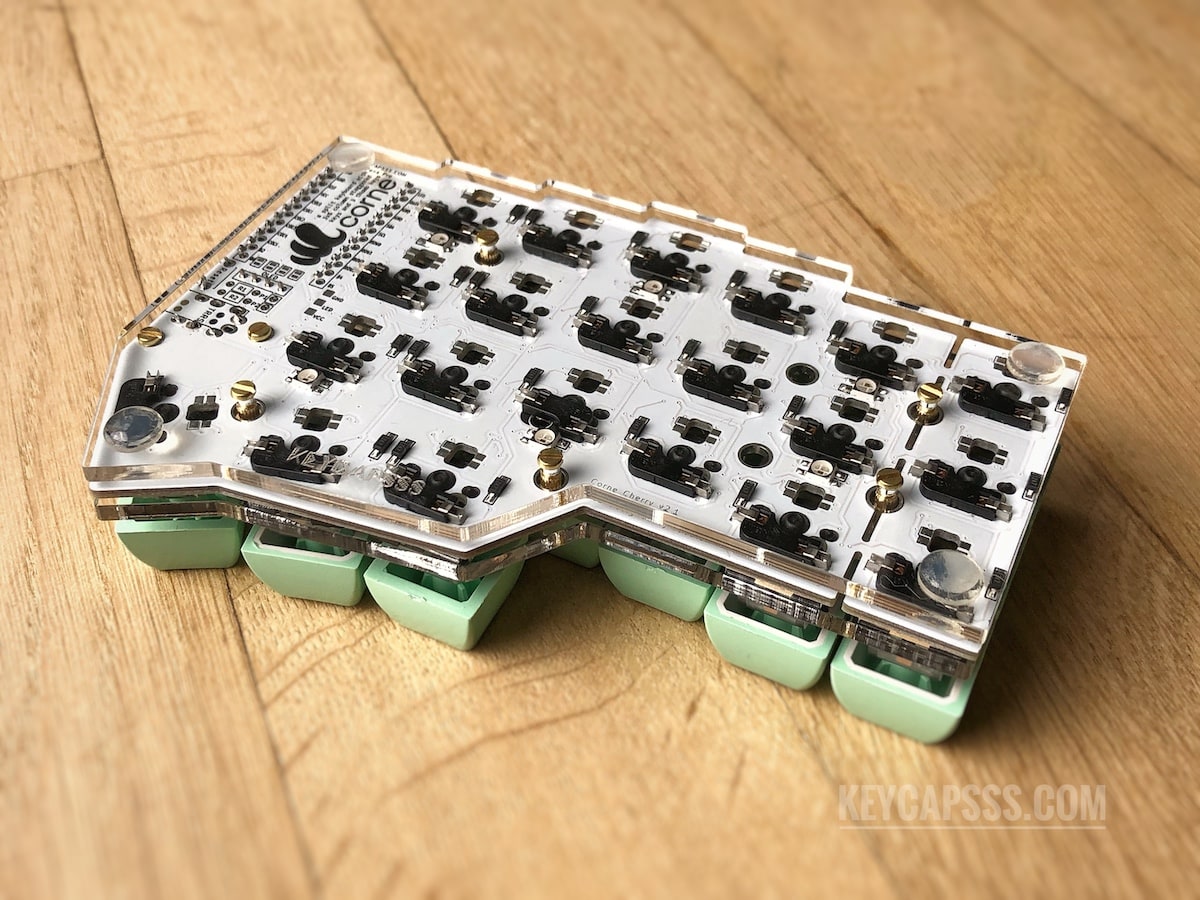

This case is only compatible with the MX version of the pcb. The Choc switches are not heigh enough to go through the 3mm top plate.For Choc i recommend the carbon plate case. The switches snap into the plate and carbon is very stiff.
This carbon case is compatible with MX and Choc version.
Includes:
2x Acrylic 3mm top plates
2x Acrylic 3mm bottom plates
2x Acrylic 3mm clear Oled cover (has bluish protection film)
Screws and spacer (stainless steel screws with T6 Torx)
Self adhesive rubber feet (clear)
Photos of the completed keyboard are for demonstration purposes only (only case included).

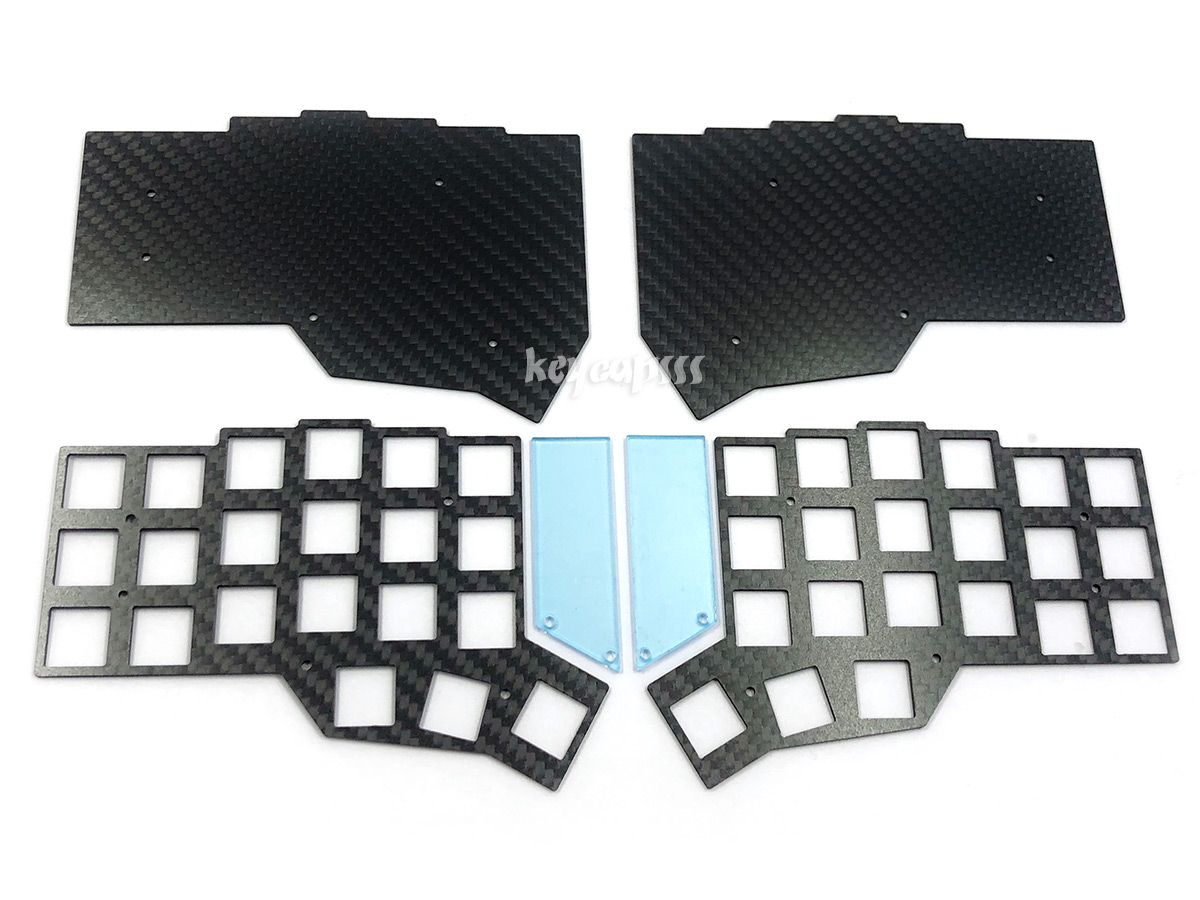

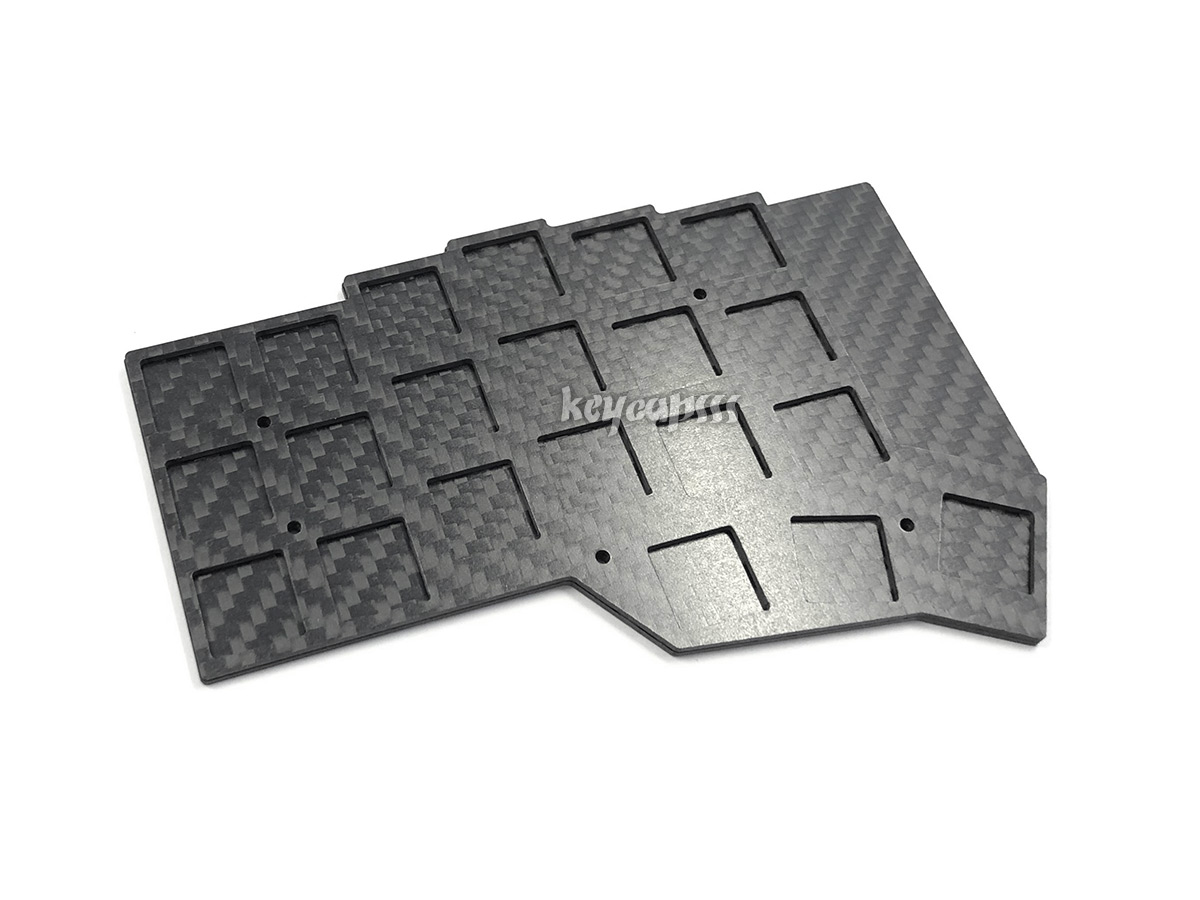

This is a plate case for the open source CRKBD split keyboard.
Holes for the standoff are M2 size.
2x Top plates 100% Carbon (1.5mm thick)
2x Bottom plates 100% Carbon (1.5mm thick)
2x Acrylic Oled cover (2mm thick), after removing the blue protection tape, the cover is colorless
Self adhesive rubber feet (clear)
Screws and spacer (stainless T6 Torx)
Photos of the completed keyboard are for demonstration purposes only (only case included).

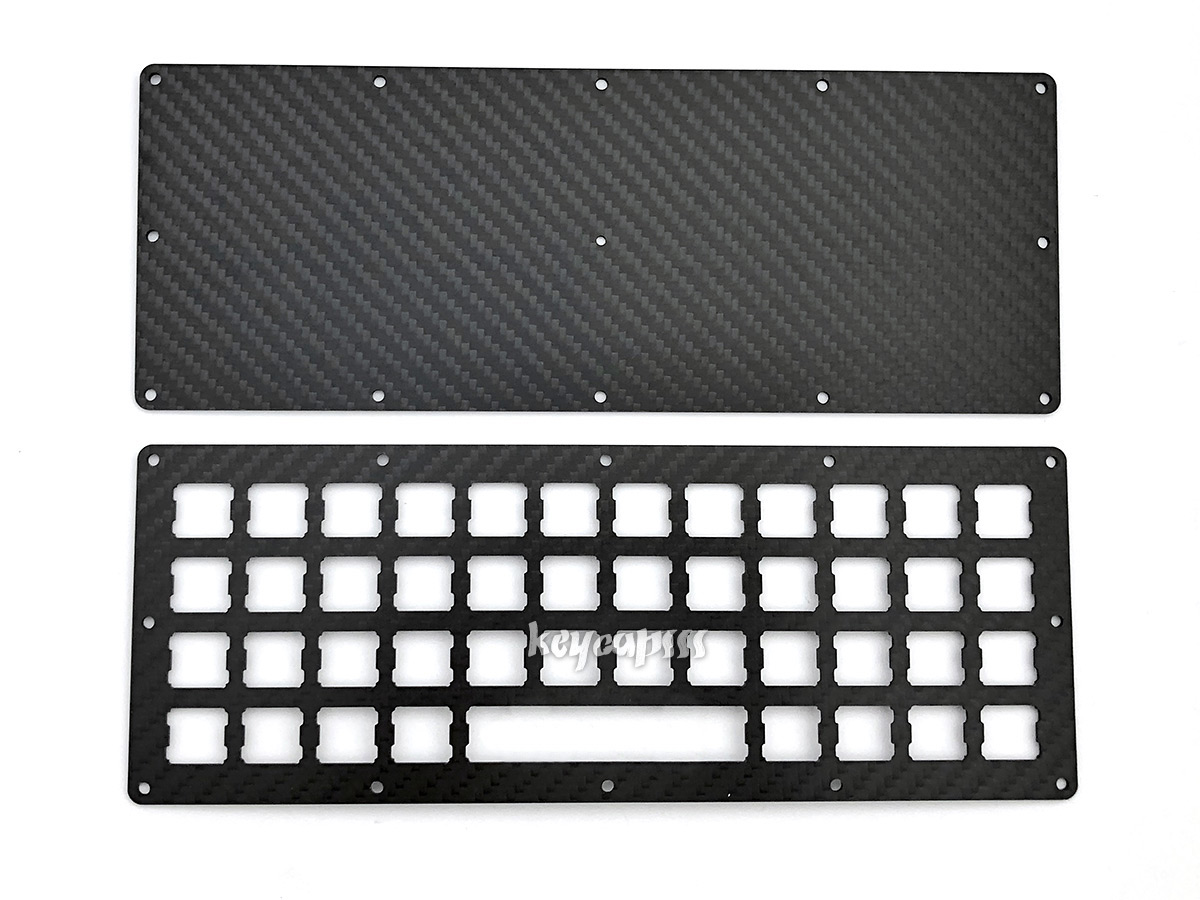

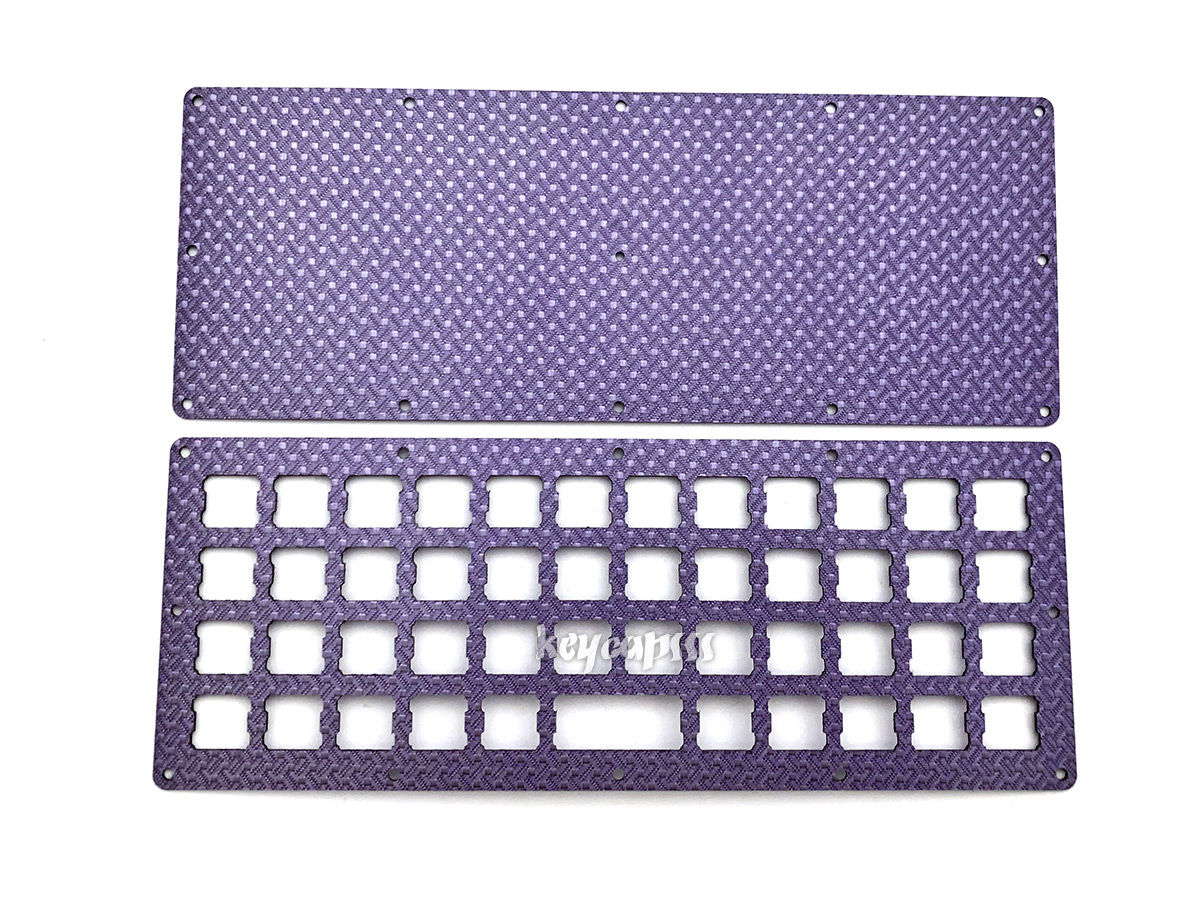

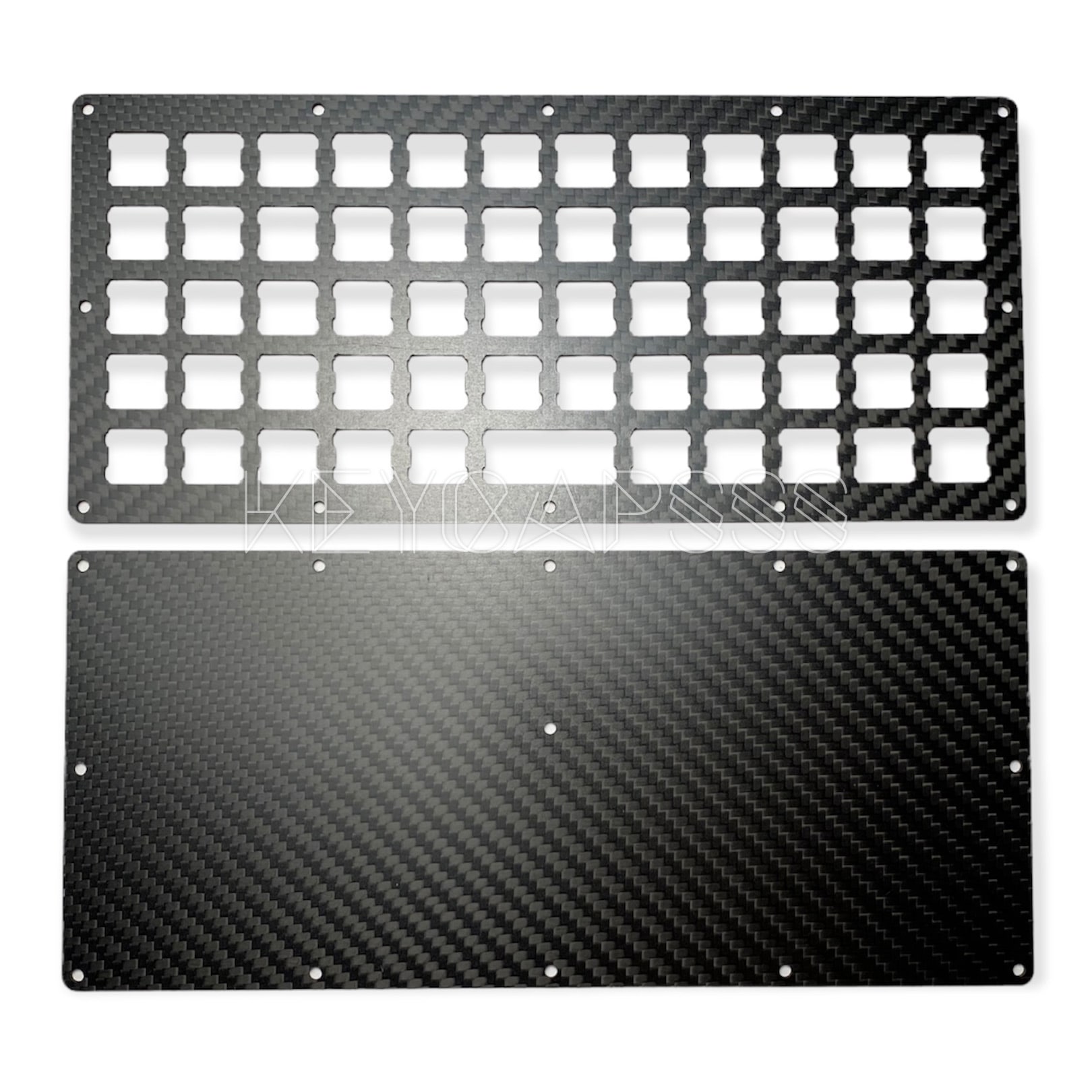

Top and bottom plate are CNC machined from 1.5mm Carbon Fiber Sheets
Compatible with Cherry MX switches, and MX clones (Gateron, Kailh, Zealio …)
Or Alps switches
Supports MIT and GRID layout (MX Matt supports also 2x2U)
With top opening holes (open switches without desoldering) only MX Version
Kit Contents
1x Carbon top plate (choose MX or ALPS compatibility)
1x Carbon bottom plate
4x Self-adhesive rubber feeds 4x8mm
Requires
12x Standoff's 10mm ≈0.4inch (order on more as a replacement, sometimes the thread does not fit perfect with the screws)
12x M3x6mm screws (black) for the bottom
12x M3x6mm anodized screws for the top
12x M3 anodized washer for top screws
48x MX or Alps keyboard switches
OLKB Planck PCB, or Teensy/Arduino Pro Micro (Hand Wiring)

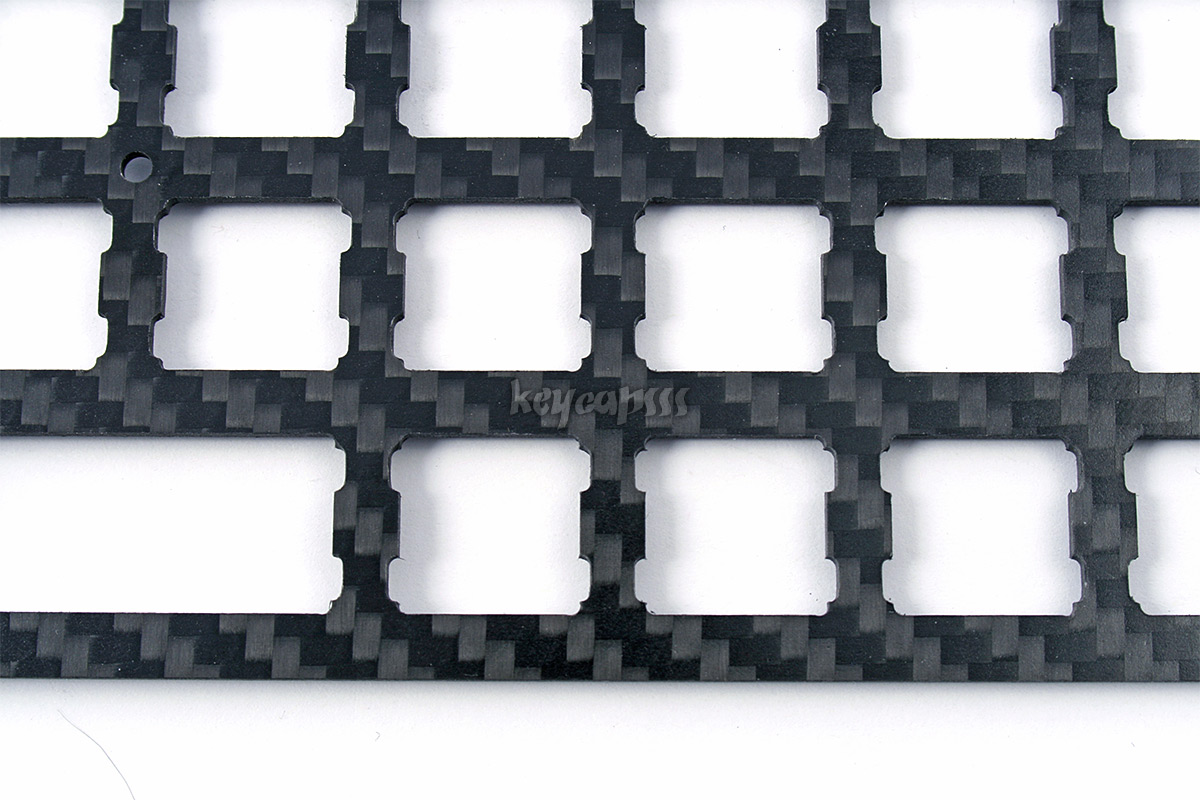

This carbon top plate fit's to the Planck HI-PRO bottom case from OLKB.
Supports MIT and GRID layout
Compatible with Cherry MX keyswitches, and MX clones (Gateron, Kailh, Zealio …)
Plate is 1.5 mm thick
Material Carbon
With top opening holes (open switches without desoldering)
GRID SPACING (GS): 19mm
These plates are not compatible with LO-Pro Planck cases from OLBK.

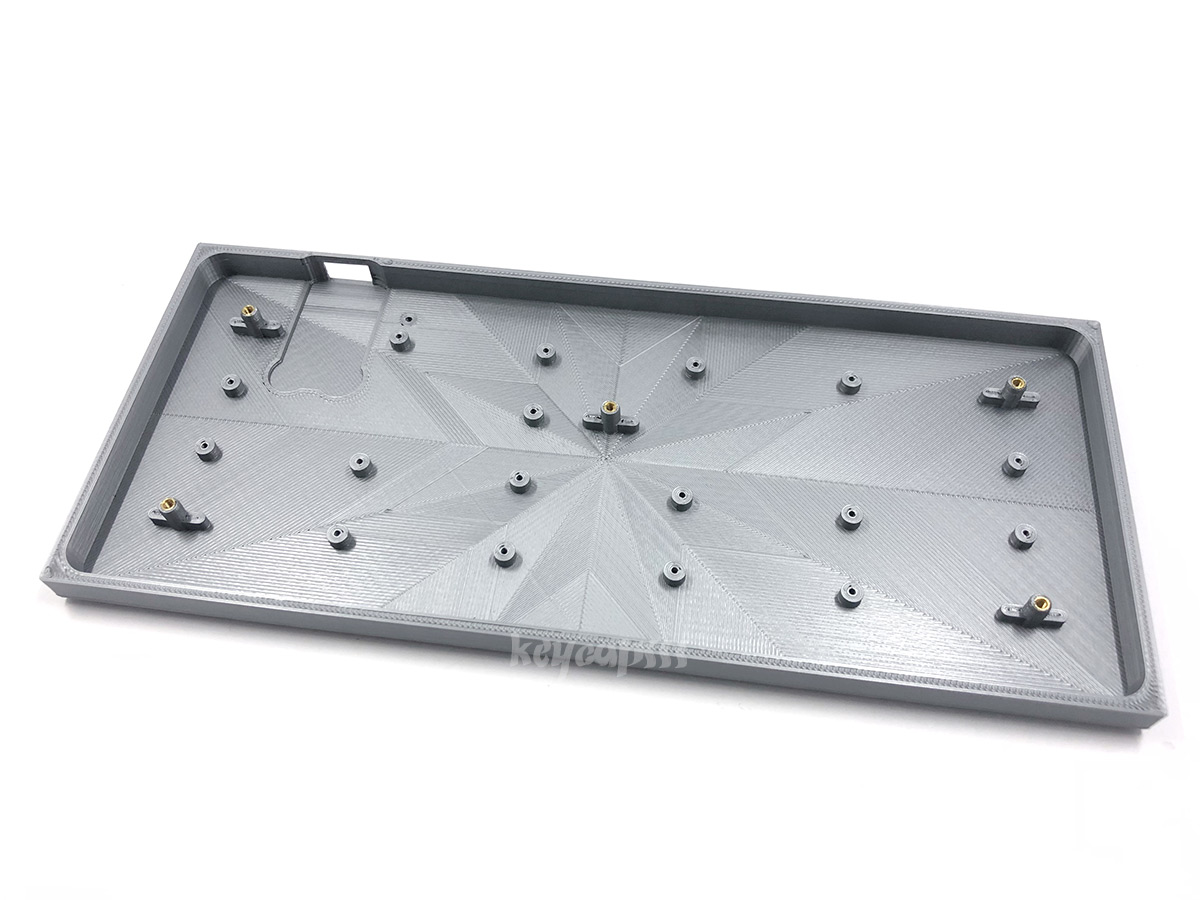

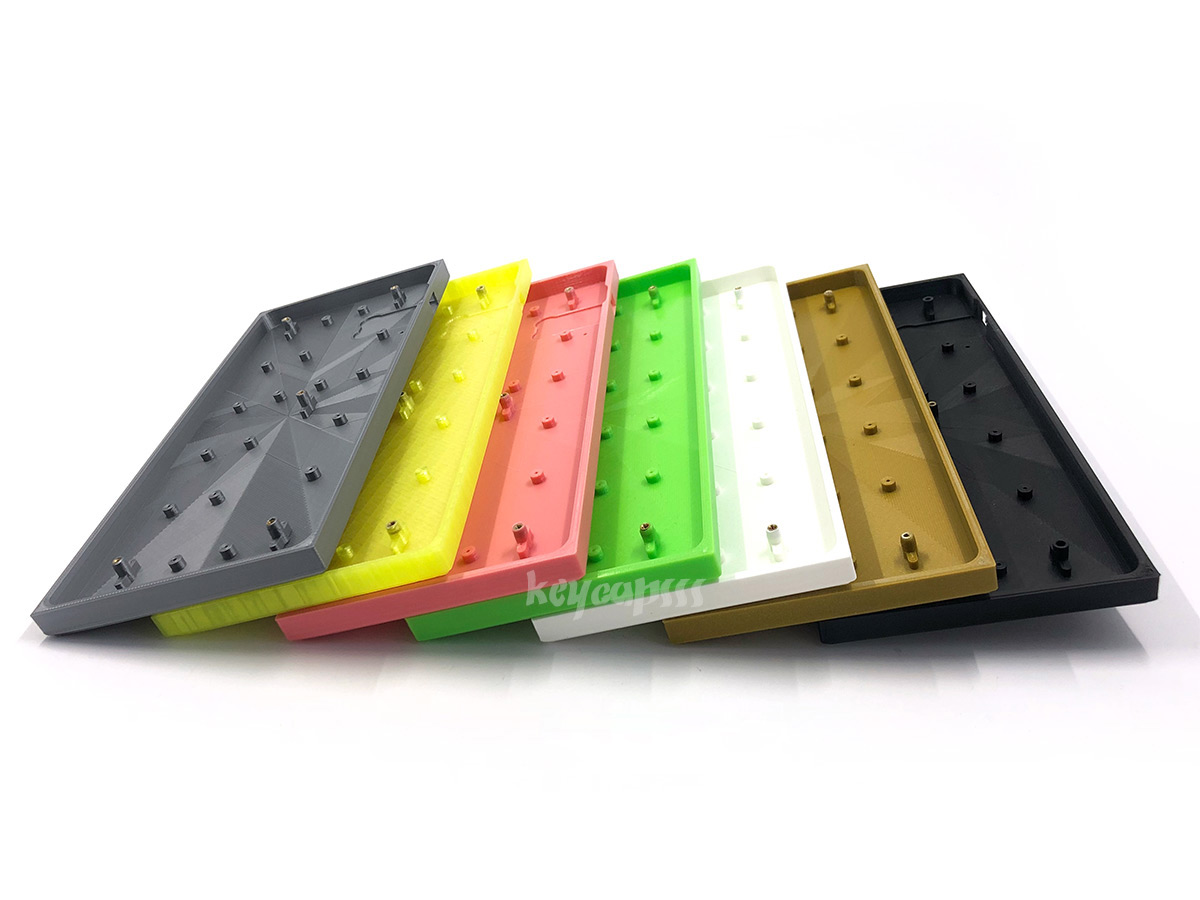

This case is similiar to the Planck LO-PRO case from OLKB, but for the Preonic PCB.
Case is compatible to the OLKB Preonic PCB Rev1 and Rev2 (not with Rev3).
This carbon top plate is compatible with this case.
It also supports hand-wiring and has a cut-out for a Arduino Pro Micro or Teensy.The M2 press-in threads are already in place.
Material: PLA (biodegradable)
Lightweight and sturdy
Scope of Delivery
Bottom Part (with M2 threads, 5x M2 brass screws, 4x transparent rubber feeds)
or Top Plate
3D printed parts made with high quality filament from Redline Filament (made in Germany, environmentally friendly paper spool).

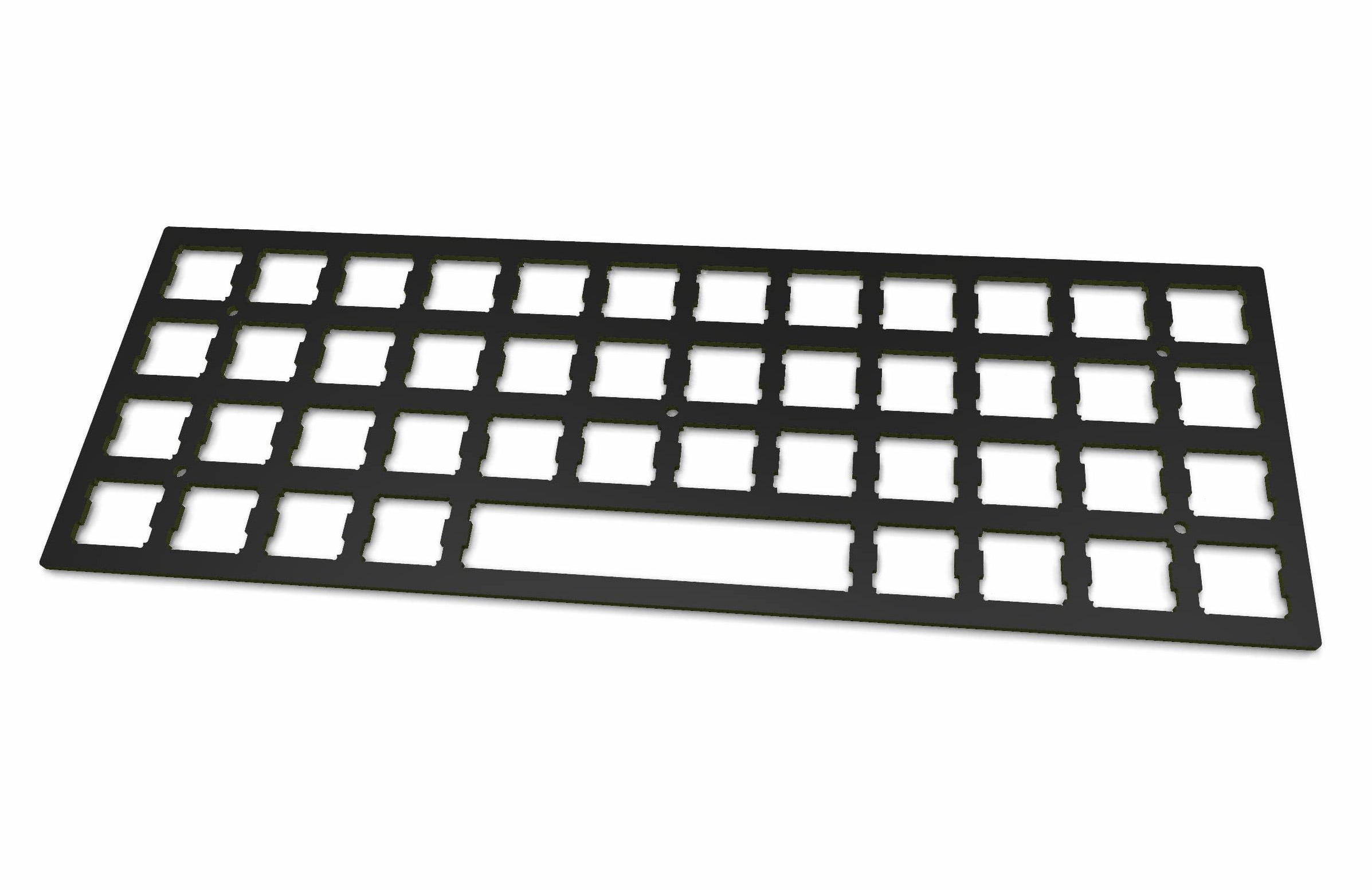

This carbon top plate fit's to the Planck Lo-Pro bottom case from OLKB.
Supports MIT and GRID layout
Compatible with Cherry MX keyswitches, and MX clones (Gateron, Kailh, Zealio …)
Plate is 1.5 mm thick
Material: Carbon
With top opening holes (lubing switches without desoldering)
5 holes (2.5mm) for screws (M2-M2.5) to attach it to the bottom case
GRID SPACING (GS): 19mm
These plates are not compatible with Hi-Pro Planck cases from OLBK. Compatible plates can be found here.
This carbon top plate fit's to the Planck Lo-Pro bottom case from OLKB.
Supports MIT and GRID layout
Compatible with Cherry MX keyswitches, and MX clones (Gateron, Kailh, Zealio …)
Plate is 1.5 mm thick
Material: Carbon
With top opening holes (lubing switches without desoldering)
5 holes (2.5mm) for screws (M2-M2.5) to attach it to the bottom case
GRID SPACING (GS): 19mm
These plates are not compatible with Hi-Pro Planck cases from OLBK. Compatible plates can be found here.
