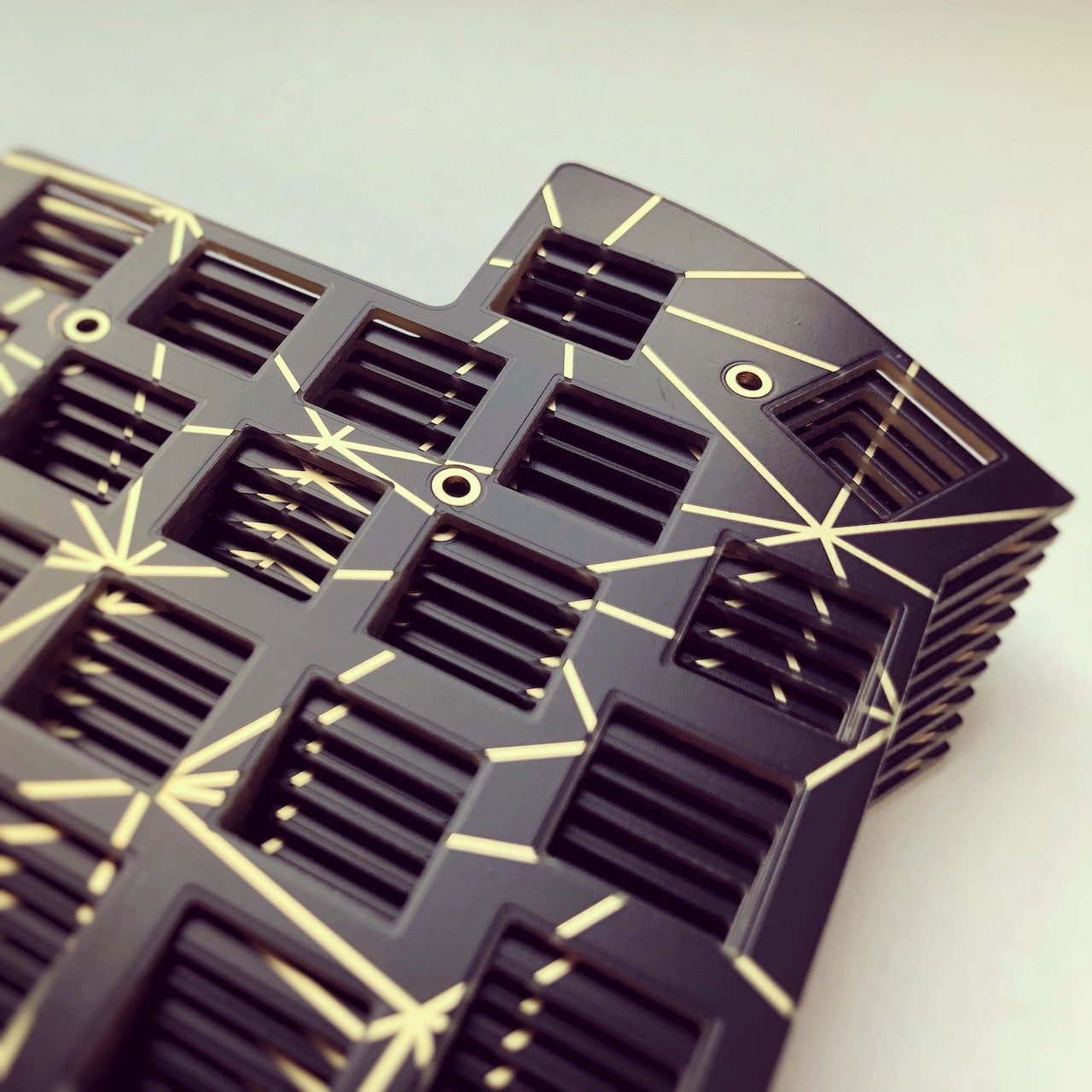

Lily58 Plate Case - Triangle Edition Gold/Black
€36.00
Currently out of stock
Description
Includes:
- 2x Top plates gold/black (FR4 material)
- 2x Bottom plates gold/black (FR4 material)
- 2x 3mm clear acrylic oled cover
- Screws and spacer for MX (brass slotted screw)
- 8x Rubber feets (clear)
You also need:
- PCB
- 2x Pro Micro or Puchi-C
- Solder Parts Kit
- 58x Kailh Sockets (MX)
- 58x Switches (MX 3Pin/5Pin)
- Keycaps
Reviews 0
Login
Safety information
Manufacturer: Keycapsss | Benjamin Rösner, Löhrstr. 11, 04105 Leipzig, Germany
Contact: Keycapsss.com
Accessory Items
Supported keyboards from the shop: CRKBD, Lily58L, Kimiko and Plaid-Pad Driver IC: SSD1306 Size: 0.91 inch OLED Resolution: 128 x 32 Display Color: White, Blue, or Yellow Pins pre-soldered Pin Description: GND: Power Ground VCC: Power + (3.3V - 5V) SCL: Clock Line SDA: Data Line

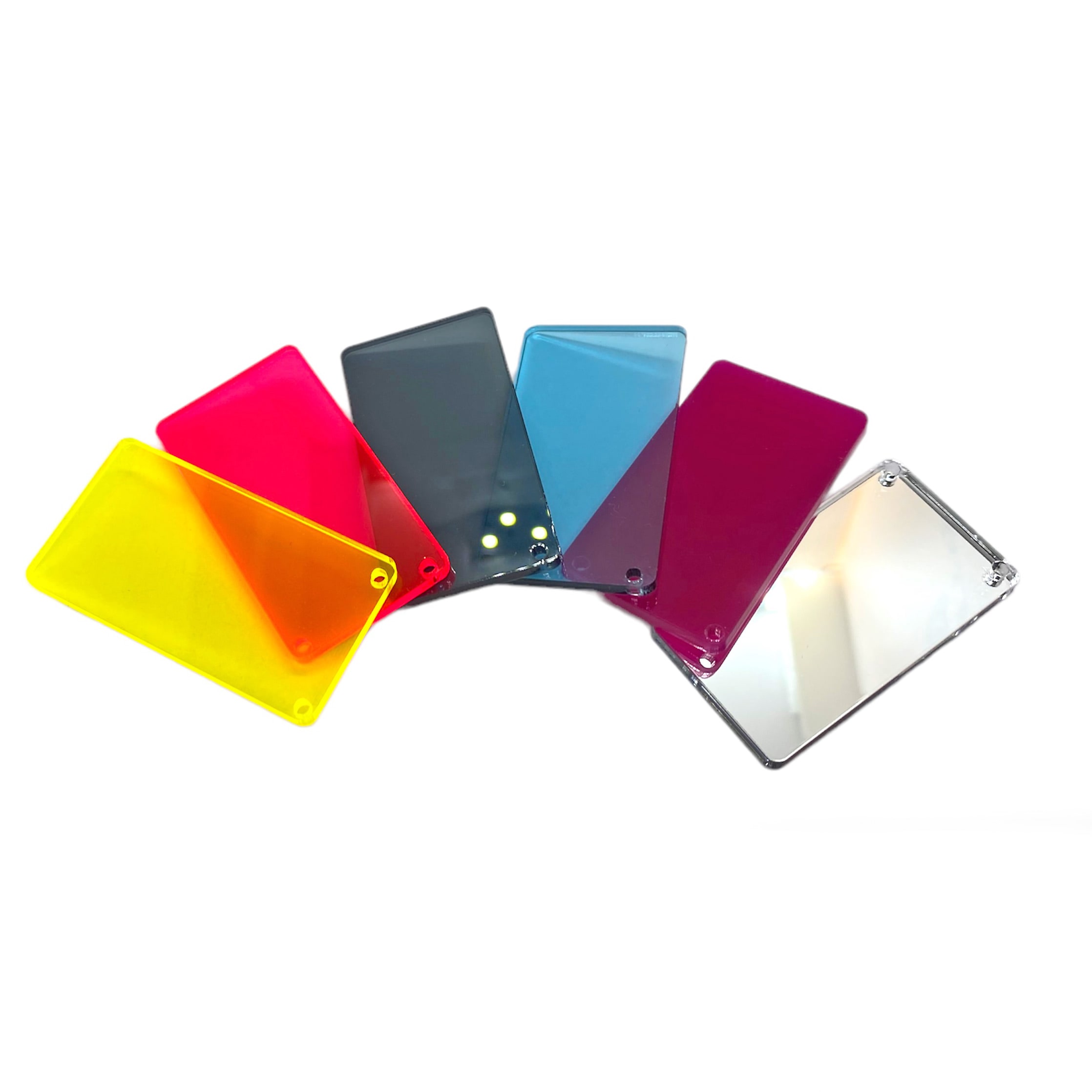

All covers are 3mm thick For the Lily58 plate case. Includes 2x acrylic oled covers of the choosen color 4x M2x5mm screws (torx t6 stainless)

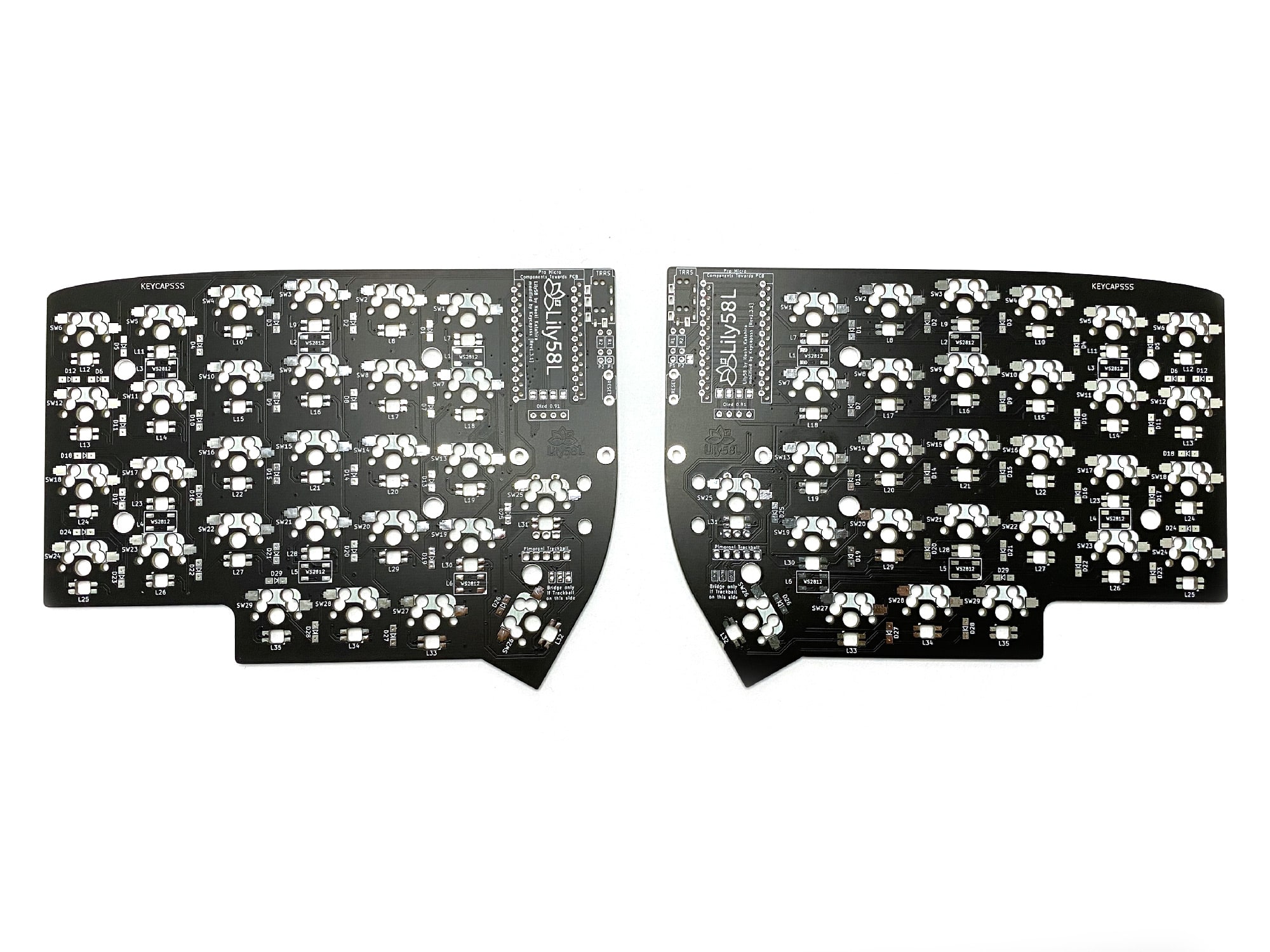

Variants Lily Pro PCB: Supports MX and Choc Hotswap Sockets No per key RGB or Underglow LED support Includes 2pcs swapable PCB's Build Guide Lily58L MX PCB: REV1.3 uses WS2812 LED's (not Sk6812 Mini) for underglow. This new improved Lily58 pcb is called Lily58L (Lily58 Light) and has the following new features. Support for one rotary encoder on each half Support for Pimoroni Trackball module on master side Underglow with 12 RGB LED's (WS2812 easier to solder) Per key RGB LED support with SK6812 Mini-E (easier to solder) Same shape/dimension as the origianl Lily58 pcb (compatible with all Lily58 cases) LeadFree HASL PCB surface finish Supports Kailh MX Hotswap Sockets MX switches are compatible (not Choc) Compatible with other Lily58 cases (with Trackball-Module, only 1.5mm thick top plates will work) Build Guide and QMK Keymap Includes 2pcs swapable PCB's You need: 1x Solder parts kit (choose extra from dropdown) 58x MX Kailh Hot Swap sockets 58x MX switches 2x Pro Micro, Helios, Puchi-BLE, or other clones A Lily58 case Keycaps TRRS cable (4-pole) Optional 0.91 OLED SSD1306 display Optional 12x WS2812 (5050) LED's for underglow Optional 58x SK6812 Mini-E LED's for per key light Separate solder parts kit: 58x SMD Diodes 2x Tactile reset switch 2x TRRS jack 2x Sockets for the oled display Photos of the completed keyboard are for demonstration purposes only.Please note that this pcb must be assembled (soldering) and does not include mcu, switches or keycaps.
