Kimiko Rev2 Plate Case - Triangle Edition Gold/Black
€34.00
Ready to ship: Delivery time 2-5 workdays (Germany), 5-14 workdays (EU), 10-20 workdays (Int.)
Description
Includes:
- 2x Top plates gold/black (FR4 material)
- 2x Bottom plates gold/black (FR4 material)
- 2x 3mm clear acrylic oled cover
- Screws and spacer for MX (brass slotted screw)
- Self adhesive rubber feet (clear)
Photos of the completed keyboard are for demonstration purposes only (only case included).
Reviews 1
Login
1 review
5 November 2024 07:07
The holes are very slightly too small
The plates seem pretty high quality, and I'm pretty sure that are the perfect thickness. However, the corners of the switch holes are a little too narrow on the left and right sides - this caused the plate to scrape the corners of the MX switch, wedging that material between the switch and the plate. This prevented the switch tabs from snapping into place, and negatively affecting the mounting of the switches into the hot swap sockets of the PCB.
Safety information
Manufacturer: Keycapsss | Benjamin Rösner, Löhrstr. 11, 04105 Leipzig, Germany
Contact: Keycapsss.com
Accessory Items

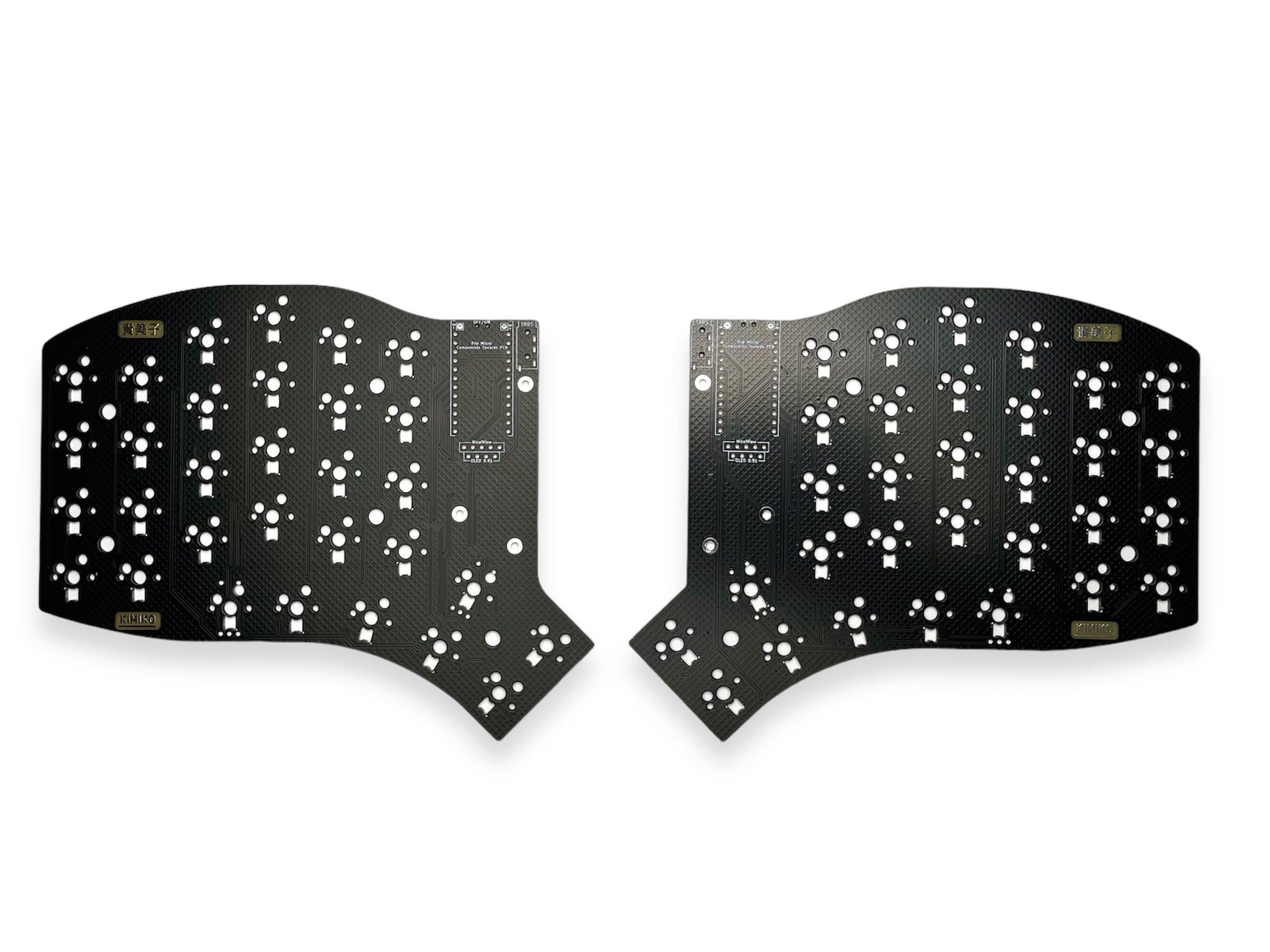

Support for one rotary encoder on each half (two possible positions) Per key RGB LED support with SK6812 Mini-E (easier to solder as normal SK6812 Mini) Switches are hotswappable via MX Hotswap Sockets MX switches and clones are compatible (3Pin/5Pin) (not Choc) LeadFree HASL PCB surface finish Variant includes: MX Black PCB: 2pcs PCB's (no solder parts) Parts Kit: 62x SMD Diodes 2x / Tactile reset switch / 2x TRRS jack / 2x sockets for the oled display You also need: 1x Solder parts kit (choose extra in dropdown) 62x MX Kailh Hot Swap sockets 62x MX switches 2x Pro Micro or Drop-In replacment (Helios, Puchi-BLE, Elite-C, ...) Case Keycaps TRRS cable (4-pole) Optional: 1-2 rotary encoders Optional: 1-2 OLED SSD1306 display Optional: 62x SK6812 Mini-E led's for per key light Build-Guide (old build guide for Rev1, but it's very similar)Build guide for Rev2 coming soon. VIAL firmware information (QMK firmware is not done yet) Photos of the completed keyboard are for demonstration purposes only.Please note that this pcb must be assembled (soldering) and does not include mcu, switches or keycaps.
