Kimiko Rev2 Split Keyboard PCB

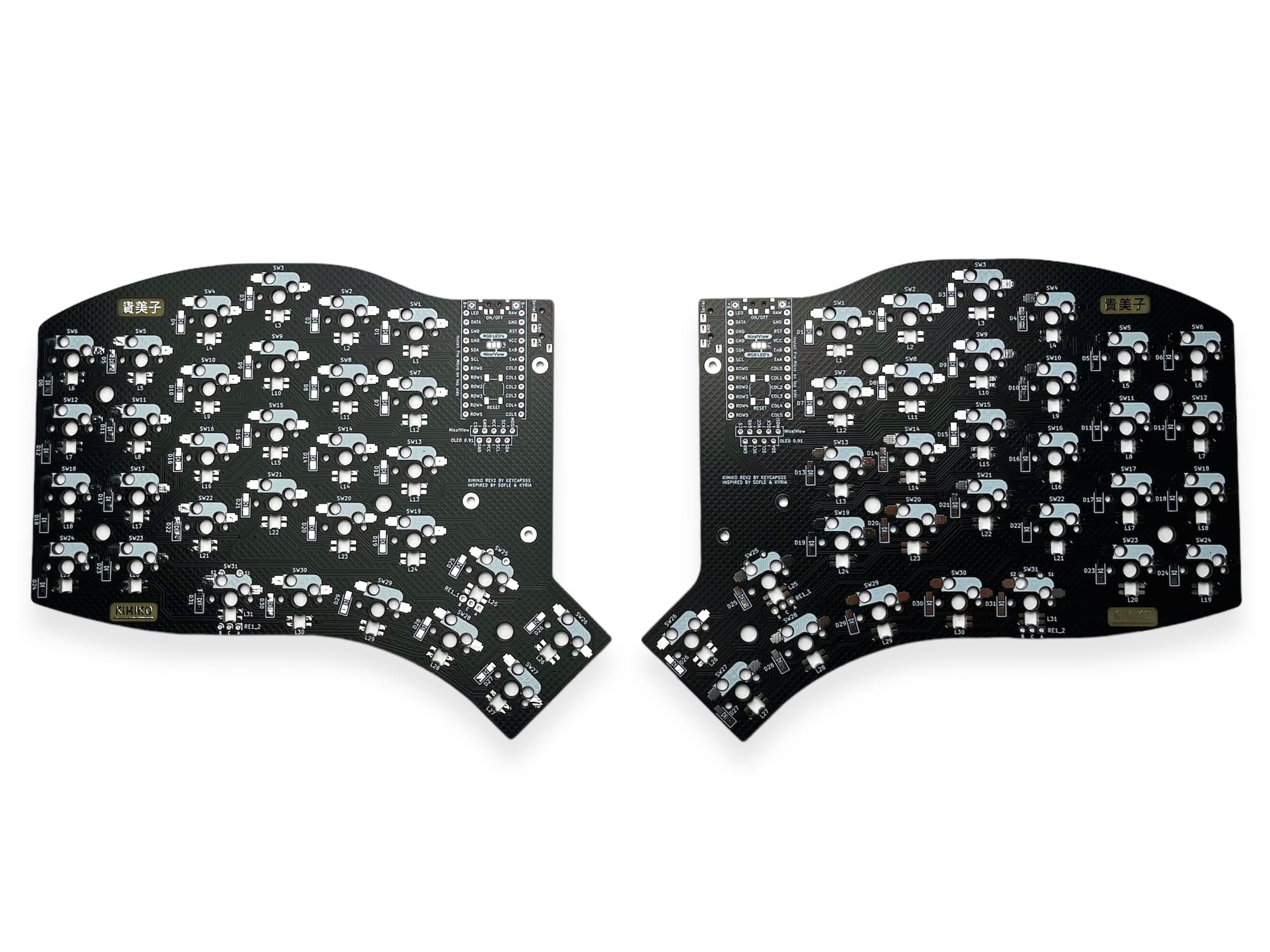

Preview: Kimiko Rev2 Split Keyboard PCB - Front Preview: Kimiko Rev2 Split Keyboard PCB - Back Preview: Kimiko Rev2 Split Keyboard - complete assembled keyboard
Kimiko Rev2 Split Keyboard PCB - Front
Kimiko Rev2 Split Keyboard PCB - Back
Kimiko Rev2 Split Keyboard - complete assembled keyboard

€18.00 *

Prices incl. VAT plus shipping costs

Ready to ship,
Delivery time 2-5 workdays (Germany),
appr. 5-14 workdays (EU),
appr. 14-50 workdays (International)

Variant:

  • Order number: KC10214_MX-BK
Description Evaluations 0
Description
  Support for one rotary encoder on each half (two possible positions) Per key RGB... more
Close menu
Kimiko Rev2 Split Keyboard PCB



  • Support for one rotary encoder on each half (two possible positions)
  • Per key RGB LED support with SK6812 Mini-E (easier to solder as normal SK6812 Mini)
  • Switches are hotswappable via MX Hotswap Sockets
  • MX switches and clones are compatible (3Pin/5Pin) (not Choc)
  • LeadFree HASL PCB surface finish



Variant includes:

  • MX Black PCB: 2pcs PCB's (no solder parts)
  • Parts Kit: 62x SMD Diodes / 2x Tactile reset switch / 2x TRRS jack / 2x sockets for the oled display



You also need:

  • 1x Solder parts kit (choose extra in dropdown)
  • 62x MX Kailh Hot Swap sockets
  • 62x MX switches
  • 2x Pro Micro or Drop-In replacment (Helios, Puchi-BLE, Elite-C, ...)
  • Case
  • Keycaps
  • TRRS cable (4-pole)
  • Optional: 1-2 rotary encoders
  • Optional: 1-2 OLED SSD1306 display
  • Optional: 62x SK6812 Mini-E led's for per key light

Build-Guide (old build guide for Rev1, but it's very similar)
Build guide for Rev2 coming soon.

Photos of the completed keyboard are for demonstration purposes only.
Please note that this pcb must be assembled (soldering) and does not include mcu, switches or keycaps.
