Piantor Split Keyboard PCB

Preview: Piantor Split Keyboard PCB - Raspberry Pi Pico powered Preview: Piantor Split Keyboard PCB - Raspberry Pi Pico powered Preview: Piantor Split Keyboard - Raspberry Pi Pico powered
Piantor Split Keyboard PCB - Raspberry Pi Pico powered
Piantor Split Keyboard PCB - Raspberry Pi Pico powered
Piantor Split Keyboard - Raspberry Pi Pico powered

€15.00 *

Prices incl. VAT plus shipping costs

Ready to ship,
Delivery time 2-5 workdays (Germany),
appr. 5-14 workdays (EU),
appr. 14-50 workdays (International)

  • Order number: KC10187
Description Evaluations 0
Description
The Piantor Keyboard is a beginner-friendly, easy-to-solder, 42-key or 36-key, diodeless, low... more
Close menu
Piantor Split Keyboard PCB

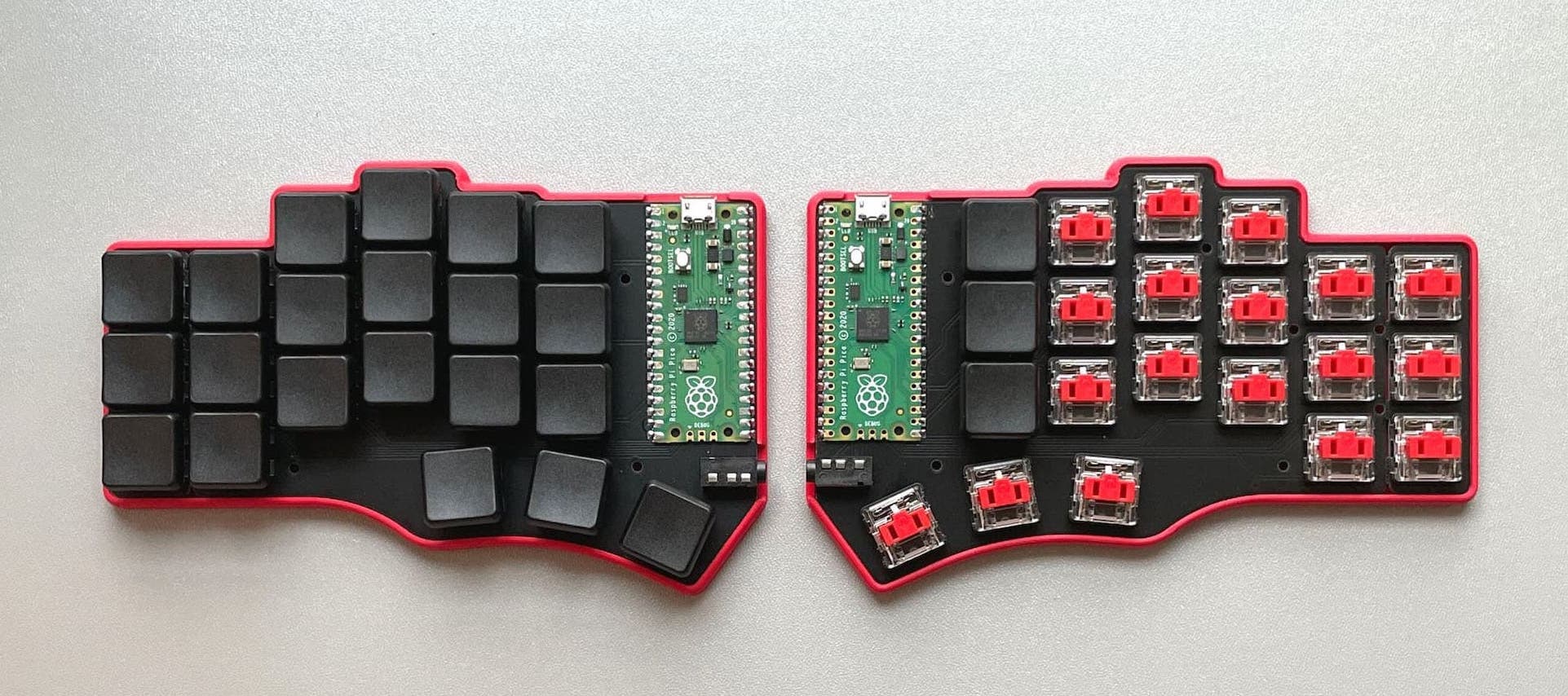

The Piantor Keyboard is a beginner-friendly, easy-to-solder, 42-key or 36-key, diodeless, low profile aggressive column staggered, hotswappable and non-hotswappable, programmable ergonomic mechanical split keyboard powered by Raspberry Pi Pico or other compatible RP2040 boards.
It is based on the Cantor Keyboard.

Includes left and right PCB

Features:

  • Support for Choc V1 switches
  • Beginner friendly (less soldering, precompiled VIAL firmware, Gui to change layout)
  • Breakable pinky column (42-key to 36-key)
  • QMK and VIAL firmware support.
  • Open source
  • LeadFree HASL PCB surface finish

You need:

  • 3D printed case (black PLA)
  • 2x Raspberry Pi Pico
  • Solder parts (2x TRRS jack)
  • 36/42x Choc V1 switches
  • Keycaps (Choc V1 switches need Choc keycaps, not MX)
  • Screws (M2x6mm)
  • Choc Hot-Swap Sockets (optional if you need Hot-Swap for the switches)
  • TRRS cable (4-pole)
  • Micro-USB cable

Build-Guide

Photos of the completed keyboard are for demonstration purposes only.
Please note that this pcb must be assembled (soldering) and does not include mcu, switches or keycaps.

Design by Beekeeb

Evaluations 0
Read, write and discuss reviews... more
Close menu
Customer evaluation for "Piantor Split Keyboard PCB"
Write an evaluation
Evaluations will be activated after verification.

The fields marked with * are required.

Accessories 7 Similar products Customers also bought Choc - Low Profile Parts
Accessories 7

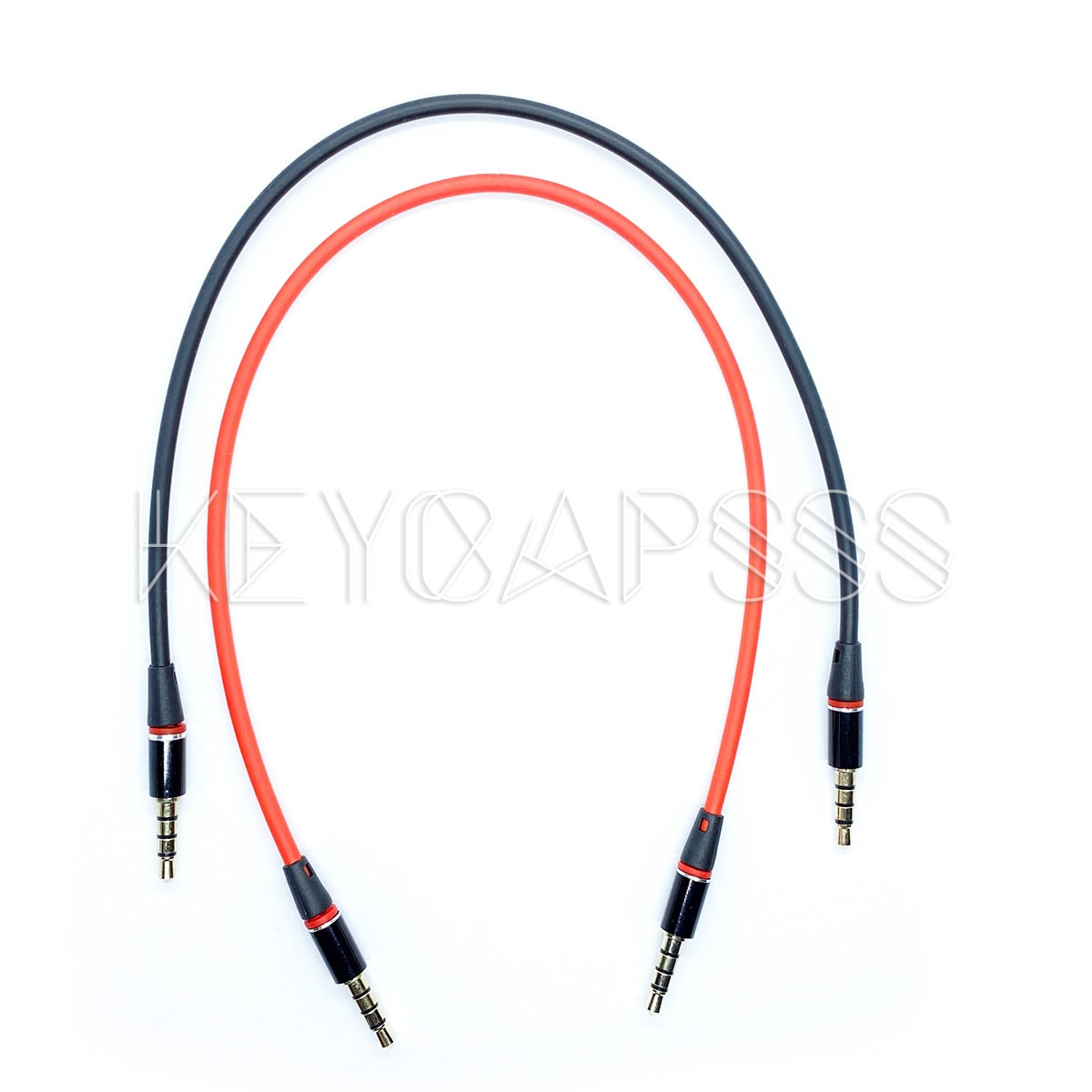

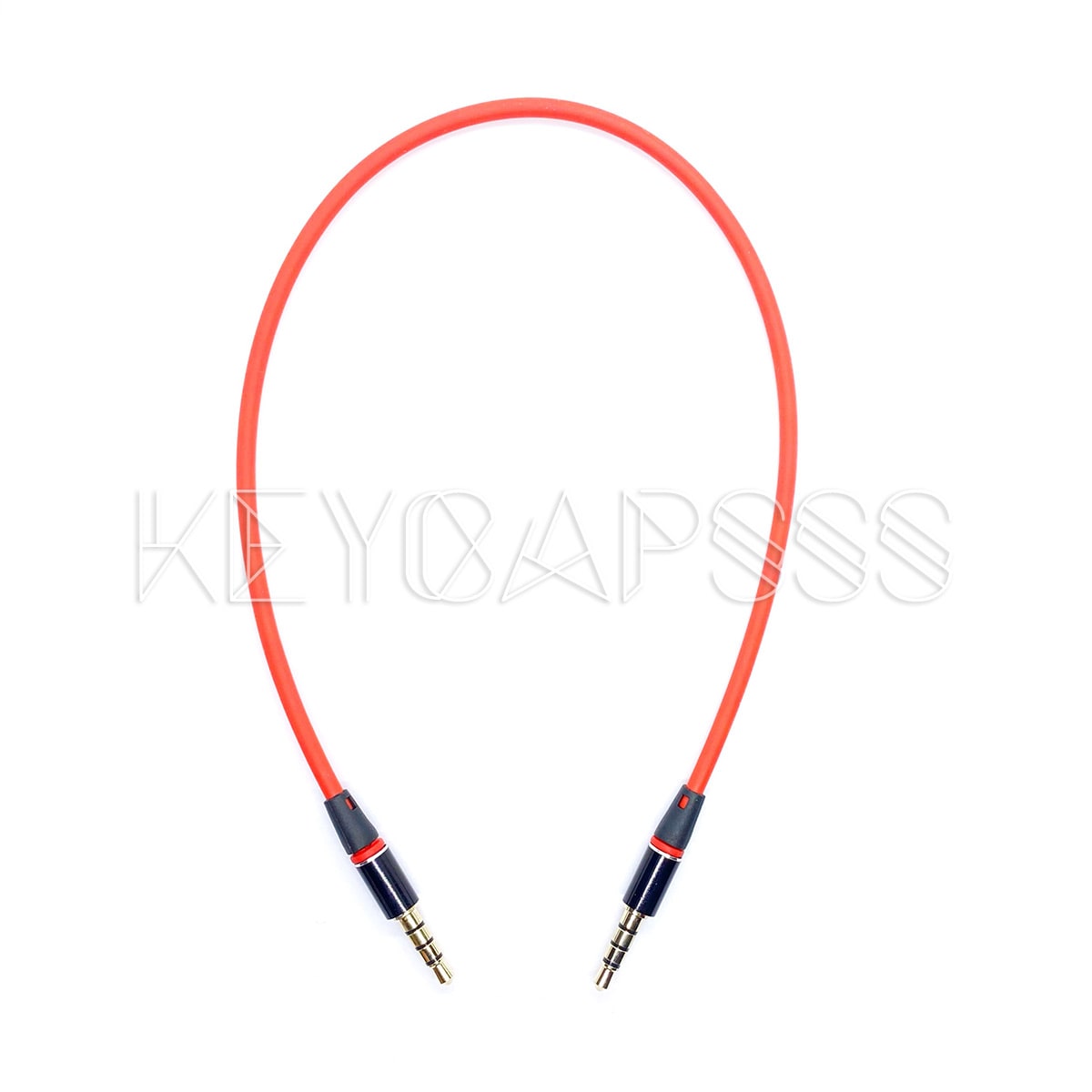

TRRS Cable 4-pole 3.5mm jack 30cm TRRS Cable 4-pole 3.5mm jack 30cm 12inch
