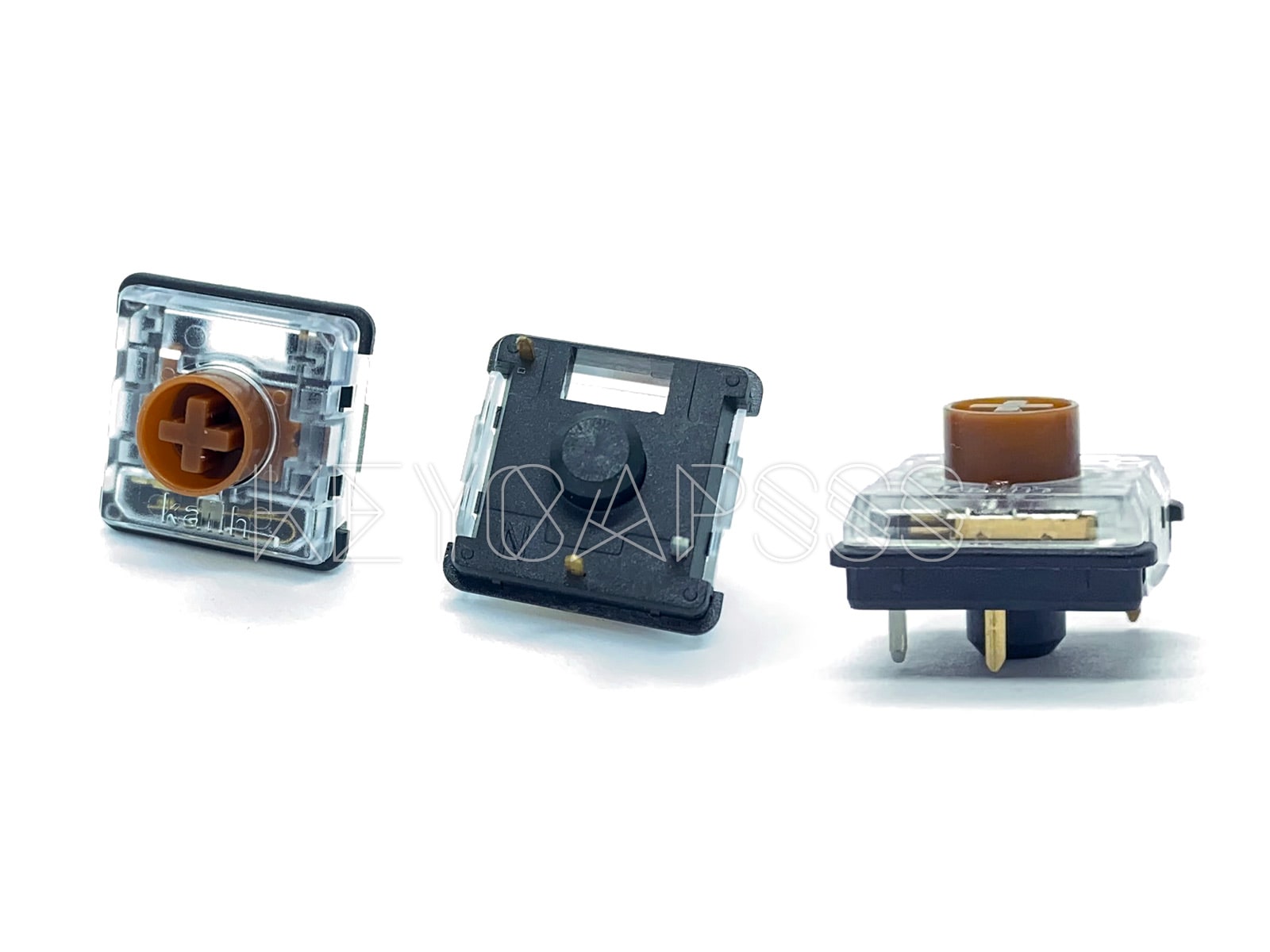

Kailh Low Profile Choc V2 Switches
€8.40
Ready to ship: Delivery time 2-5 workdays (Germany), 5-14 workdays (EU), 10-20 workdays (Int.)
Description
Sold in packs of 10 (Quantity 1 = 10 switches).
- Brown: Tactile / 50g
- Red: Linear / 50g

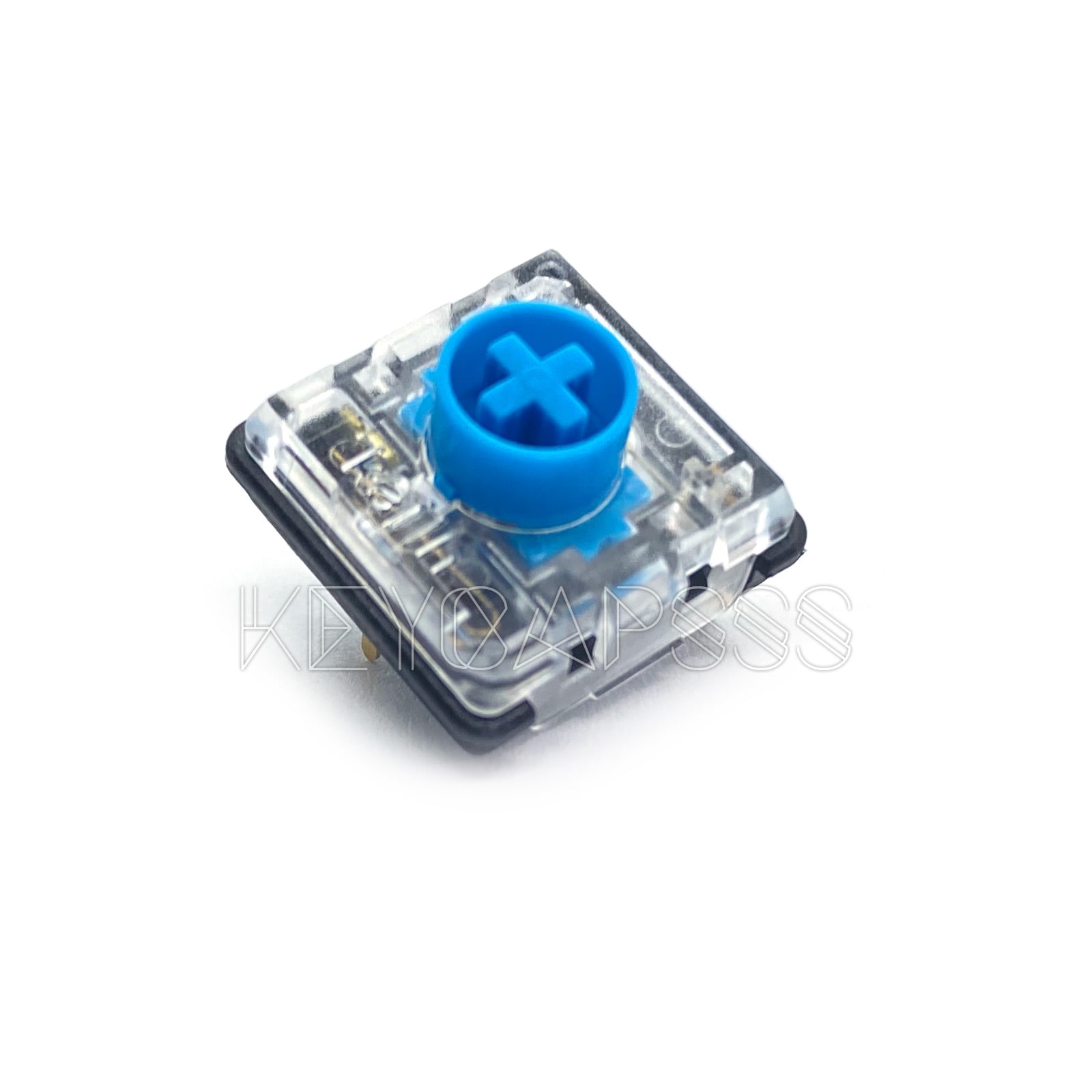

- Blue: Clicky / 50g
This switches has a different footprint as normal MX switches and Kailh Choc V1 switches.
There is an issue if you use the this switches with the "OEM Profile Blank PBT 1U" keycaps. On bottom out the jam. Use the DSA / XDA keycaps to fix that, or use some sandpaper/cutter and remove some plastic from the switch sides.
Properties
| Actuation: | 50g |
|---|---|
| Led: | SMD |
| Mount: | Plate Mount (3-Pin) |
| Spring: | Stainless steel |
| Stem: | MX |
| Type: | Tactile |
Reviews 0
Login
Safety information
Manufacturer: Kailh | No.1. Lindong 2 Road, Lincun, Tangxia Town, Dongguan, Guangdong, CN | www.kailhswitch.com
EU responsible person: Keycapsss | Benjamin Rösner, Löhrstr. 11, 04105 Leipzig, Germany
Contact: Keycapsss.com
Similar Items
Sold in packs of 10 (Quantity 1 = 10 switches).This switches has a different footprint as normal MX switches and Kailh Choc V1 switches. Ivory (Linear) Operation force: 43g Dark Purple (Tactile) Operation force: 45g Tactile force: 55g Technical details: Return force: 15gf min Conduction travel: 1.3mm ± 0.3mm Total travel: 2.8mm ± 0.25mm Operating lifespan: 50,000,000 cycles (minimum) Rating: 12DC 10mA Contact Resistance: 200mΩ Max Insulation Resistance: 100MΩ Min (DC100V) Withstand Voltage: AC100V(50-60Hz) for 1 minute
