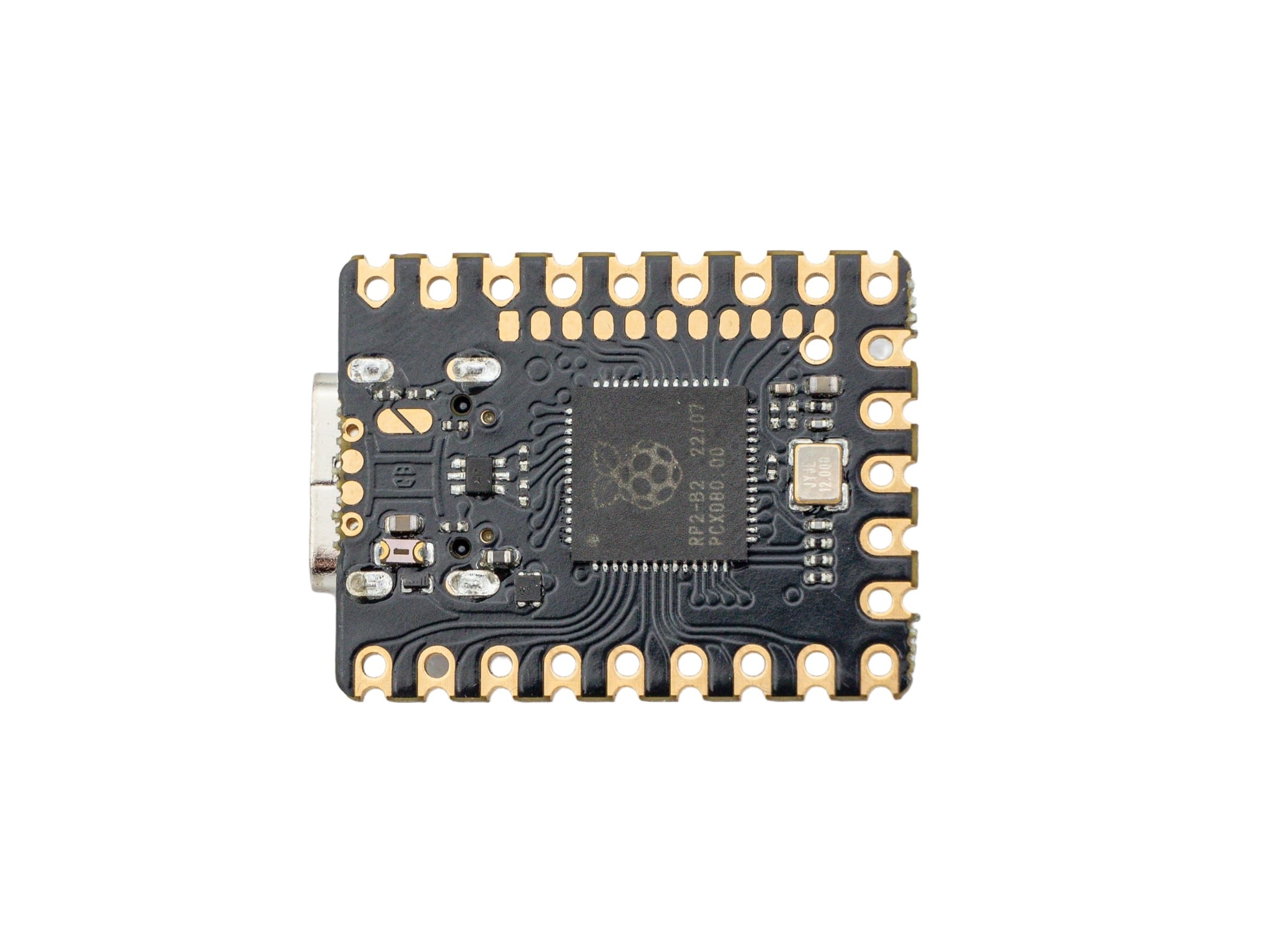

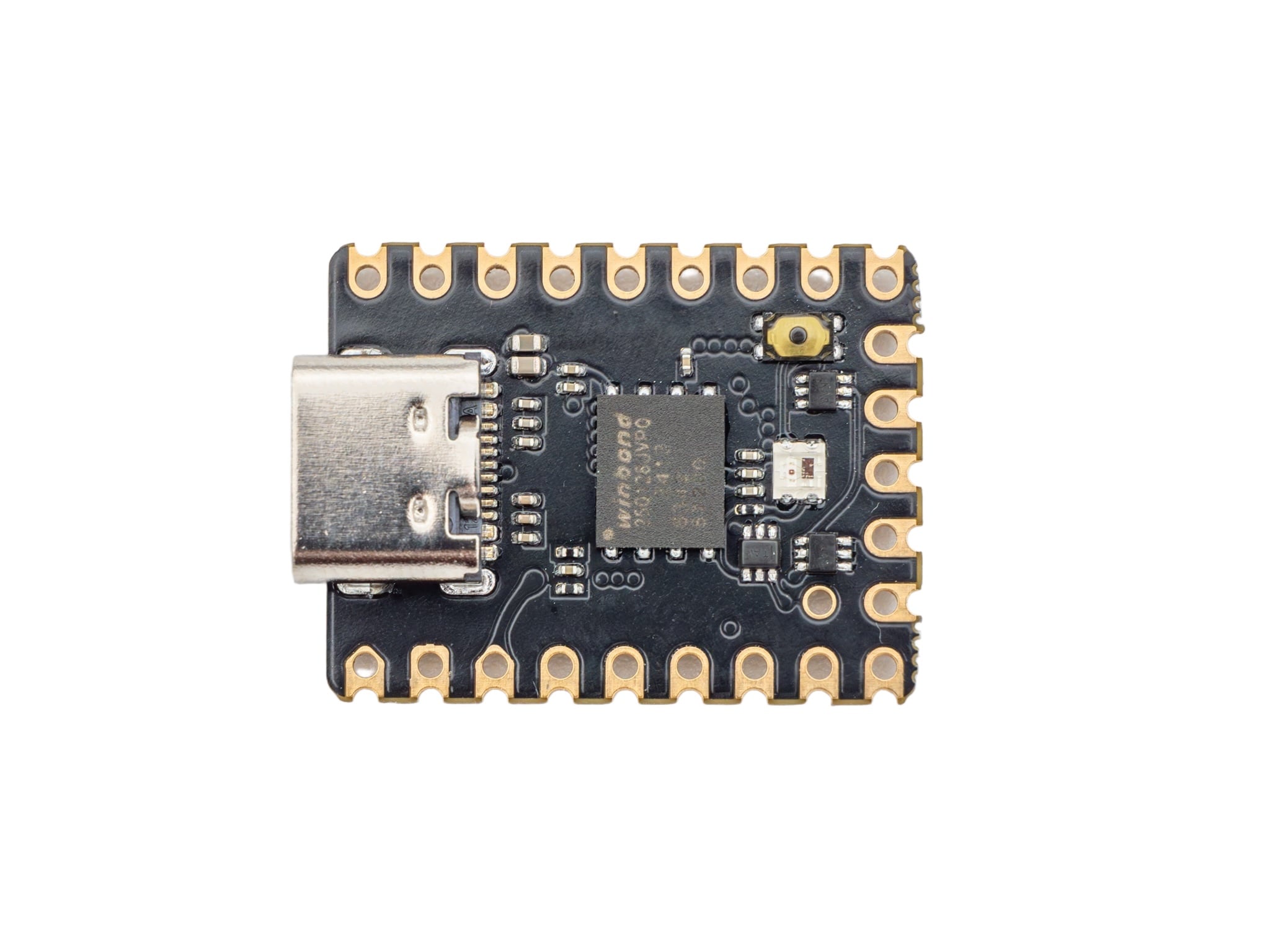

0xCB Gemini - Waveshare RP2040-Zero compatible microcontroller
€12.00
Ready to ship: Delivery time 2-5 workdays (Germany), 5-14 workdays (EU), 10-20 workdays (Int.)
Description
The 0xCB Gemini is our Waveshare RP2040-Zero compatible microcontroller.
It includes all the features of it's bigger brother, the 0xCB Helios, in a much smaller form factor.
Included contents:
- 1 x 0xCB Gemini
The Gemini comes without header pins, to keep the price low as possible.
I highly reccommend to use the "Single Row Sockets" from Mill-Max, the cheaper alternative, or the "Spring-loaded pin headers".
You can find the standard pin header here.
Reviews 0
Login
Safety information
EU responsible person: Keycapsss | Benjamin Rösner, Löhrstr. 11, 04105 Leipzig, Germany
Contact: Keycapsss.com
Accessory Items
This header pins can be soldered direct on the PCB, or you can use the "Single Row Socket Headers 2.54 Pitch (7mm)" to make it hotswap able.
Sockets does not include the Pins. These can be ordered separately from the Drop-Down Menu. Sockets 1x QTY includes 2pcs socket headers (for a Split-Keyboard you need 2x QTY (4pcs socket headers)) Pitch: 0.100" (2.54mm) Contact Finish: Gold Instead of the pins, you can use legs from diodes/resistors, or these needle pins. Pins Length: 0.250" (6.35mm) Diameter: 0.020" (0.51mm) Example how to use the sockets.
12 pin per header H: 2.5mm (The dimension H is the distance between the PC boards) Rated current: 1A Rated voltage: 125V AC, DC Pitch: 2.54 mm includes 2x 12 pin header Insertion / removal forces (per pin): Through holeInsertion forcesRemoval forces 0.8 200g or less 50g or ove 0.85 150g or less 30g or ove 0.9 100g or less 20g or ove
