Compatible with Pincecil, TS100 and TS101 Soldering Irons
PROTECT OUR ENVIRONMENT, Lead and Cadmium FREE Material
Sizes: M2,x, M3, M4, M5, M6+1/4", M8
Copper Threads for perfect Thermal Conductivity
ORIGINAL CNC Kitchen Soldering Tips for easy installation of short and standard threaded inserts

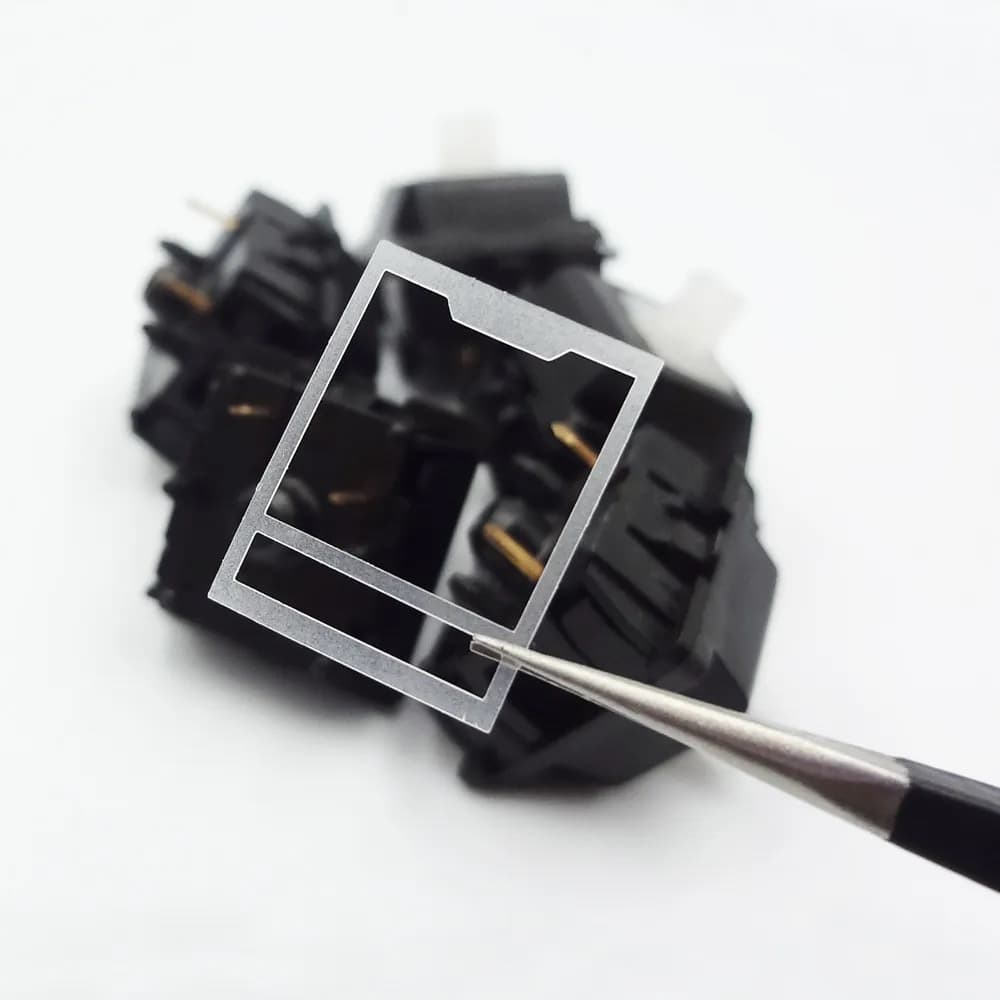

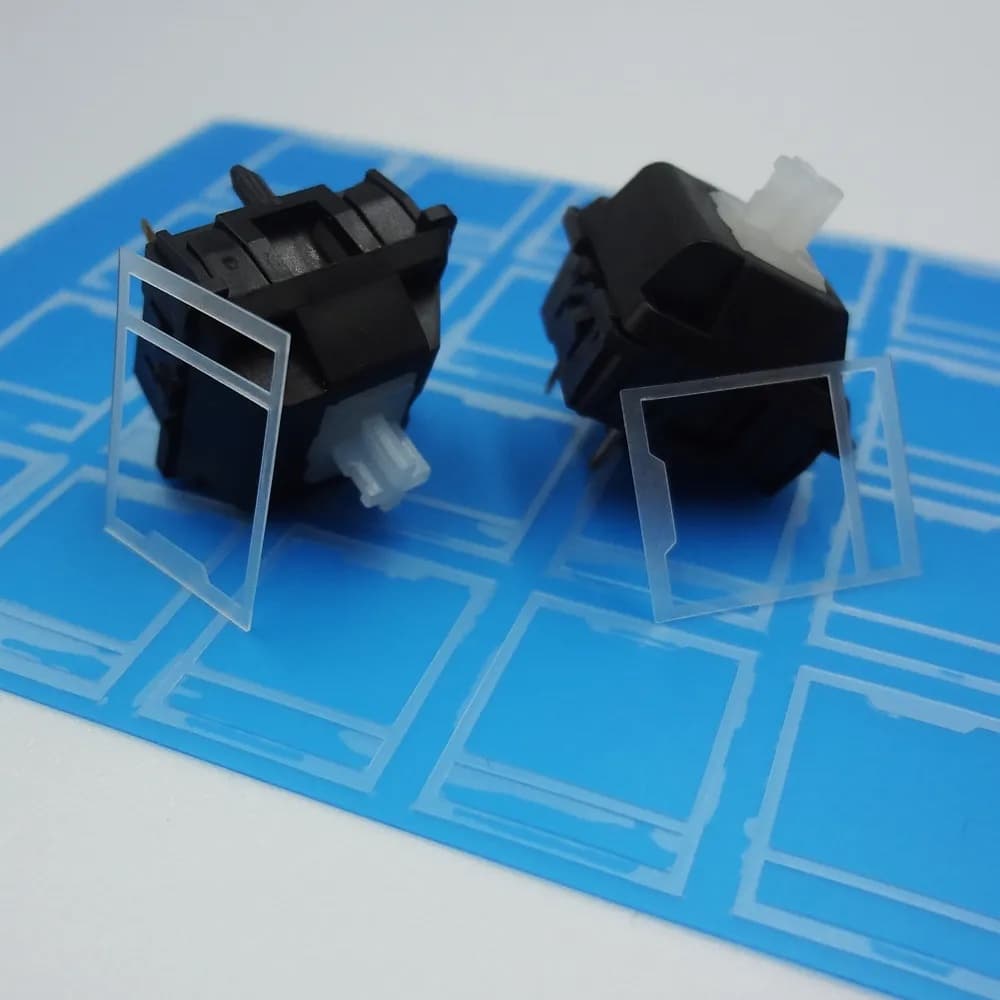

120 films per pack
0.15mm thick
Material Bottom: HTV (Matte surface) facing lower/bottom housing
Material Top: PC (Transparent surface) facing upper/Top housing
Very soft, easy to install
Type: Soft Double Layer
Compatible with most MX switches
Switch films prevent the slight movement between the top and bottom housing and can make switches less wobbling. They can also improve the switch sound.Switch films and vinyl switch stickers serve the same function, but switch films are easier to apply and reusable.

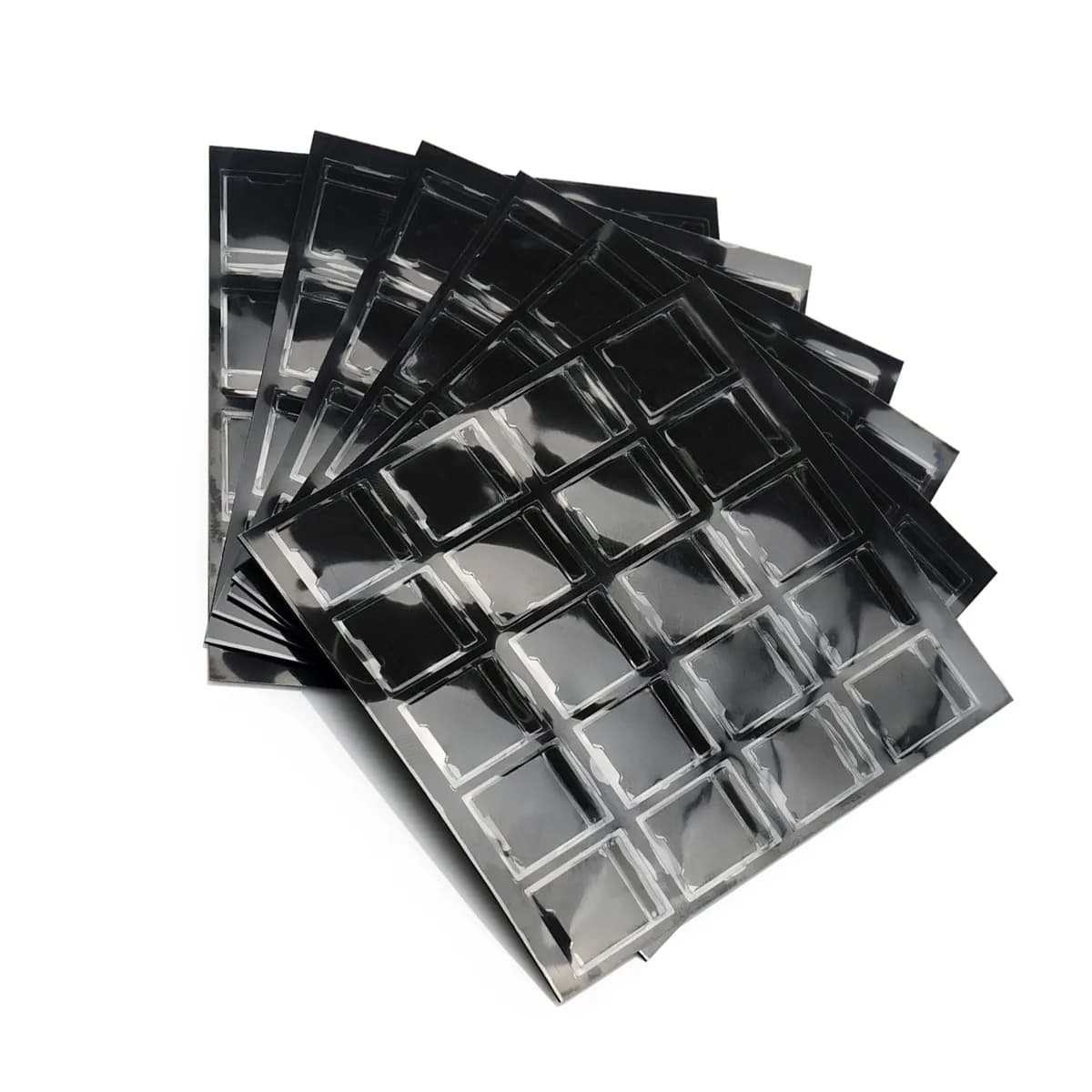

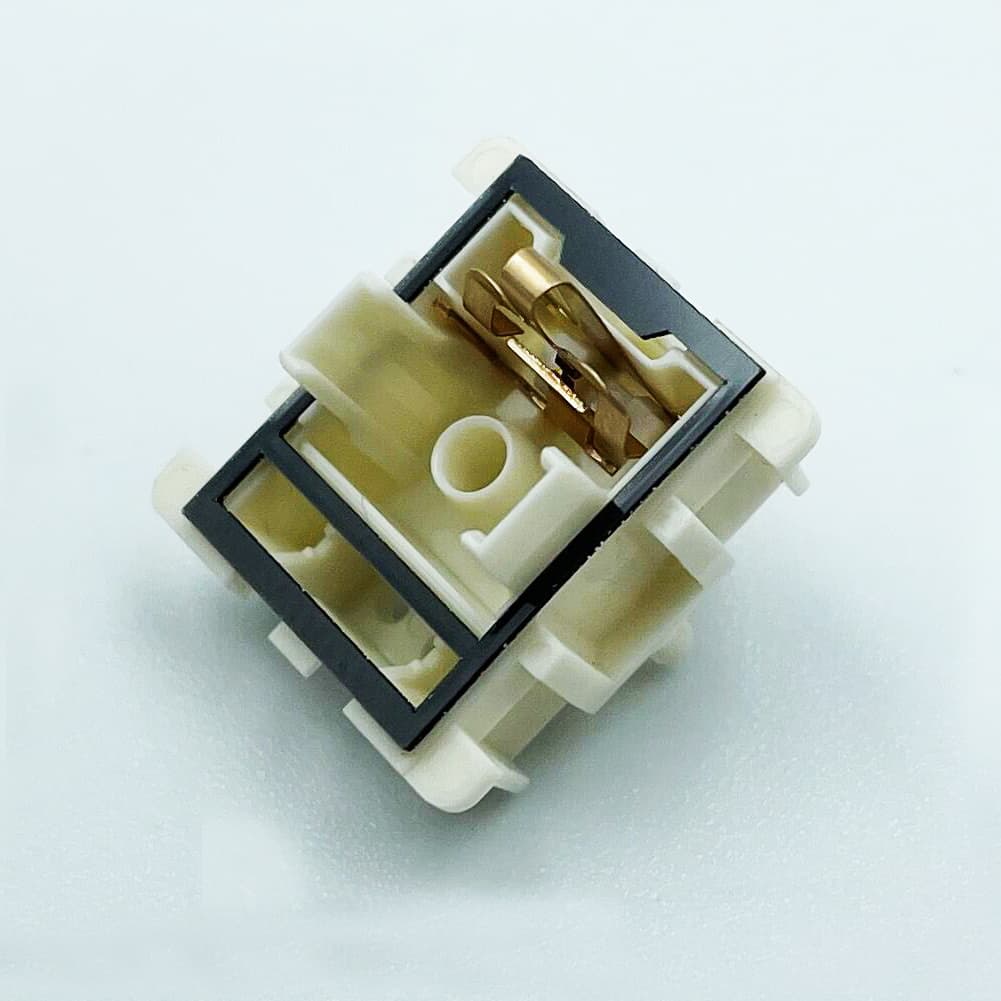

120 films per pack
0.30mm thick
Material: Polyurethane Foam
Black
Type: 0.3mm Thick Gasket switch film
Compatible with most MX switches
Switch films prevent the slight movement between the top and bottom housing and can make switches less wobbling. They can also improve the switch sound.
This superb pack of four Raspberry Pi stickers will have that dusty old work machine looking cooler than a very cold cucumber. Celebrate your love for the Raspberry Pi and receive maximum kudos from fellow makers!
You'll receive 4 super-duper stickers:
The iconic "My other computer costs $35" sticker
The classic "Raspberry Pi logo" sticker
A "Make Cool Stuff" sticker
The Raspberry Pi "Pride" sticker

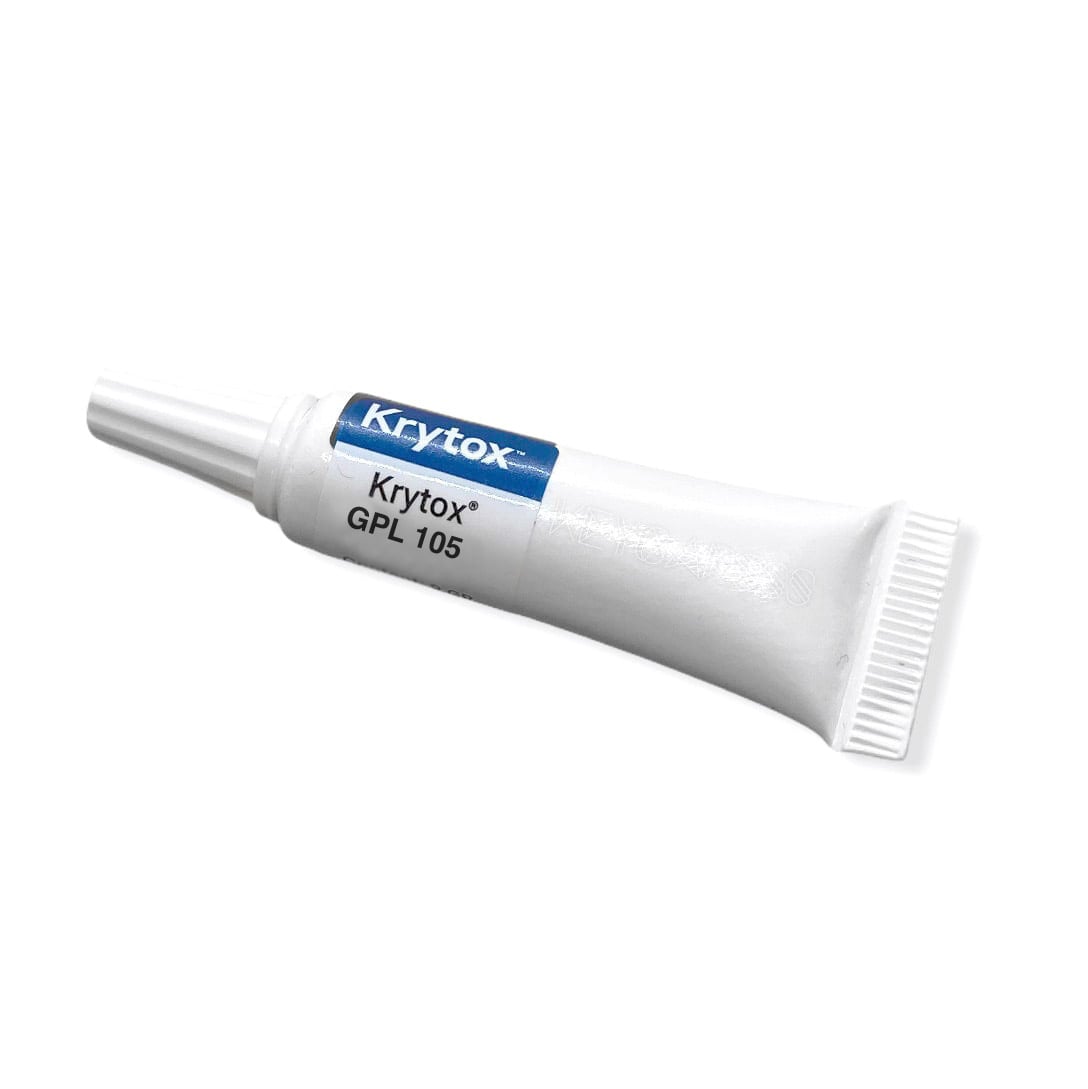

GPL 105 is a lubricant for switch spring and stem.GPL 105 oil combine stability, high-temperature performance, and chemical inertness with outstanding lubrication under a variety of conditions
Nonflammable and high temperature stable (up to 288°C / 550°F)
Chemically inert to virtually all chemicals, including oxygen, chlorine, sulfuric acid, and nitric acid
Insoluble in most solvents and are resistant to steam
Low surface tension (easily wet metallic surfaces)
Last significantly longer, less lubricant is needed
Completely nontoxic and do not release volatile organic compounds into the atmosphere
Bottle with oil 11.8gOil around 7g

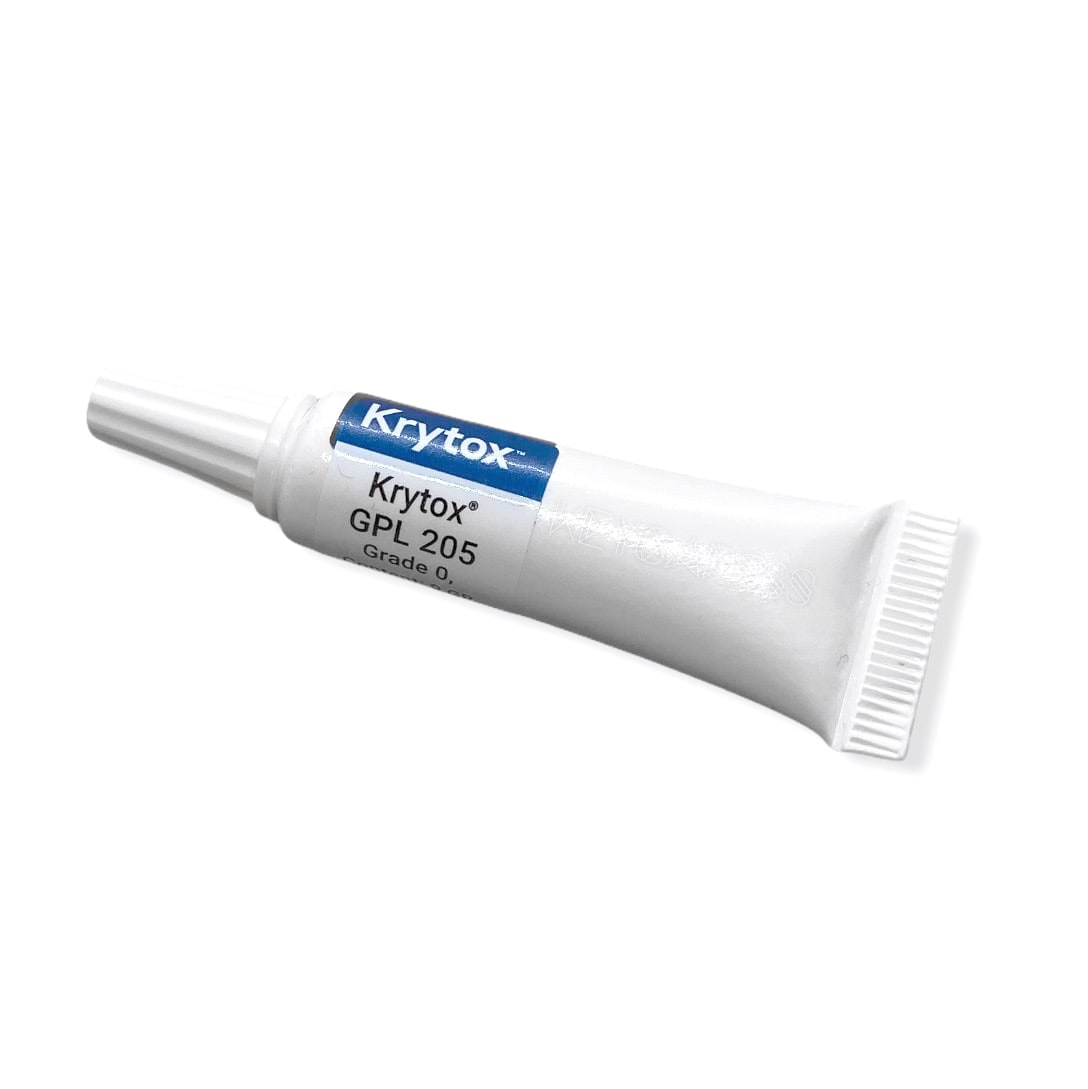

GPL 205 is a lubricant for stabilizer.
Temp Range: -36C - 204C
Viscosity 18cSt/100C, 160cSt/40C
Stable in a wide variety of operating conditions/environments
Nonflammable
Hydrogen and silicone free
Chemically inert to virtually all chemicals, including oxygen, chlorine, sulfuric acid, and nitric acid
Insoluble in most solvents and are resistant to steam
Container with GPL 205: 13g
GPL 205 around 7.5g

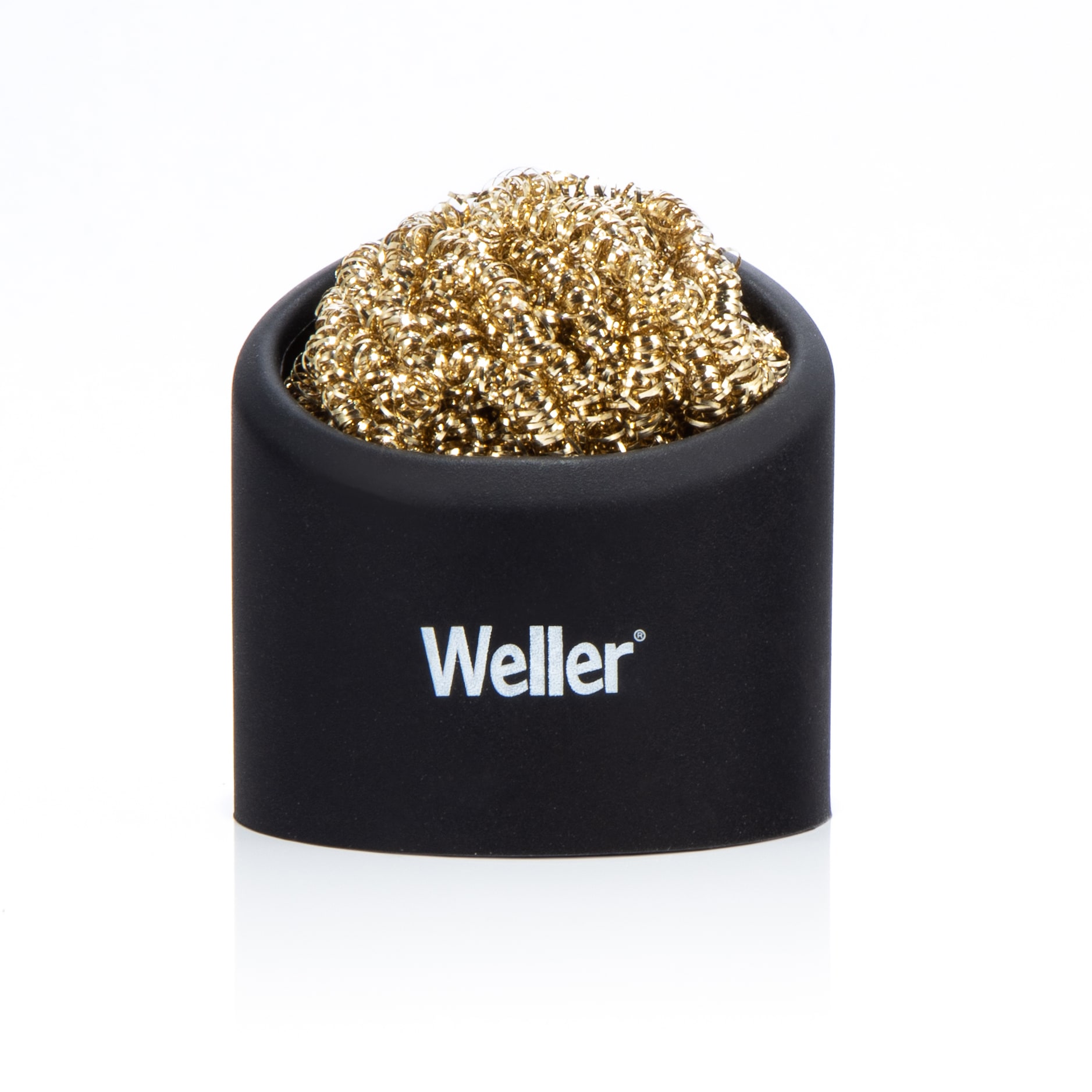

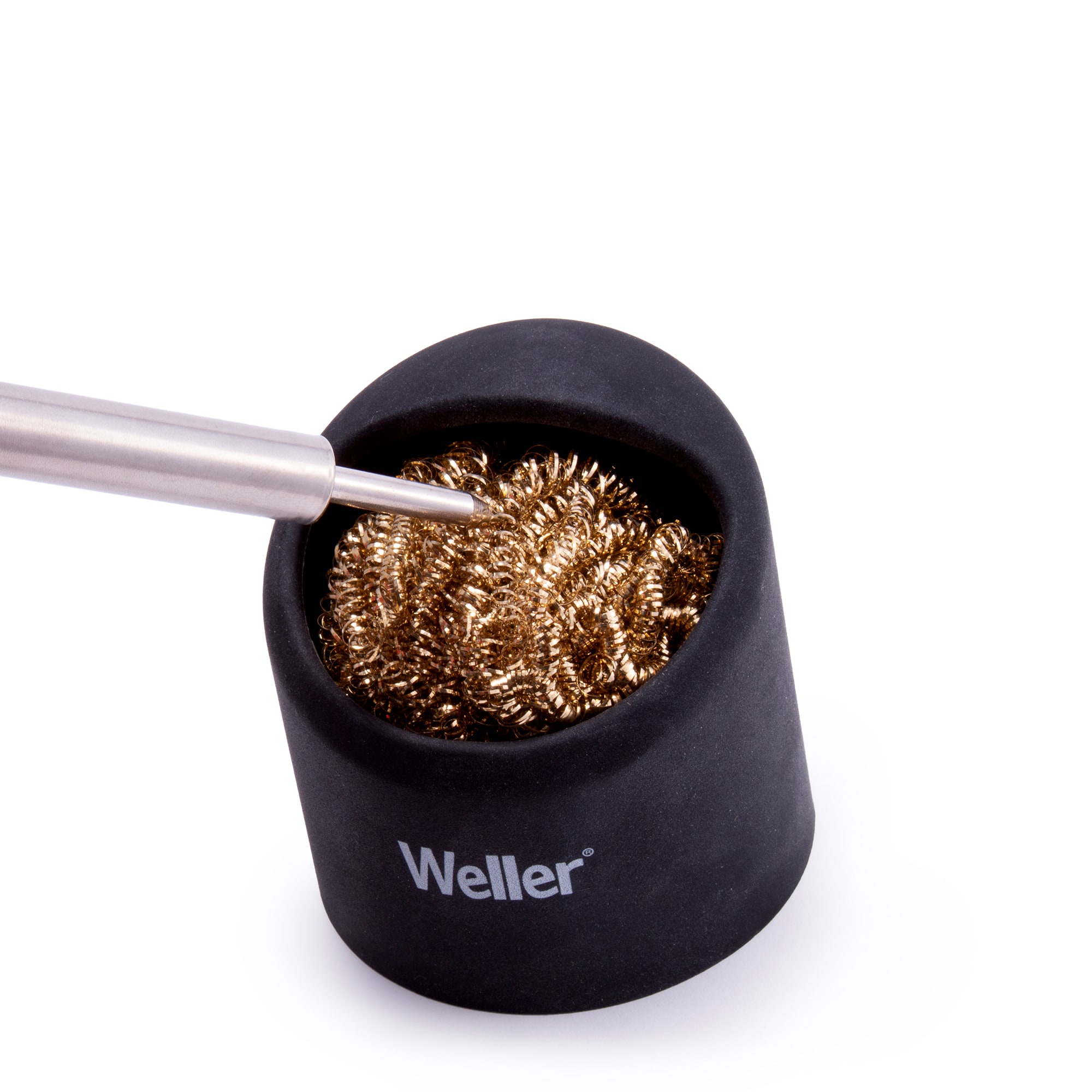

Weller Soldering Brass Sponge Tip Cleaner with Silicone Holder Clean and remove residual solder from your soldering iron tips without water with Weller’s Soldering Brass Tip Cleaner with Silicone Holder.Simply plunge the iron tip into brass coils that clean, prevent rust and extend tip life.Increase tool safety and stability with the slip-resistant silicone holder.
KEY FEATURES
Reduce Residue on Tip: Effectively remove residual solder from your soldering tools without damaging your tips.
Prevent Tip Cool Down: Maintain tip temperature when compared to cellulose sponges, improving the productivity and quality of solder joints.
Extend Tip Life: Dry tip cleaning prevents rust and blackening for increased soldering tip life.
Easy to Use: Remove solder residue quickly and easily by simply inserting your soldering tip into the center of the Brass Sponge Tip Cleaner during and after use.
Anti-Slip: Increase your tool safety and stability with slip-resistant silicone holder.
Clean & Tidy: Maintain a clean and organized soldering work environment

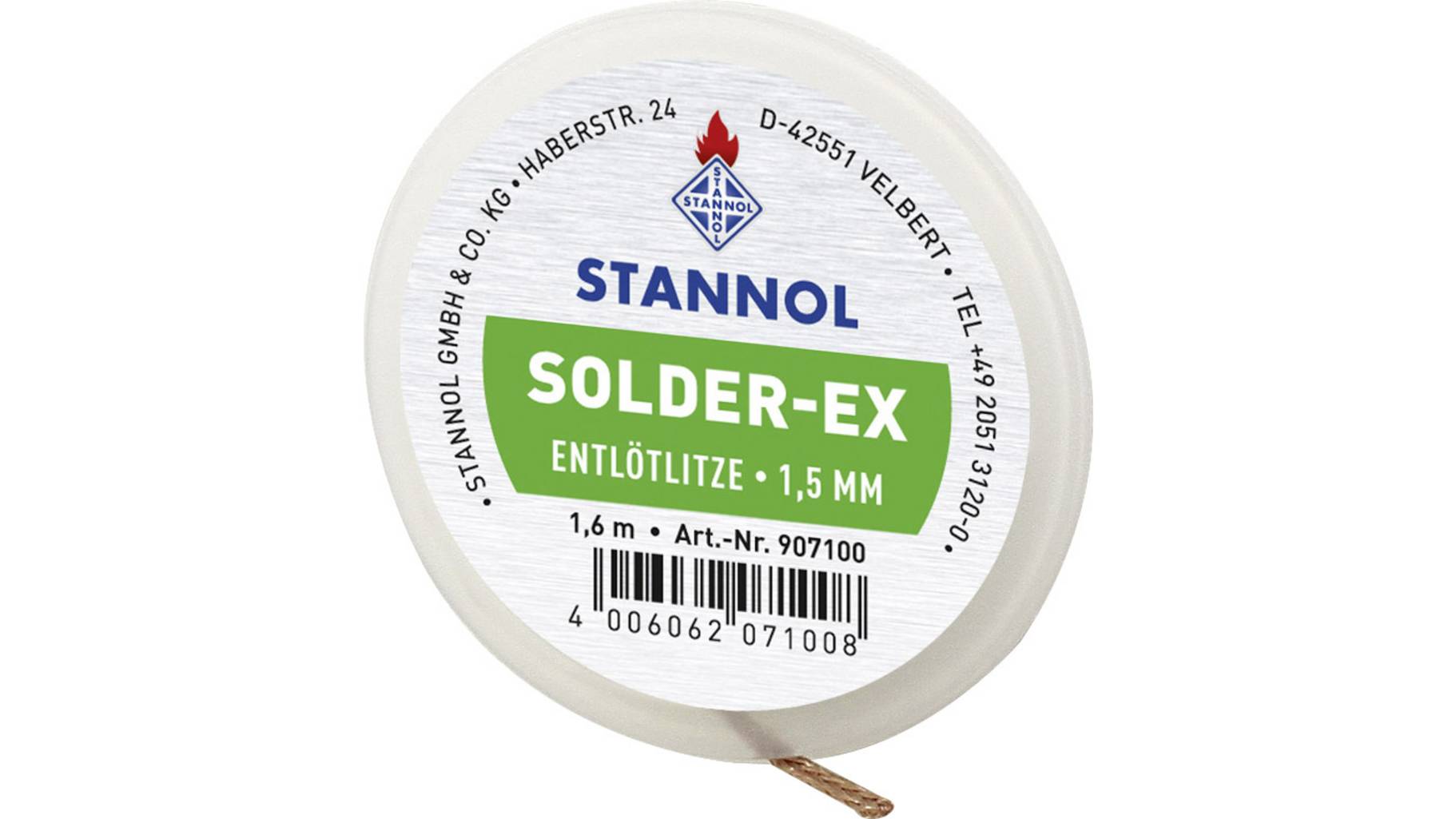

The Solder-Ex desoldering wick has been developed for the repair of solder joints. It consists of copper wick and is coated with a special halogen-free flux which accelerates the solder absorption.
Width: 1.5mm
Length: 1.6m

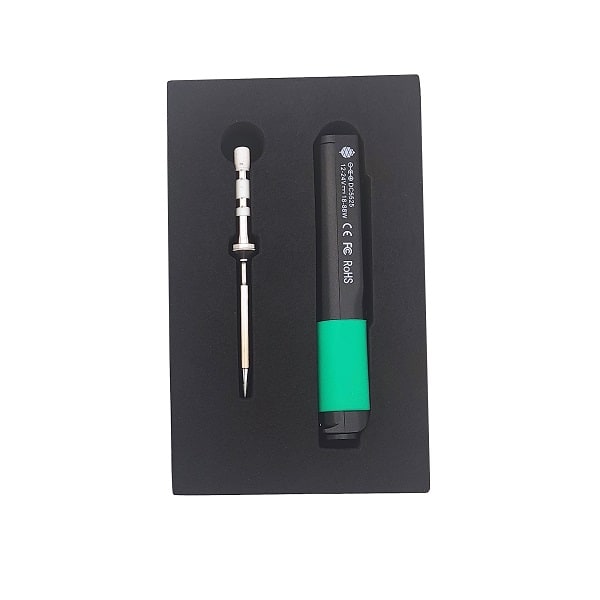

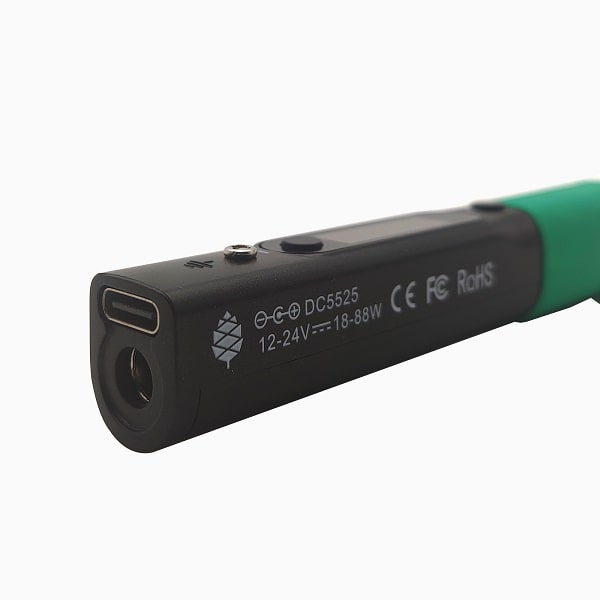

The Pinecil is a smart mini portable soldering iron with a 32-bit RISC-V SoC featuring a sleek design, auto standby, open source firmware and it heats up to an operating temperature in just 6 seconds!
Dual power input design: 1) USB-C supports both PD and QC 3.0 and 2) DC5525 barrel DC jack.
Speedy Rapid Warmup: Reaches operating temperature in 6 seconds. Support for on-demand rapid boost feature.
Adjustable soldering tip temperature which can be set between 100° C and 400° C using the adjustment buttons and an easy-to-read OLED display.
Portable: it features a sleek and slim design, comprised of an SAE 304 stainless steel core housed inside a polycarbonate shell.
Auto standby mode engages when it is not in use ensuring the user safety.
Read the Wiki for detailed information
The official firmware that comes with the Pinecil is open source Ralim's IronOS
Before first use, read this!
You need:
USB-C with USB-PD (Power Delivery) power supply and min. 60W (like this one*, or this*)
or a DC5525 power supply unit (12-24V) with a barrel DC jack (5.5mm outer dieameter, 2.5mm inner diameter) center positiv jack
or QC 3.0 USB power supply
BODY
Dimensions: 155mm with solder tip / 103mm without solder tip x 12.8mm x 16.2mm
Weight: 28g with solder tip / 18g without solder tip
Build: Plastic with metal clip (Handle)
Color: Black (case)/ Green (Sleeve)
Power
88W
PLATFORM
OS: Ralim’s IronOS build
Chipset: Bouffalo BL-706
CPU: 32-bit RV32IMAFC RISC-V “SiFive E24 Core” @ 144 MHz
DISPLAY
Type: OLED White Colour Monochrome Display
Size: 0.69 inches
Resolution: 96x16pixels
MEMORY
Internal Flash Memory: 192KB
System Memory: 132KB SRAM
Expansion: None
POWER PORTS
USB type C: PD and QC 3.0 12V-20V 3A
Barrel Jack: DC5525, 12V-24V DC 3A (center positive barrel)
TIP
Type B2
Length: 86mm
Weight: 8.2g
FEATURES
Capable received power from either USB-C port or barrel jack.
GPIO break-out thru USB-C port
CERTIFICATION
FCC
CE RED
ROHS
PACKAGE CONTENTS
Pinecil Soldering Iron
ST (Short Tip)-B2 Soldering Tip
*Affiliate-Link

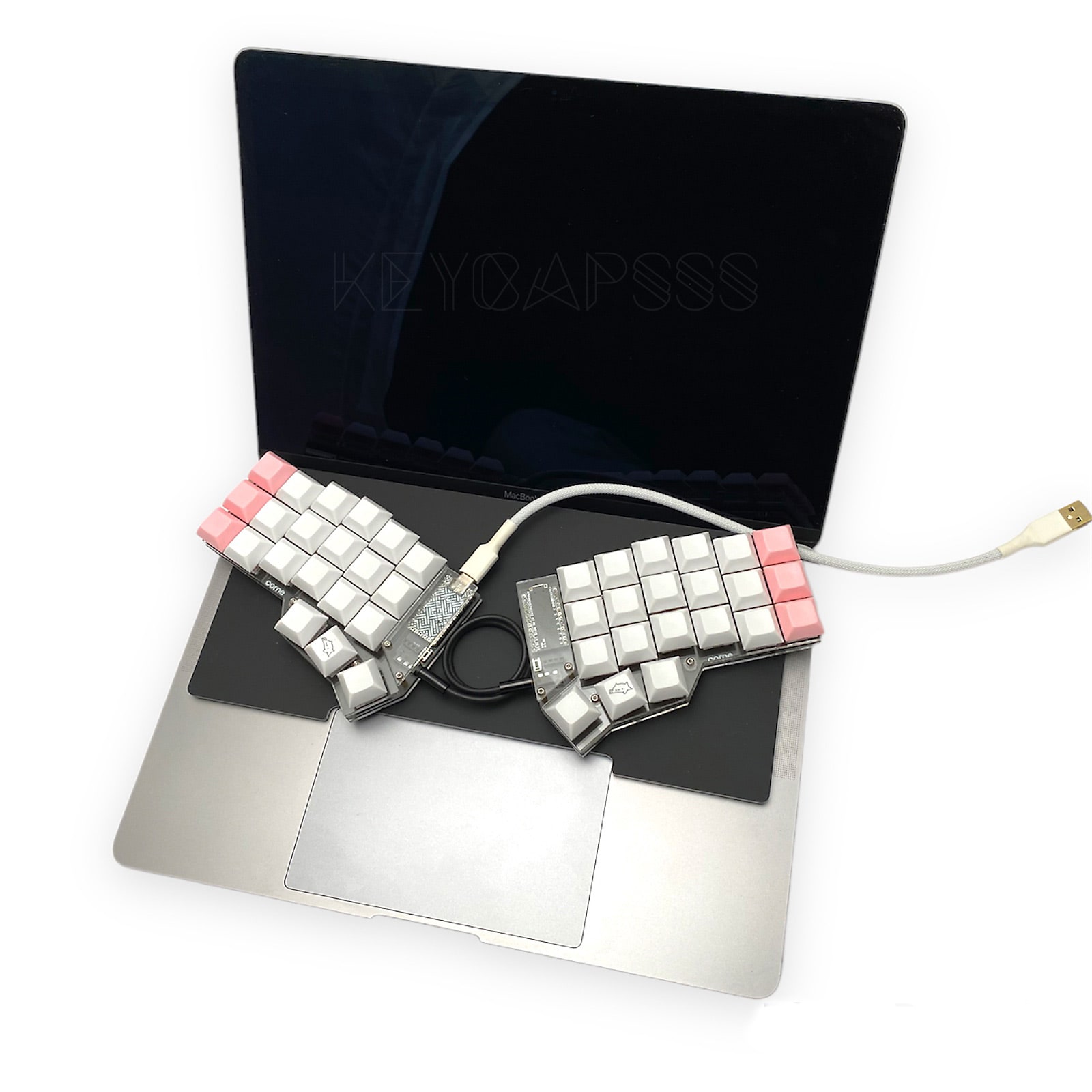

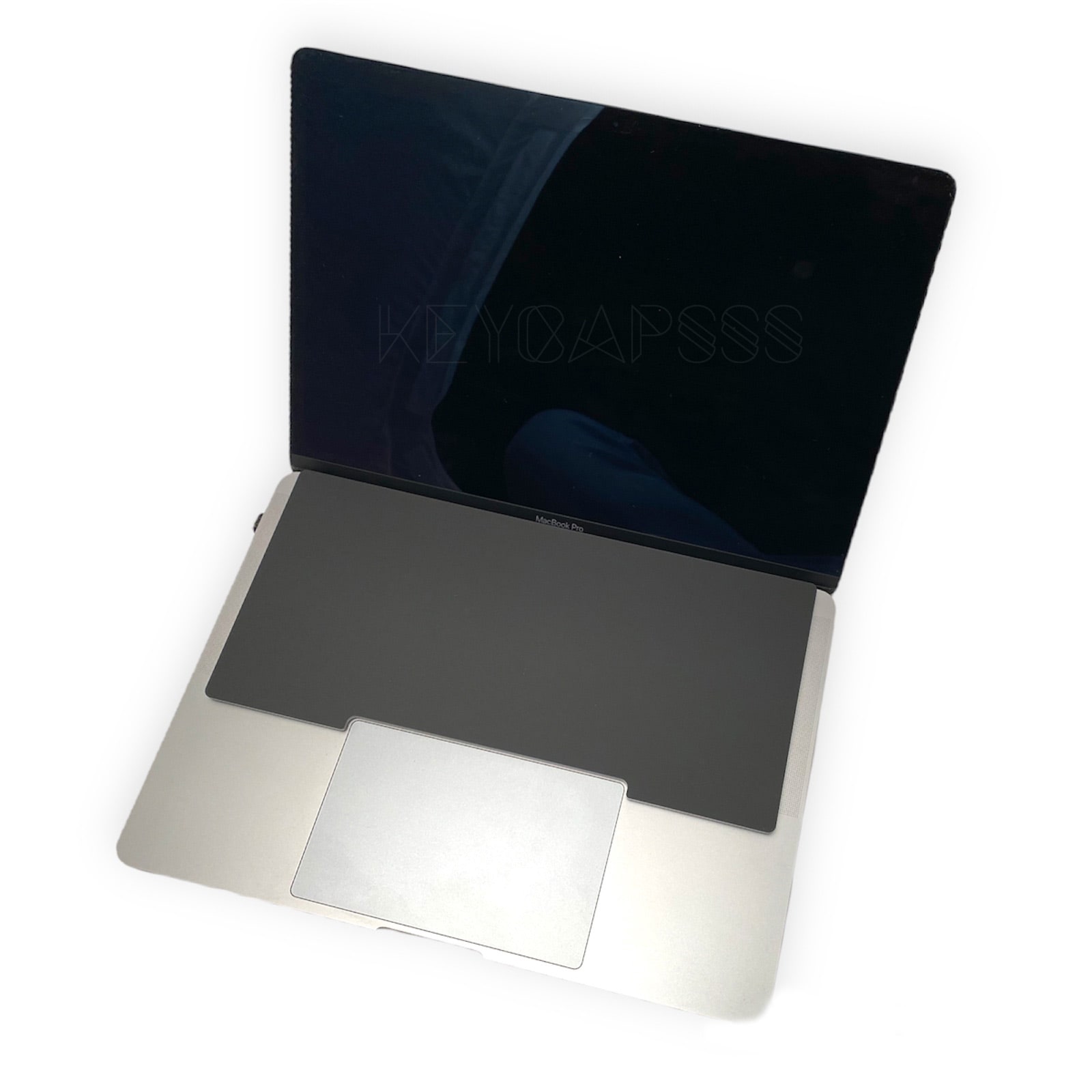

This plate covers the laptop keyboard to use your mechanical keyboard like the Corne, Lily58, or Planck.For some keyoards with the USB port at the top, you need a USB cable with a angled connector.
Your keyboard height should not be larger as 10.5cm
Includes:
Acrylic cover plate 3mm (H:13cm x W:28cm )
4x self adhesive rubber feet (clear)
Photos of the laptop and keyboard are for demonstration purposes only (only cover plate included).
Size:
60% ( 30 x 14.5 x 4.5 cm)
65% ( 33.5 x 16.5 x 4.5 cm)
80% ( 37 x 18 x 4.5 cm
Photos of the case with a keyboard are for demonstration purposes. This product includes only the carrying case.
24 Pin contact
USB4.0 (Backward compatible with Thunderbolt 3, USB3.2, 3.1, 3.0, 2.0...)
40Gbps data sync (2500MB/S Max.), with USB2.0 data cable 480Mbps
8K@60Hz ultra HD video output (need a USB cable with support for 8K@60Hz)
PD (Power Delivery) up to 5A 100W
Strong magnet
Material: PVC, Aluminum Alloy

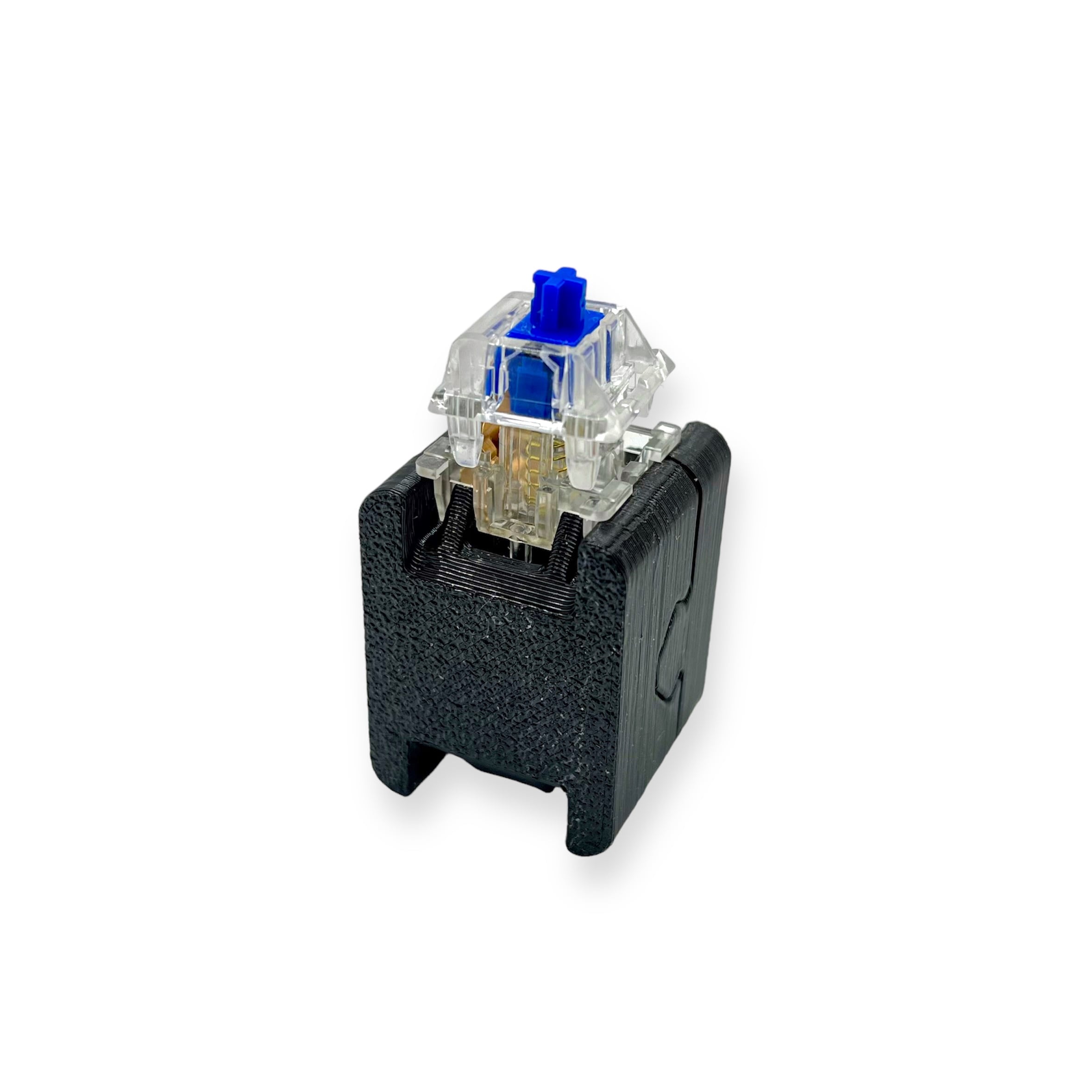

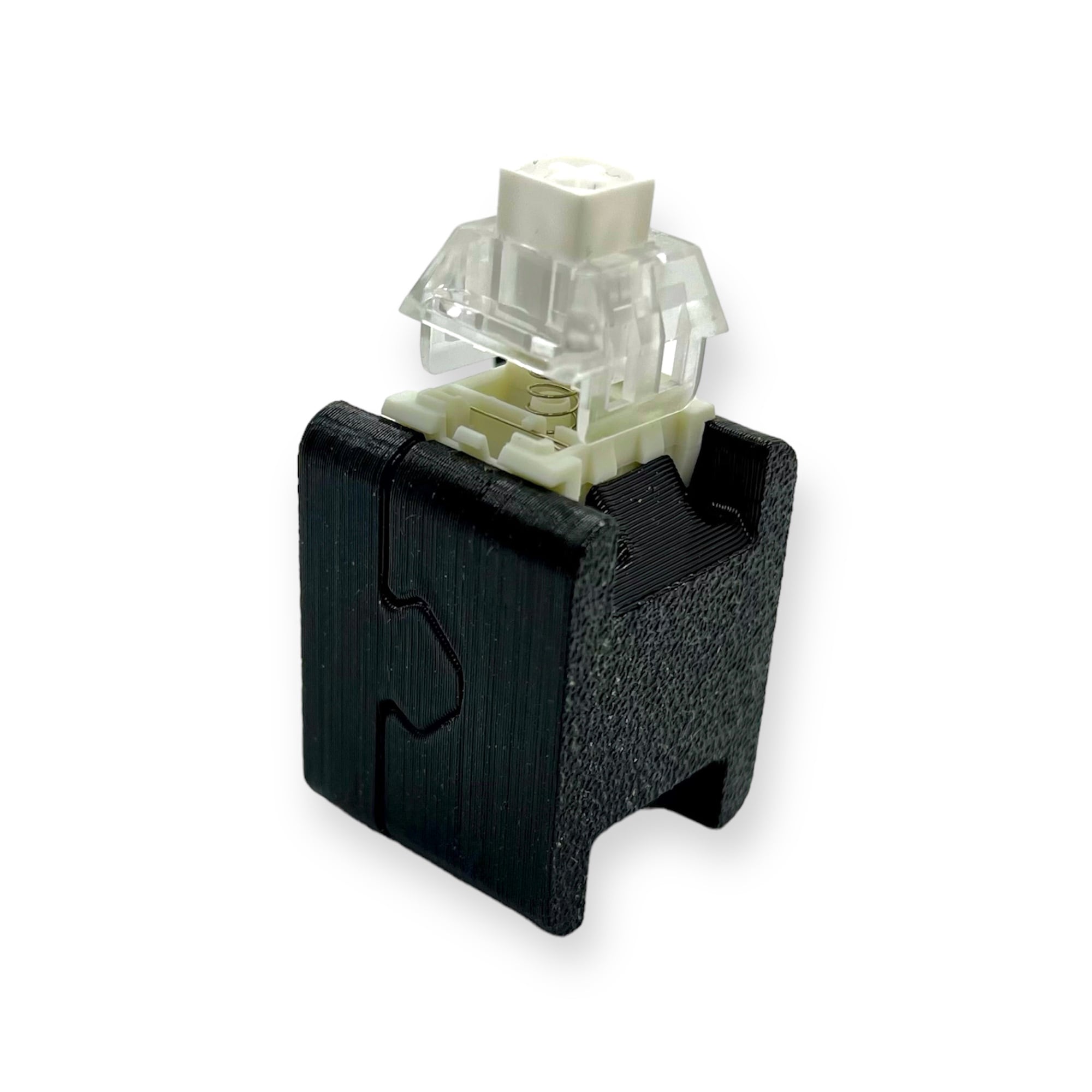

3D printed with PETG, for a better durability
Compatible with MX switches (Cherry MX switches and clones) and Kailh Box switches
Color gray
3D printed parts made with high quality filament from Redline Filament (made in Germany, environmentally friendly paper spool).
Scope of delivery only the MX Switch Opener. Photo with the switch are for demonstration purposes only.Fork of the design by ebastler
