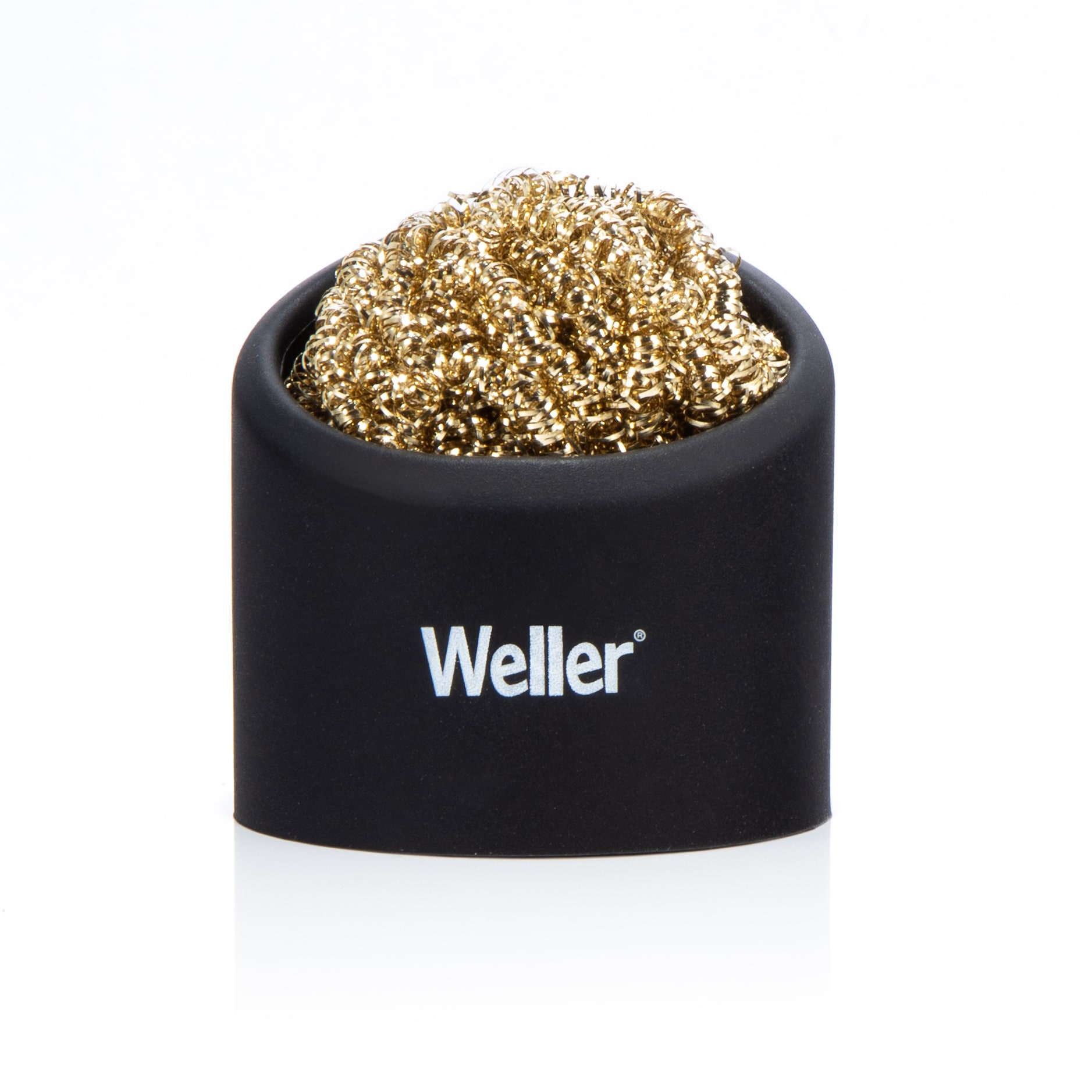

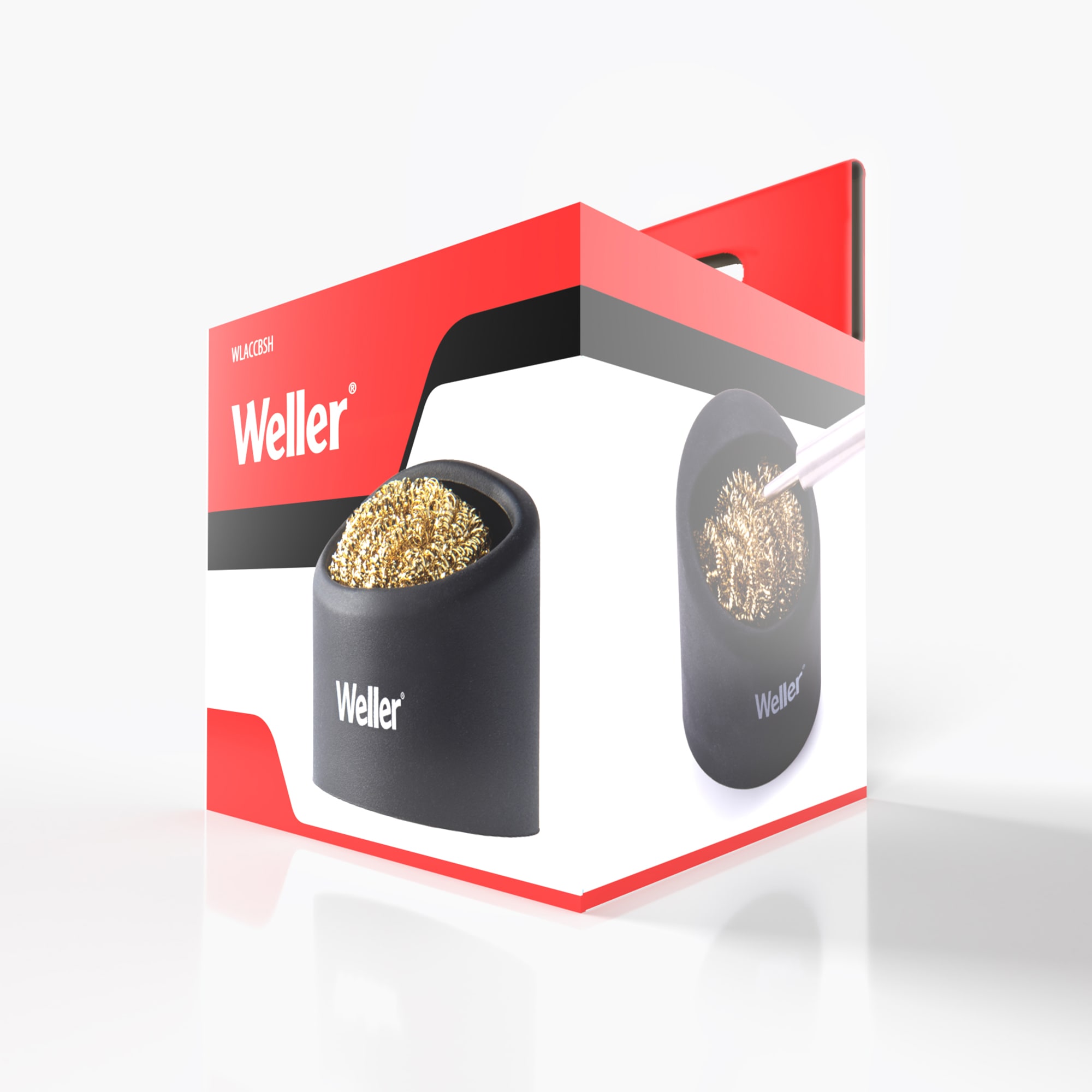

Weller Brass Sponge Tip Cleaner with Holder

Halide-activated and colophony-free solder wire High activity, good spread and electrical safe residues Very low flux spitting Good wetting behaviour on poorly solderable surfaces  Leaves just slightly coloured residues Suitable for both, manual rework and machine soldering   Technical Specifications Melting Range: 227°C Flux Type (J-STD-004): REM1 Flux Content:  0,025 Halogen Content: 1,1% Corroding Action (J-STD-004): low Standard Alloy (ISO 9453:2014): FLOWTIN TC Sn99,3Cu0,7 Alloy Number: -

The Pinecil is a smart mini portable soldering iron with a 32-bit RISC-V SoC featuring a sleek design, auto standby, open source firmware and it heats up to an operating temperature in just 6 seconds! Dual power input design: 1) USB-C supports both PD and QC 3.0 and 2) DC5525 barrel DC jack. Speedy Rapid Warmup: Reaches operating temperature in 6 seconds. Support for on-demand rapid boost feature. Adjustable soldering tip temperature which can be set between 100° C and 400° C using the adjustment buttons and an easy-to-read OLED display. Portable: it features a sleek and slim design, comprised of an SAE 304 stainless steel core housed inside a polycarbonate shell. Auto standby mode engages when it is not in use ensuring the user safety.   Read the Wiki for detailed information The official firmware that comes with the Pinecil is open source Ralim's IronOS Before first use, read this! You need: USB-C with USB-PD (Power Delivery) power supply and min. 60W (like this one*, or this*) or a DC5525 power supply unit  (12-24V) with a barrel DC jack (5.5mm outer dieameter, 2.5mm inner diameter) center positiv jack or  QC 3.0  USB power supply   BODY Dimensions: 155mm with solder tip / 103mm without solder tip x 12.8mm x 16.2mm Weight: 28g with solder tip / 18g without solder tip Build: Plastic with metal clip (Handle) Color: Black (case)/ Green (Sleeve) Power 88W PLATFORM OS: Ralim’s IronOS build Chipset: Bouffalo BL-706 CPU: 32-bit RV32IMAFC RISC-V “SiFive E24 Core” @ 144 MHz DISPLAY Type: OLED White Colour Monochrome Display Size: 0.69 inches Resolution: 96x16pixels MEMORY Internal Flash Memory: 192KB System Memory: 132KB SRAM Expansion: None POWER PORTS USB type C: PD and QC 3.0 12V-20V 3A Barrel Jack: DC5525, 12V-24V DC 3A  (center positive barrel) TIP Type B2 Length: 86mm Weight: 8.2g FEATURES Capable received power from either USB-C port or barrel jack. GPIO break-out thru USB-C port CERTIFICATION FCC CE RED ROHS PACKAGE CONTENTS Pinecil Soldering Iron ST (Short Tip)-B2 Soldering Tip *Affiliate-Link

The Solder-Ex desoldering wick has been developed for the repair of solder joints. It consists of copper wick and is coated with a special halogen-free flux which accelerates the solder absorption. Width: 1.5mm Length: 1.6m
