Pinecil V2 - Smart Mini Portable Soldering Iron

Pine64
Preview: Pinecil V2 - Smart Mini Portable Soldering Iron Preview: Pinecil V2 - Smart Mini Portable Soldering Iron Preview: Pinecil V2 - dimension Preview: Pinecil V2 - tip
Pinecil V2 - Smart Mini Portable Soldering Iron
Pinecil V2 - Smart Mini Portable Soldering Iron
Pinecil V2 - dimension
Pinecil V2 - tip

This product is currently not available.
Please check the news board.
Please inform me as soon as the product is available again.
Please enter these characters in the following text field.

€56.00 *

Prices incl. VAT plus shipping costs

This product is currently not available.

  • Order number: KC10118
Description Evaluations 0
Description
The Pinecil is a smart mini portable soldering iron with a 32-bit RISC-V SoC featuring a sleek... more
Close menu
Pinecil V2 - Smart Mini Portable Soldering Iron

The Pinecil is a smart mini portable soldering iron with a 32-bit RISC-V SoC featuring a sleek design, auto standby, open source firmware and it heats up to an operating temperature in just 6 seconds!

  • Dual power input design: 1) USB-C supports both PD and QC 3.0 and 2) DC5525 barrel DC jack.
  • Speedy Rapid Warmup: Reaches operating temperature in 6 seconds. Support for on-demand rapid boost feature.
  • Adjustable soldering tip temperature which can be set between 100° C and 400° C using the adjustment buttons and an easy-to-read OLED display.
  • Portable: it features a sleek and slim design, comprised of an SAE 304 stainless steel core housed inside a polycarbonate shell.
  • Auto standby mode engages when it is not in use ensuring the user safety.



You need:

  • USB-C with USB-PD (Power Delivery) power supply and min. 60W (like this one*, or this*)
  • or a DC5525 power supply unit  (12-24V) with a barrel DC jack (5.5mm outer dieameter, 2.5mm inner diameter) center positiv jack
  • or  QC 3.0  USB power supply



BODY

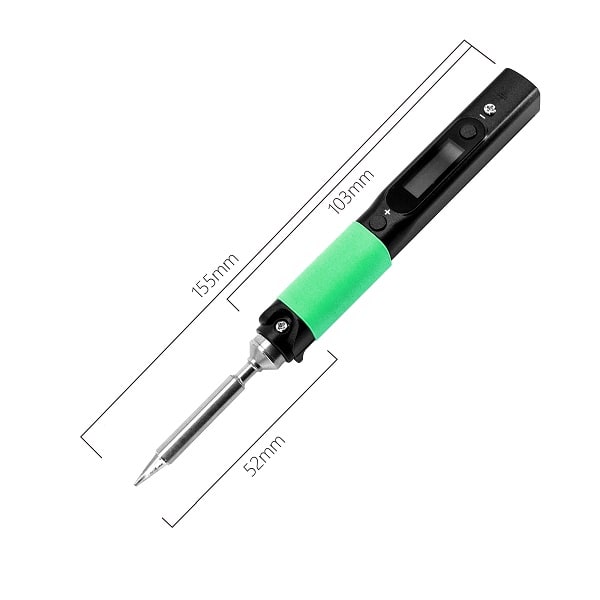

  • Dimensions: 155mm with solder tip / 103mm without solder tip x 12.8mm x 16.2mm
  • Weight: 28g with solder tip / 18g without solder tip
  • Build: Plastic with metal clip (Handle)
  • Color: Black (case)/ Green (Sleeve)
Power
  • 88W
PLATFORM
  • OS: Ralim’s IronOS build
  • Chipset: Bouffalo BL-706
  • CPU: 32-bit RV32IMAFC RISC-V “SiFive E24 Core” @ 144 MHz
DISPLAY
  • Type: OLED White Colour Monochrome Display
  • Size: 0.69 inches
  • Resolution: 96x16pixels
MEMORY
  • Internal Flash Memory: 192KB
  • System Memory: 132KB SRAM
  • Expansion: None

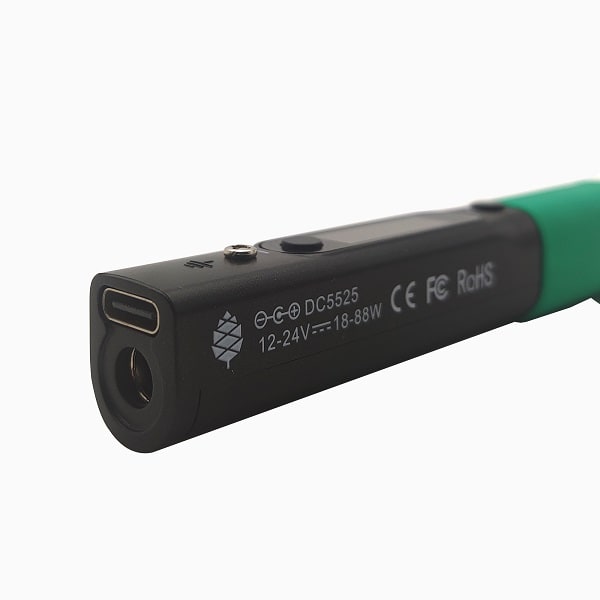

POWER PORTS
  • USB type C: PD and QC 3.0 12V-20V 3A
  • Barrel Jack: DC5525, 12V-24V DC 3A  (center positive barrel)

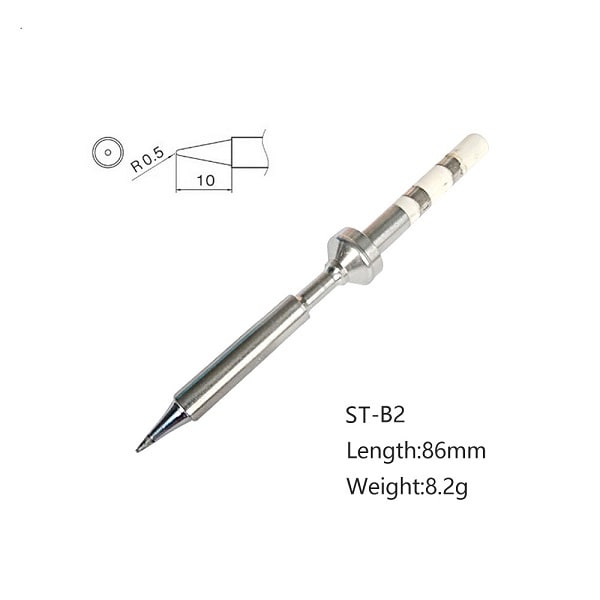

TIP
  • Type B2
  • Length: 86mm
  • Weight: 8.2g
FEATURES
  • Capable received power from either USB-C port or barrel jack.
  • GPIO break-out thru USB-C port
CERTIFICATION
  • FCC
  • CE RED
  • ROHS
PACKAGE CONTENTS
  • Pinecil Soldering Iron
  • ST (Short Tip)-B2 Soldering Tip

*Affiliate-Link

Evaluations 0
Read, write and discuss reviews... more
Close menu
Customer evaluation for "Pinecil V2 - Smart Mini Portable Soldering Iron"
Write an evaluation
Evaluations will be activated after verification.

The fields marked with * are required.

Accessories 7 Customers also bought
Accessories 7
Sold Out

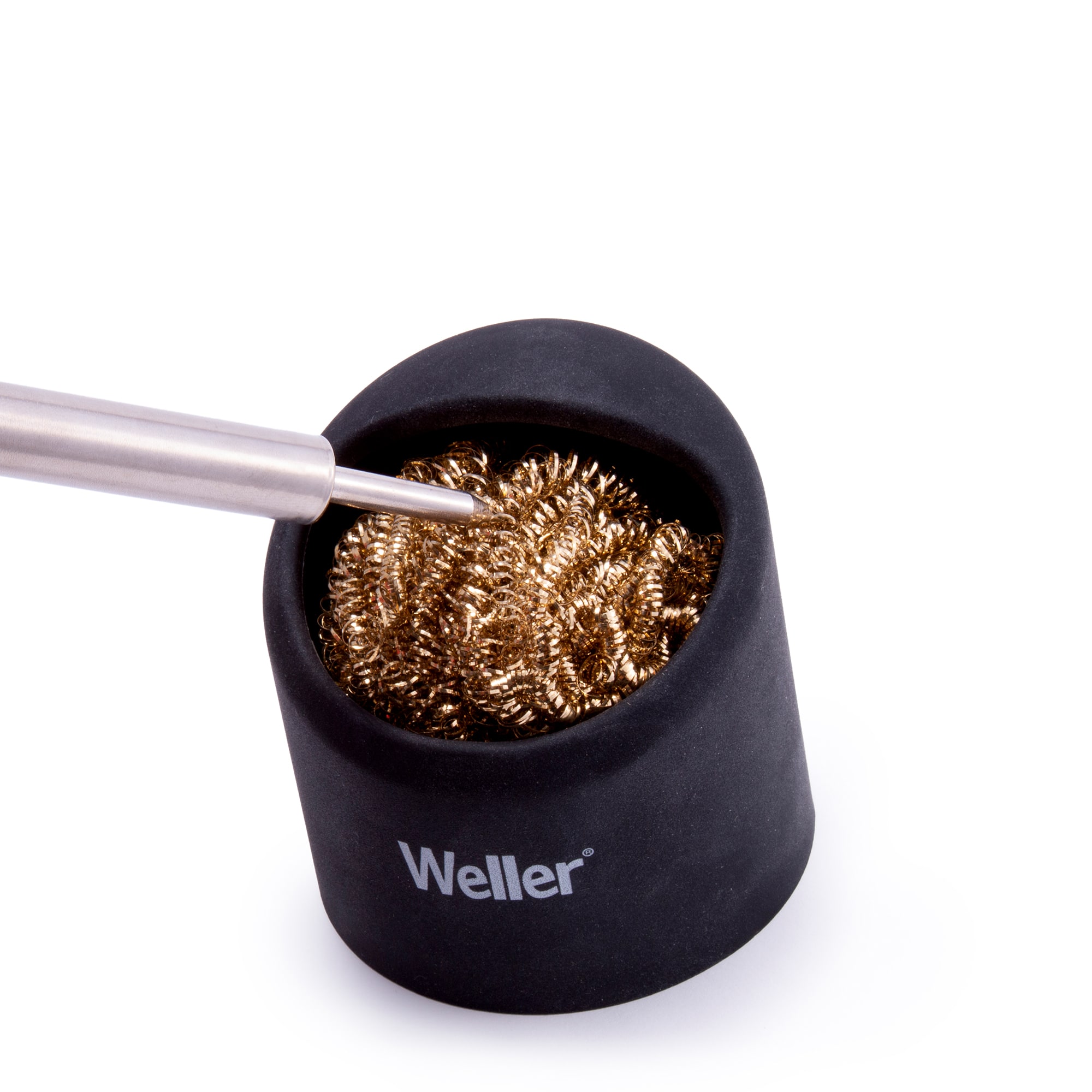

Weller Brass Sponge Tip Cleaner with Holder Weller Brass Sponge Tip Cleaner with Holder
€10.90 *
Sold Out

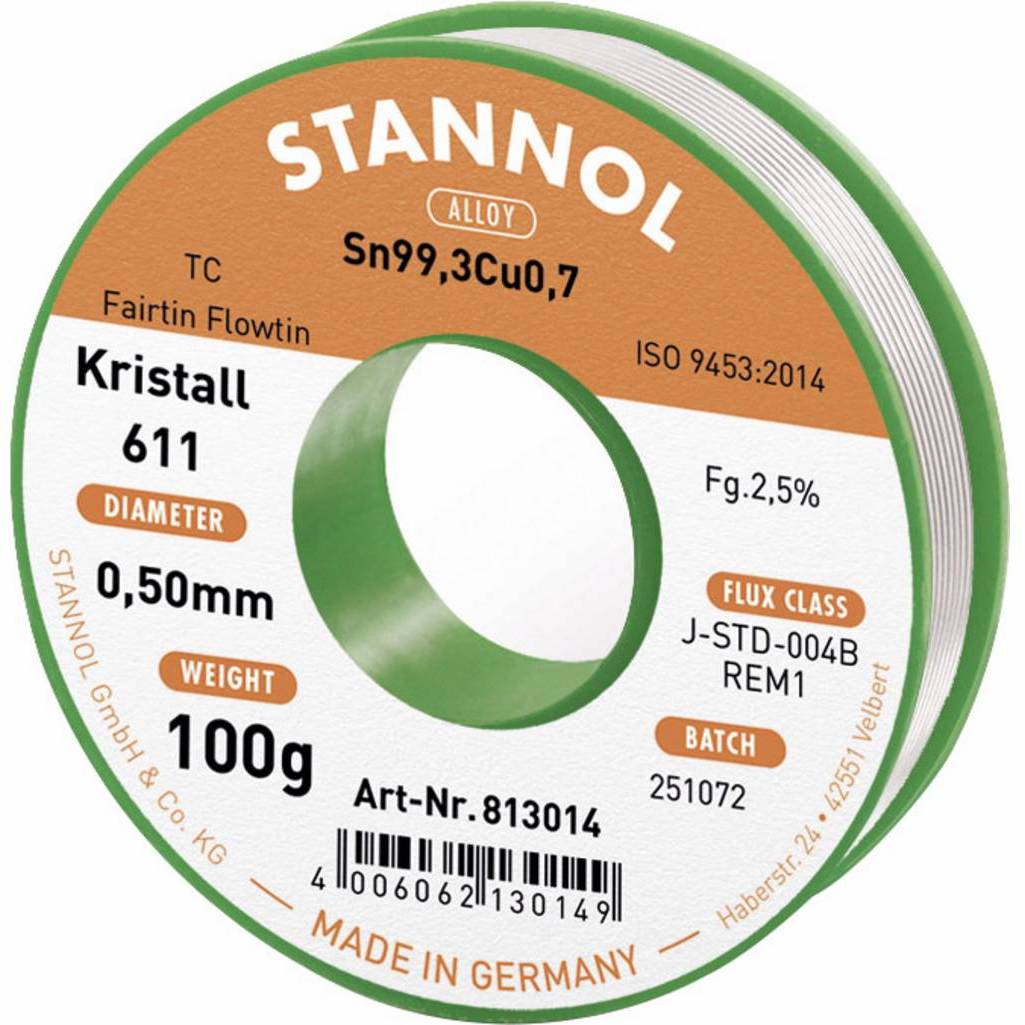

Stannol Kristall 611 Fairtin Solder, lead-free Lead-free Sn99,3Cu0,7 REM1 100g 0.5 mm Stannol Kristall 611 Fairtin Solder, lead-free Lead-free Sn99,3Cu0,7 REM1 100g 0.5 mm
€19.90 *

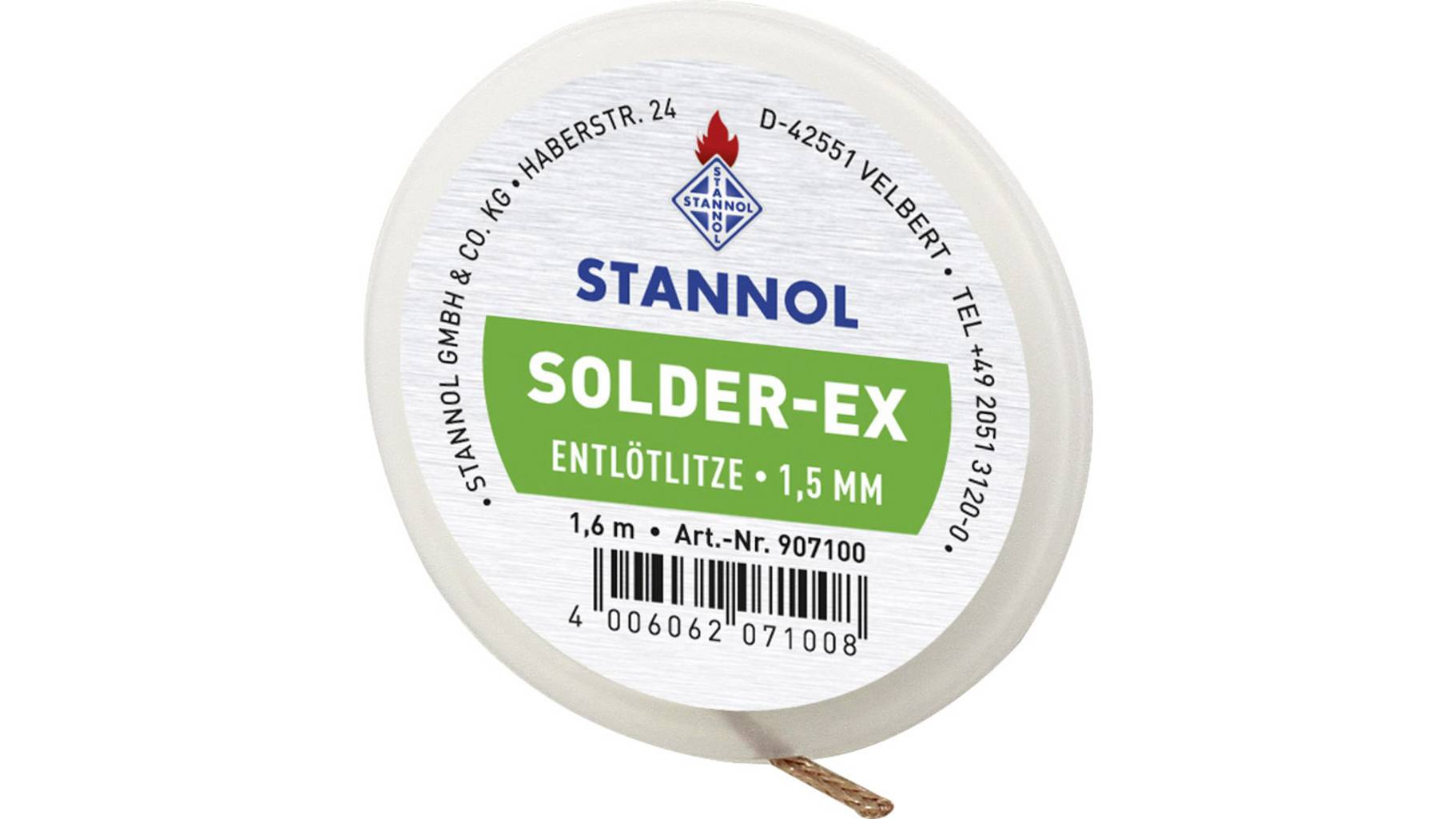

Stannol Solder-Ex - Desoldering Wick 1.5mm Stannol Solder-Ex - Desoldering Wick 1.5mm
€2.90 *
Sold Out

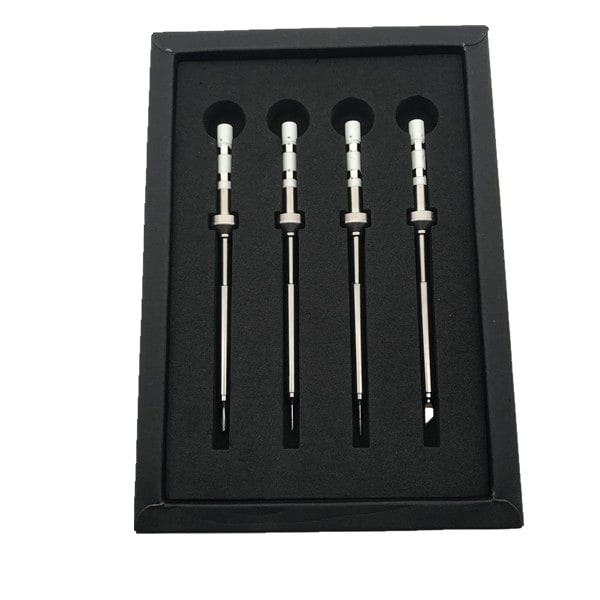

PINECIL Soldering Normal Tip Set (Fine) PINECIL Soldering Tip Set
€45.00 *

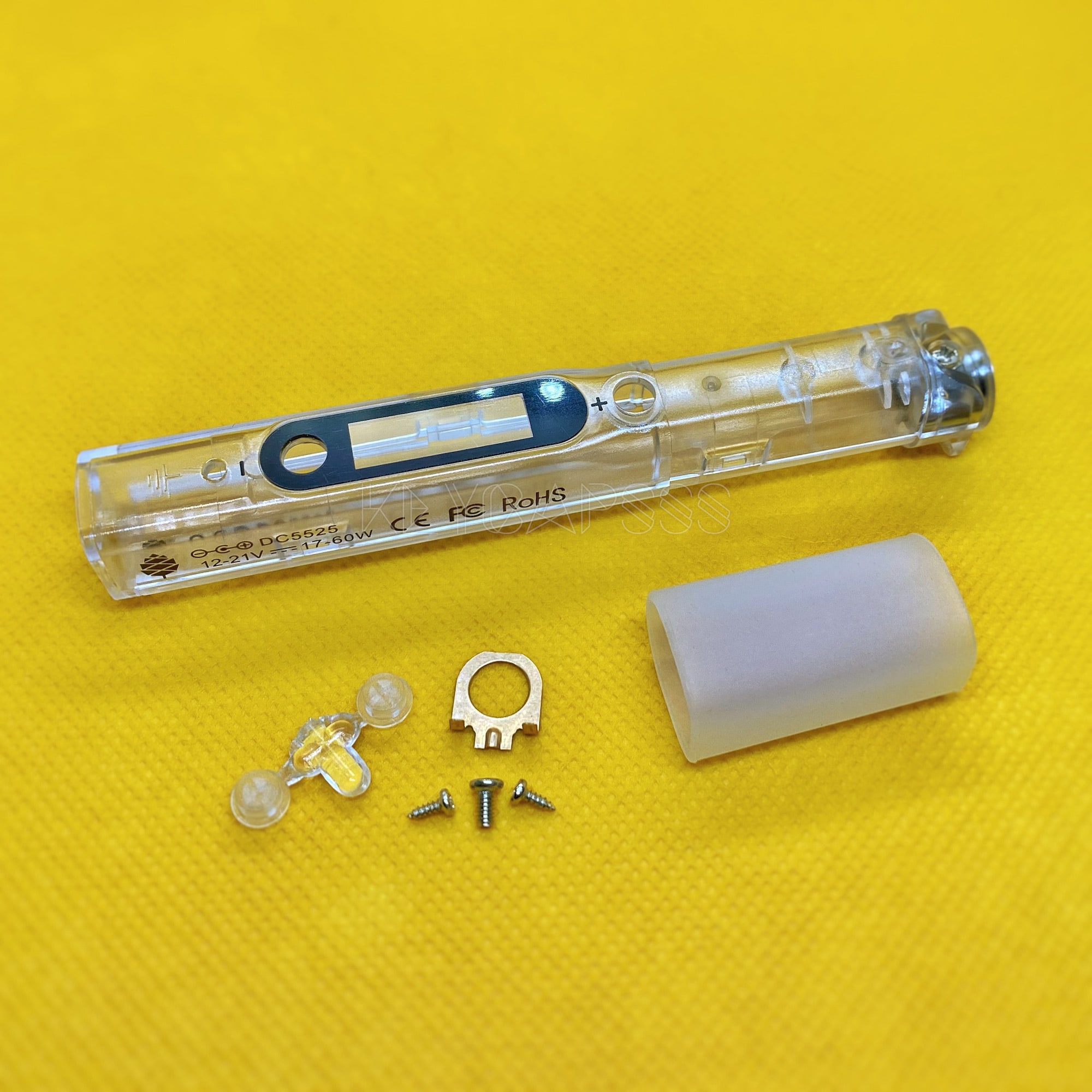

PINECIL Replacement Shell PINECIL Replacement Shell - Transparent
€16.00 *
Sold Out

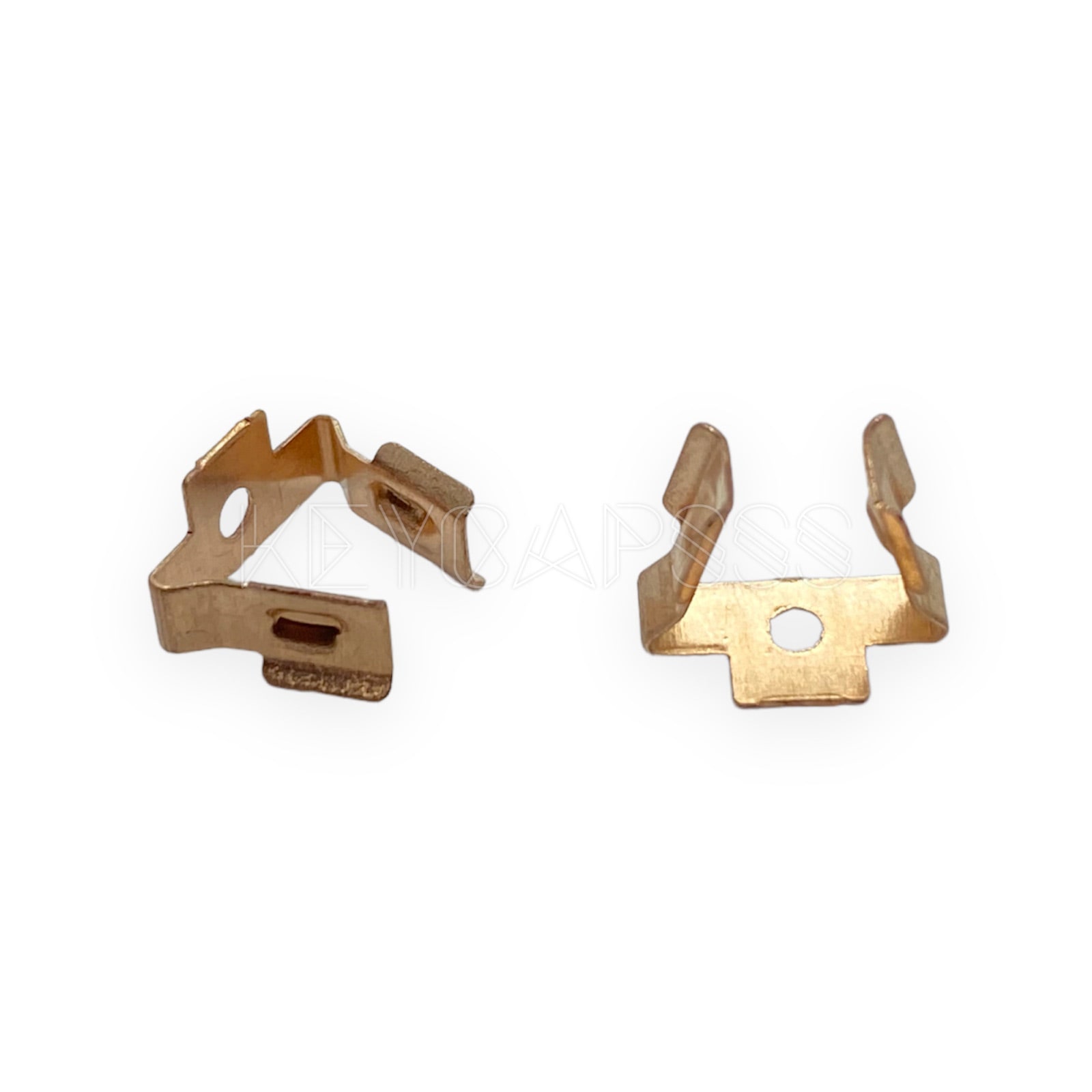

PINECIL Replacement Tip Contacts PINECIL Replacement Tip Contacts
€3.00 *

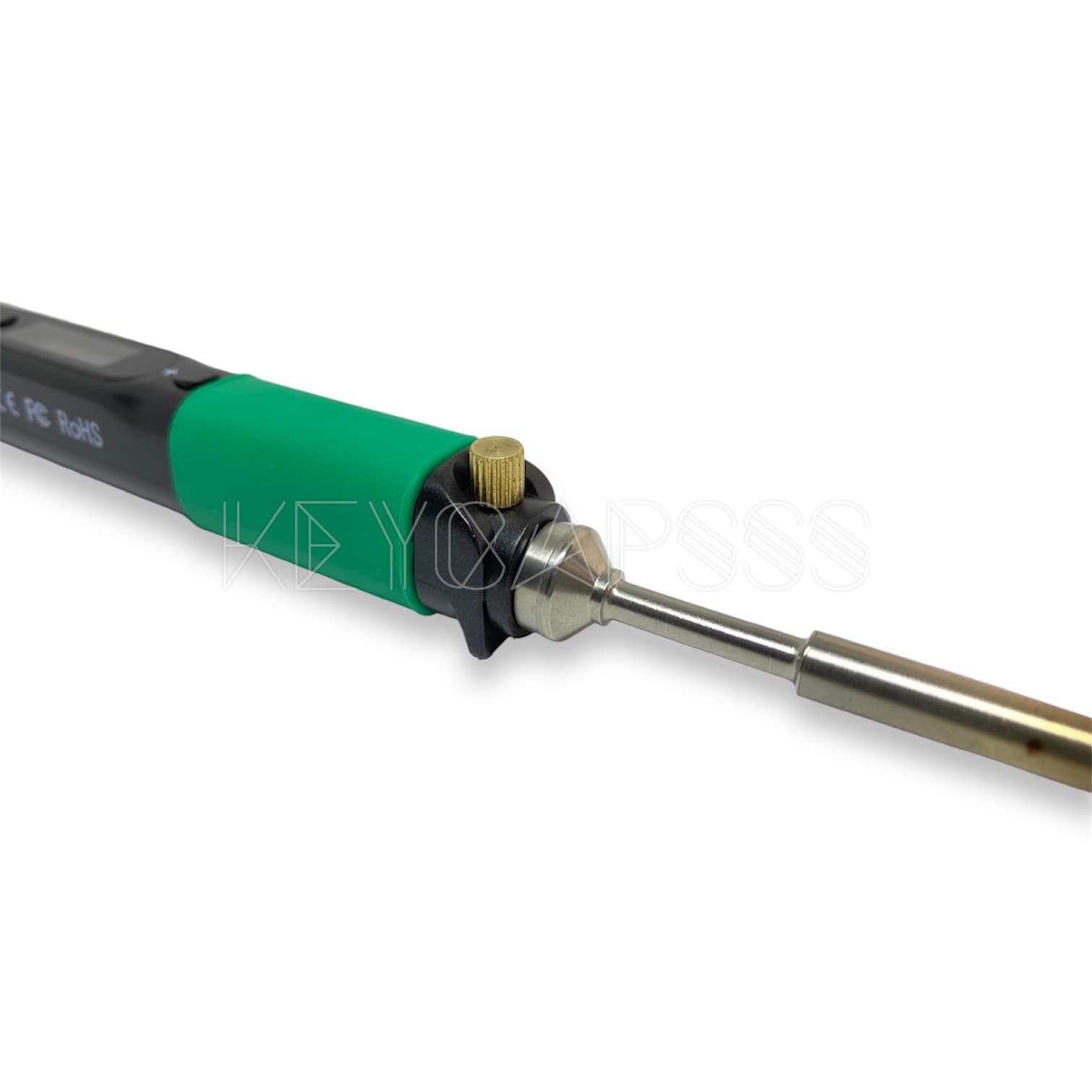

Thumb Screw for Pinecil Soldering Iron Thumb Screw for Pinecil Soldering Iron
