Lily58L Split Keyboard PCB

€16.00*

€13.45 excl. sales tax

* Prices incl. VAT (if any) plus shipping (and customs duties, if any)

1 Review

Currently out of stock

Variant

MX Black PCB

MX White PCB

Parts Kit

Product number: KC10040_MX-BK

Product information "Lily58L Split Keyboard PCB"

REV1.3 uses WS2812 LED's (not Sk6812 Mini) for underglow.

This new improved Lily58 pcb is called Lily58L (Lily58 Light) and has the following new features.

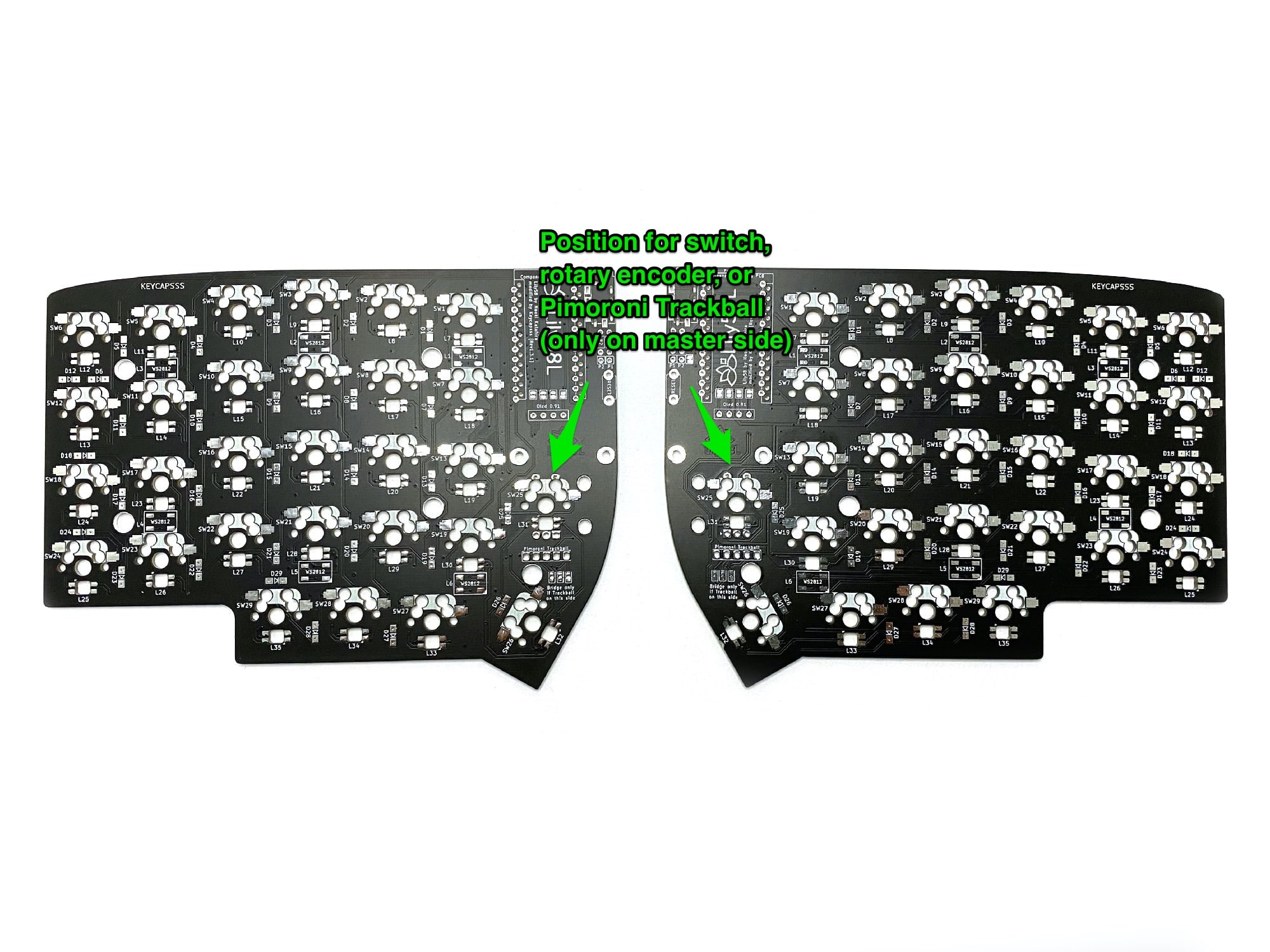

Support for one rotary encoder on each half
Support for Pimoroni Trackball module on master side
Underglow with 12 RGB LED's (WS2812 easier to solder)
Per key RGB LED support with SK6812 Mini-E (easier to solder)
Same shape/dimension as the origianl Lily58 pcb (compatible with all Lily58 cases)
LeadFree HASL PCB surface finish

Supports Kailh MX Hotswap Sockets
MX switches are compatible (not Choc)
Compatible with other Lily58 cases (with Trackball-Module, only 1.5mm thick top plates will work)
Includes 2pcs swapable PCB's

Separate solder parts kit includes:

58x SMD Diodes
2x Tactile reset switch
2x TRRS jack
2x Sockets for the oled display

You need:

1x Solder parts kit (choose extra in dropdown)
58x MX Kailh Hot Swap sockets
58x MX switches
2x Pro Micro, Helios, Puchi-BLE, or other clones
A Lily58 case
Keycaps
TRRS cable (4-pole)
Optional 0.91 OLED SSD1306 display
Optional 12x WS2812 (5050) LED's for underglow
Optional 58x SK6812 Mini-E LED's for per key light

Build Guide
QMK Keymap

Photos of the completed keyboard are for demonstration purposes only.
Please note that this pcb must be assembled (soldering) and does not include mcu, switches or keycaps.

1 of 1 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

Display reviews in current language only.

Sort by

1 review

17 February 2023 23:57

Great keyboard and DIY Kit

Good layout, alle components worked flawlessly. Manual was good. Check also my (more thorough manual: https://github.com/vii33/mecha-keyboard-lily58l
