Could be used for:Low battery warningLayer change, or certain layer conditionsCompatible Keyboards from the shop:DASBOBErgoDashVoltage - Rated
5 VVoltage Range
1 ~ 20VFrequency
4.1kHzSound Pressure Level (SPL)
73dB @ 5V, 10cmCurrent - Supply
1mASize / Dimension
0.433" L x 0.354" W (11.00mm x 9.00mm)ROHS3 CompliantDatasheet
Made of 5mm dark transparent sturdy acrylic150mm distance between the platesThis stand can hold a total of three (3-tier) keyboards, two (2-tier) keyboards and one (1-tier) keyboardEasy assembly (Pass the two ends of the metal rod through the acrylic sheet and tighten the screws by hand. You are now ready to use it.)Includes: 2 acrylic dark plates, 2 rods and screwsPhotos with the keyboard are for demonstration purposes only.
DASBOB is a 36 Key diodeless split choc keyboard with a buzzer.Includes:PCB for both half's2 TRRS jack2 Reset switches
You need:
2 Helios RP2040, Sea-Picro, Elite-C or similar controller (not compatible with normal Pro Micro, due to the extra pins for diodeless)Mounting for controller (Socket Headers and Needle Connector, or Pin Header
36 Kailh Choc V1 Hotswap Sockets36 Choc V1 switchesKeycaps for choc V1 switches
1 TRRS cable (4-pole)

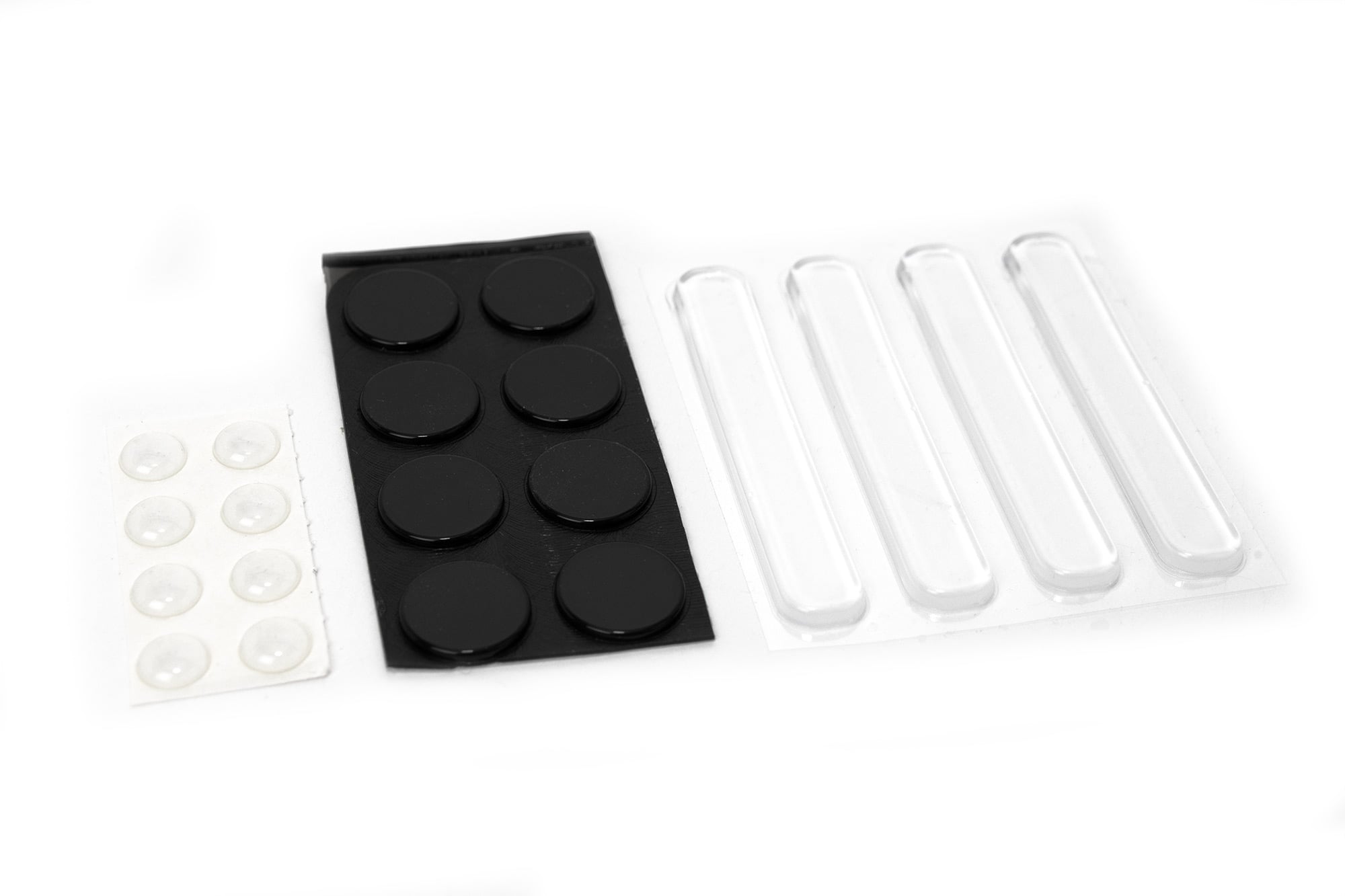

Case or 8 rubber feet for the bottomBuzzer (optional)
Firmware:
QMK
ZMK by EmpWorks /
KMK
PCB design by GroooveBobPhotos of the completed keyboard are for demonstration purposes only.Please note that this pcb must be assembled (soldering) and does not include mcu, switches or keycaps.
VIAL firmware already flashed Drop-in replacement to existing Le Chiffre casesMCU: STM32F072CBT6 (128Kb flash, built-in DFU bootloader) to allow more firmware featuresMX hotswap, Alps support (solder)PCB design by Sporkus
Photos of the completed keyboard are for demonstration purposes only.
Datasheet
CAD files
Product attributes
Nominal size [mm]
8
Dynamic load capacity C [N]
130
Maximum permissible linear speed vmax [m/s]
2
Note: maximum permissible speed vmax
In case of prolonged periods of use at speeds above 1 m/s, an increase in temperature and reduction in service life is to be expected depending on the load.
Outer diameter D [mm]
12.6
Operating temperature (min. … max.)
- 30 °C ... + 100 °C
Note: permissible operating temperature (min. ... max.)
At temperatures above 100 °C, only bright metal ball transfer units without a felt seal should be used. Make allowance for reduction in load capacity. Use high-temperature lubricant! Follow the manufacturer’s instructions! The existing lubricant oil *
Weight [kg]
0.01
Static load capacity C0 [N]
250
Maximum operating temperature [°C]
+100
Minimum operating temperature [°C]
-30
Product information
Without felt seal
Dimension a [mm]
1.9
Dimension b [mm]
3.2
Tolerance c
+0.2
Dimension D [mm]
12.6
Tolerance D [mm]
±0.055
Dimension D1 [mm]
17
Dimension dW [mm]
7.938
Dimension h [mm]
4.8
Dimension H [mm]
11.2
Tolerance h
±0.15
These 3D printed keycaps feature a dish for a comfortable finger feel, and chamfered edges for a stylish look.
They are Choc spaced (18mm x 17mm). The MX Spaced variant is available here.
Standard color is black.Other colours are available. Please ask before ordering and add a comment in the checkout which colour you would like.NOTE: These are 3D printed to order. The dispatch of the order will be delayed by 1-3 working days depending on the order quantity.Photos of the completed keyboard are for demonstration purposes only.
Design by Kea Workshop
These 3D printed keycaps feature a dish for a comfortable finger feel, and chamfered edges for a stylish look.
They are MX spaced (19.05mm x 19.05mm), not the typical Choc spacing you find on choc switch boards.The Choc Spaced variant is available here.
Standard color is black.Other colours are available. Please ask before ordering and add a comment in the checkout which colour you would like.NOTE: These are 3D printed to order. The dispatch of the order will be delayed by 1-3 days depending on the order quantity.Photos of the completed keyboard are for demonstration purposes only.
Design by Kea Workshop
The Urchin is a fork of the Sweep split keyboard. It is designed for wireless builds and uses a daughter board like a Puchi-BLE or nice!nano.New features:
Native nice!view display support
Edge design from the Swoop
Kailh Hotswap sockets support
Additional features:
Choc V1 switch compatible (not V2)
Choc spacing
On/Off switch for wireless builds
LeadFree HASL PCB surface finish
The separate solder parts kit includes:
2x Tactile reset switch
2x On/off switch for wireless build34x SMD Dioden
You need:
1x Solder parts kit (choose extra in dropdown)
34x Choc V1 switches34x Choc Hotswap sockets
2x Puchi-BLE or nice!nano2× Lipo battery (301230)
A Urchin case
KeycapsOptional:
2× nice!viewUSB cable (depends on your micro-controller choice) for charging
ZMK Firmware
Build video
Coral 3d printable case
PCB design by KyekPhotos of the completed keyboard are for demonstration purposes only.Please note that this pcb must be assembled (soldering) and does not include mcu, switches or keycaps.

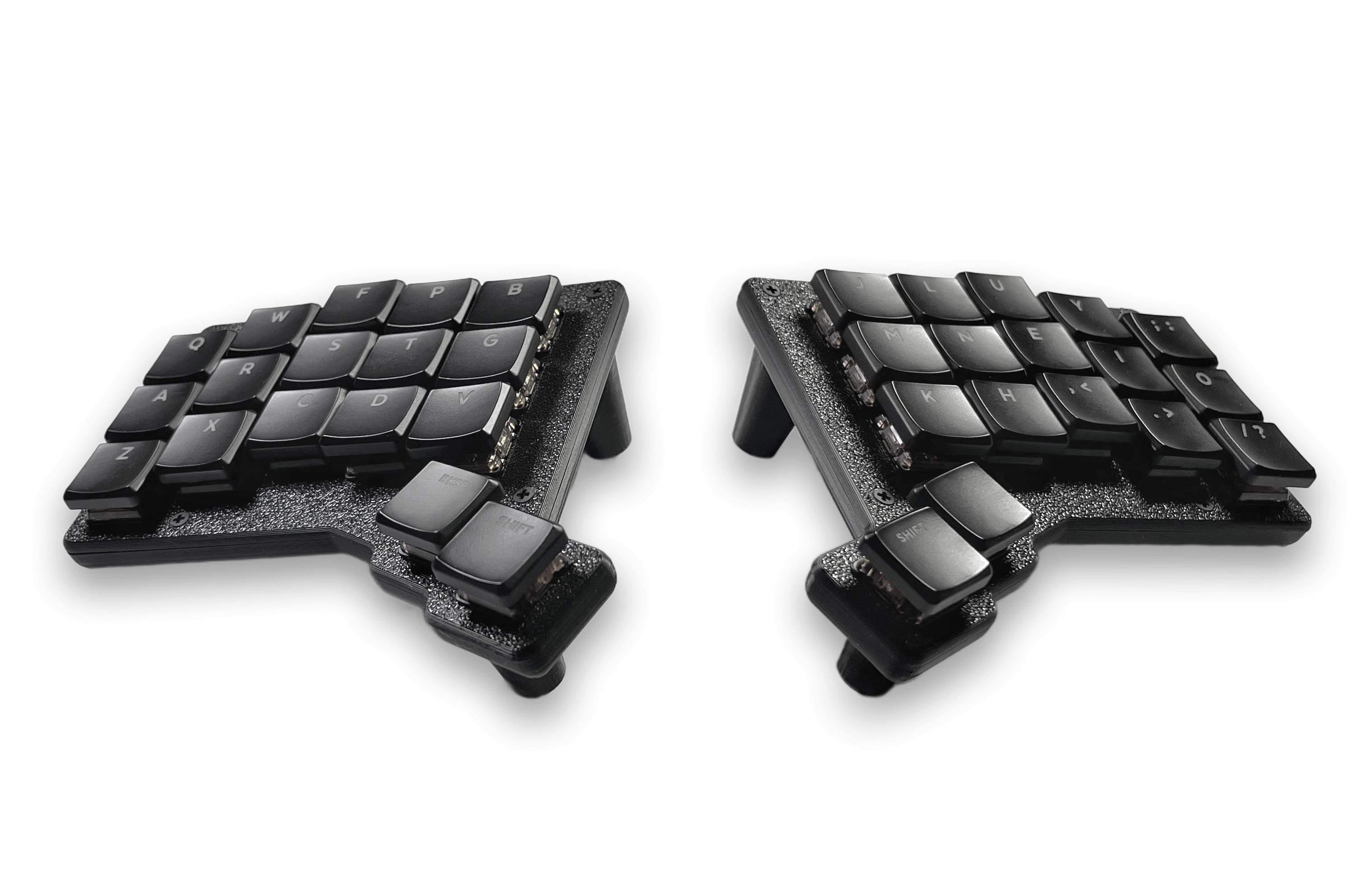

The Forager is a Voyager-inspired 34-key low-profile split keyboard. It is wireless and powered by ZMK firmware.
Pre flashed ZMK firmware with ZMK Studio support
Hot-swap sockets for Choc V1 switches (change switches without soldering)
Choc (18x17mm) spacing for a compact design
Magnetic tenting legs
Case top plate has switch puller grooves
A Seeed XIAO nRF52840 is used as the core of the Forager
RGB led to indicate battery level and BLE connection status
Reset button on the bottom
The ZMK firmware is already flashed and has ZMK Studio support. This allows you to easily change the layout without having to flash a new firmware.You can find the Build-Guide and more information here.
The includes:
Forager PCB (left, right side) fully assembled
Case (3D printed with black PLA)
4x tenting feet (3D printed with black PLA)
Screws (black countersunk M2x4 screws with spare screw)
Rubber feetsTorx T6 screwdriverYou also need:
34x Choc V1 switches
34x Choc V1 keycaps
2x LiPo 1S 3.7V battery (optional with a JST ACH connector)
Krytox GPL 105 (general-purpose lube) is a high performance grease widely used to lubricate mechanical keyboard switches, controller components and joysticks.
1 QTY = 1x 5ml tube 9g (enough for 200-400 switches)
Viscosity: low
Recommended for: switches with lighter spring
Effect: smooth press, the thinner oil will feel snappier as GPL205Elimination of “scratching” sound and other undesirable acoustic properties
Currently there are no stabilisers available for 1.5u and 2u keycaps.
Dimension
SizeWidthHeight
1.25U
20.7mm
16mm
1.5U
25.5mm
16mm
2U
35mm
16mm
0.7U
16mm
11.3mm
1U / 1UH
16mm
16mm
1QTY = 10 switches
Premium Materials Combination for Smoother push feel
High-precision Molds for Minimum Wobble
Optimized Sound performance with Special long Pole
Full Transparent Clear Housing and Stems
Removable Light Column for light through and wide compatibility
2 Thick Metal Pins compatible with Hotswap PCBs
Gold-plated Extended Long Progressive Spring (Bottom Out force)
The latest advanced Lube Method
Gold Contacts for Over 50 million keystrokes with no loss of quality
Technical Data:
Switch Type: MX Mechanical Switch
68g Long Progressive Spring
Longer Pole
3.5±0.2mm Total Travel
2mm Pre-travel
58g Actuation force
68g Bottom Out force
Optimized sound
Top Housing: Polymer Nylon (Transparent)
Bottom Housing: Polymer Nylon (Transparent)
Stem: Modified Nylon (long pole)
Spring: Gold Plated Progressive Spring
Lighting: SMD, THT, Through Hole
Contacts: High-quality gold alloy
Durability: > 50 million actuations
1QTY = 10 switches
Premium Materials Combination for Smoother push feel
High-precision Molds for Minimum Wobble
Optimized Sound performance with Special long Pole
Full Transparent Clear Housing and Stems
Removable Light Column for light through and wide compatibility
2 Thick Metal Pins compatible with Hotswap PCBs
Gold-plated Extended Long Progressive Spring (Bottom Out force)
The latest advanced Lube Method
Gold Contacts for Over 50 million keystrokes with no loss of quality
Technical Data:
Switch Type: MX Mechanical Switch
62g Long Progressive Spring
Longer Pole
3.5±0.2mm Total Travel
2mm Pre-travel
52g Actuation force
62g Bottom Out force
Optimized sound
Top Housing: Polymer Nylon (Transparent)
Bottom Housing: Polymer Nylon (Transparent)
Stem: Modified Nylon (long pole)
Spring: Gold Plated Progressive Spring
Lighting: SMD, THT, Through Hole
Contacts: High-quality gold alloy
Durability: > 50 million actuations
These spacer stickers will help to raise the keycap and prevent it from hitting the switch when you pressed down.
48 Sticker
Thickness: 0.5mm
Material: PET
Self-adhesive
Compatible with MX and Choc V2 switches (not Choc V1)
Dimensions: 18.10mm x 18.10mm (keycaps will not fit, if the pcb has a choc grid spacing, for example the Piantor)
Material: PBT (Black, White, Deep Mocha, Forest Green), ABS (Baby Blue, Purple)Two homing keycaps are included with the 18-key set
65pcs keycaps
PBT material and doubleshot legends
Compatibility: MX / Choc V1 switches
Dimensions: 18.1 x 18.1 mm (keycaps will not fit, if the pcb has a choc grid spacing, for example the Piantor)
Shine through for RGB light
Homing bars on F and J keys
Spar parts foamr for the 3W6 2040 from Keycapsss. The 3W6 2040 keyboard has a slightly different shape as the original 3W6.
Thickness: 2mm
Material: EPDM
Self-adhesive
Includes: Foam for left and right side
The 0xCB Gemini is our Waveshare RP2040-Zero compatible microcontroller.It includes all the features of it's bigger brother, the 0xCB Helios, in a much smaller form factor.
QuickStartGitHub
Included contents:
1 x 0xCB Gemini
The Gemini comes without header pins, to keep the price low as possible.I highly reccommend to use the "Single Row Sockets" from Mill-Max, the cheaper alternative, or the "Spring-loaded pin headers".You can find the standard pin header here.
Aimed towards ergo and ortho users, this set is versatile and easy to the eye.Uniform DSA profile, top dye sub, and many layouts compatibility (homing keys for Colemak, Dvorak, etc.)Compatible with MX switches.
