MxLEDBit Single Switch PCB - MX Choc Hot Swap Socket

Preview: MxLEDBit Single Switch PCB - Choc Preview: MxLEDBit Single Switch PCB Preview: MxLEDBit Single Switch PCB - Pro Micro (Back) Preview: MxLEDBit Single Switch PCB - Pro Micro (Dimensions) Preview: MxLEDBit PCB Pinout for the MX variant Preview: MxLEDBit PCB Pinout for the MX variant Hand Wiring Example Preview: MxLEDBit PCB Dimensions
MxLEDBit Single Switch PCB - Choc
MxLEDBit Single Switch PCB

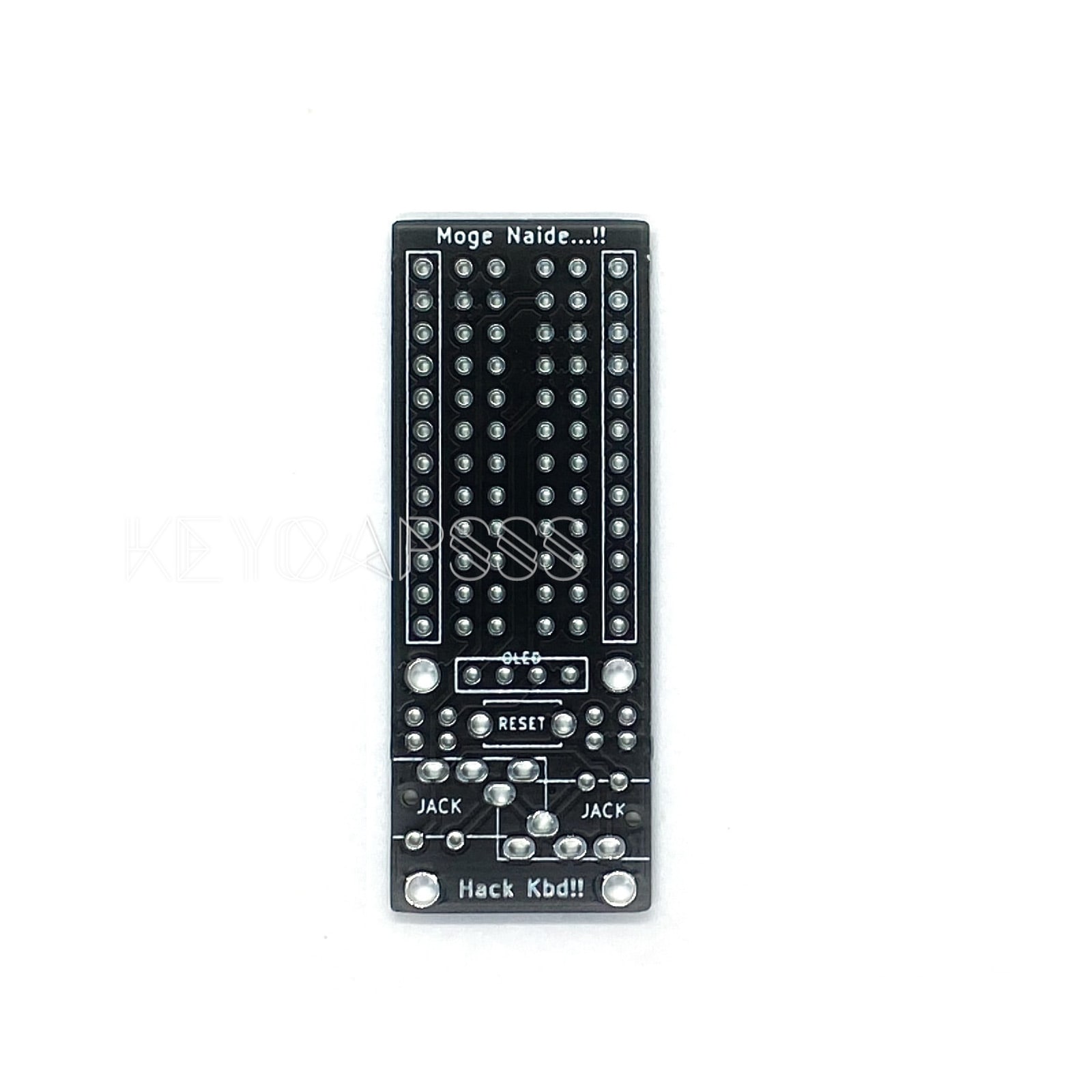

MxLEDBit Single Switch PCB - Pro Micro (Back)

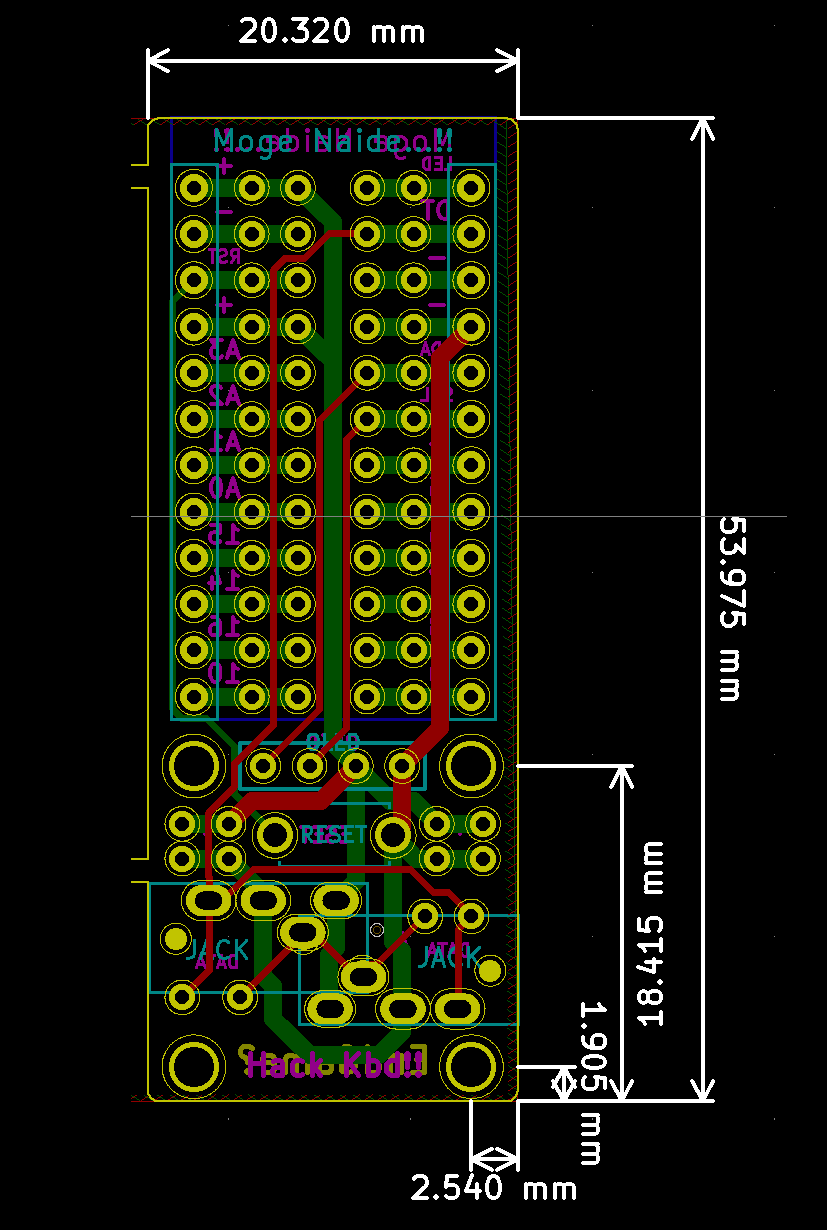

MxLEDBit Single Switch PCB - Pro Micro (Dimensions)
MxLEDBit PCB Pinout for the MX variant

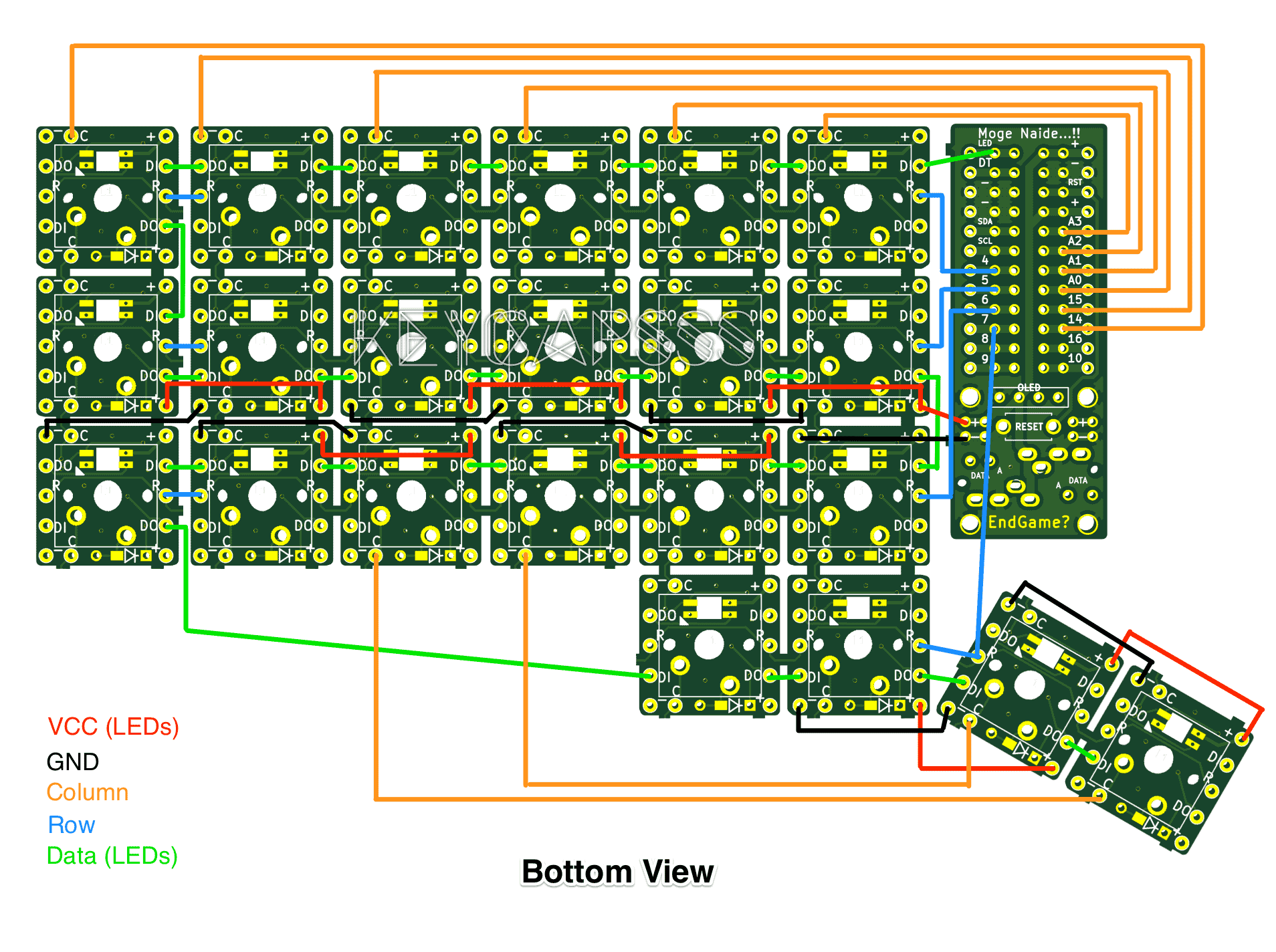

MxLEDBit PCB Pinout for the MX variant Hand Wiring Example

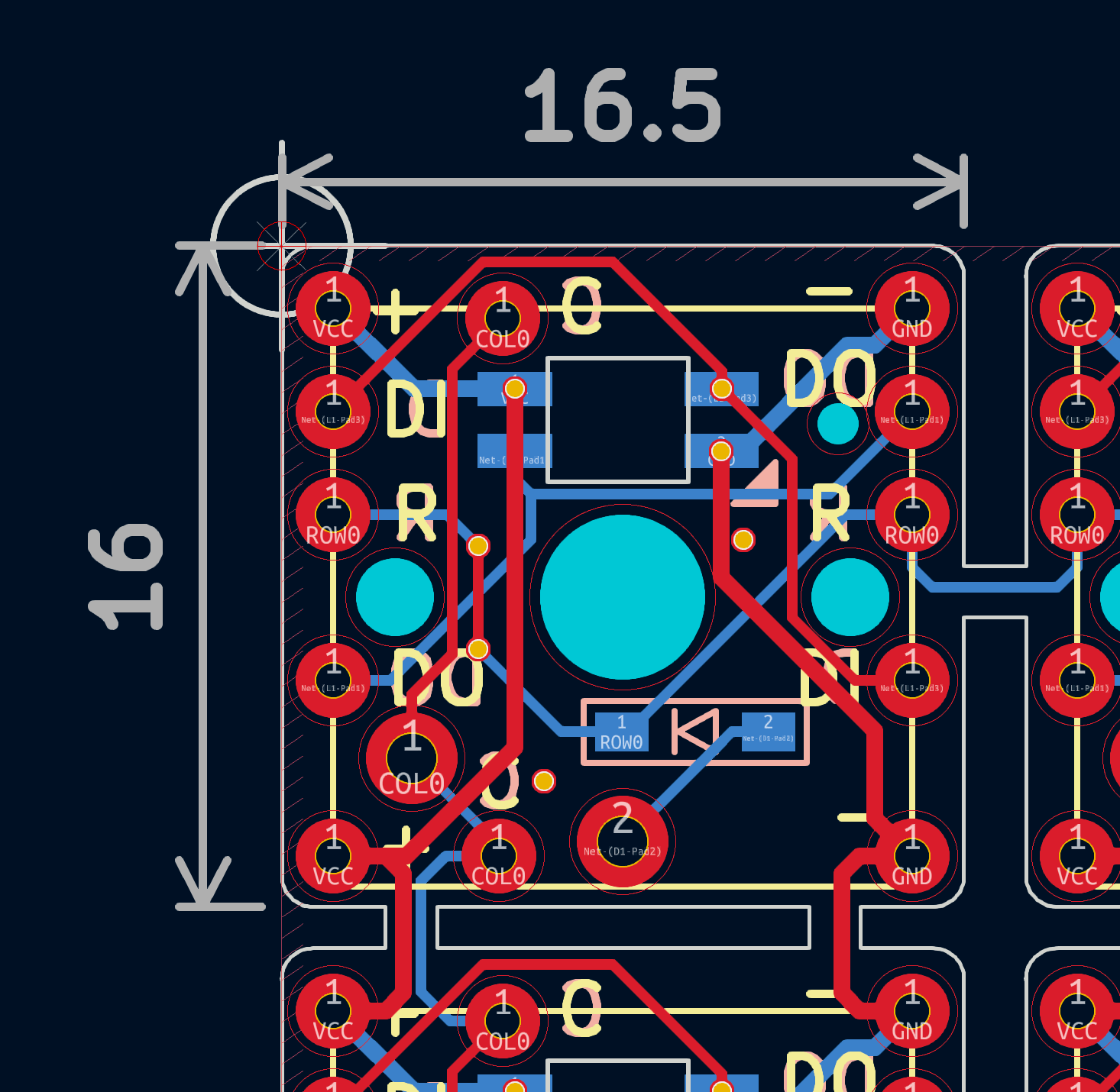

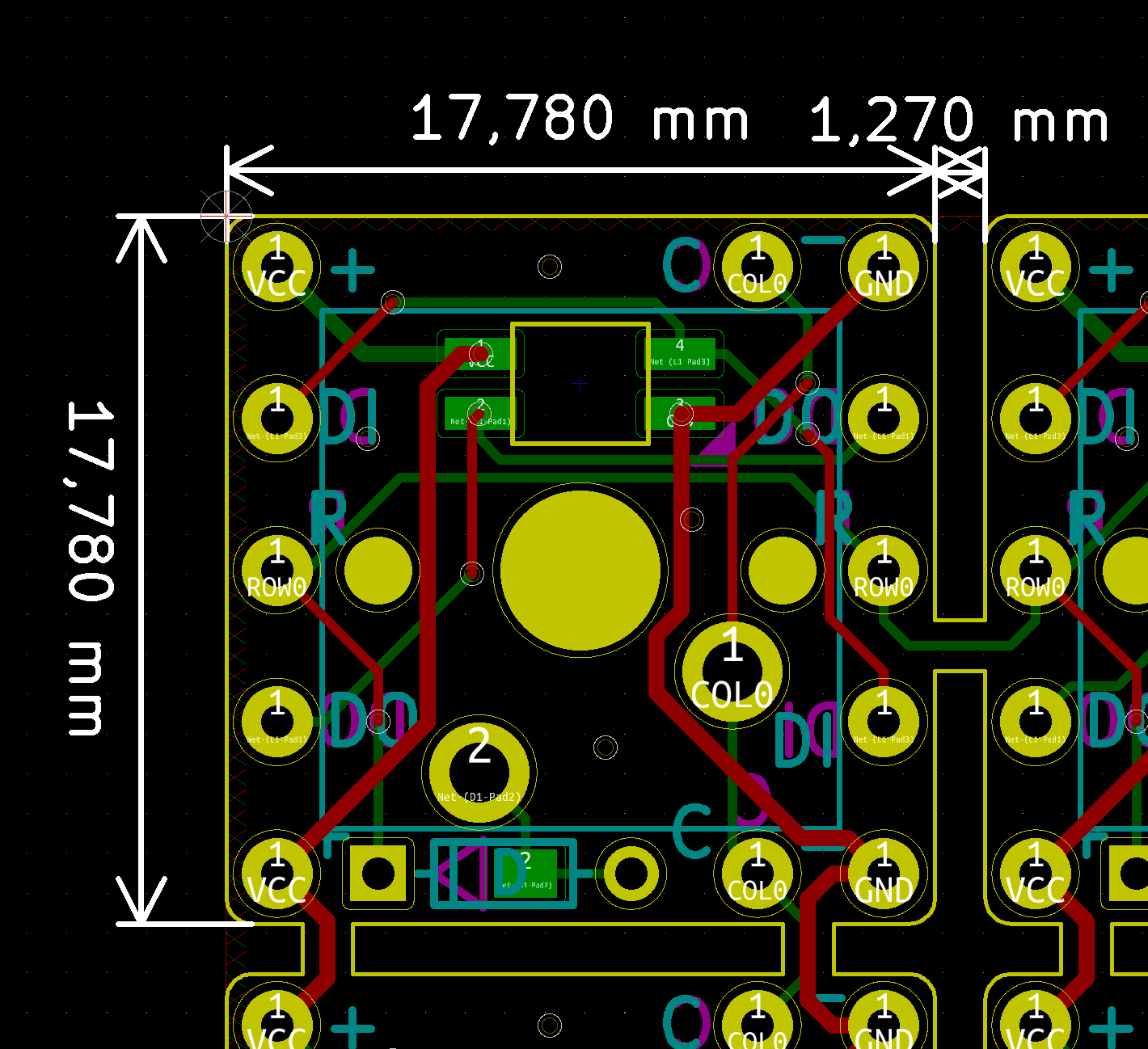

MxLEDBit PCB Dimensions

€4.90 *

Prices incl. VAT plus shipping costs

Ready to ship,
Delivery time 2-5 workdays (Germany),
appr. 5-14 workdays (EU),
appr. 14-50 workdays (International)

Variant:

  • Order number: KC10133_CO
Description Evaluations 0
Description
Variant Variant Single PCB Qty Switch Kailh Hot Swap Socket Switch LED Diode... more
Close menu
MxLEDBit Single Switch PCB - MX Choc Hot Swap Socket

Variant

VariantSingle PCB QtySwitchKailh Hot Swap SocketSwitch LEDDiode
Choc  25 Choc V1 (no V2) No SK6812 Mini-E SOD-123
MX  25 MX switches and clones No SK6812 Mini-E Through-Hole, SOD-123*
MX (Hot Swap)  25 MX switches and clones Yes SK6812 Mini-E Through-Hole, SOD-123*
Pro Micro  1 - - - -

 * If you use a SOD-123 diode, one pad will be shared with the through-hole hole due to space limitations.

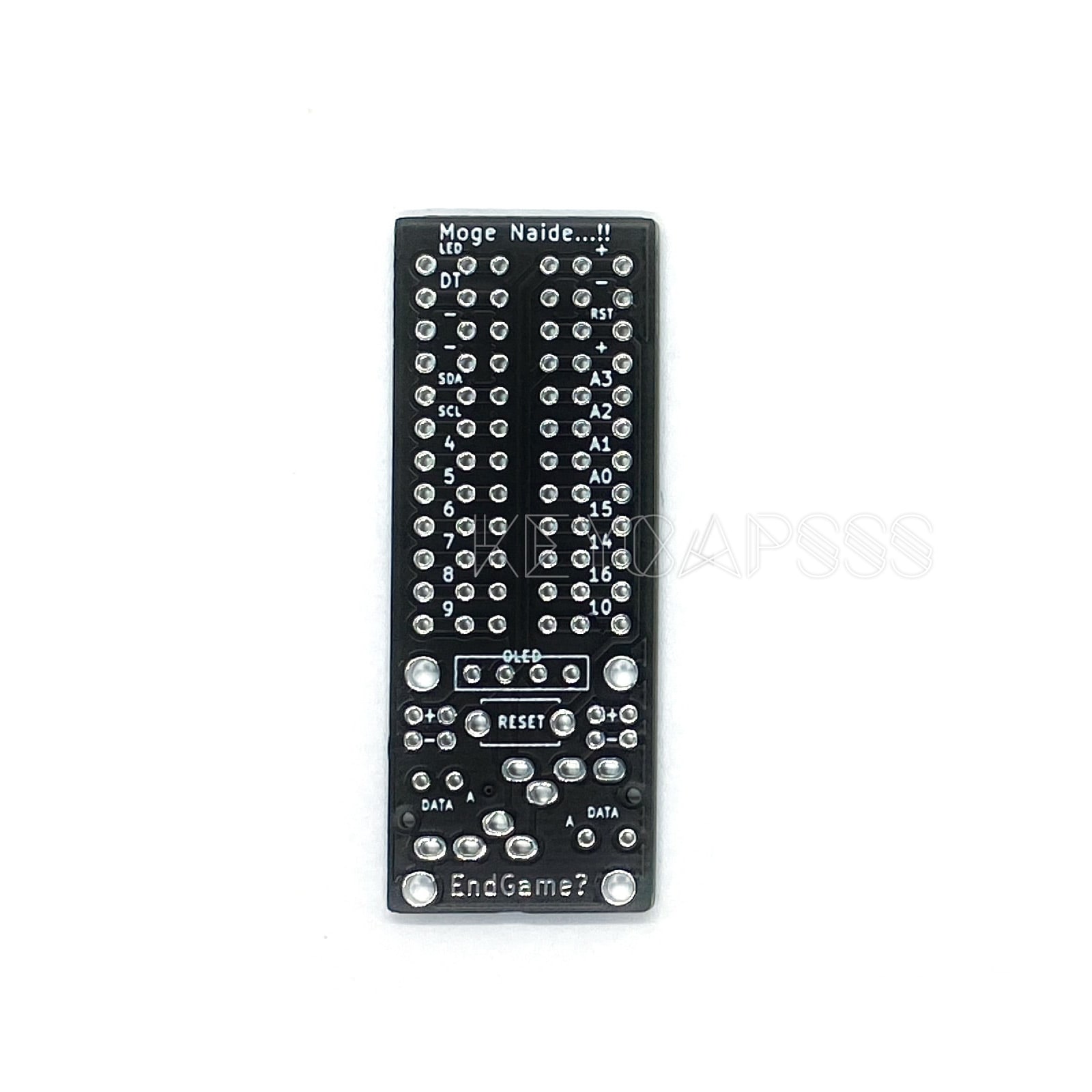

  • Pro Micro PCB has pins for a reset switch, I2C oled display, TRRS jack (for split keyboards) and of course the pro micro or similiar MCUs like Helios
  • Grid Spacing: 19.05mm
  • LeadFree HASL PCB surface finish



Pinout

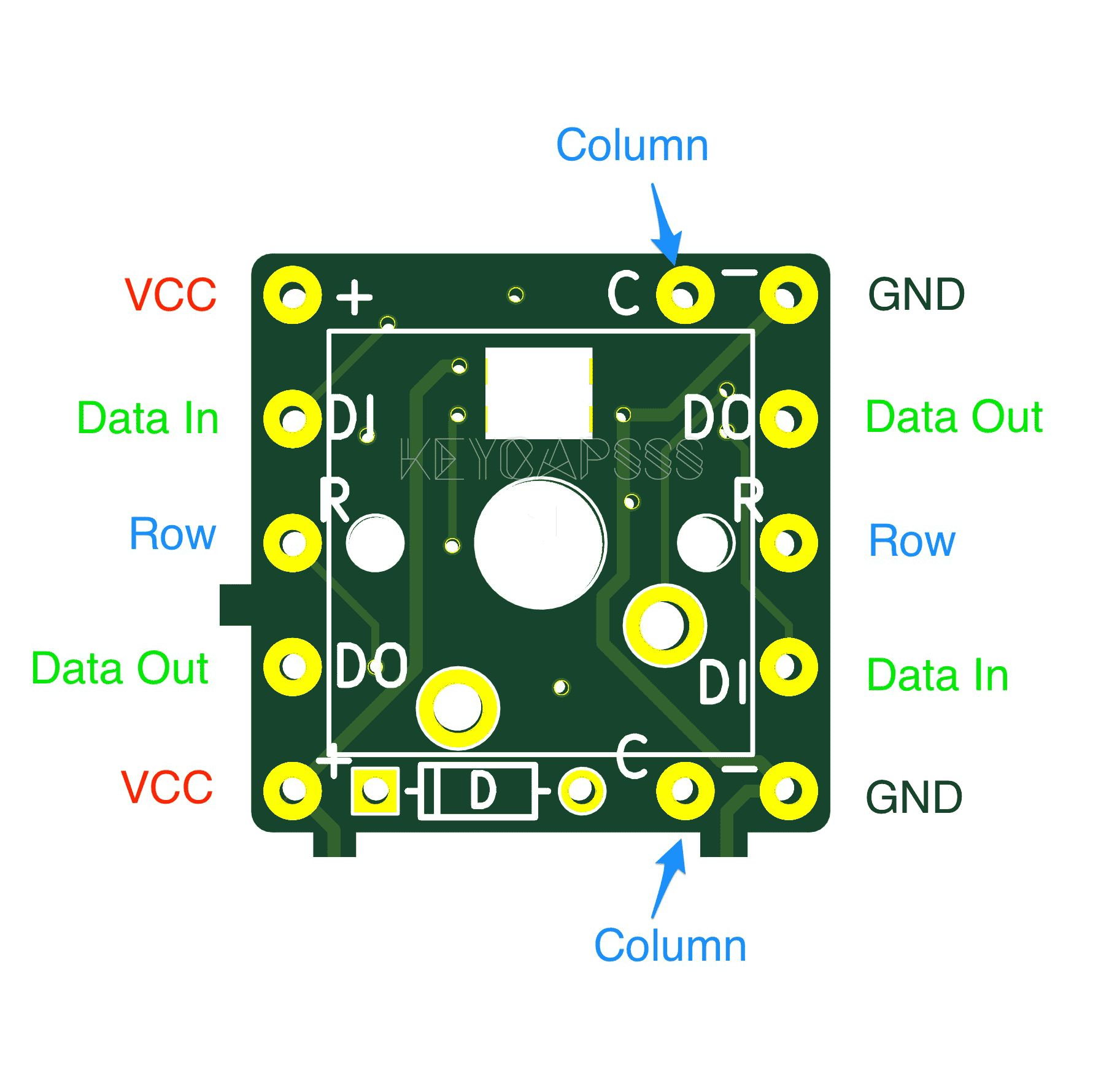

MxLEDBit Single Switch PCB Pinout MX variant

 The example in the photo is the MX variant, but the others are similar.

  • C: Horizontal line (Column)
  • R: Vertical line (Row)
  • DI: LED control signal input (Data In)
  • DO: LED control signal output (Data Out)
  • -: Ground (for LED)
  • +: VCC (5V for LED)

Hand Wiring CRKBD Example

MxLEDBit Single Switch PCB Hand Wiring Corne example



Design by @swan_match
