Amoeba Single-Switch PCB 1U / 2U

Preview: Amoeba Single-Switch PCB 1U 25pcs Preview: Amoeba Single-Switch PCB 1U / 2U Preview: Amoeba Single-Switch PCB 1U / 2U
Amoeba Single-Switch PCB 1U 25pcs
Amoeba Single-Switch PCB 1U / 2U
Amoeba Single-Switch PCB 1U / 2U

€4.90 *

Prices incl. VAT plus shipping costs

Ready to ship,
Delivery time 2-5 workdays (Germany),
appr. 5-14 workdays (EU),
appr. 14-50 workdays (International)

Variant:

  • Order number: KC10055_1U
Description Evaluations 0
Description
MX and Alps support Support for through-hole components or SMD (LED 0805 and diode... more
Close menu
Amoeba Single-Switch PCB 1U / 2U
  • MX and Alps support
  • Support for through-hole components or SMD (LED 0805 and diode 0805/SOD-123)

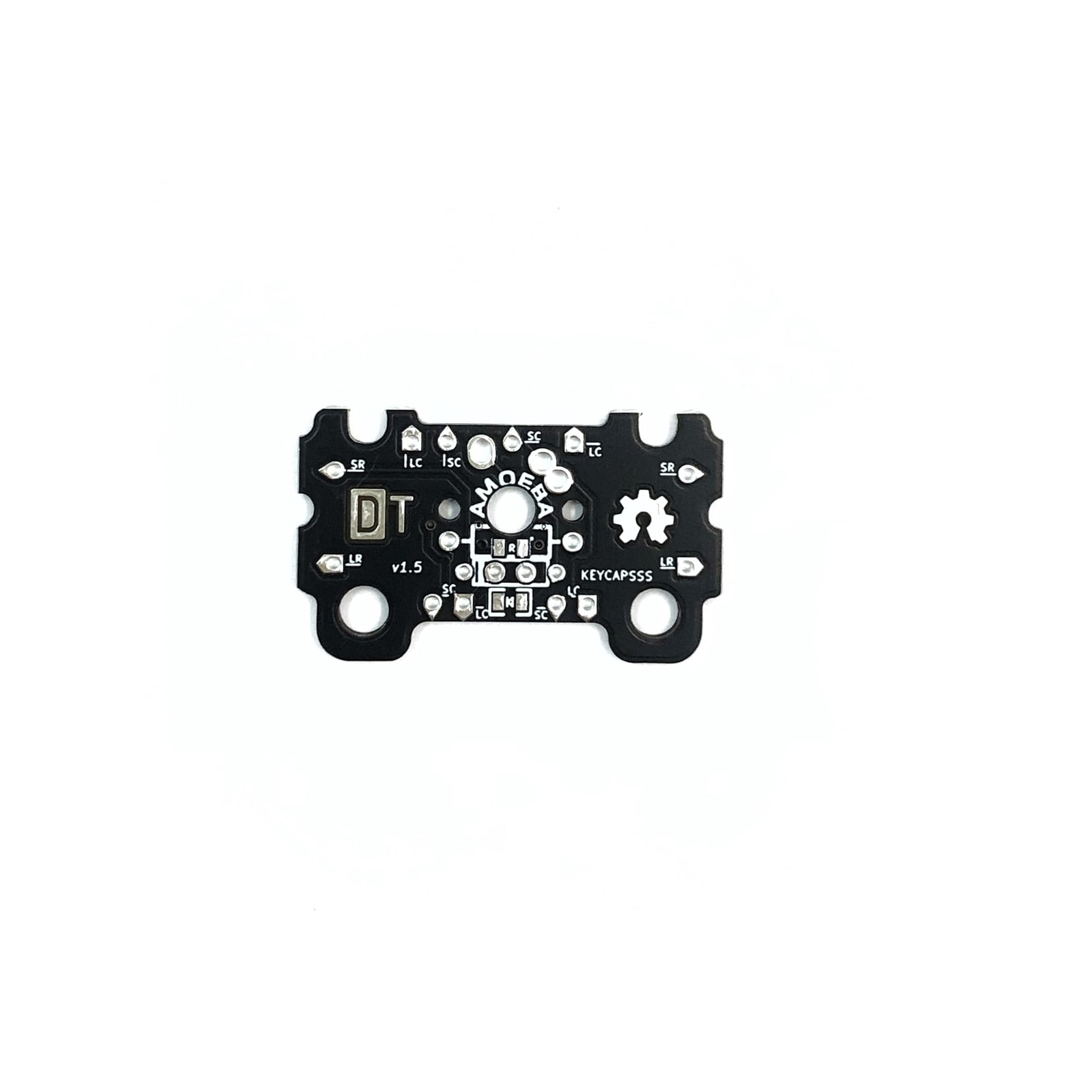

  • 2U supports stabilizer
  • Mill-Max 0305 Holtite are compatible
  • LeadFree HASL PCB surface finish



  • 1U comes as 5x5 panel
  • 2U as 1 pcs



SC = Switch column, SR = Switch row, LC = LED column, LR = LED row.

The bottom of the PCB has extra SC and LC pads to make column wiring easier for staggered layouts.

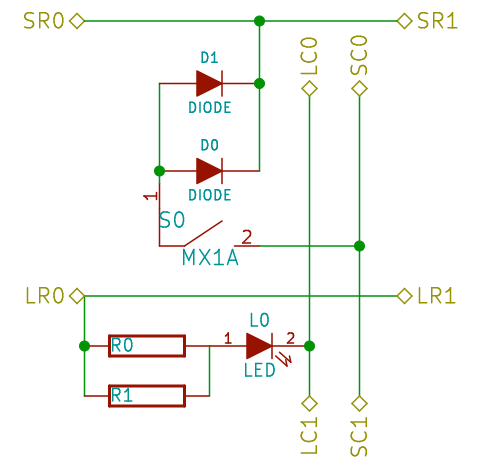

amoeba-schematic

Deskthority thread

PCB design by mtl
