MxLEDBit Single Switch PCB - MX Choc Hot Swap Socket
Description
Variant

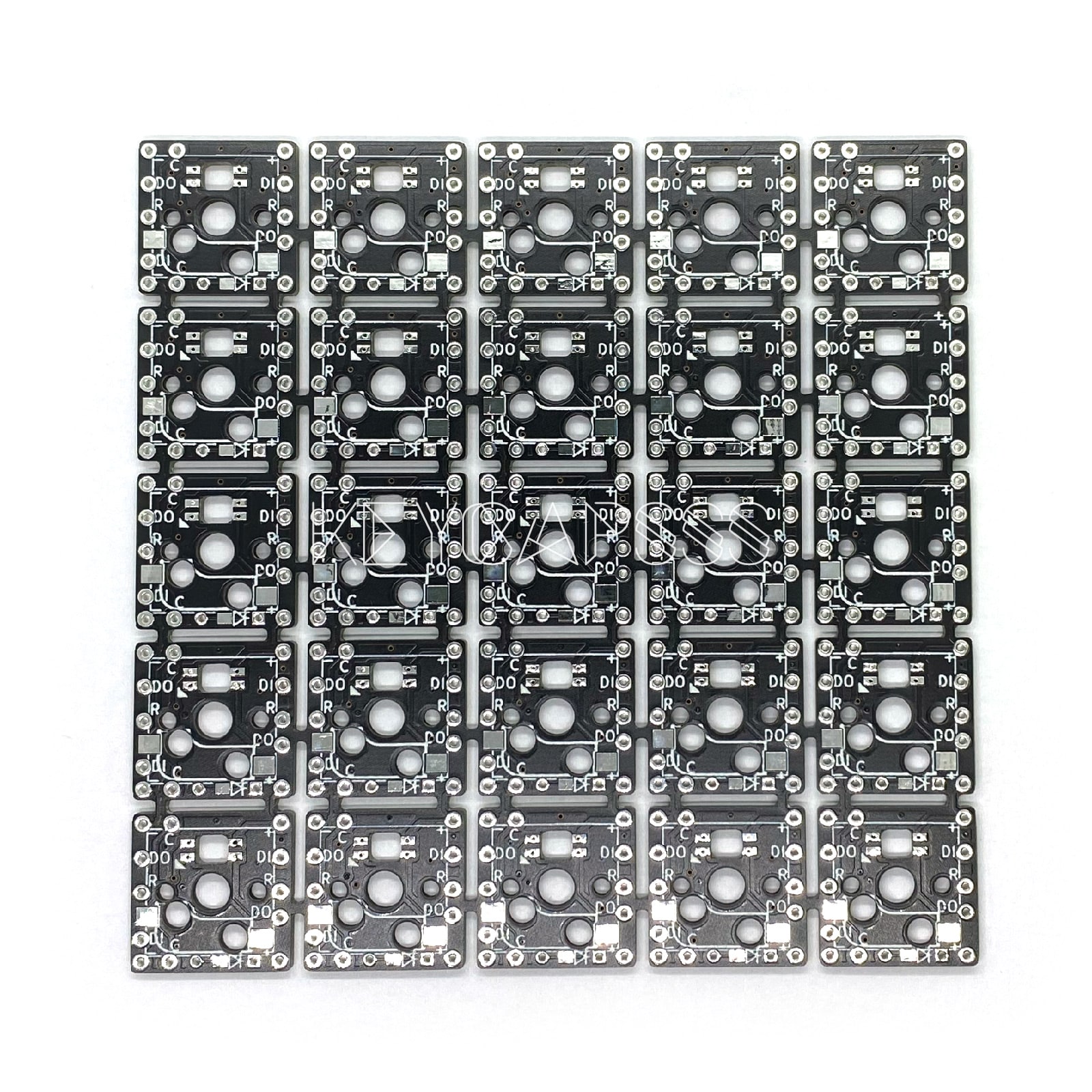

| Variant | Single PCB Qty | Switch | Kailh Hot Swap Socket | Switch LED | Diode |
|---|---|---|---|---|---|
| Choc | 25 | Choc V1 (no V2) | No | SK6812 Mini-E | SOD-123 |
| MX | 25 | MX switches and clones | No | SK6812 Mini-E | Through-Hole, SOD-123* |
| MX (Hot Swap) | 25 | MX switches and clones | Yes | SK6812 Mini-E | Through-Hole, SOD-123* |
| Pro Micro | 1 | - | - | - | - |
* If you use a SOD-123 diode, one pad will be shared with the through-hole hole due to space limitations.
- Pro Micro PCB has pins for a reset switch, I2C oled display, TRRS jack (for split keyboards) and of course the pro micro or similiar MCUs like Helios
- Grid Spacing: 19.05mm
- LeadFree HASL PCB surface finish

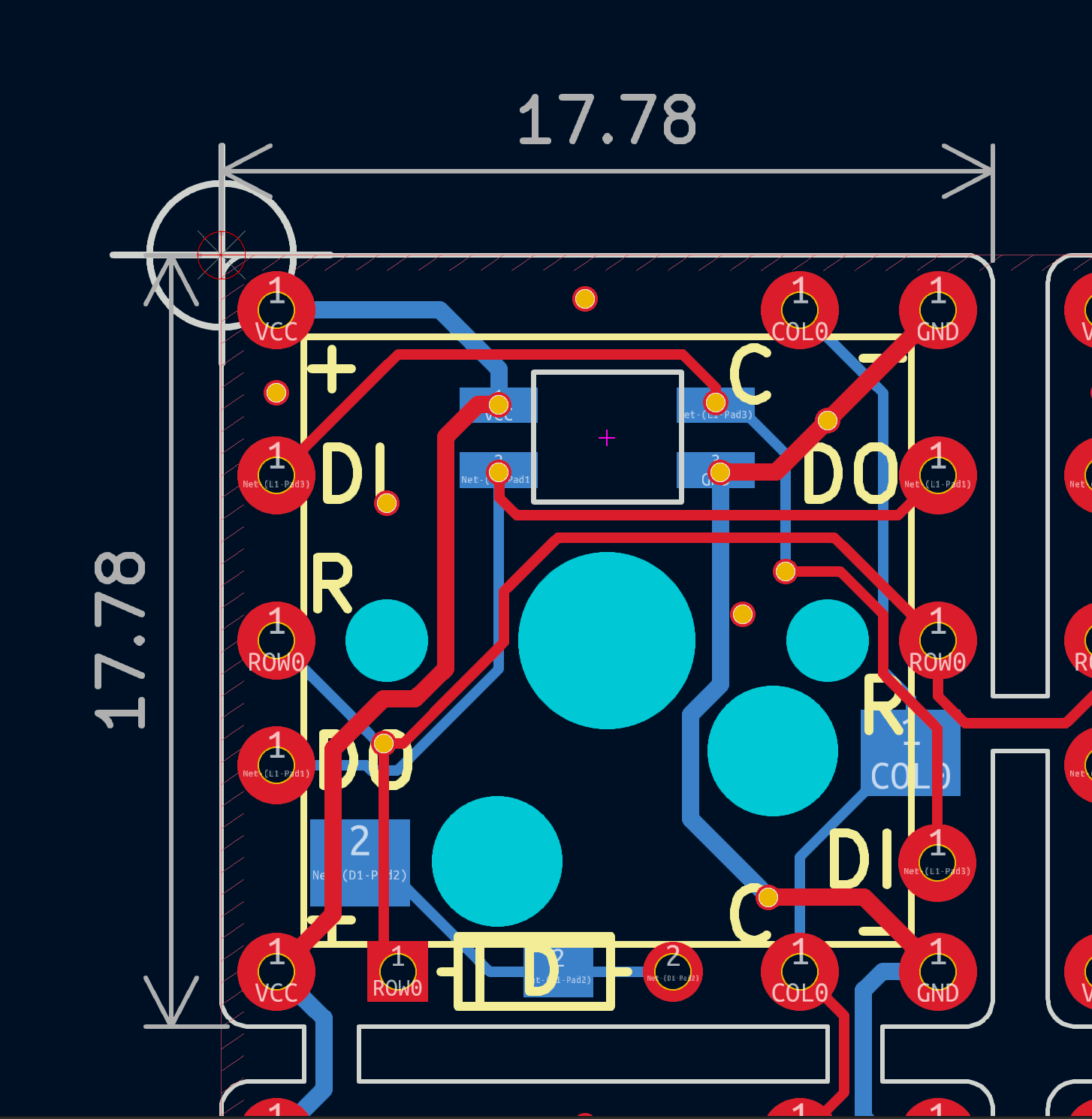

Pinout
The example in the photo is the MX variant, but the others are similar.
- C: Horizontal line (Column)
- R: Vertical line (Row)
- DI: LED control signal input (Data In)
- DO: LED control signal output (Data Out)
- -: Ground (for LED)
- +: VCC (5V for LED)
Hand Wiring CRKBD Example
Design by @swan_match
Reviews 1
Login
1 review
27 May 2025 11:54
All great. Thanks a lot
All great. Thanks a lot
