ErgoDash Split Keyboard PCB

Preview: ErgoDash Mechanical Split Keyboard PCB Black MX Preview: ErgoDash Mechanical Split Keyboard PCB White MX Preview: ErgoDash layout Preview: ErgoDash with acrylic case Preview: ErgoDash Acrylic Plate Case Split Keyboard RGB Underglow Preview: ErgoDash Acrylic Plate Case Split Keyboard RGB Underglow
ErgoDash Mechanical Split Keyboard PCB Black MX
ErgoDash Mechanical Split Keyboard PCB White MX

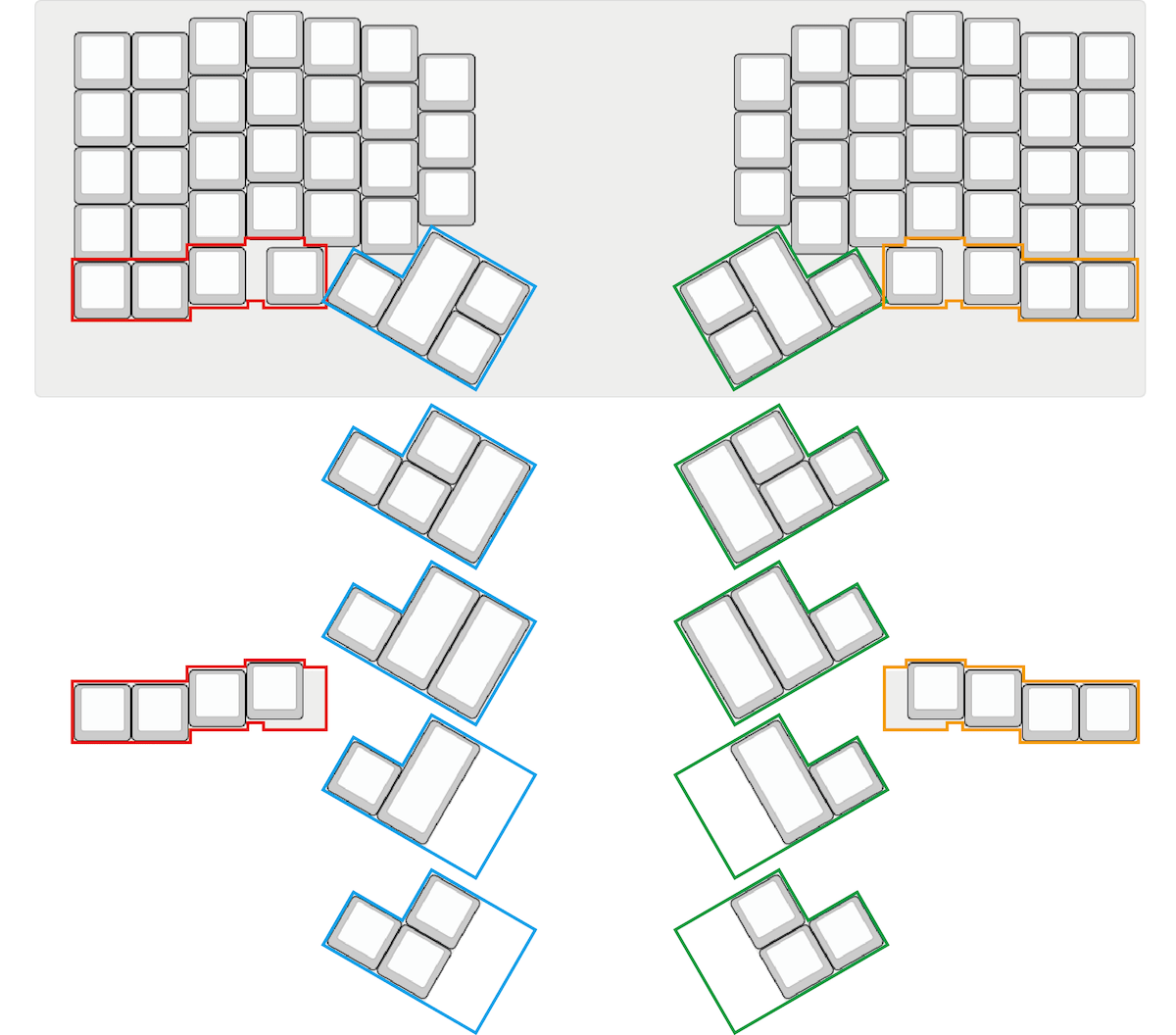

ErgoDash layout

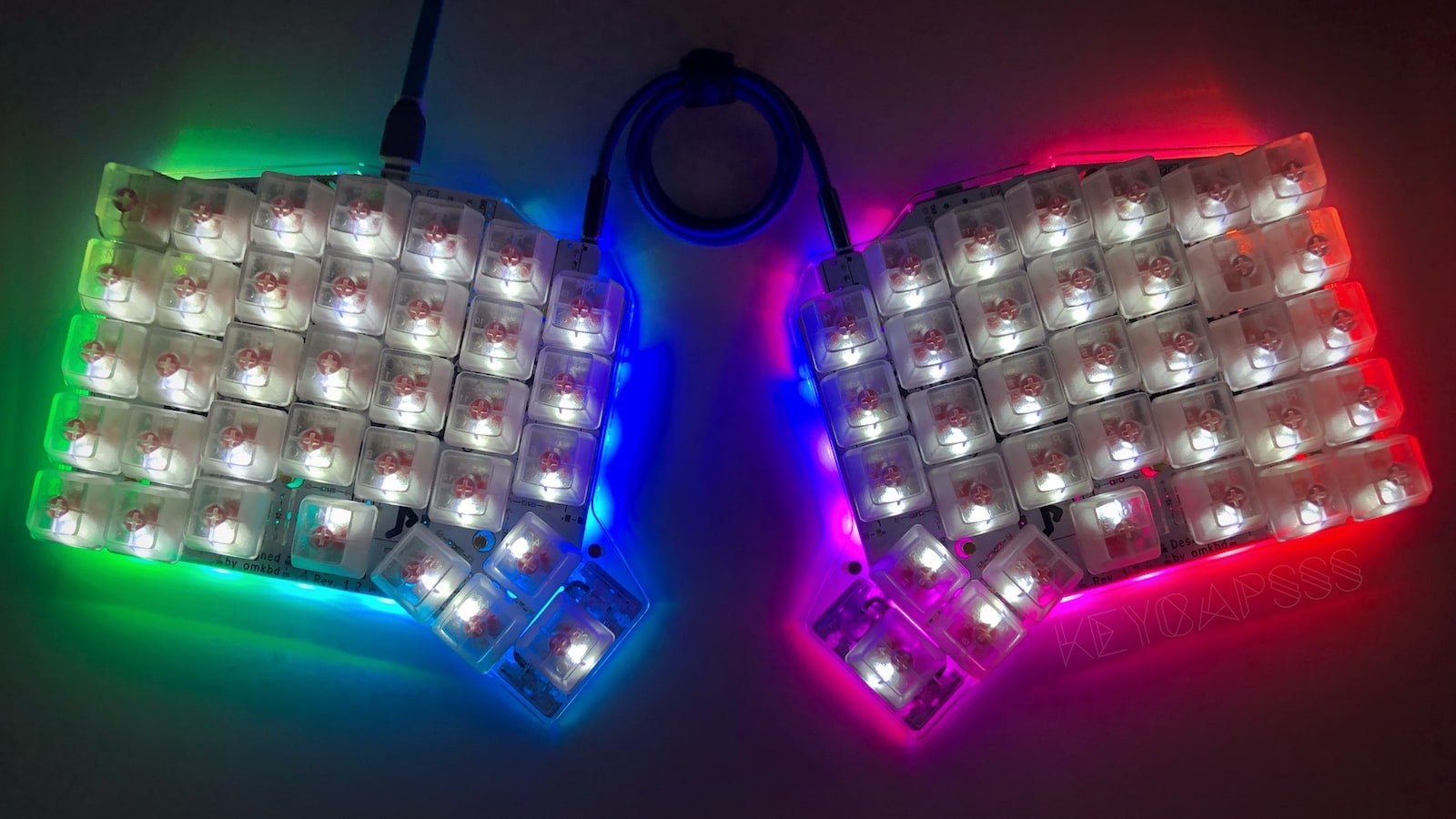

ErgoDash with acrylic case

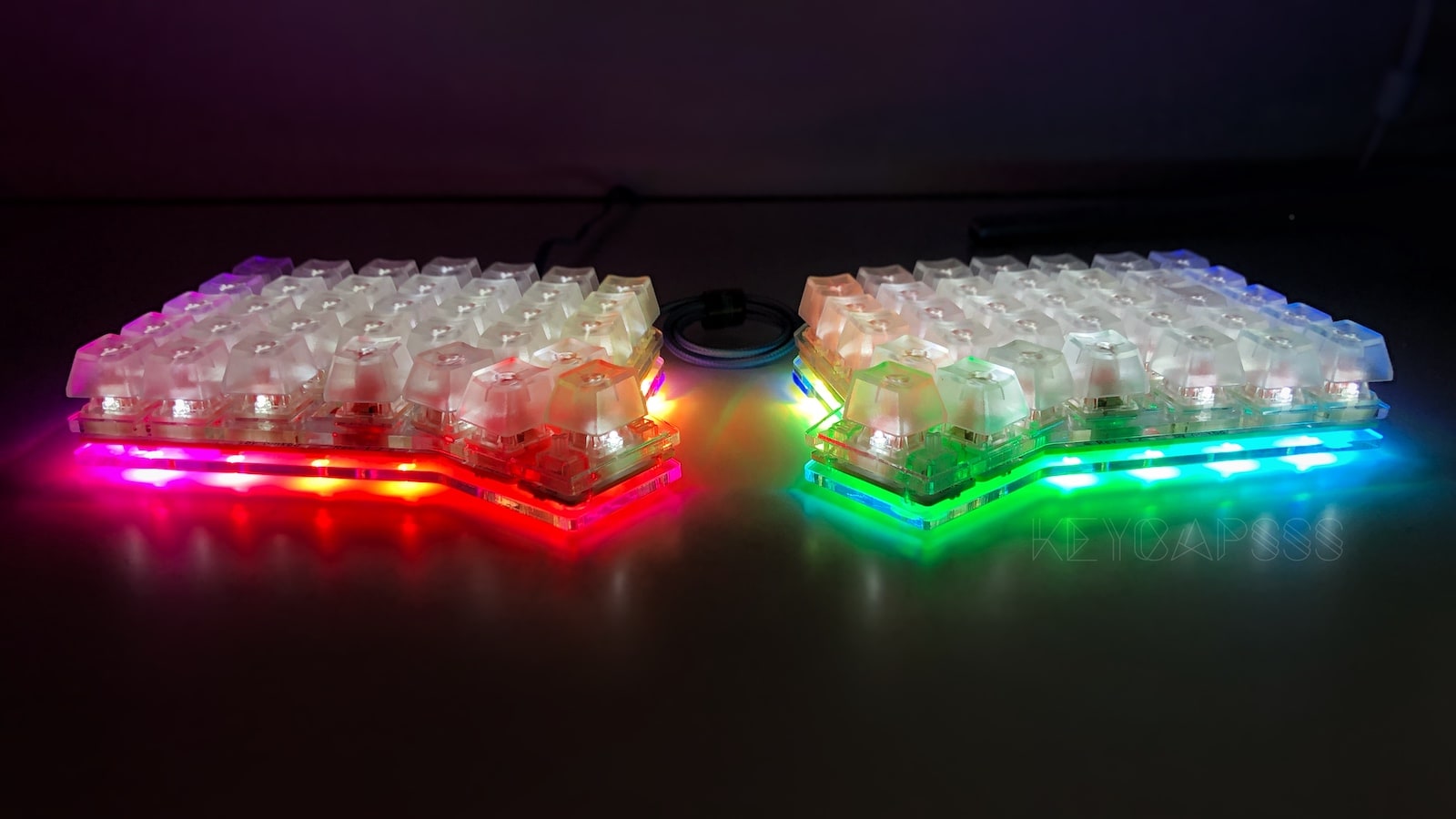

ErgoDash Acrylic Plate Case Split Keyboard RGB Underglow
ErgoDash Acrylic Plate Case Split Keyboard RGB Underglow

This product is currently not available.
Please check the news board.
Please inform me as soon as the product is available again.
Please enter these characters in the following text field.

€18.90 *

Prices incl. VAT plus shipping costs

This product is currently not available.

Variant:

  • Order number: KC10032_MX_BK
Description Evaluations 0
Description
  MX PCB: includes 2x ErgoDash PCB  Rev1.2 compatible with Cherry MX... more
Close menu
ErgoDash Split Keyboard PCB



MX PCB:

  • includes 2x ErgoDash PCB  Rev1.2
  • compatible with Cherry MX switches and Mx Clonse like Gateron ... (not Choc)
  • solder parts not included (choose separate from drop down menu)



Parts Kit:

  • 70x 1N4148 diodes
  • 2x TRRS jack
  • 2x MJTP1117 switch
  • 70x 470Ω resistor (for key backlight leds)
  • 2x 1kΩ resistor (for key backlight leds)
  • 2x MOSFET IRLML6344TRPBF 30V 5A 1.1V (for key backlight leds)



What else do you need:

  • TRRS cable × 1
  • Micro USB cable × 1
  • Arduino Pro Micro × 2 or Elite-C
  • 66-70 MX switches
  • Keycaps
  • Optional: LED WS2812B × 24 (for underglow)
  • Optional: LED 1.8mm × 66-70 (for key backlight)



Build Guide

Photos of the completed keyboard are for demonstration purposes only.
Please note that this pcb must be assembled (soldering) and does not include mcu, switches or keycaps.

PCB design by omkbd
