MAC8 XB-3-2.5-12P Spring-loaded pin headers 12-pin 2PCS
Product number:
KC10058
Product information "MAC8 XB-3-2.5-12P Spring-loaded pin headers 12-pin 2PCS"
- 12 pin per header

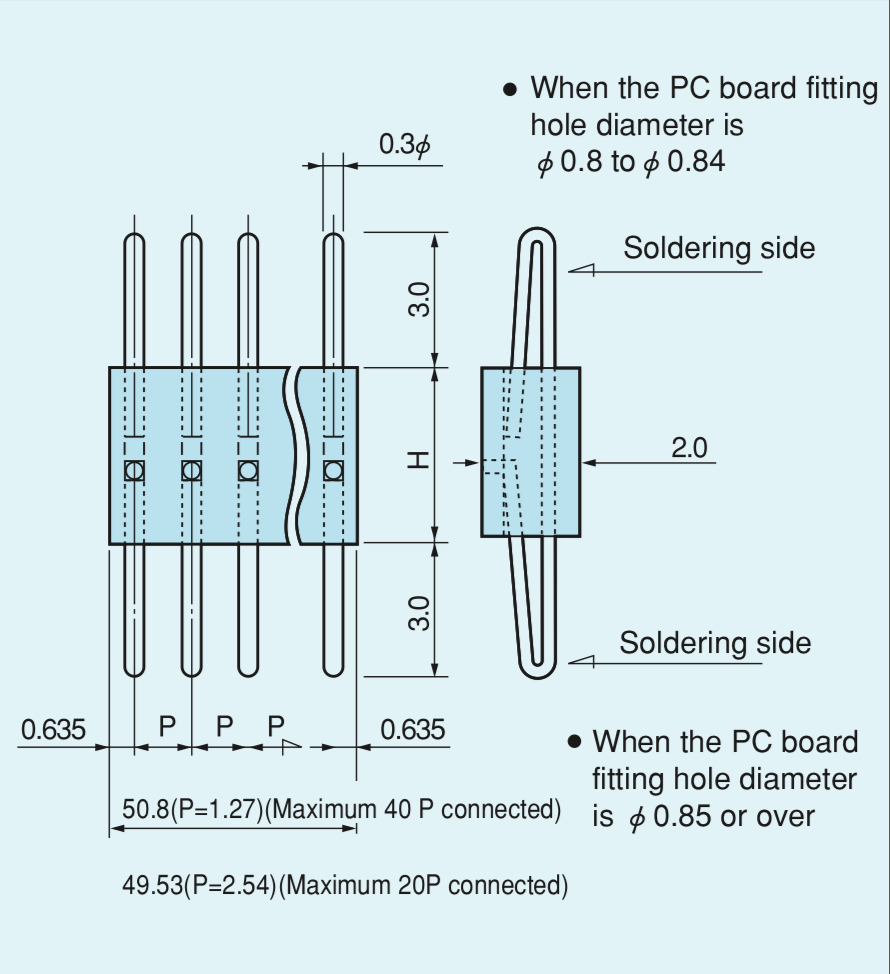

- H: 2.5mm (The dimension H is the distance between the PC boards)
- Rated current: 1A
- Rated voltage: 125V AC, DC
- Pitch: 2.54 mm
- includes 2x 12 pin header
Insertion / removal forces (per pin):
| Through hole | Insertion forces | Removal forces |
|---|---|---|
| 0.8 | 200g or less | 50g or ove |
| 0.85 | 150g or less | 30g or ove |
| 0.9 | 100g or less | 20g or ove |
