Gingham Kit 60% Keyboard Through Hole (White Pcb)
Current pcb's (1x white left).
These are the last kit's. If they are gone, i will not restock them, due to the license change by the creator.

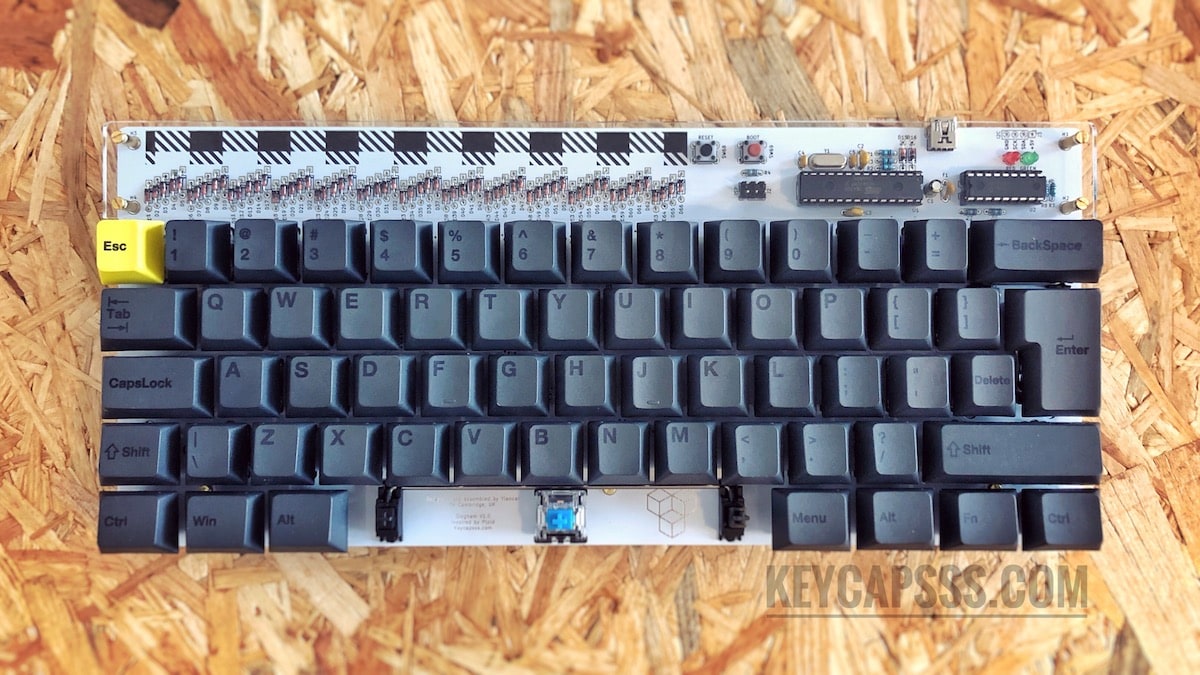

The ANSI/ISO keyboard kit made using ONLY through hole components and inspired by the Plaid.
It supports the ANSI and ISO layout, split right Shift and split Backspace.

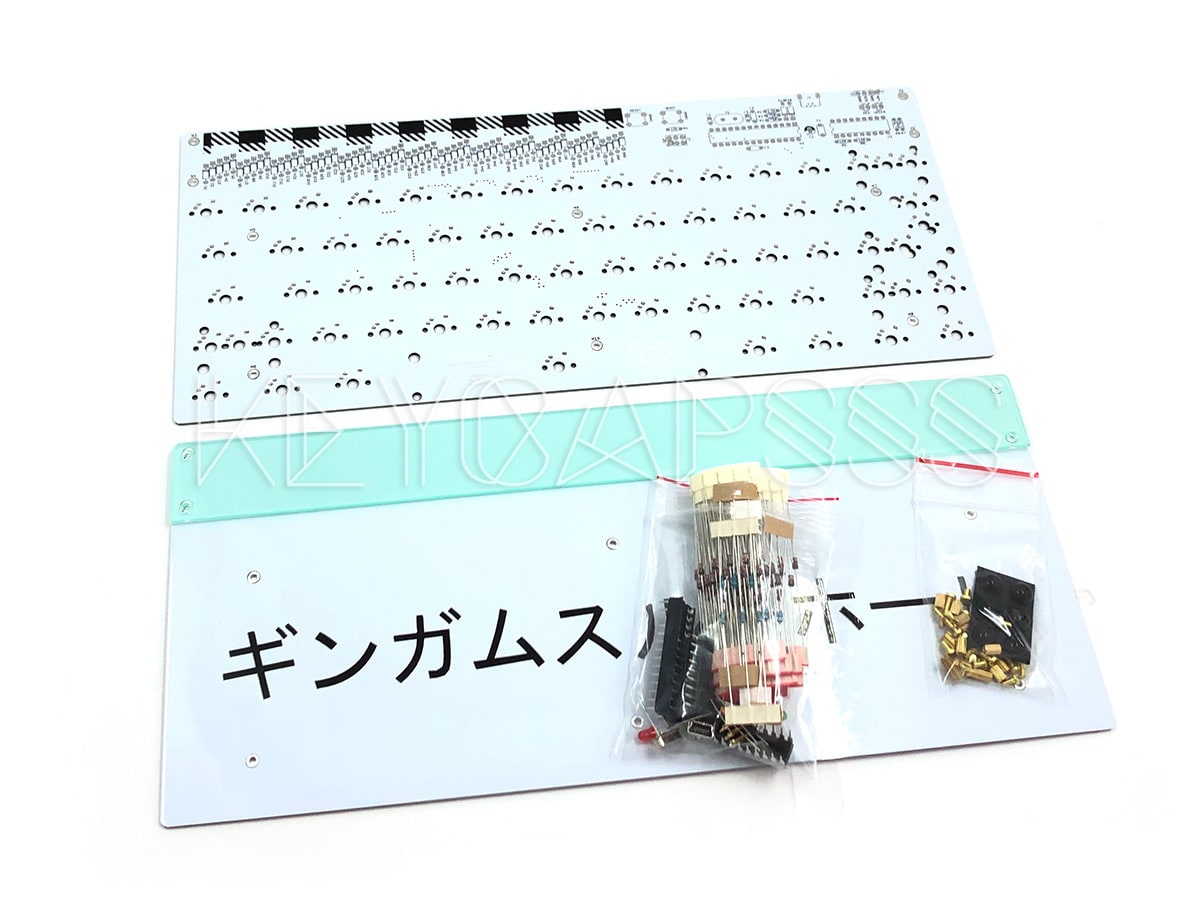

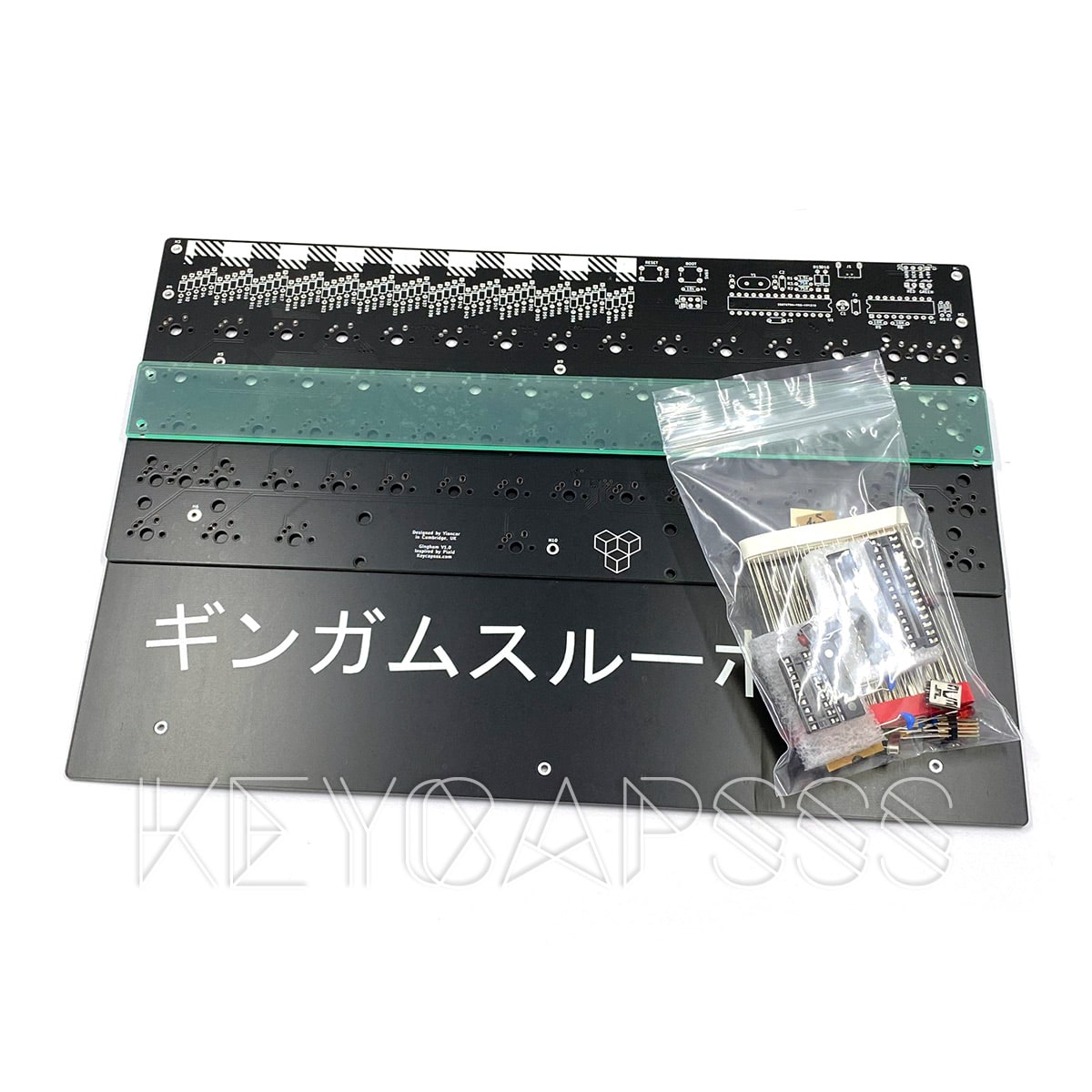

All solder parts, screws, spacer, acrylic guard plate and pcb's are included. You need switches, stabilizer and keycpas.
The Bootloader and QMK firmware (ANSI layout) are already flashed on the the Atmega328p.
Solder parts and you can start typing.
- Atmega328p with VUSB on QMK firmware.
- Designed by Yiancar
You need a T6 (Torx) screwdriver.
Default Firmwares:
