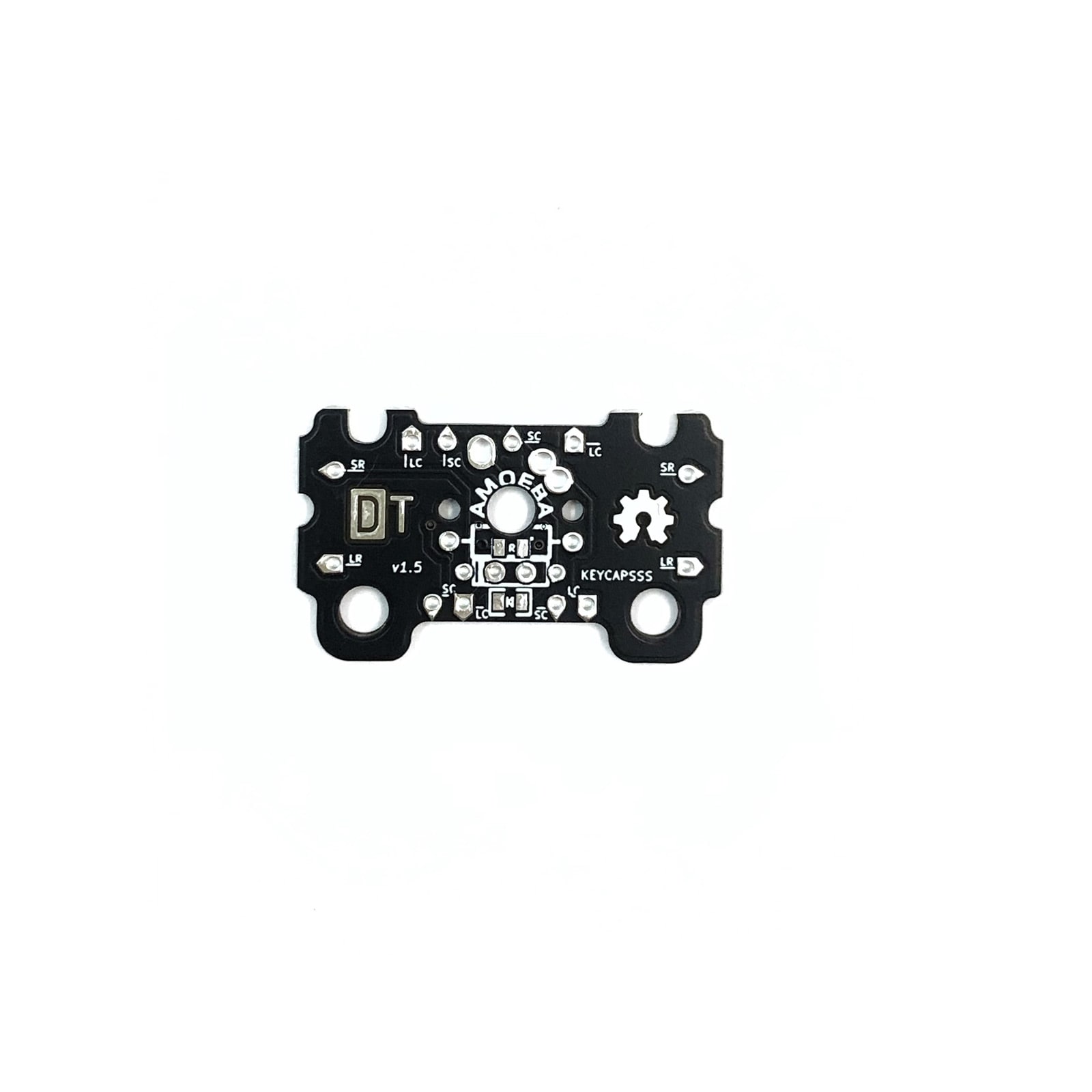

Amoeba Single-Switch PCB 1U / 2U
€0.90
Ready to ship: Delivery time 2-5 workdays (Germany), 5-14 workdays (EU), 10-20 workdays (Int.)
Description
- MX and Alps support
- Support for through-hole components or SMD (LED 0805 and diode 0805/SOD-123)
- 2U supports stabilizer
- Mill-Max 0305 Holtite are compatible
- LeadFree HASL PCB surface finish
- 1U comes as 5x5 panel
- 2U as 1 pcs

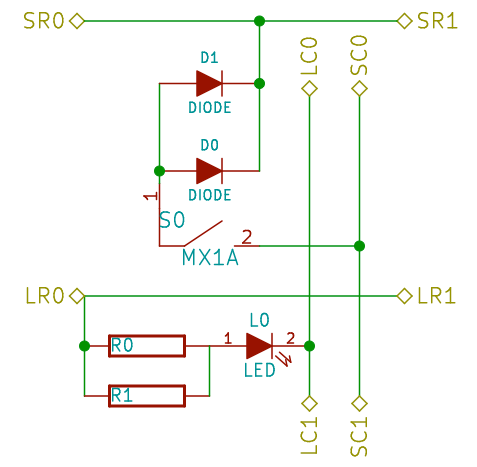

SC = Switch column, SR = Switch row, LC = LED column, LR = LED row.
The bottom of the PCB has extra SC and LC pads to make column wiring easier for staggered layouts.
PCB design by mtl
