Hummingbird Keyboard PCB

€14.00*

€11.76 excl. sales tax

* Prices incl. VAT (if any) plus shipping (and customs duties, if any)

Currently out of stock

Product number: KC10200

Product information "Hummingbird Keyboard PCB"

You need:

Seeed Studio XIAO (nRF52840 for wireless, or RP2040 wired)
30x Choc V1 switches (not V2)
30x Choc V1 compatible keycaps
30x SMD Diodes SOD-123FL
3D printed case (download here)
USB-C cable (with small USB-C end to fit between switches)
Optional for wireless: LiPo battery 1cell (3.7V)

ZMK config

LeadFree HASL PCB surface finish

Design by Peter Elliot

Photos of the completed keyboard are for demonstration purposes only.
Please note that this pcb must be assembled (soldering) and does not include mcu, switches or keycaps.

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

Display reviews in current language only.

No reviews found. Share your insights with others.

Safety information

EU responsible person: Keycapsss | Benjamin Rösner, Löhrstr. 11, 04105 Leipzig, Germany
Contact: Keycapsss.com

Accessory Items

No Brand

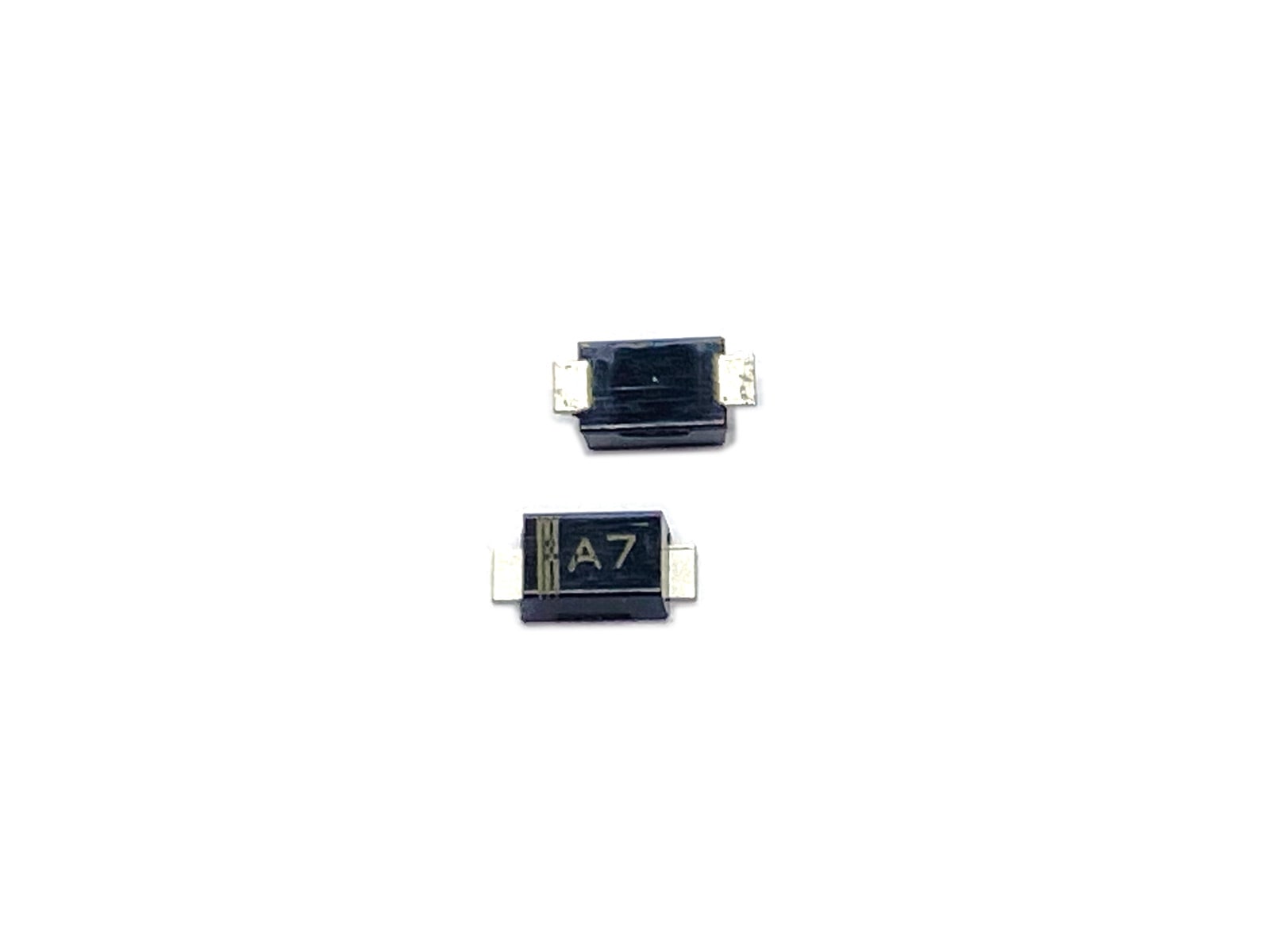

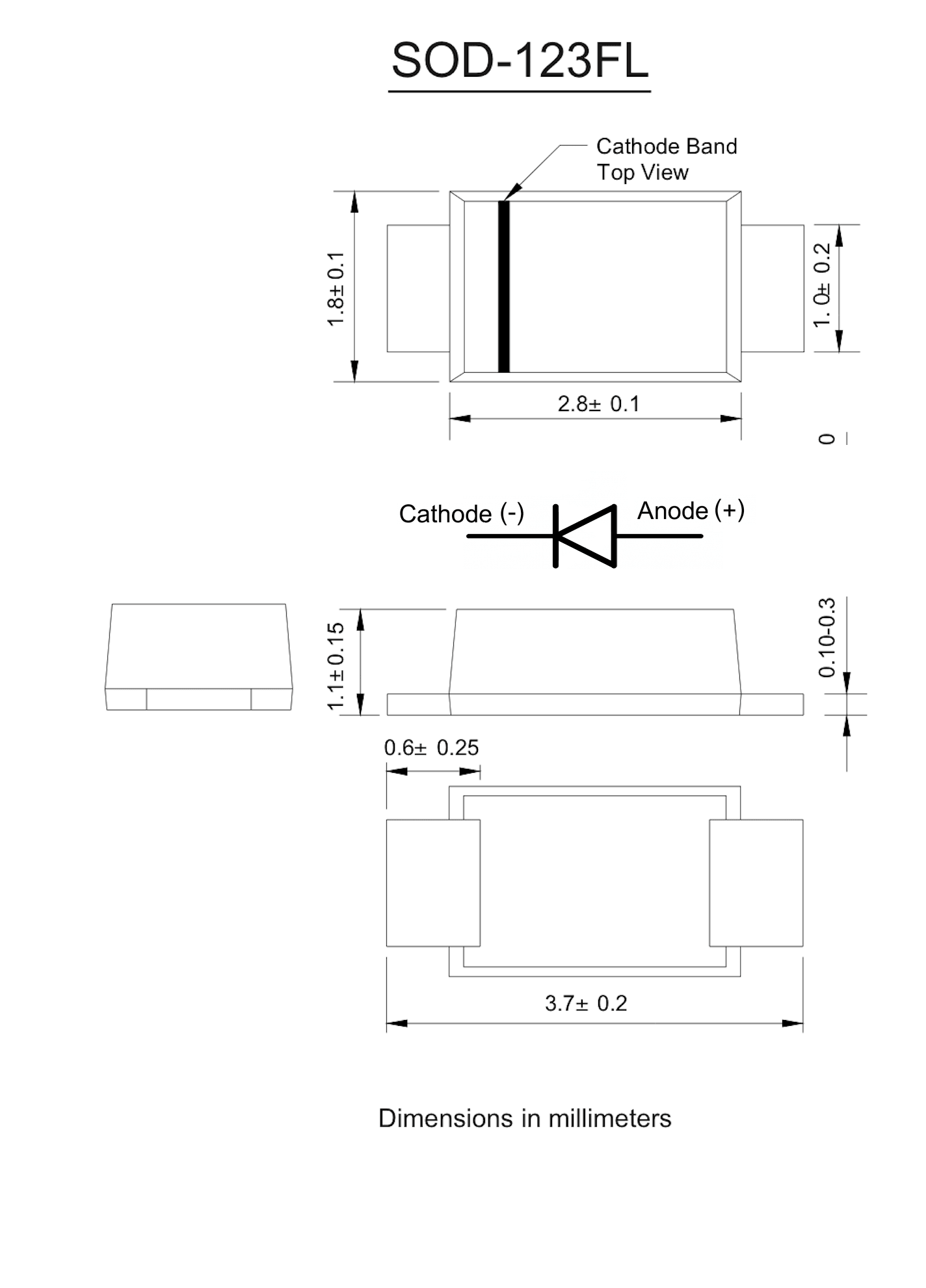

SMD Diodes SOD-123FL
