Planck compatible Carbon Top Plate for HI-PRO OLKB Case (ortholinear keyboard)
| Quantity | Unit price |
|---|---|
| To 2 |
€29.90*
|
| From 3 |
€25.90*
|
€25.13 excl. sales tax
Product number:
KC10015_MX-MATT
Product information "Planck compatible Carbon Top Plate for HI-PRO OLKB Case (ortholinear keyboard)"

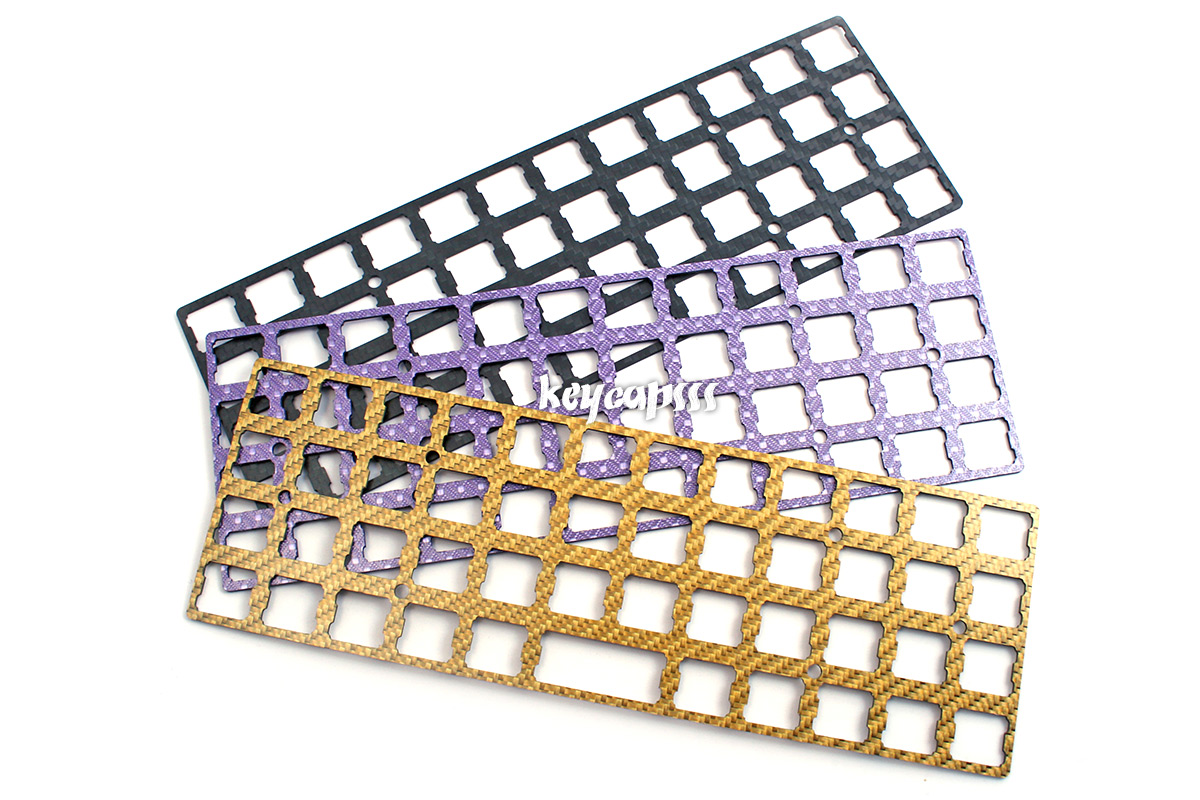

This carbon top plate fit's to the Planck HI-PRO bottom case from OLKB.
- Supports MIT and GRID layout
- Compatible with Cherry MX keyswitches, and MX clones (Gateron, Kailh, Zealio …)
- Plate is 1.5 mm thick
- Material Carbon
- With top opening holes (open switches without desoldering)
- GRID SPACING (GS): 19mm
These plates are not compatible with LO-Pro Planck cases from OLBK.
