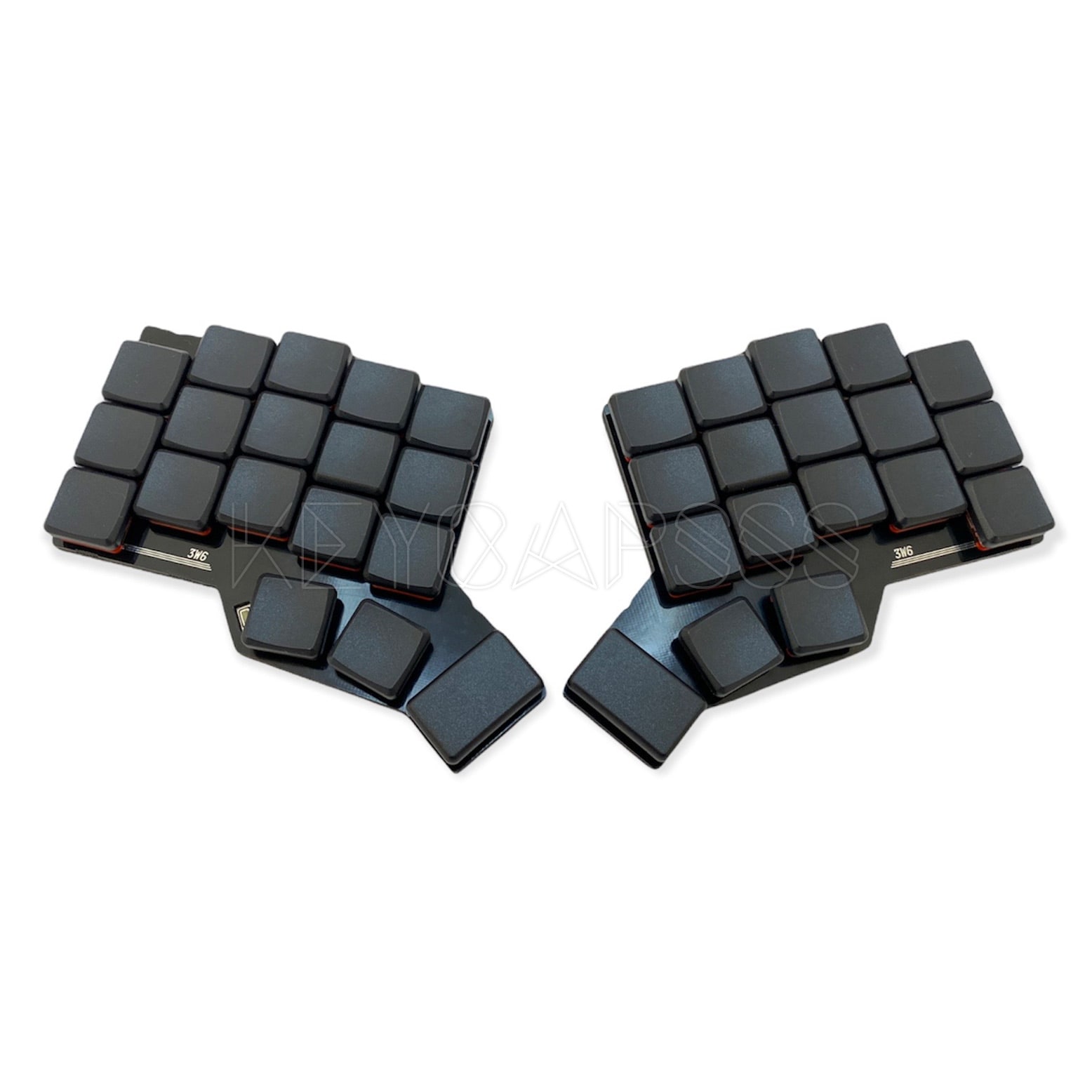

3W6 RP2040 Split Keyboard Kit

€82.00*

€68.91 excl. sales tax

* Prices incl. VAT (if any) plus shipping (and customs duties, if any)

1 Review

Currently out of stock

Product number: KC10147

Product information "3W6 RP2040 Split Keyboard Kit"

This is the new 3w6 RP2040 version. Instead of the old ATmega32U4, it uses a modern RP2040 32-bit dual ARM microcontroller.

New features:

Onboard controller (RP2040) on both sides
4MB (32Mbit) QSPI flash and 264 KB SRAM
Full Duplex UART split transport up to 1.5Mb/s
Handedness via eeprom (automatic dectect which one is the master side via VBUS detection)
1x Blue user led (GPIO17) and 1x RGB led (WS2812) (GPIO25) on both sides, for layer or caps lock indication
ESD protection on all USB-C ports (also on the serial circuit)
Optional Pimoroni Trackball on both sides (The Pimoroni Trackball Rev2024 have a Qw/ST socket at the bottom, which sticks out at the keyboard bottom)
VIAL firmware flashed on both halfs, open VIAL GUI and change the layout as you need

Features:

PCB's are completely assembled, only the Choc V1 switches need to be soldered on
USB-C connector on master side for computer <-> keyboard connection
USB-C to USB-C connection between split keyboard halfs
Support for Choc V1 switches (not V2)
Choc spacing (keycaps are closer to each other)
Low profile and lightweight
Aggressive pinky stagger

This split keyboard kit does not support hotswap, no multiple switchtypes, no encoders, no LEDs, no Oled display.

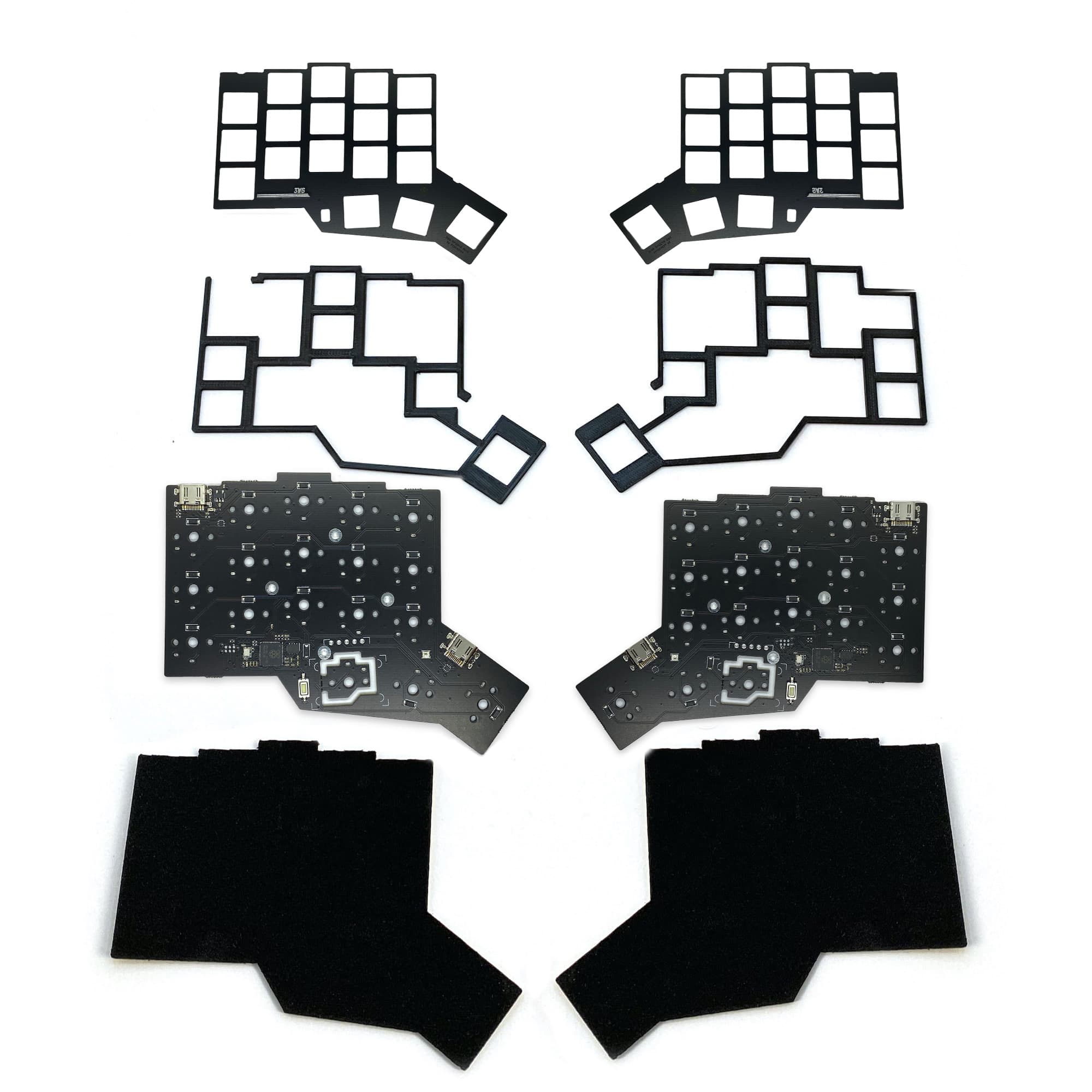

Includes:

Left and right keyboard PCB (SMD components already assembled)
Top plates (black with silver 3W6 logo, FR4 material)
Middle plates (3D printed, black PLA)
Bottom Foam (self adhesive)

You need:

36x Choc V1 switches (no V2)
34x Choc 1U keycaps
2x Choc 1.5U keycaps
USB-C cable
Short USB-C to USB-C cable to connect both halfs (15-30cm)
Solder and solder iron to solder the switches

Build-Guide

Souce code for VIAL firmware and Precompiled VIAL firmware

3D printed parts made with high quality filament from Redline Filament (made in Germany, environmentally friendly paper spool).

Photos of the completed kit are for demonstration purposes only.
Please note that this kit must be assembled (soldering switches) and does not include switches or keycaps.

PCB and case design by weteor, RP2040 port by 0xCB

1 of 1 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

Display reviews in current language only.

Sort by

1 review

22 June 2024 18:40

Elegant and functional, compact, easy to assemble, close to perfect

This is a fantastic "no frills" keyboard, suitable as a daily driver, and while on the move. I love the simple and elegant design. The halves are connected with a USB-C cable, which is great, because high quality cables of the perfect length are easily available. I use a 20 cm braided cable, which proved to be the optimal length. For a really wide split a 30 cm cable should be used. Assembly was really easy. Only the switches have to be soldered. I had to make some minor adjustments to the middle plate by filing away some plastic. This was not a problem, but the build quality of the 3D printed middle plate could be a bit better. The keyboard itself is very quiet, because of the tight sandwiched design. With Ambient switches it should be a very low noise board (I have not verified this). The bottom foam is perfectly cut, and sticks very well. I love the feel and no-slip quality of the material. The foam parts should be available separately in the shop, as a replacement, and in case the foam must be removed in order to change switches. It is NOT possible to replace the springs of the switches after they are soldered! The switch decision is final when the board is assembled. I use POM MCC profile keycaps, and convex keycaps on the thumbs. The inner thumb cluster can be "tightened" by using 2x 1.25u keycaps, cutting one short at an angle. With regards to the design: since this uses RP2040 on-board on each half (good!), the design could be matrix-free ("diodeless"). The diodes are pre-soldered, but still not necessary. Also, it would be good to at least have the option to apply hot-swap sockets, as this would have no downsides. Overall, I strongly recommend this keyboard.

Our feedback: A big thank you for this detailed and helpful review.The bottom foam will be available soon in the shop, as spare part.If i do a revision of the 3W6, i will consider your suggestions (diodes and hot-swap).

Safety information

EU responsible person: Keycapsss | Benjamin Rösner, Löhrstr. 11, 04105 Leipzig, Germany
Contact: Keycapsss.com

Accessory Items

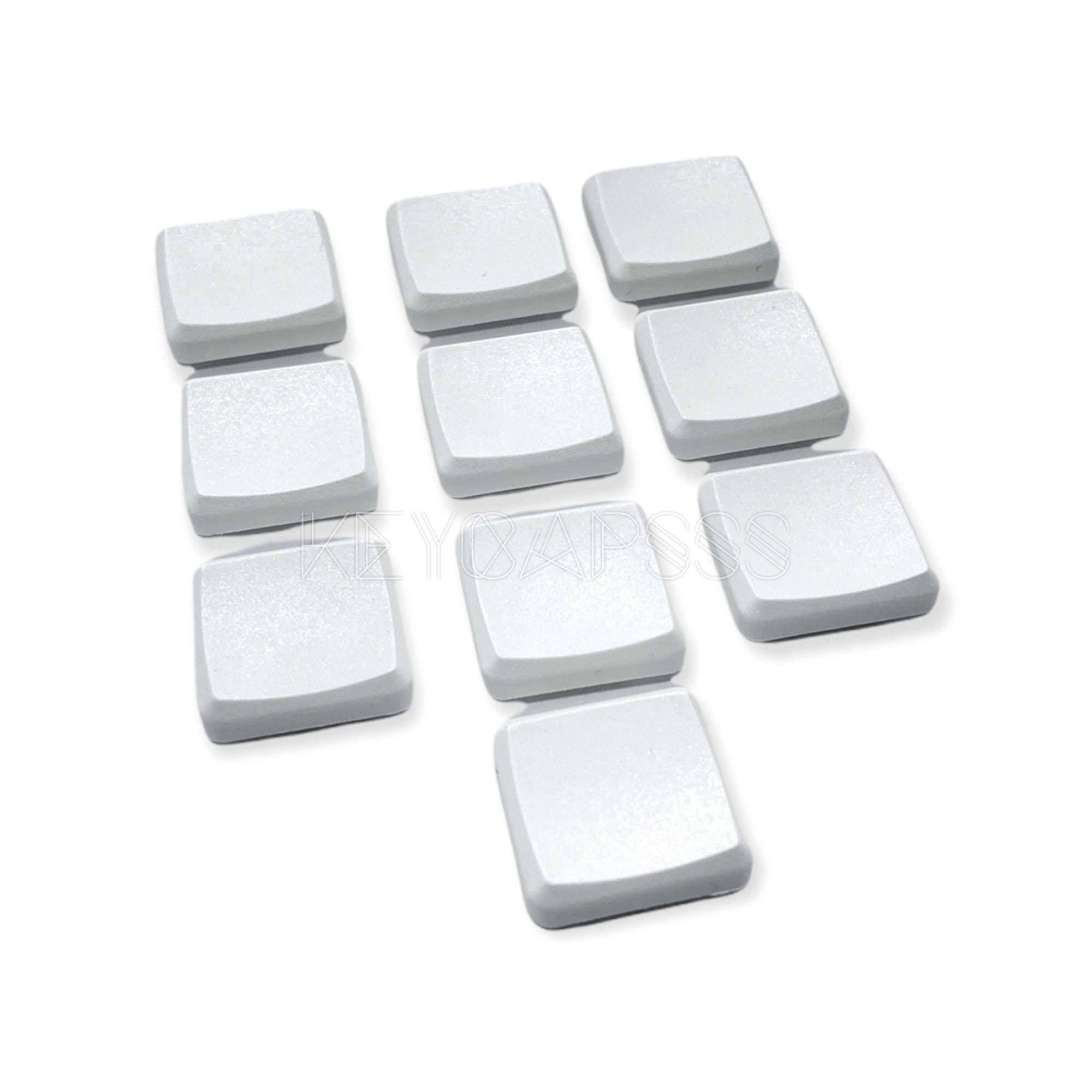

MBK Choc Low Profile Blank Keycaps

Compatible with Choc V1 switches (not V2) Material: PBT Dimensions: 1U 17.5x16.5mm / 1.5U 26.5x16.5mm / 2U 35.5x16.5mm 2U support stabilizer Photos of the completed keyboard are for demonstration purposes only.This product includes only keycaps.

From €1.20*

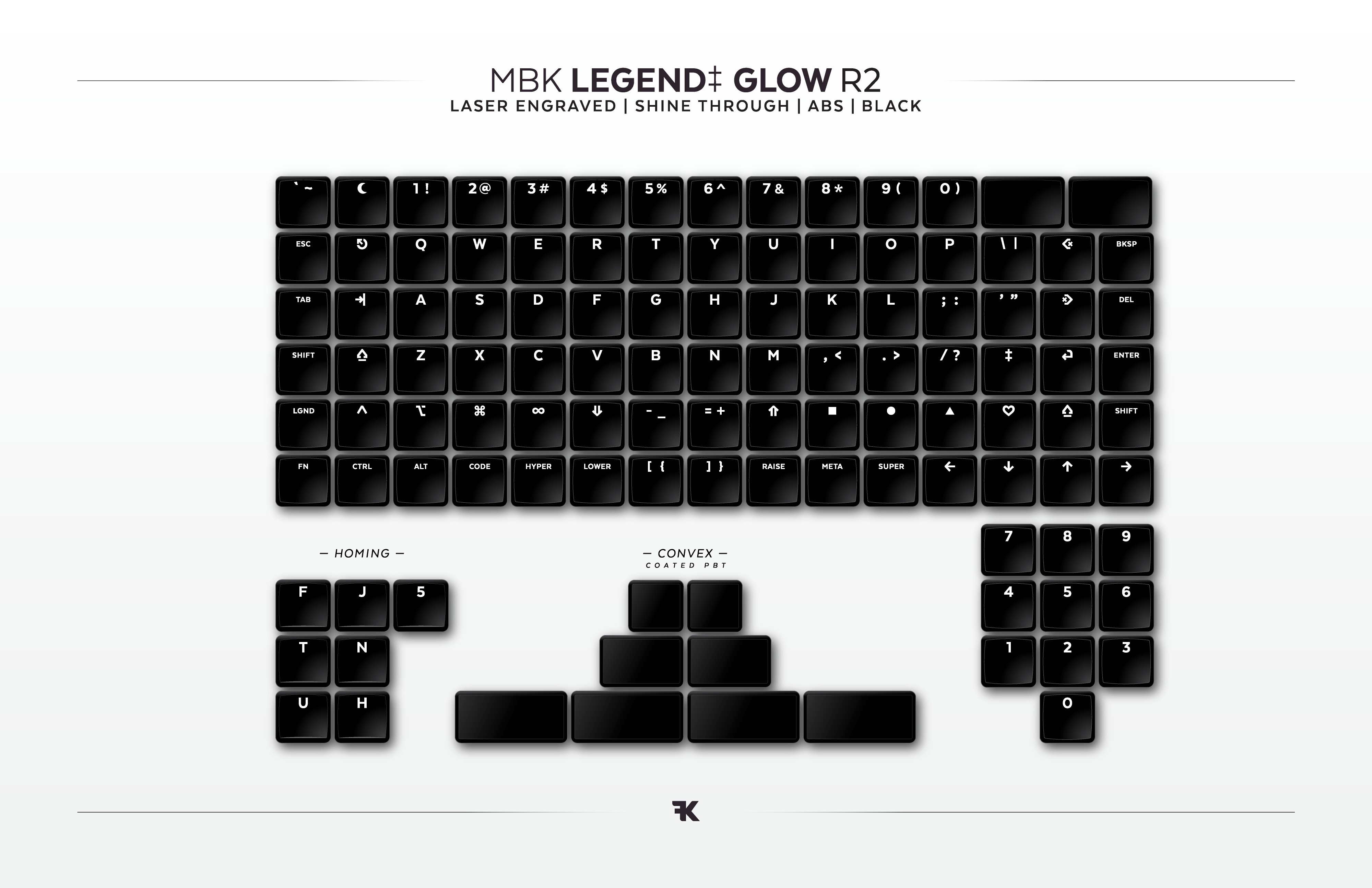

MBK Legend Glow R2 (Black) Choc Low Profile Keycap Set

MBK Legend‡ Glow R2 is the second generation of the Legend‡ Glow keycap set, made in shinethrough ABS material. The kits include special homing keys to accommodate for the many different keyboard layouts like qwerty, dvorak, workman and colemak. Modifiers are available in both icon and text styles. Each kit also includes 1.5u and 2.0u convex keycaps. Translucent ABS base material Opaque durable PU coating with laser etched legends Large kit that includes lots of legends optimized for backlighting Carefully adapted to shine uniformly using the small LED window in Kailh Choc switches 2U keycaps have stabilizer support Compatible with Choc V1 switches (not V2) Photos of the completed keyboard are for demonstration purposes only.This product includes only keycaps.

€64.00*

Pine64

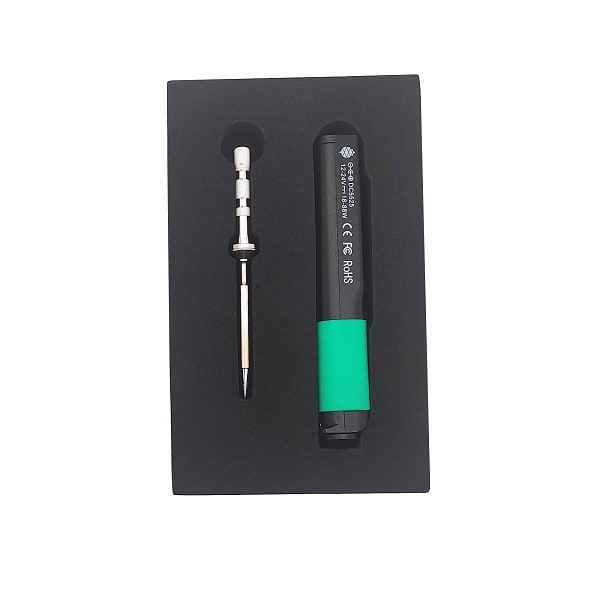

Pinecil V2 - Smart Mini Portable Soldering Iron

The Pinecil is a smart mini portable soldering iron with a 32-bit RISC-V SoC featuring a sleek design, auto standby, open source firmware and it heats up to an operating temperature in just 6 seconds! Dual power input design: 1) USB-C supports both PD and QC 3.0 and 2) DC5525 barrel DC jack. Speedy Rapid Warmup: Reaches operating temperature in 6 seconds. Support for on-demand rapid boost feature. Adjustable soldering tip temperature which can be set between 100° C and 400° C using the adjustment buttons and an easy-to-read OLED display. Portable: it features a sleek and slim design, comprised of an SAE 304 stainless steel core housed inside a polycarbonate shell. Auto standby mode engages when it is not in use ensuring the user safety. Read the Wiki for detailed information The official firmware that comes with the Pinecil is open source Ralim's IronOS Before first use, read this! You need: USB-C with USB-PD (Power Delivery) power supply and min. 60W (like this one*, or this*) or a DC5525 power supply unit (12-24V) with a barrel DC jack (5.5mm outer dieameter, 2.5mm inner diameter) center positiv jack or QC 3.0 USB power supply BODY Dimensions: 155mm with solder tip / 103mm without solder tip x 12.8mm x 16.2mm Weight: 28g with solder tip / 18g without solder tip Build: Plastic with metal clip (Handle) Color: Black (case)/ Green (Sleeve) Power 88W PLATFORM OS: Ralim’s IronOS build Chipset: Bouffalo BL-706 CPU: 32-bit RV32IMAFC RISC-V “SiFive E24 Core” @ 144 MHz DISPLAY Type: OLED White Colour Monochrome Display Size: 0.69 inches Resolution: 96x16pixels MEMORY Internal Flash Memory: 192KB System Memory: 132KB SRAM Expansion: None POWER PORTS USB type C: PD and QC 3.0 12V-20V 3A Barrel Jack: DC5525, 12V-24V DC 3A (center positive barrel) TIP Type B2 Length: 86mm Weight: 8.2g FEATURES Capable received power from either USB-C port or barrel jack. GPIO break-out thru USB-C port CERTIFICATION FCC CE RED ROHS PACKAGE CONTENTS Pinecil Soldering Iron ST (Short Tip)-B2 Soldering Tip *Affiliate-Link

€56.00*

[ Currently out of stock ]

Kailh

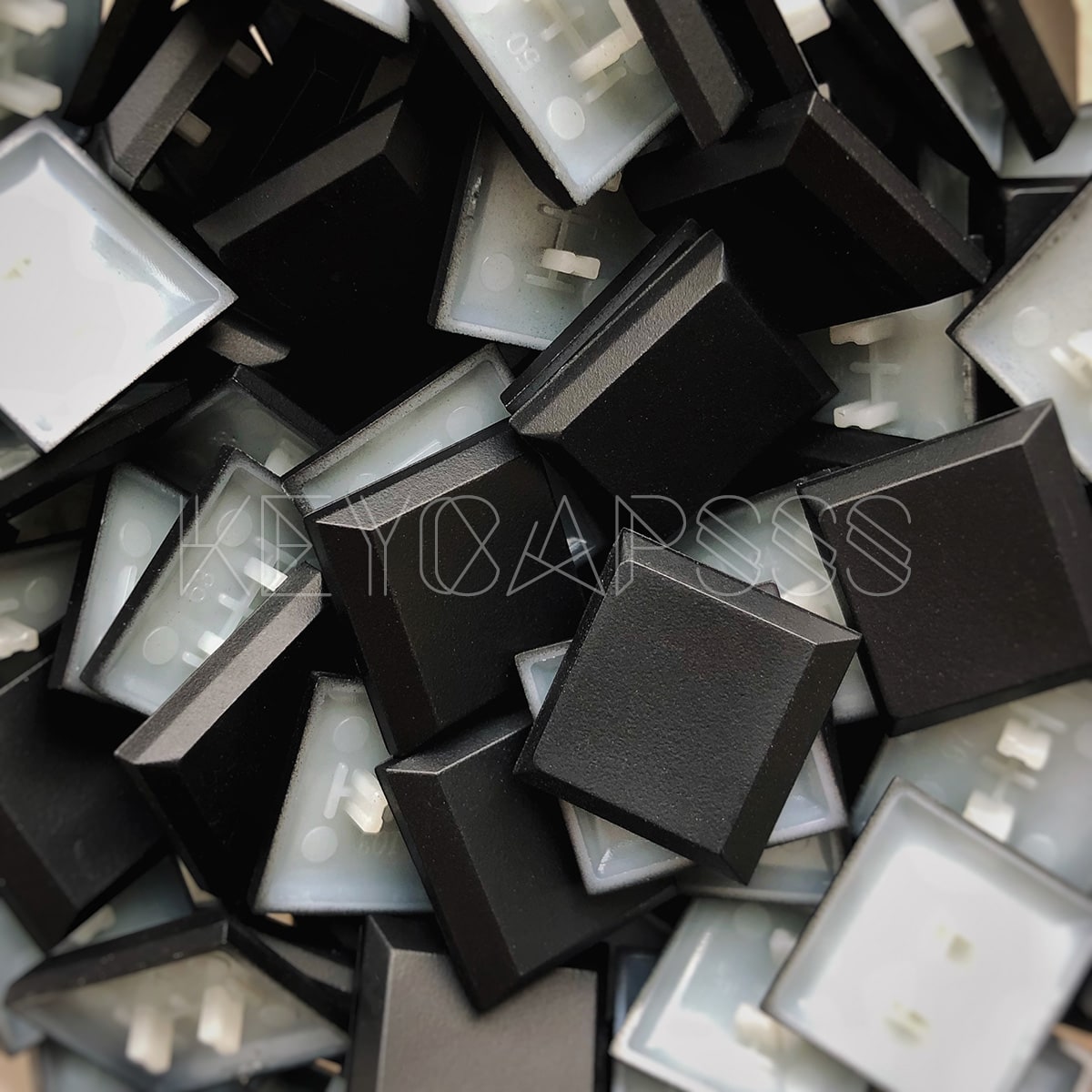

Kailh Low Profile Keycaps Blank for Choc Switches

All of these keycaps are compatible with the Choc switches, but they have different dimensions.Both work if the keyboard has a grid-space of 19mm and 19.05mm (most common).Some keyboards which are specially designed for Choc switches have a smaller grid-space and the clear keycaps will not fit. White/Black 1U W:17.7mm H:16.7mmClear 1U W:17.5mm H:18mm Compatible with Kailh Choc switches The white version is more ivory-coloured

From €1.10*

Pimoroni

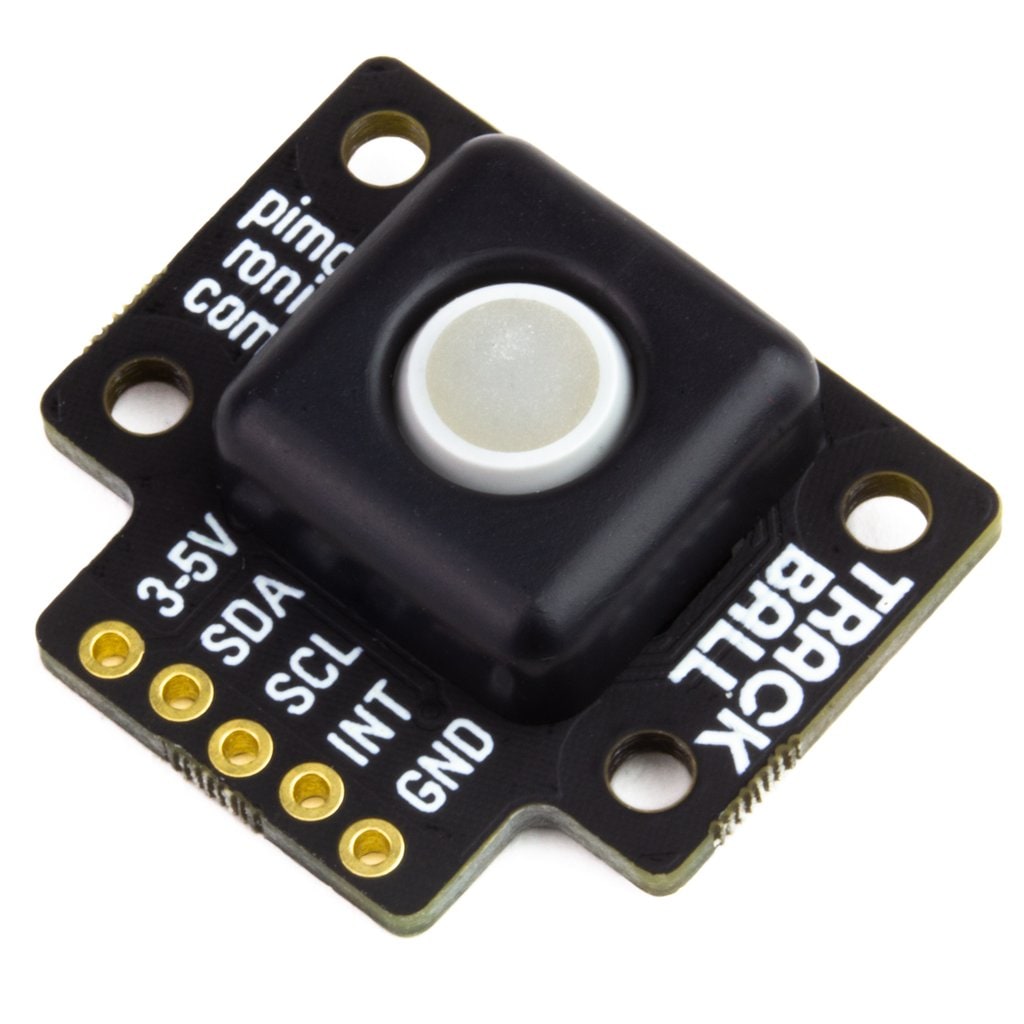

Pimoroni Trackball Breakout I2C

A tiny, RGBW-illuminated, clickable Trackball Breakout that's perfect for adding navigation or control to your Keyboard, Raspberry Pi or Arduino projects. We've taken a trackball module from everyone's favourite fruit-flavoured phone and added a bunch of clever engineering to let you build old-school interaction into your projects. As well as x/y directional tracking and click, we've added an RGBW (red/green/blue/white) LED right under the clear trackball to illuminate it and allow you to add visual feedback.Use Trackball Breakout with an Arduino that supports USB HID to use it as a tiny mouse. Or why not use it as a colour/brightness control for an LED matrix breakout or a set of our Mote lights?Because the trackball has a grippy rubber surface you can also use it with the trackball facing downwards and track it as it rolls on a surface, like a traditional roller ball mouse.It's compatible with our fancy Breakout Garden HAT (and pHAT), where using breakouts is as easy just popping it into one of the six slots and starting to grow your project, create, and code. Features Mini trackball with click button RGBW LEDs beneath trackball for illumination Moulded plastic trackball casing Mounting holes Nuvoton N76E003AQ20 MCU I2C interface (address 0x0A/0x0B (cut trace)) 3.3V or 5V compatible Reverse polarity protection Compatible with all models of Raspberry Pi, and Arduino Python library Kit includes Trackball breakout 1x5 male header 1x5 female right-angle header We've designed this breakout board so that you can solder on the piece of right angle female header and pop it straight onto the bottom left 5 pins on your Raspberry Pi's GPIO header (pins 1, 3, 5, 7, 9). Software We've put together a Python library for Trackball Breakout that makes it simple to read directional values, click events, and set the LED colour. Theres a handful of examples of how to read the direction and click, make the LEDs rainbow, and use it as a mouse in Raspbian. Notes The trackball breakout only works reliably with I2C speeds up to 250kHz due to limitations in the Raspberry Pi's clock-stretching implementation Dimensions: 25x22x9.5mm

€14.90*

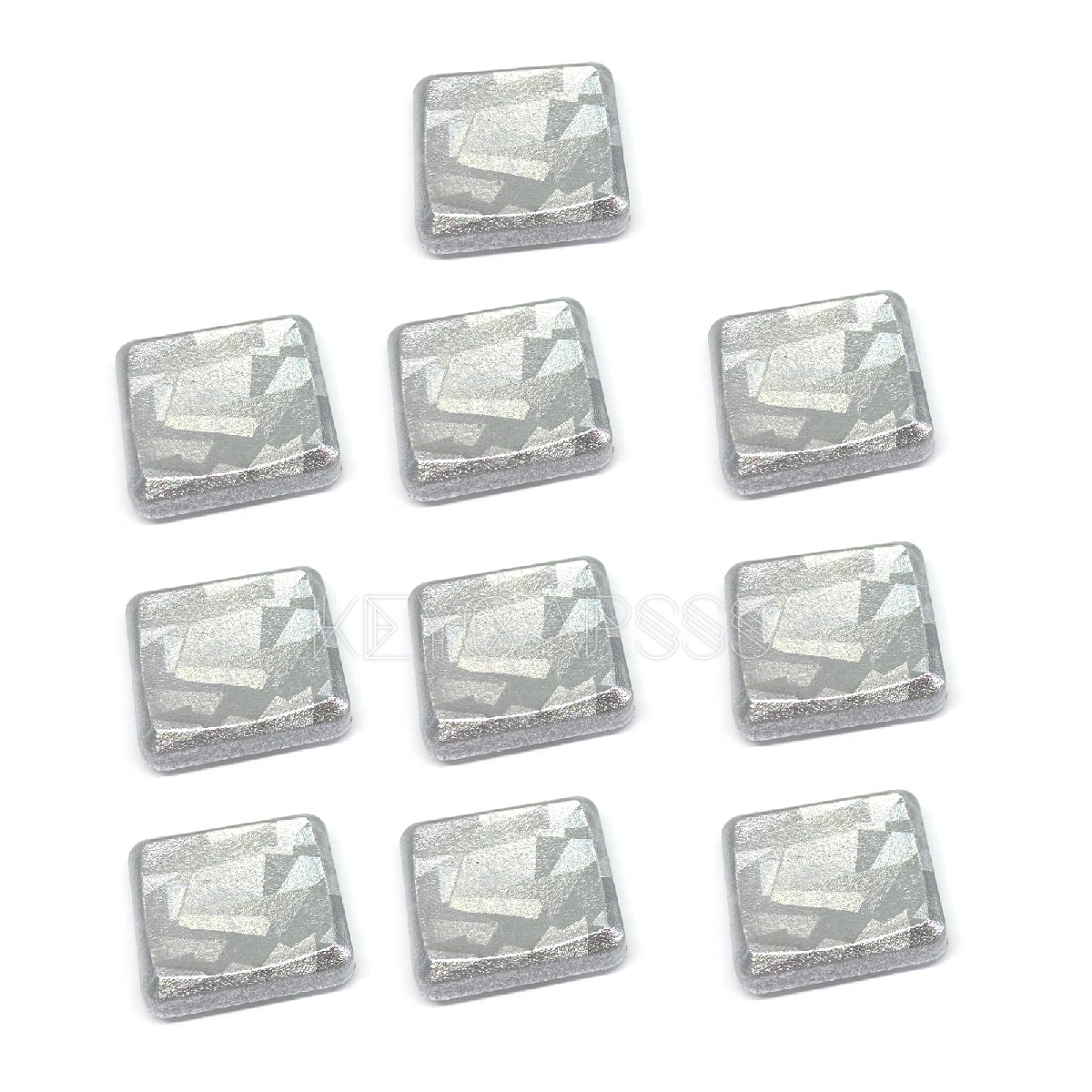

MBK Choc Holo Crystal Keycap

Glossy finish Compatible with Choc V1 switches (not V2)

From €1.90*

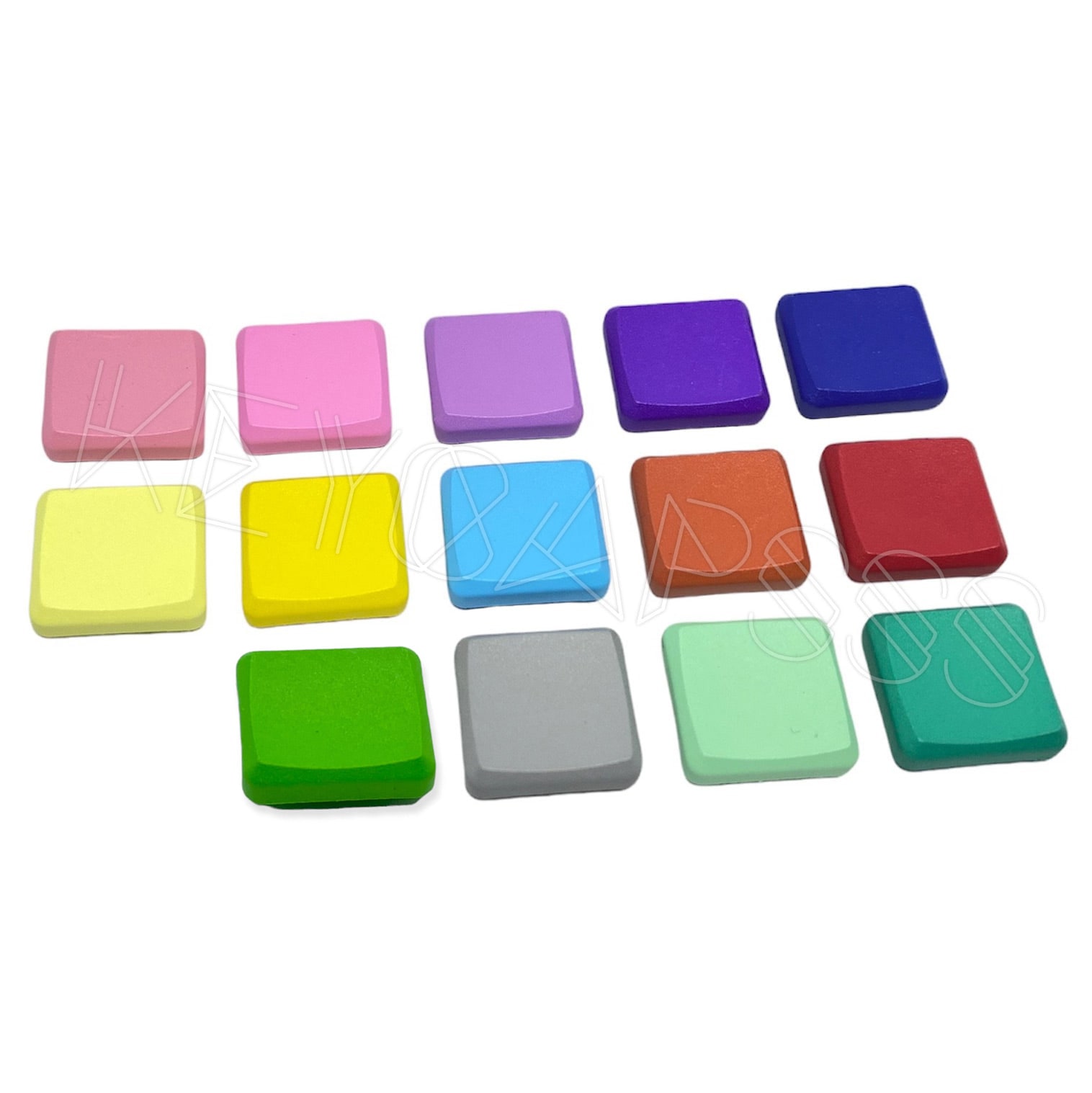

MBK Dye Color Choc Low Profile Keycap

One colored sold in packs of 10 (Quantity 1 = 10 keycaps, same color).Color mixed sold in packs of 14 (Quantity 1 = 15 keycaps, one of each color + crystal variant). Compatible with Choc V1 switches (not V2) Material: PBT Dimensions: 1U 17.5x16.5mm Photos of the completed keyboard are for demonstration purposes only.This product includes only keycaps.

From €6.90*

Kailh

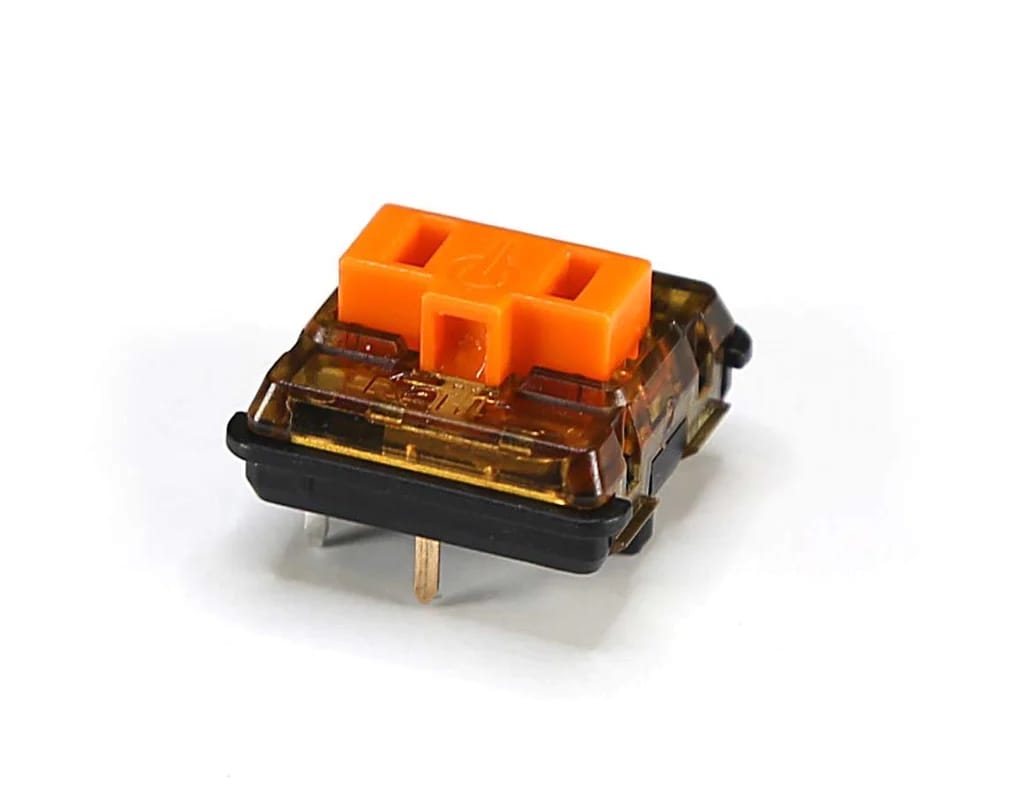

Kailh Low Profile Choc Switches V1
