Discipad Numpad Kit

(1)
Preview: Discipad Numpad Kit Macropad with through hole parts and USB-C Preview: Discipad Numpad Kit Macropad with through hole parts and USB-C Preview: Discipad Numpad Kit Macropad with through hole parts and USB-C Preview: Discipad Numpad Kit Macropad with through hole parts and USB-C Preview: Discipad Numpad Kit Macropad with through hole parts and USB-C
Discipad Numpad Kit Macropad with through hole parts and USB-C
Discipad Numpad Kit Macropad with through hole parts and USB-C
Discipad Numpad Kit Macropad with through hole parts and USB-C
Discipad Numpad Kit Macropad with through hole parts and USB-C
Discipad Numpad Kit Macropad with through hole parts and USB-C

This product is currently not available.
Please check the news board.
Please inform me as soon as the product is available again.
Please enter these characters in the following text field.

€38.00 *

Prices incl. VAT plus shipping costs

This product is currently not available.

  • Order number: KC10087
Description Evaluations 1
Description
The Discipad is a very beginner friendly project that allows to create a useful and feature... more
Close menu
Discipad Numpad Kit

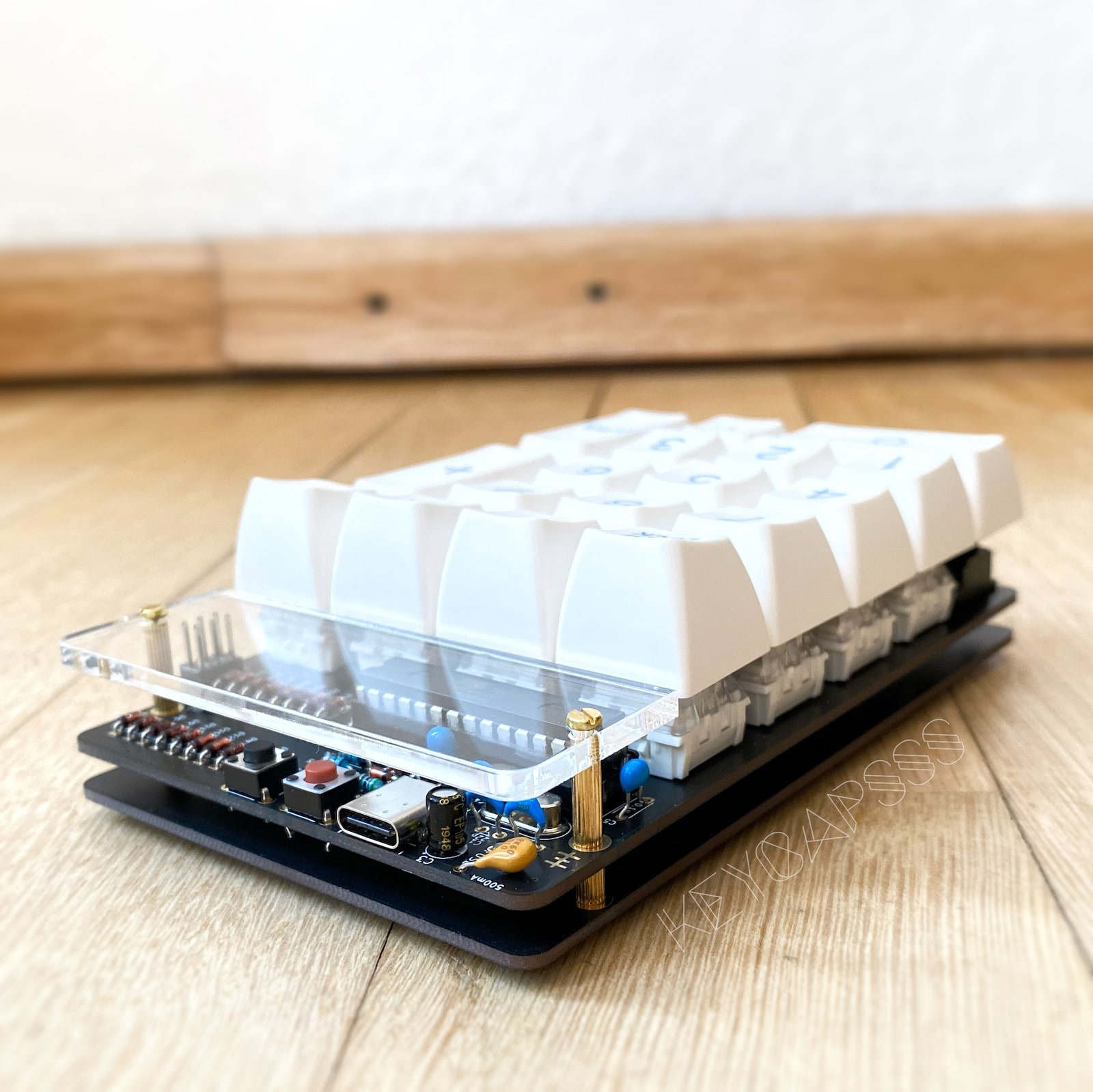

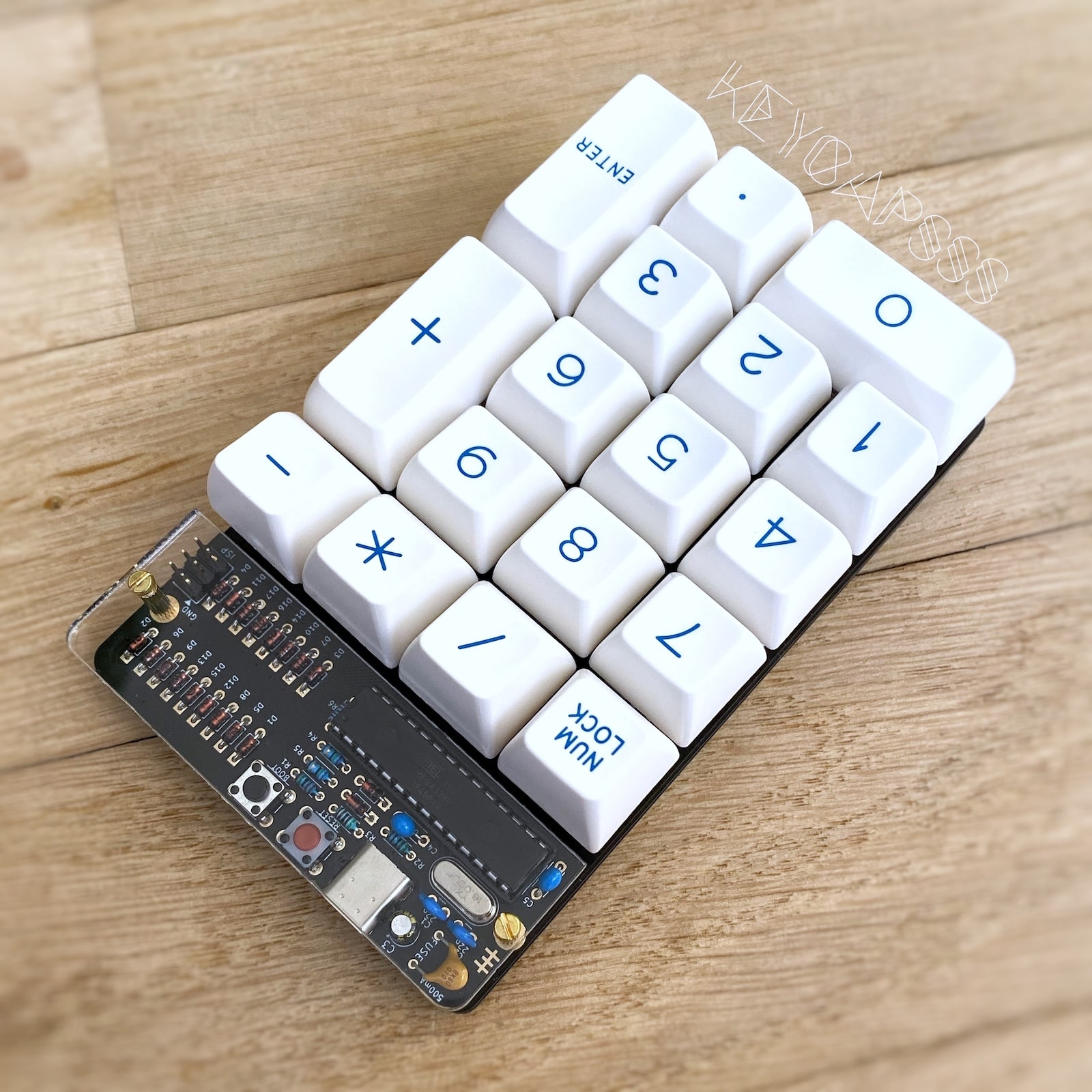

The Discipad is a very beginner friendly project that allows to create a useful and feature complete mechanical keypad. The PCB features an eye-catching exposed array of components on the top, supports up to 17 individual keys and comes with VIA-Firmware preflashed on the microcontroller unit (MCU).

Product features:

  • USB-C connector
  • Easy to solder through-hole parts
  • ATMEGA328P MCU
  • Gold plated pcb
  • Customizable Open Source Firmware (Supported: QMK, VIA, VIAL)

The MCU comes preflashed with VIA firmware which allows for full configuration without needing to programm.

Kit Includes:

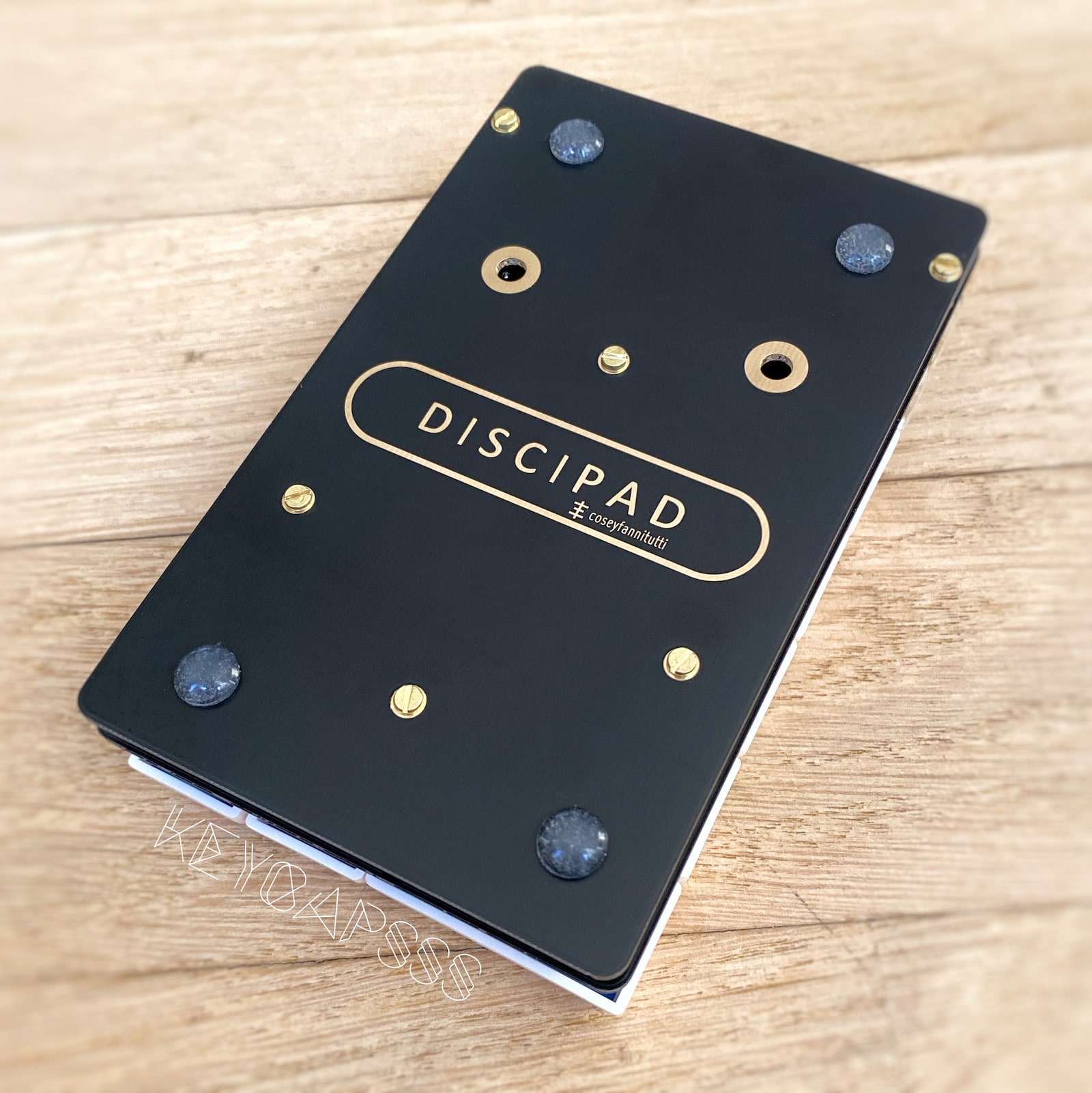

  •  Mid and bottom pcb (black/gold)
  • Top plate to support 3Pin switches
  • 3mm clear acrylic guard plate
  • Solder parts
  • Spacer and screws
  • Pre-flashed Atmega328P (USBaspLoader Bootloader & VIA Firmware)
  • Self adhesive rubber feet

Note: For transport the acryl guard plate has a bluish protection film applied, which should be removed before assembly.

You need:

  • 17x MX switches (3 or 5 pin) no Choc V2
  • Keycaps (MX)
  • USB-C cable
  • T6 Torx screwdriver
  • Soldering equipment

 Important: The USB-C can be difficult to solder properly without using flux. If you want me to do it for you add the USB-C Soldering Service

You optionally need:

Guides

Download Links

Photos of the completed kit are for demonstration purposes only. Please note that this kit must be assembled (soldering) and does not include switches or keycaps.
Discipad design by Coseyfannitutti

Safety information

EU responsible person: Keycapsss | Benjamin Rösner, Löhrstr. 11, 04105 Leipzig, Germany
Contact: Keycapsss.com

Evaluations 1
Read, write and discuss reviews... more
Close menu
Customer evaluation for "Discipad Numpad Kit"
From: On: 16 Nov 2020

Perfect Companion to my Disciplines

Love it. Its a great little build and the perfect companion for the Discipline. Its pre flashed and works well with VIA. Delivery was also fast as always, theres nothing to complain about.

Write an evaluation
Evaluations will be activated after verification.

The fields marked with * are required.

Accessories 5 Customers also bought
Accessories 5
Sold Out

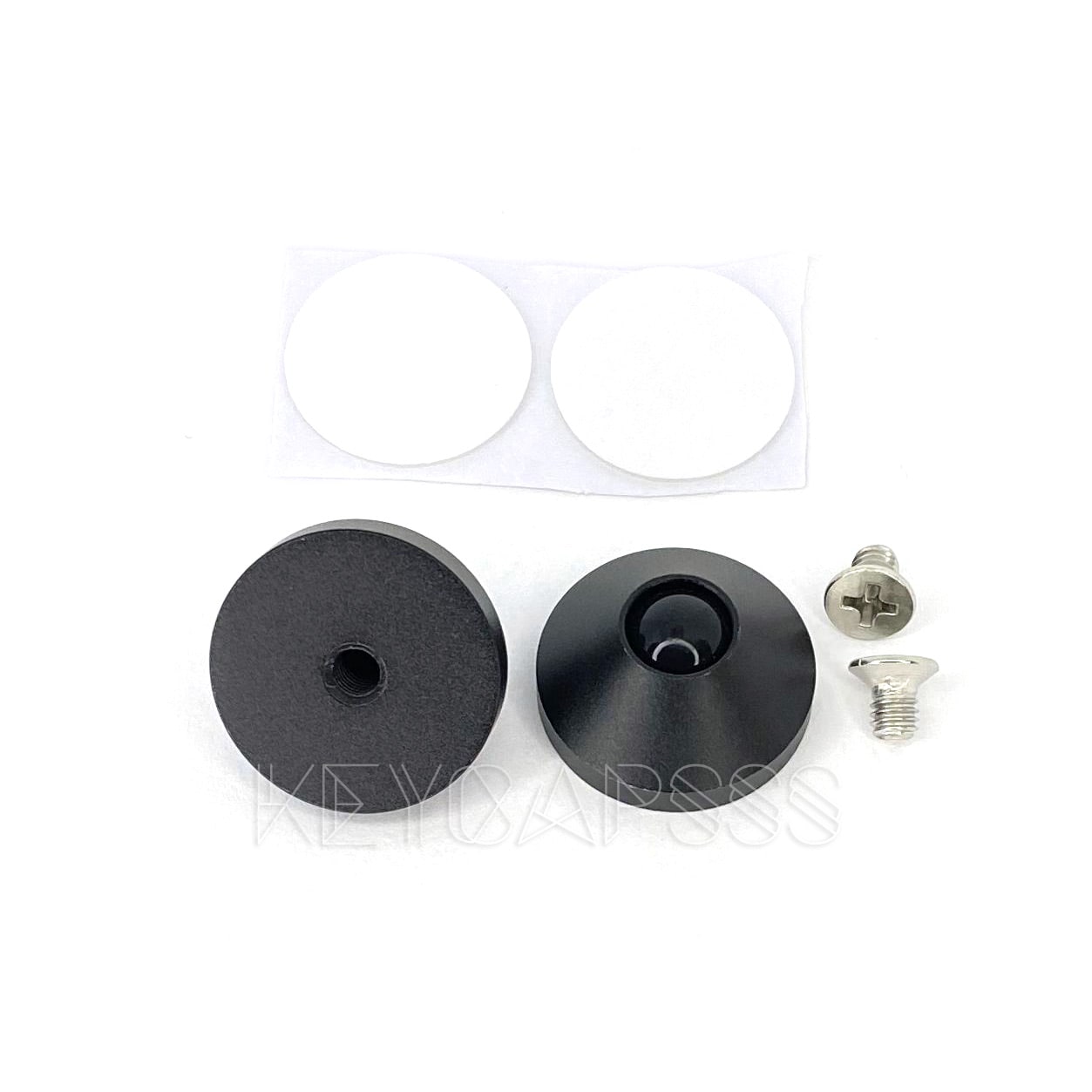

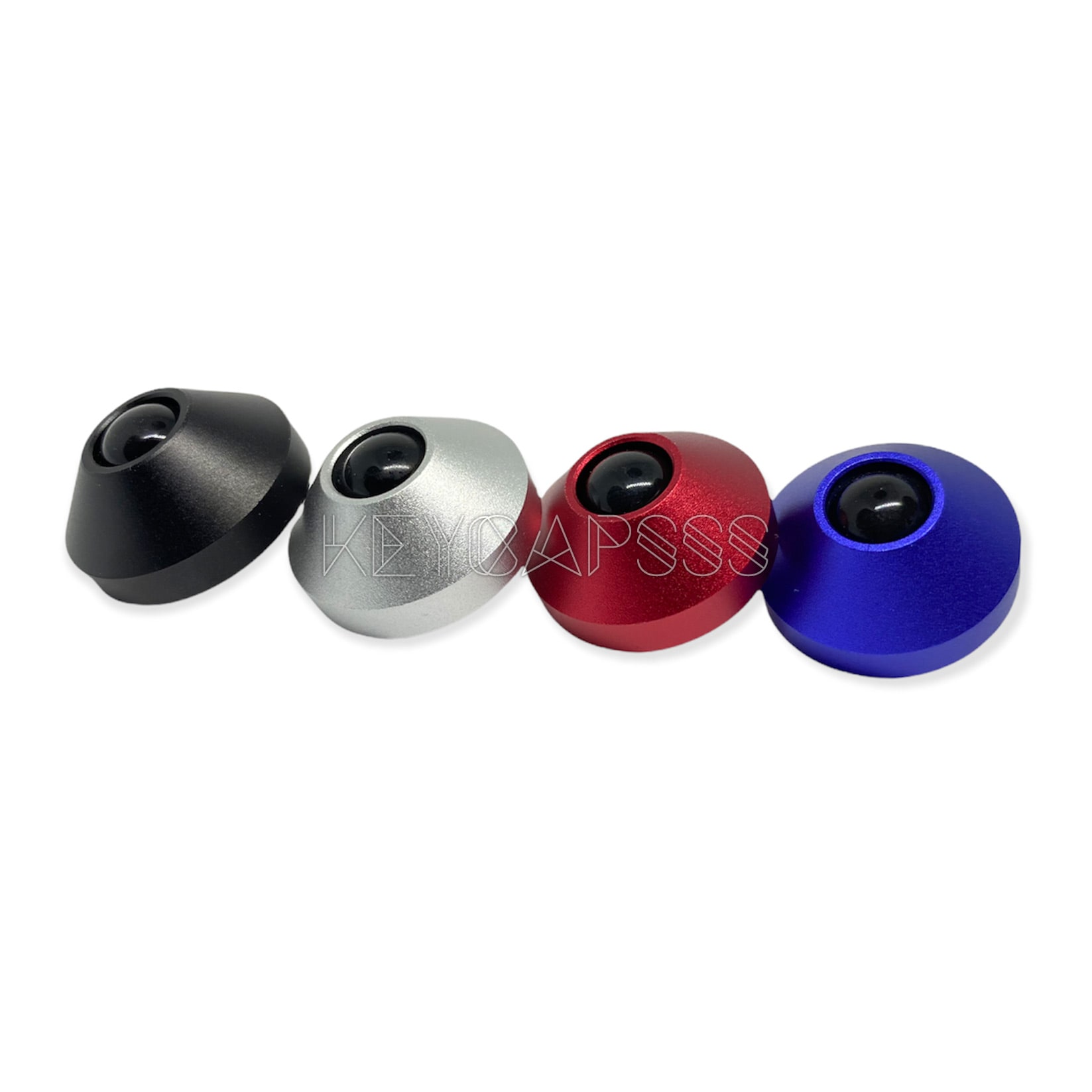

Anodized CNC Aluminum Cone Feet for Mechanical Keyboards Black, Silver, Red, Blue Anodized CNC Aluminum Cone Feet
