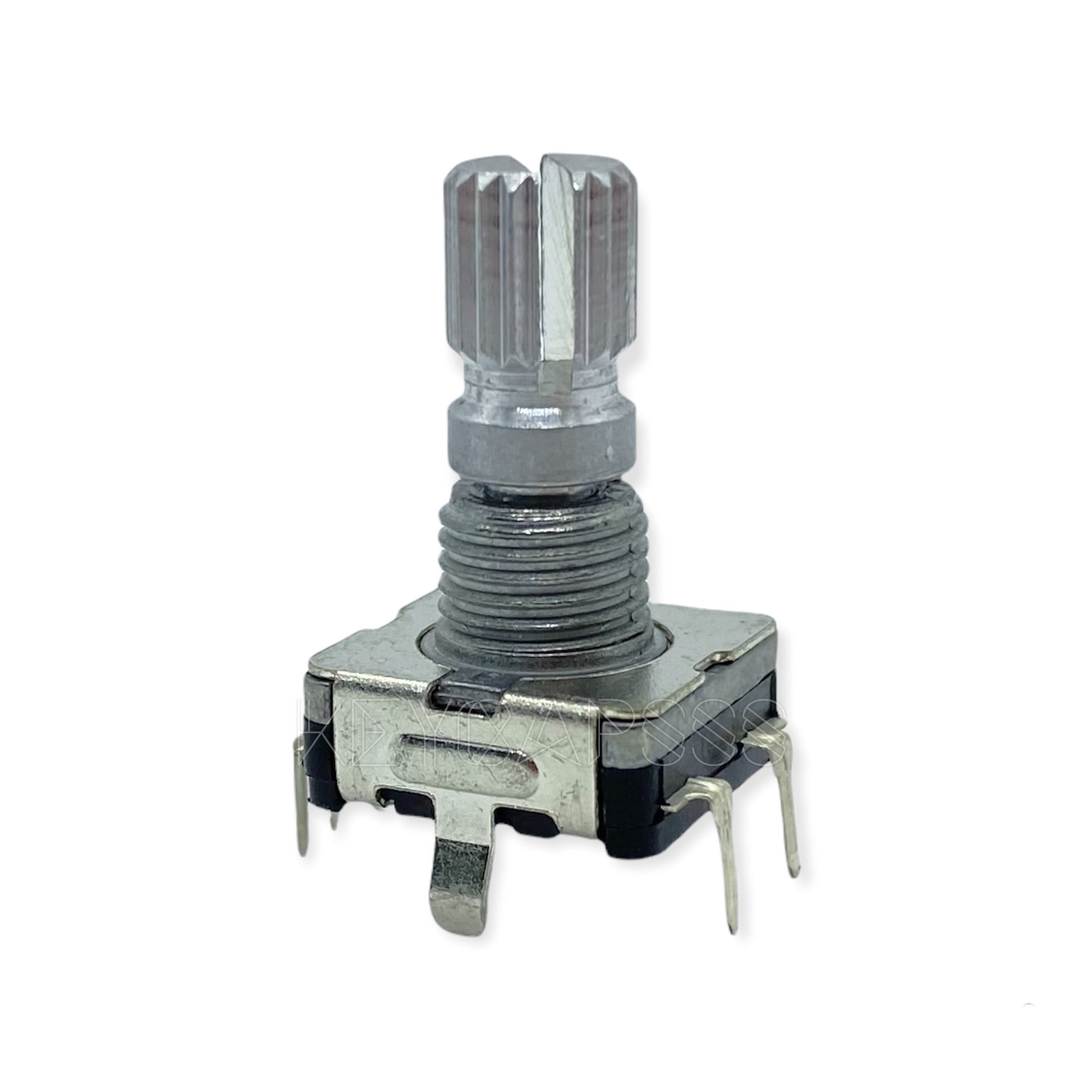

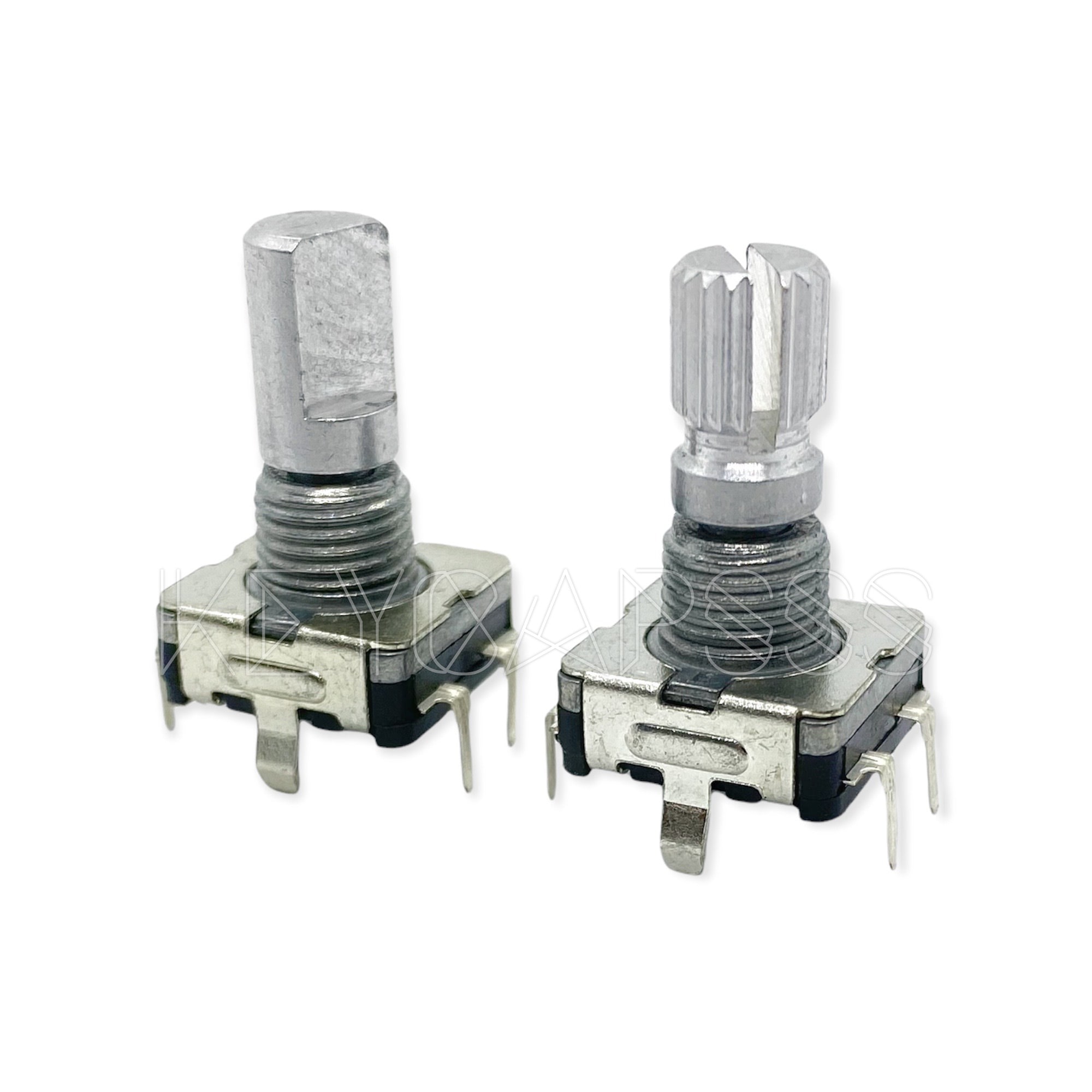

Rotary Encoder with switch EC11
€2.90
Description
- Brand: Bourns (PEC11L)
- Rotary encoder with switch function (on press down)

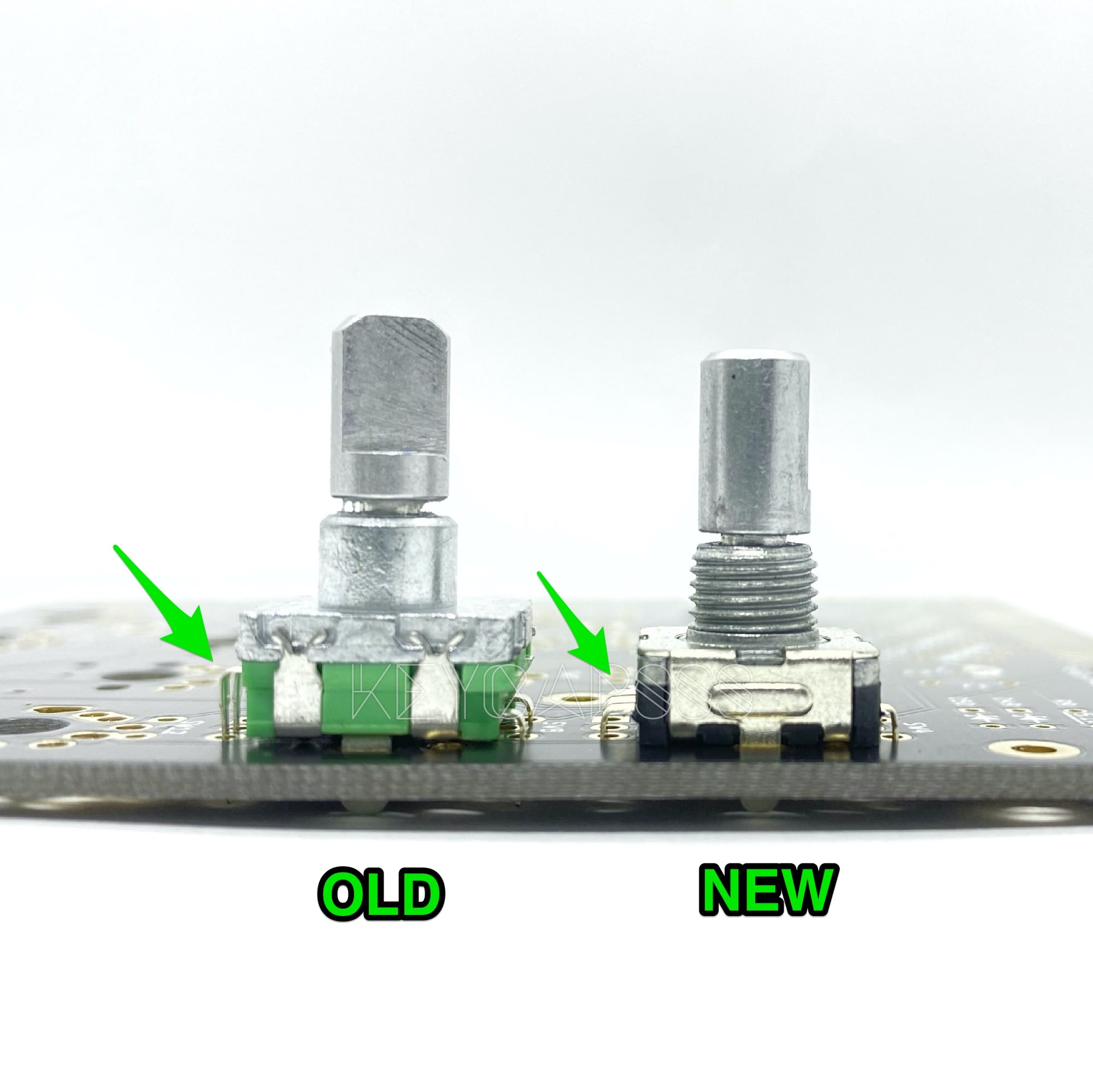

- Compact, low profile, metal bushing/shaft
- Shaft diameter = 6mm
- Detents on the encoder: tactile feedback as you turn the knob
- Encoder shape fit in a top plate switch cutout

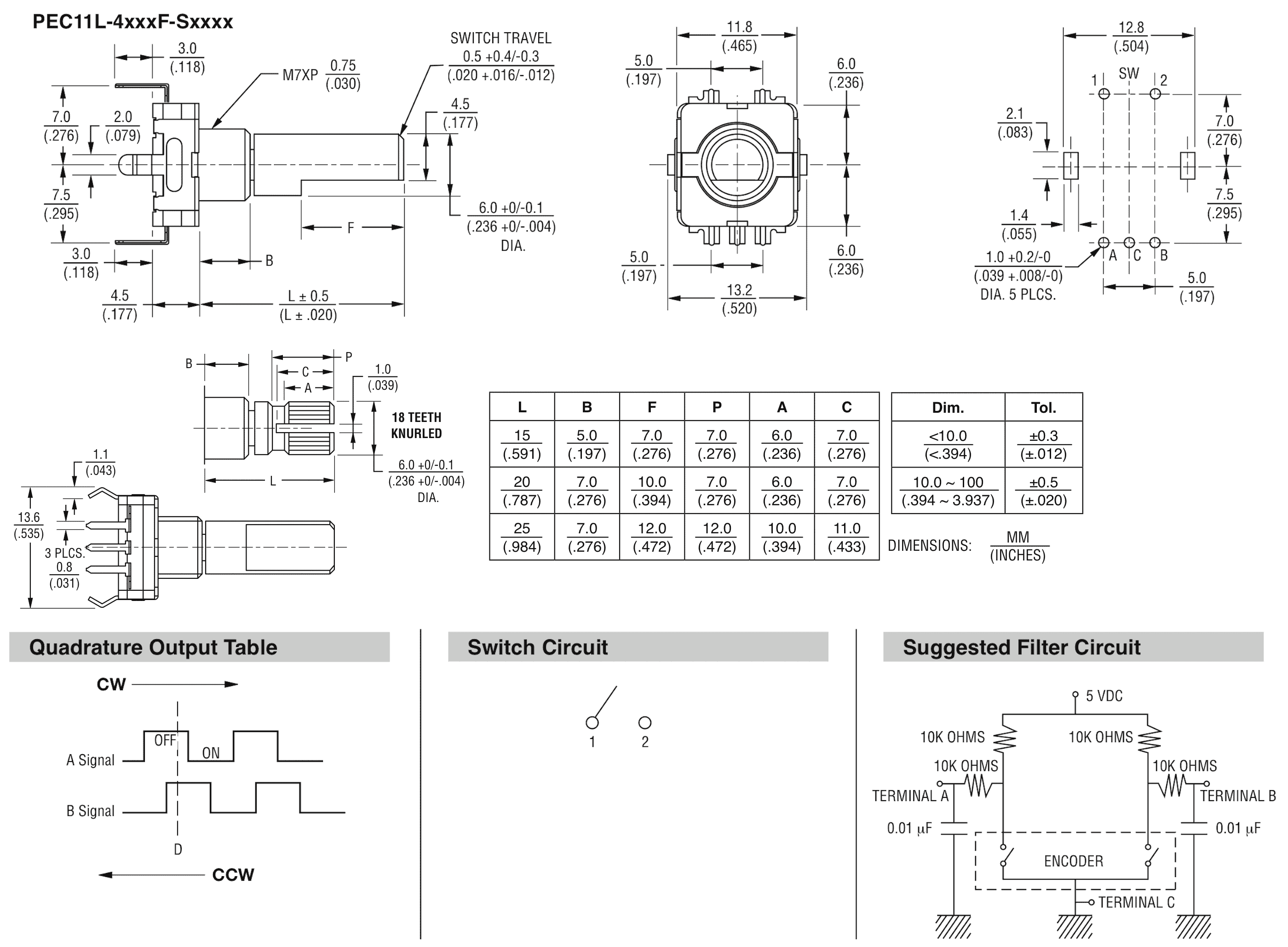

Technical data
- Shaft length: 15mm
- Shaft diameter: 6mm
- Detent: 20
- Pulses per 360° Rotation: 20
Reviews 0
Login
Safety information
EU responsible person: Keycapsss | Benjamin Rösner, Löhrstr. 11, 04105 Leipzig, Germany
Contact: Keycapsss.com
Accessory Items

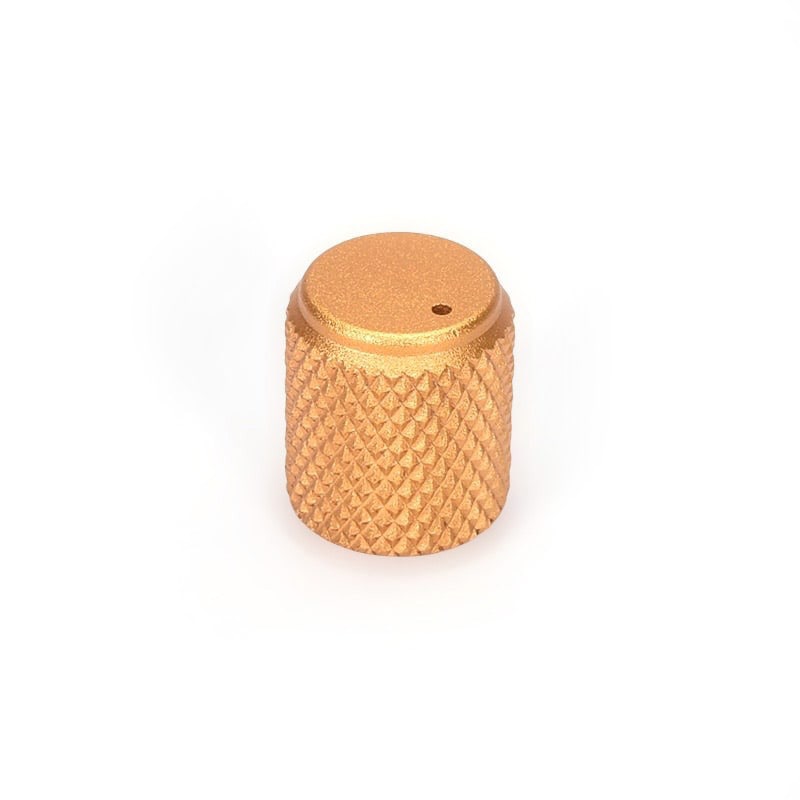

Material: Aluminum Inner Hole Diameter: 6mm (0.24in) Size: Dia:12.5mm H:15mm (0.492in x 0,59in)

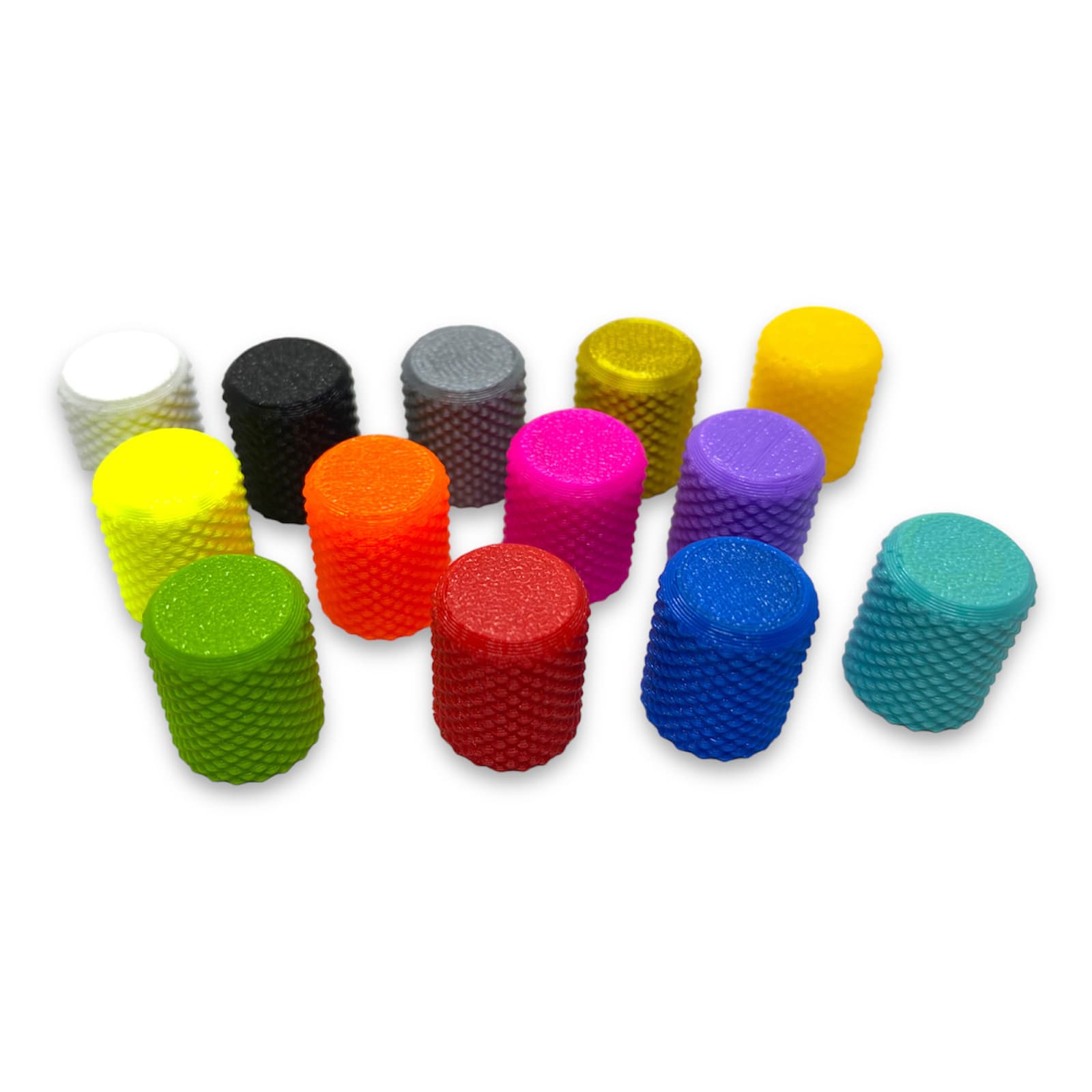

These knobs are compatible with 6mm Flatted Shaft rotary encoder. Material: PLA Inner Hole Diameter: 6mm (0.24in) Size: Dia:13mm H:16mm (0.51 x 0.63in)
Outer Material: Aluminum Inner Hole Diameter: 6mm (0.24in) Outer Diameter: 15mm / Height: 16mm
Similar Items

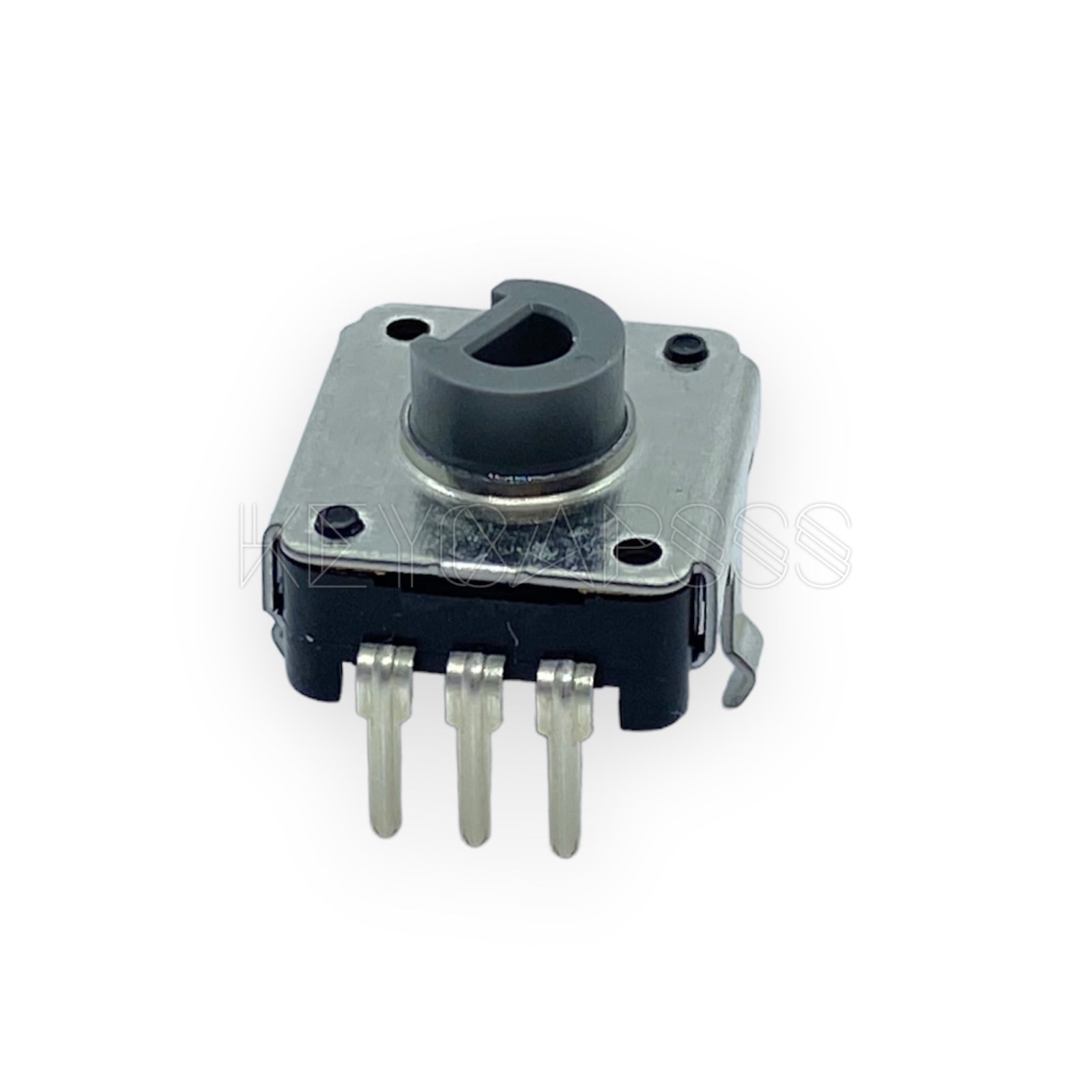

Datasheet Manufacturer: Alps Alpine Series: EC12 (EC12E1220301) Mounting Style: PCB Mount Resolution: 12 PPR Number of Detents: 12 Detent Output Type: Quadrature Shaft Diameter: 6 mm Shaft Type: Flatted With Switch: Without Switch Operating Supply Voltage: 5 VDC Life:30000 Cycles Brand: Alps Alpine Maximum Operating Temperature:+ 70 C Minimum Operating Temperature:- 10 C Shaft Length: 8.5mm Unit Weight: 1,780g 3D printable knobs https://github.com/rmwphd/ec12-knob https://github.com/GEIGEIGEIST/KLOTZ/tree/main/knob
