GlidePoint Cirque Trackpad TM040040 TM035035
€8.90*
€7.48 excl. sales tax
Product information "GlidePoint Cirque Trackpad TM040040 TM035035"
To use this trackpad with I2C instead of SPI communication, you have to desolder 2 resistors.
Please reade the Guide for more information about it.

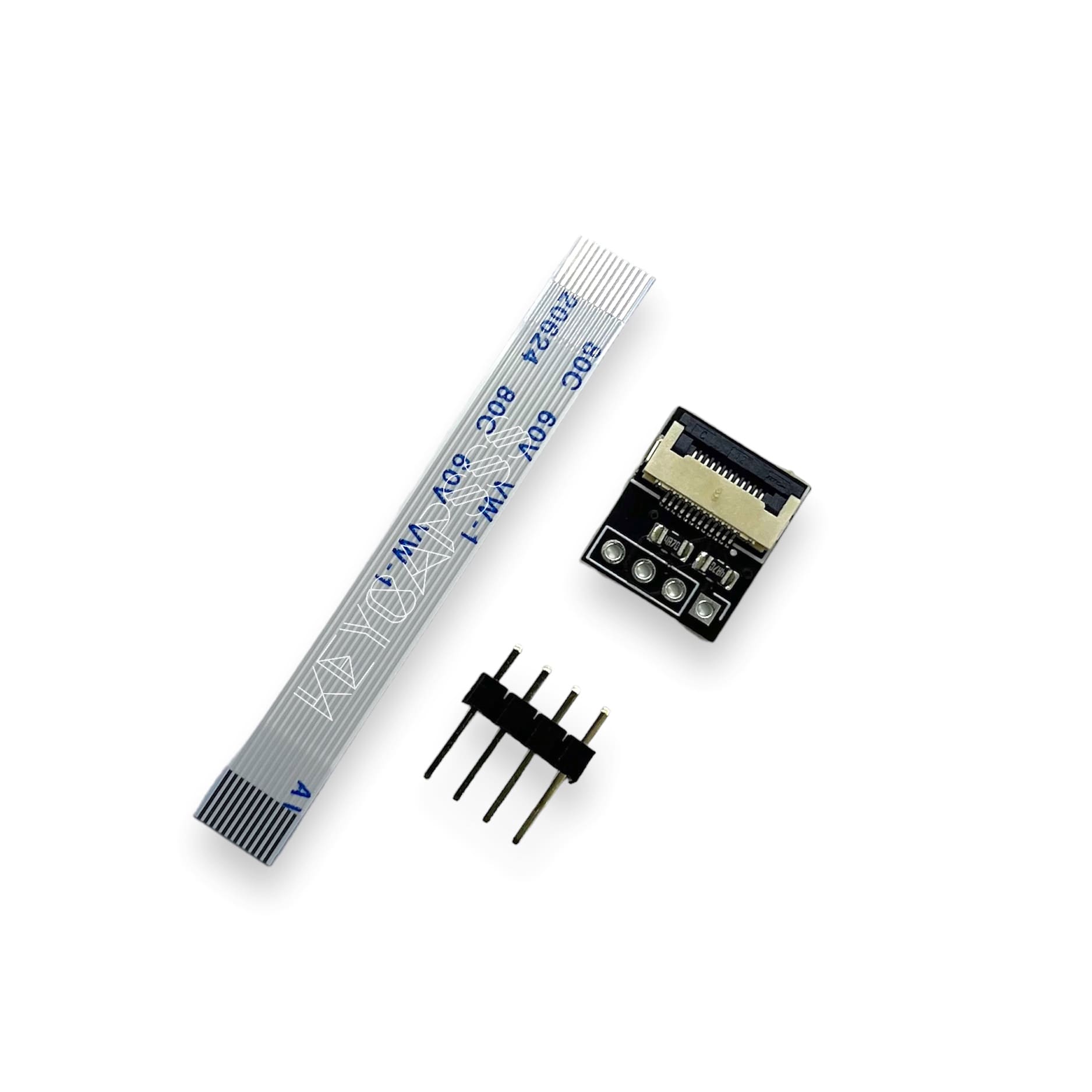

Includes
- Trackpad
- FFC / FPC cable 50mm long
- I2C adapter PCB
- 4-pin header
General Specifications | |
|---|---|
| Touch Controller IC | Touch Controller IC Cirque Custom SoC Gen2 "Pinnacle" 1CA027 (p/n: 10-020040-000) |
| Interface | SPI or I2C with 12-pin FFC connector (0.5 pitch) |
| Power Supply | 2.5 - 3.6V |
| Power Consumption | Active: 2.9 mA Idle: 1.7 mA Sleep: 40 µA Shutdown: 0.23 µA |
| X/Y Position Sensing Resolution | X Axis: Max 0-2048 Active: 128-1920 Y Axis: Max: 0-1536 Active: 64-1472 ("Active" based on sensor active area) |
| Physical Parameters | Diameter: 40.00 mm / 35.00 mm Circumference: 125.6 mm Thickness: 5.61 mm with all components |
| Operating Temperature | -40 to 85° C |
| Operating Humidity | 5% to 95% relative humidity (non-condensing) |
| Storage Temperature | -40 to 125° C |
| ESD | 15 kV when properly mounted in bezel |
| Environmental | EMI tolerant and manufactured RoHS compliant |
- Code examples
- QMK documentation for the GlidePoint
- TM035035 (35mm version) datasheet
- TM040040 (40mm version) datasheet
- 3d printable holder for kimiko, corne, kyria and sofle
- 3d printable holder (TM40040 Flat) for corne
- TM040040 Curved Overlay Mechanical Drawing (PDF)
- TM040040 Curved Overlay 3D Design (STEP)
- TM035035 Curved Overlay Mechanical Drawing (PDF)
- TM035035 Curved Overlay 3D Design (IGS)
The FPC-I2C adapter PCB is open source (made by keyboard-magpie).
GlidePoint is a trademark of Cirque Corporation.
